User Manual for ATN LaserBallistics 1500 Digital Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the ATN LaserBallistics 1500 Digital Laser Rangefinder
- Product category: Laser Rangefinders ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Laser Rangefinders
 |
User manual for the ATN LaserBallistics 1500 Digital Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|

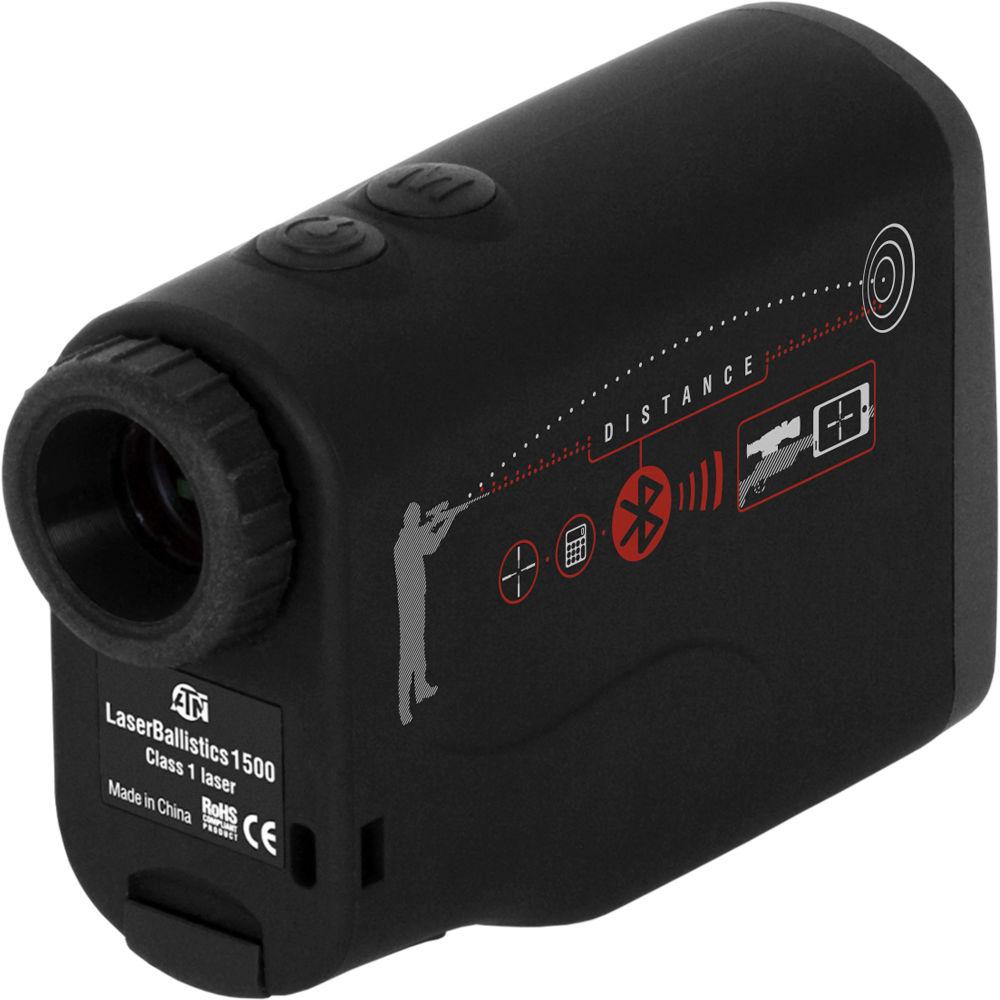

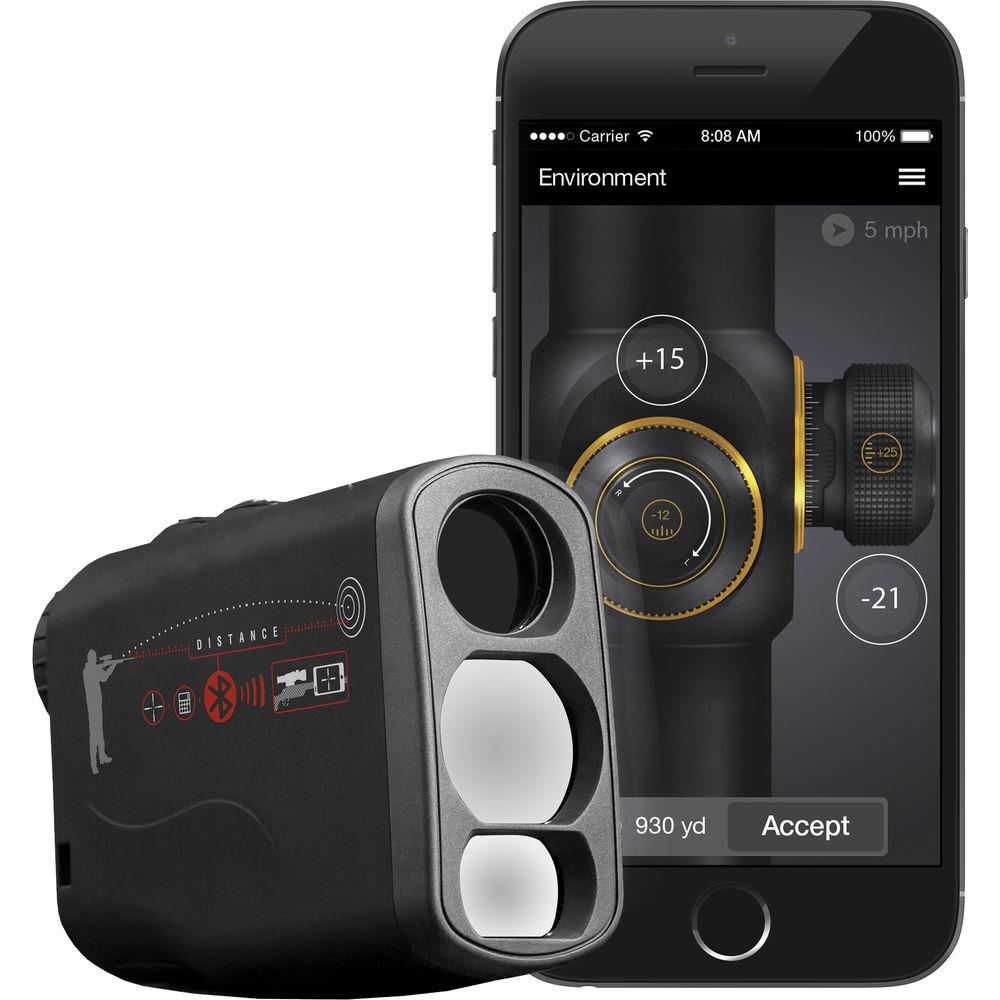

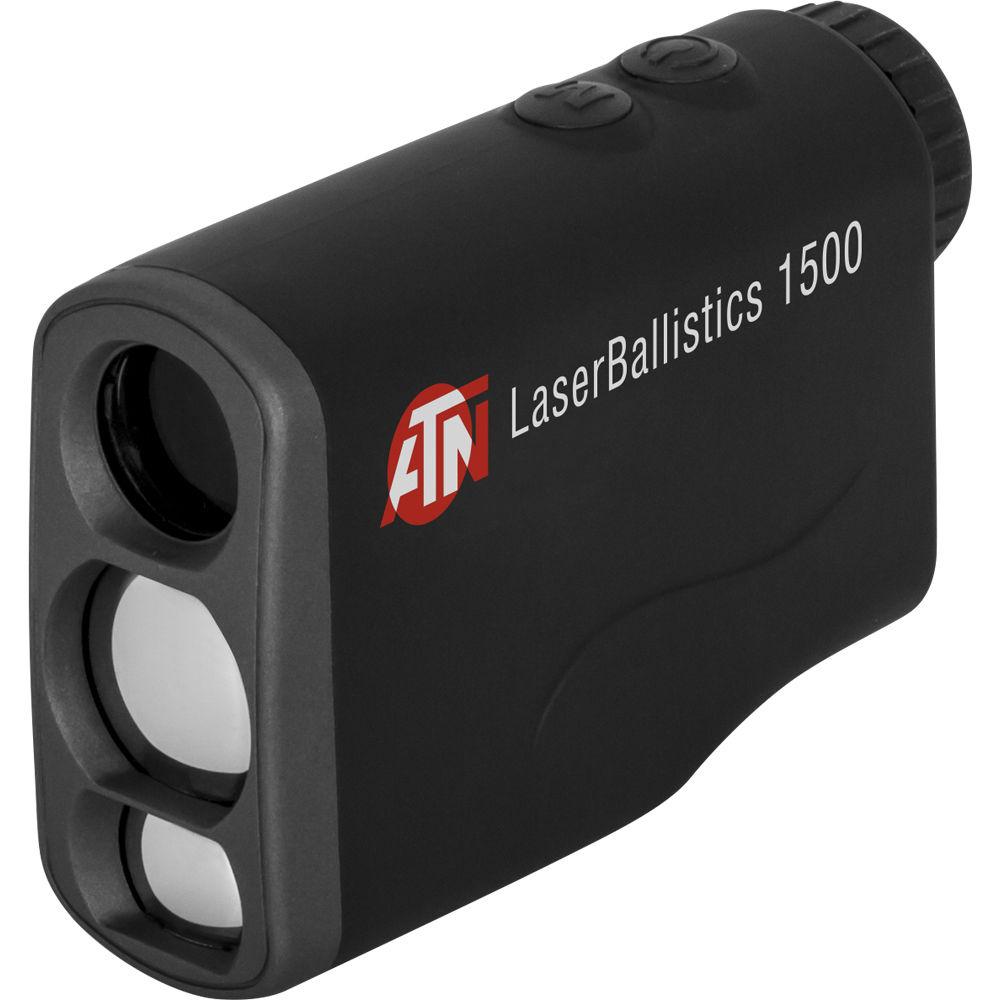

Product description Leave the calculations to your smartphone — ATN's LaserBallistics 1500 Digital Laser Rangefinder uses Bluetooth to display the required windage and elevation adjustments for a given shot on your device. If you're using an ATN Smart HD riflescope (second generation or better), it's even easier: the rangefinder sends point-of-impact corrections directly to the scope, and your reticle adjusts accordingly. You don't even have to touch your turrets. The rangefinder utilizes the easy connectivity of Bluetooth 4.1 to seamlessly interface with Smart HD riflescopes or Android/iOS smartphones running ATN's free Ballistic app. Outfitted with a powerful Class 1 IR laser, it will meter distances from 5.5-1640 yards (5-1500 meters) and employs an integrated inclinometer to measure the relative upward or downward angle from the user to the target.This information is displayed in-view for easy reference, or sent to the riflescope and app to help determine proper holdover and turret adjustments. Integration with the riflescope means that the projected aiming reticle will move to the proper placement so no changes to the turrets need to be made, while the app will show the number of clicks the user needs to make to the turrets to get them on-target. - Optical Performance
-
- 6x magnification
- 21mm objective lens
- Compact roof prism optical path
- 378' field of view at 1000 yards
- 7.2° angle of view
- Rangefinder
-
- Class 1 eye-safe IR laser
- Integrated inclinometer measures relative upward or downward angle to target
- 5.5-1640 yard (5-1500m) metering range
- ±1yd/m accuracy
- Standard and Fog modes: Standard mode, use under normal weather and conditions; Fog mode, advanced algorithms help to filter interference from fog
- Seamless interface with ATN's Smart HD riflescope adjusts reticle placement for improved accuracy
- Free smartphone app provides turret adjustments in Mil or MOA
- Bluetooth Connectivity
-
- Interfaces with Smart HD riflescope (2nd gen or higher) to combine range and angle from rangefinder, and ballistic information from scope, to provide adjusted range information for more accurate shots
- When used with Smart HD riflescope, the reticle placement moves automatically for faster shooting without touching turrets
- Free ATN Ballistic app available for Android and iOS devices
- Interfaces with app to provide the correct turret adjustments needed when using a conventional scope
- Multiple caliber profiles can be saved in the app for different rifles and loads
- Allows user-input of environmental conditions that can affect a bullet trajectory including wind speed and direction, humidity, temperature, barometric pressure, and altitude
- Use and Handling
-
- Integrated Bluetooth 4.1 for Smart HD Scope, or smartphone connectivity
- Displays distance in yards or meters — user selectable
- Intuitive 2-button user interface
- Low-battery indicator
- Long 16mm eye relief
- Comfortable 3.5mm exit pupil
- Construction Details
-
- Slip-resistant rubber armoring
- O-ring sealed to be waterproof
- Sealed battery compartment to maintain waterproof rating
- Runs on one included CR2 battery
- Weight 5.4 ounces
UPC: 658175114536 In the Box ATN LaserBallistics 1500 Digital Laser Rangefinder CR2 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN LaserBallistics 1500 Digital Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN LBLRF1500B Specs | Prism Type | Roof | | Magnification | 6x | | Objective Lens Diameter | 21 mm | | Angle of View | 7.2°, actual | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Laser Type | Class 1 eye-safe IR | | Metering Range | 16.0 - 1640.0 yd / 5.0 - 1500.0 m | | Accuracy | ±1 yd/m | | Exit Pupil Diameter | 3.5 mm | | Eye Relief | 16.0 mm | | Weatherproofing | Waterproof | | Tripod Socket | None | | Power Source | 1 x CR2 battery | | Dimensions | 4.2 x 2.9 x 1.4" / 10.6 x 7.3 x 3.5 mm | | Weight | 5.4 oz / 152.0 g | | | | Package Weight | 0.68 lb | | Box Dimensions (LxWxH) | 5.75 x 4.7 x 3.2" |
