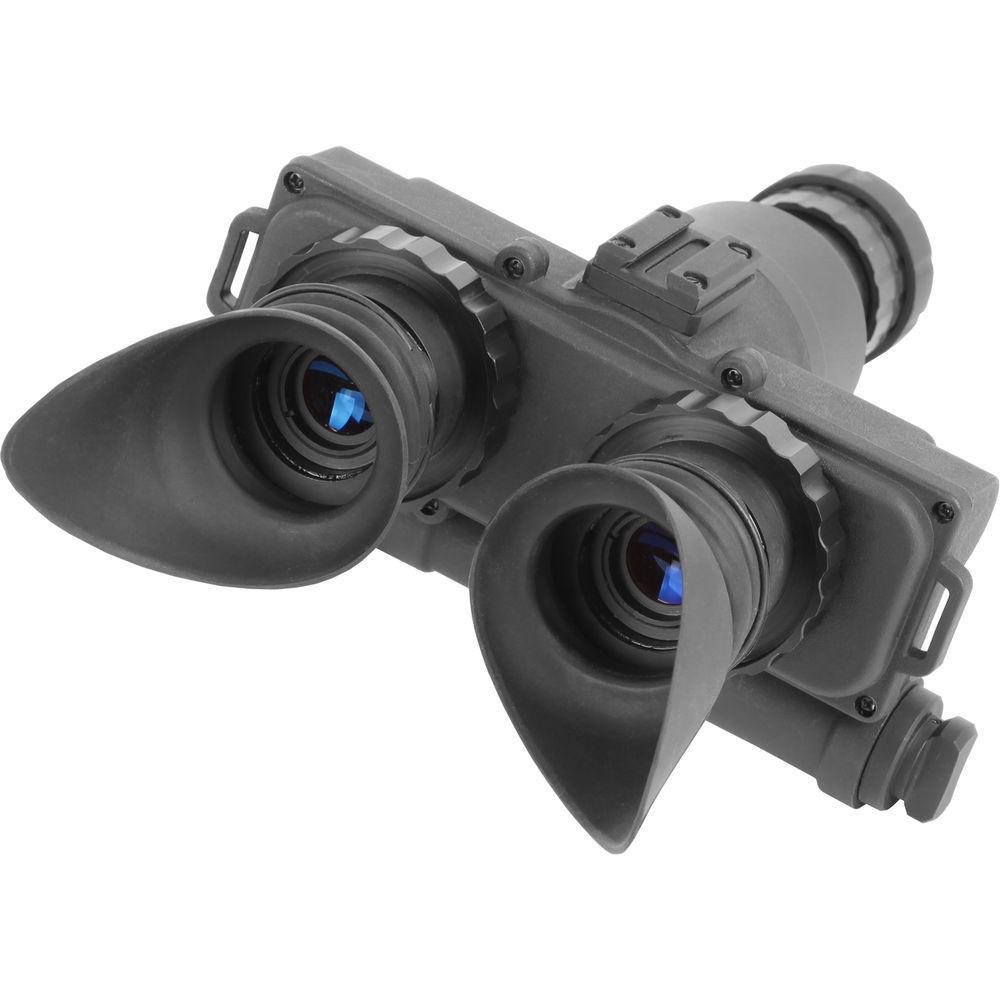

User Manual for ATN NVG7-WPT 3rd Gen Night Vision Biocular Click to enlarge the picture
Contents of the user manual for the ATN NVG7-WPT 3rd Gen Night Vision
- Product category: Night Vision Bi-Oculars ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Night Vision Bi-Oculars
 |
User manual for the ATN NVG7-WPT 3rd Gen Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|

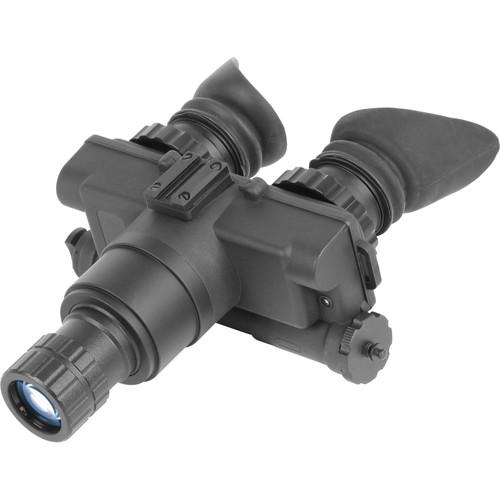

Product description Set out in the field with the ATN NVG7-WPT Gen 3 White Phosphor Night Vision Biocular. This 3rd generation night vision binocular allows you to see the night landscape hands-free by attaching to the included flip-up headgear and generates black and white images, thanks to white phosphor screen technology. The biocular configuration allows you the comfort of looking with both eyes while the f/1.2, 26mm multi-coated all-glass lens system provides a short close focus distance (9.8") and a wide 40° angular field of view. To preserve the intensifier tube from harmful bright light exposure, the device features a bright light cutoff function, and to adjust image brightness it has an automatic brightness control. Another highlight is a built-in illuminator for casting extra infrared light on your targets in total darkness.
To enable you to venture almost anywhere, this NVD is outfitted with a water-resistant polymer body that is designed to withstand extreme temperatures. For ease of adjustment and non-slip operation in any weather, all the rings and adjusters are heavily knurled and to ensure comfortable contact with your face. To prevent leakage of light from the eyepieces, the oculars have extra-wide rubber winged eyecups. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Night Vision Sensor & IR Illuminator
-
- 3rd generation tube
- 64 lp/mm resolution
- White phosphor screen creates black and white images
- Bright light cutoff
- Built-in wide-angle IR illuminator
- Automatic brightness control
- Optical Performance
-
- 1x magnification

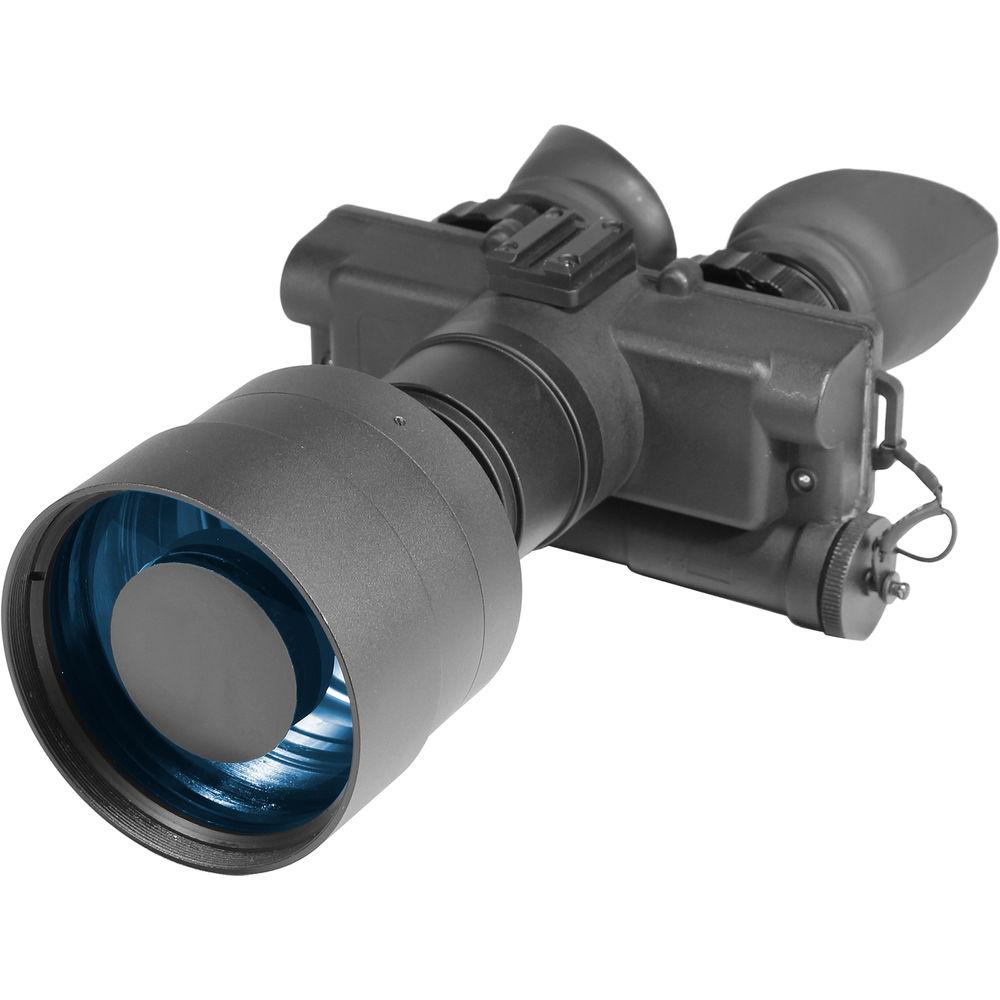

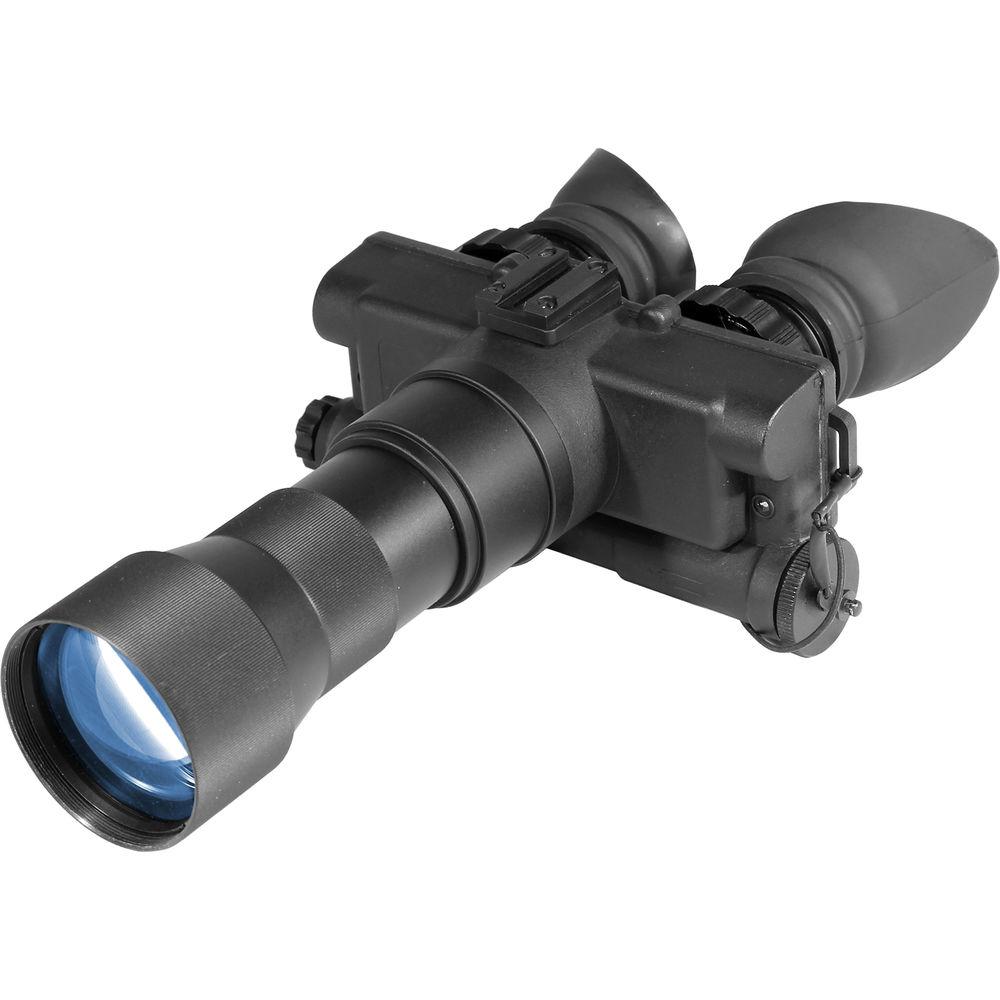

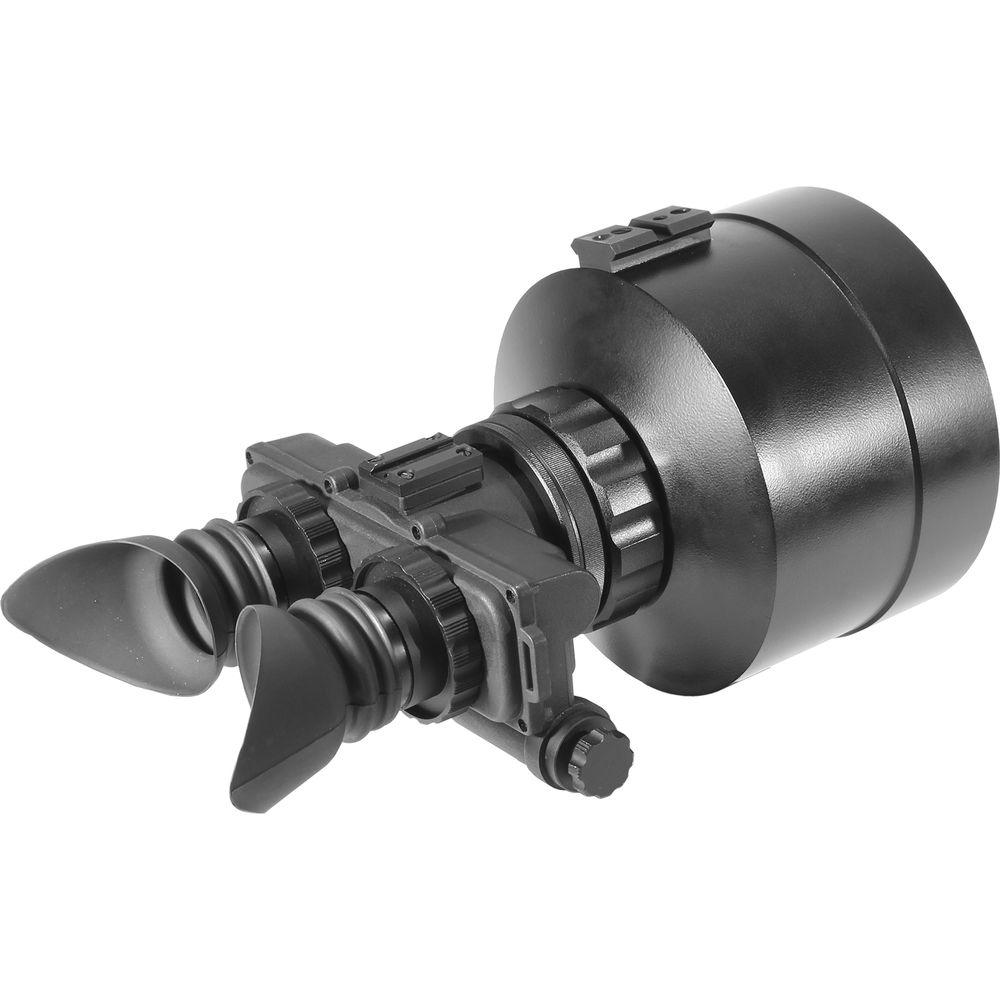

- Compatible with optional 3x, 5x and 8x lenses
- All-glass optics with polished lens multi-coating
- Biocular viewing allows using both eyes
- 40° wide angle of view
- f/1.2, 26mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +2 to -6 diopter correction
- Built-in IR and low battery indicators
- Center focusing ring on the objective
- Adjustable interpupillary distance

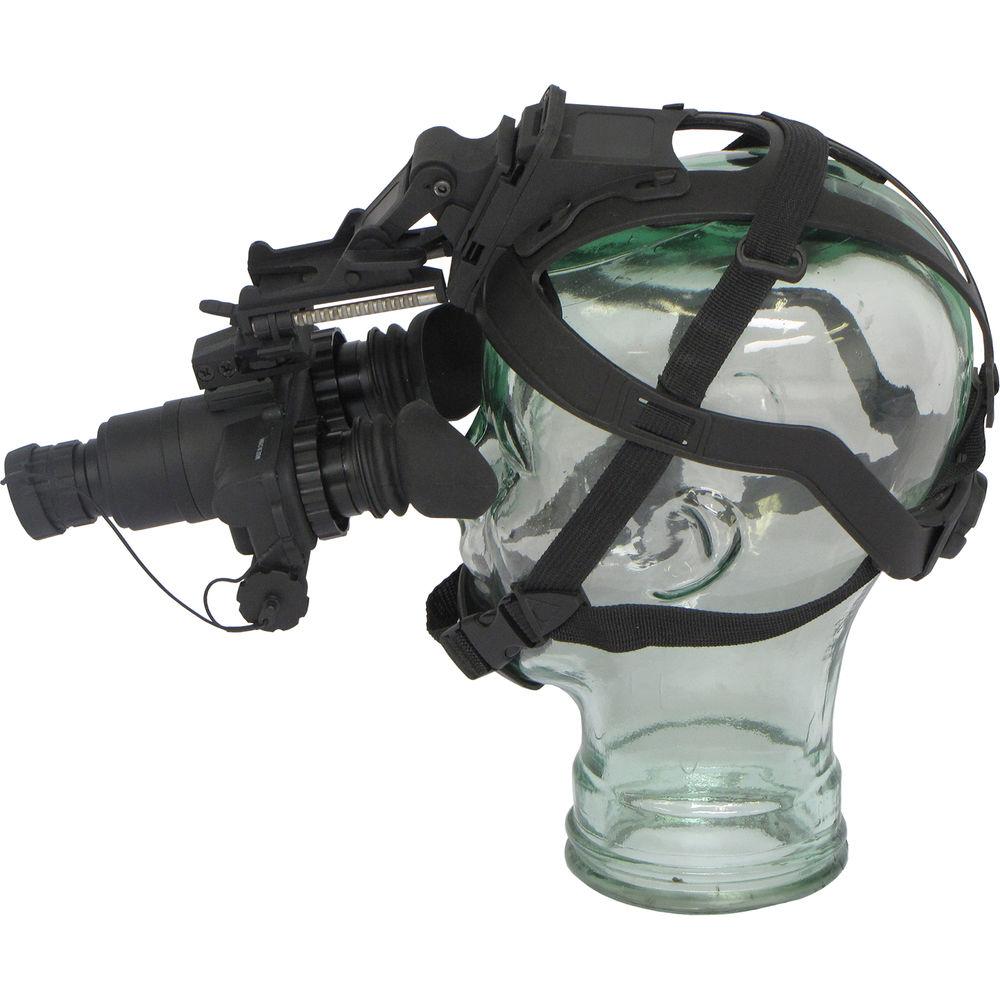

- Headgear with flip-up adapter included
- Construction Details
-
- Lightweight and durable polymer body
- Knurled adjusters and rings for non-slip grip

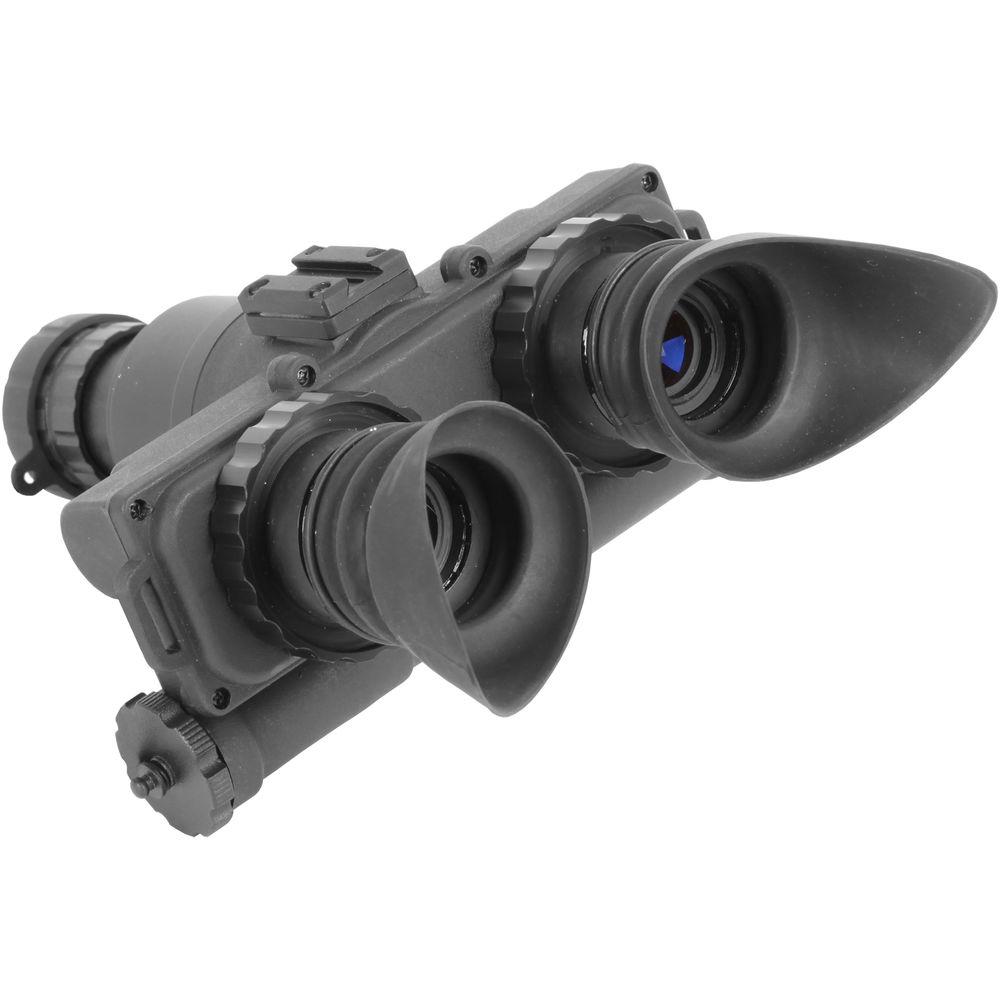

- Wide winged rubber eyecups
- Water- and fog-resistant
UPC: 658175732259 In the Box ATN NVG7-WPT 3rd Gen Night Vision Biocular (White Phosphor, Matte Black) - CR123A Battery
- Flip-Up Headgear
- Soft Carrying Case
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN NVG7-WPT 3rd Gen Night Vision Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN NVG7-WPT Specs | Intensifier Tube | 3rd generation
GaAs photocathode
22 SNR
64 lp/mm resolution
White phosphor screen | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | f/1.2, 26mm | | Minimum Focus Distance | 9.8" / 25.0 cm | | Eye Relief | 3.0 mm | | Interpupillary Adjustment | 52.0 - 72.0 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123A battery / 50 hours | | Weatherproofing | Water-resistant | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Dimensions | 6.3 x 6.0 x 3.0" / 16.0 x 15.0 x 7.5 cm | | Weight | 17.6 oz / 500.0 g |
