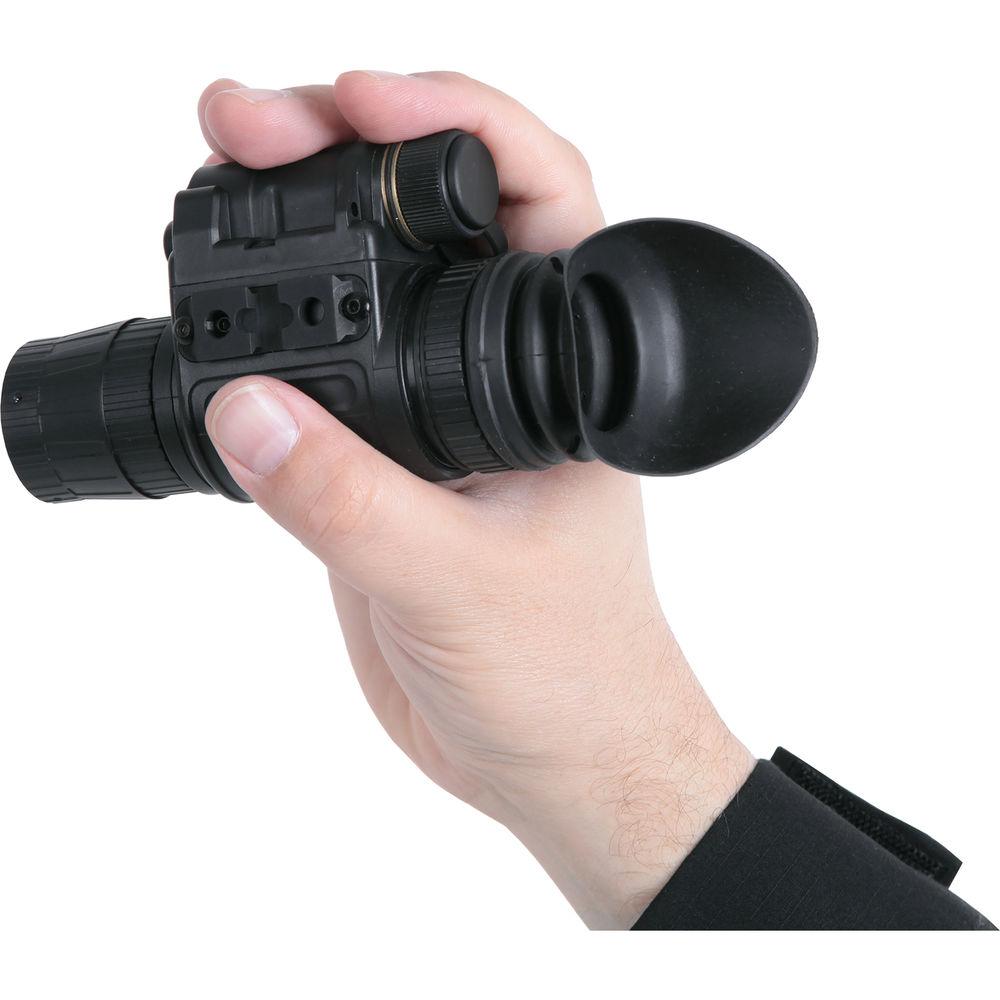

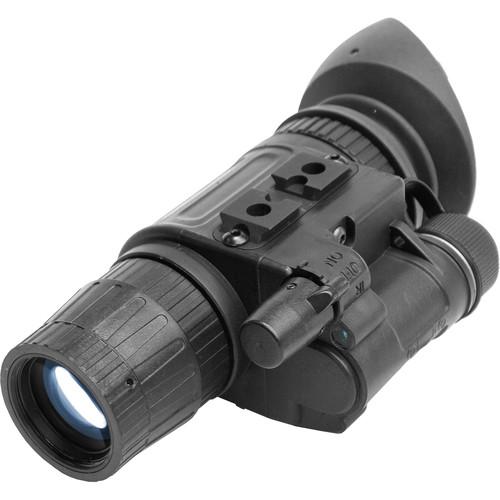

Product description Own the night with the PVS14-style ATN NVM14-WPT 3rd-Generation Multi-Purpose Night Vision Monocular. This 3rd-generation night vision monocular can be used as a handheld device or be mounted on your firearm or headgear. Measuring only 4.7" in length, the monocular is ultra-compact and can readily fit in the palm of your hand. The device features a white phosphor screen, which generates high-resolution black-and-white images, and an f/1.2, 27mm coated all-glass lens system with a short, 9.8", close-focus distance and a wide 40° angle of view. To protect the tube from accidental damage due to flashes of light, the electronics feature a bright light cutoff function, and to ensure proper brightness and contrast it has an automatic screen brightness control. Another highlight is a built-in illuminator for casting extra infrared light on your targets in total darkness. To enable to you to venture almost anywhere, this night vision device is outfitted with a water-resistant polymer body that is also designed to withstand extreme temperatures. For ease of adjustment and non-slip operation in any weather, all the rings and adjusters are heavily knurled. To make for a comfortable fit and prevent leakage of light exiting the eyepiece, the ocular is outfitted with an extra-wide rubber winged eyecup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Night Vision Sensor & IR Illuminator
-
- 3rd-generation intensifier tube
- 64 lp/mm resolution
- White phosphor screen creates black-and-white images
- Bright light cutoff is triggered when 100-300 lux of light lasts for 10 seconds
- Automatic brightness control
- Built-in IR illuminator
- Optical Performance
-
- 1x magnification
- Compatible with optional lenses
- All-glass optics
- Polished lens coatings
- 40° wide angle of view
- f/1.2, 27mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +2 to -6 diopter correction
- Built-in IR and low-battery indicators

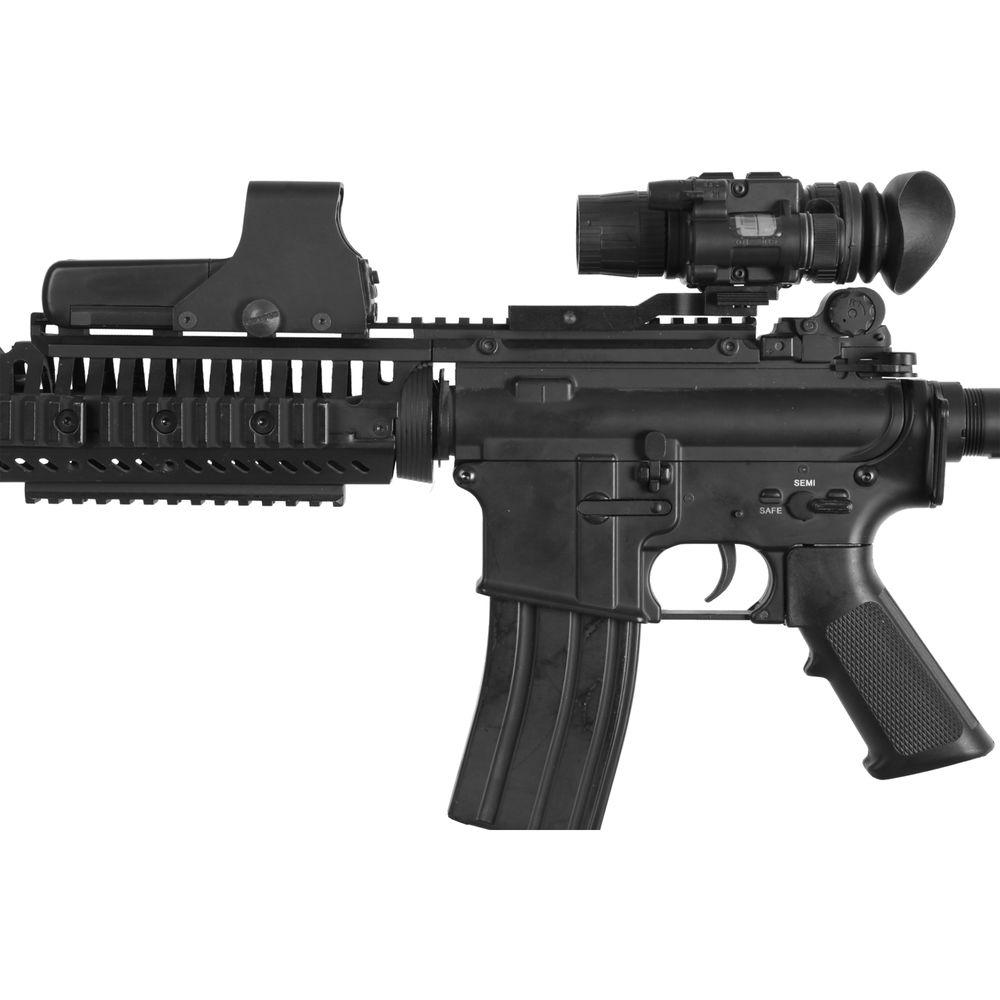

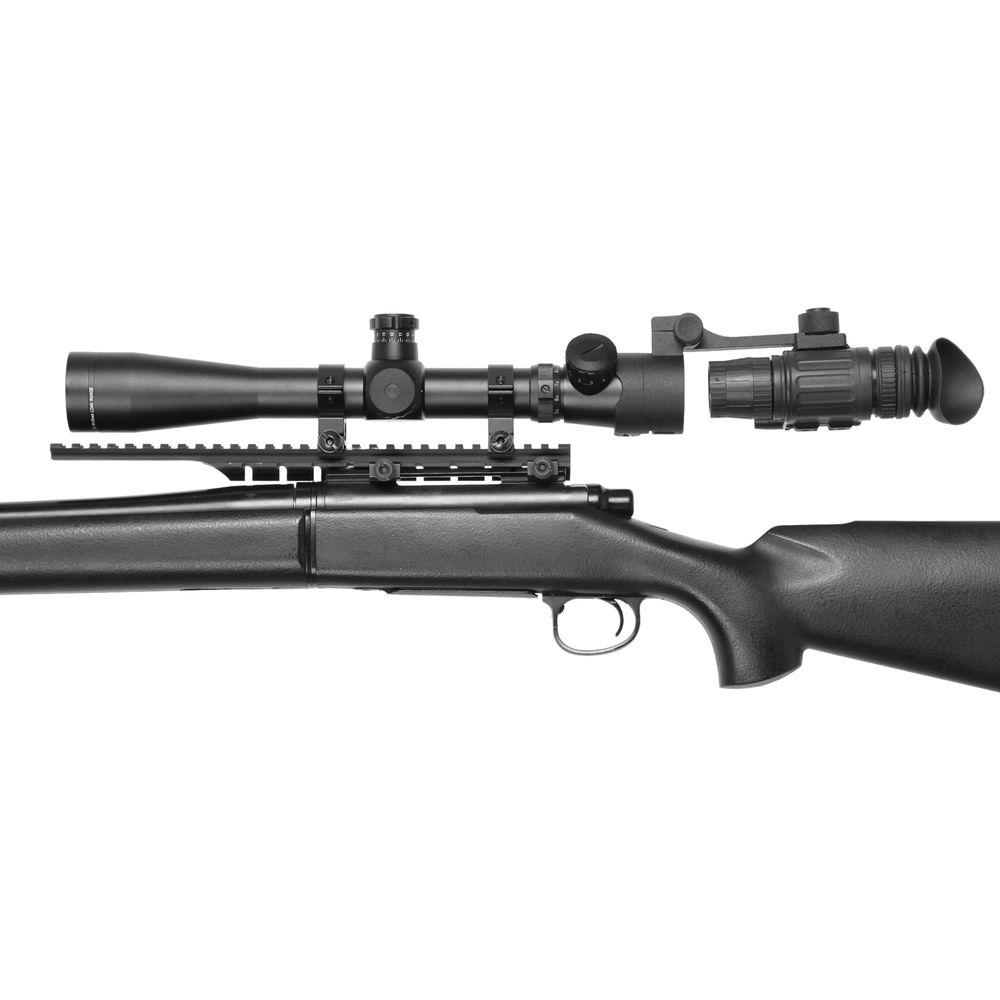

- Can be used as a handheld device or mounted on firearm and headgear
- Construction Details
-
- Durable and lightweight polymer
- Compact and ergonomic design

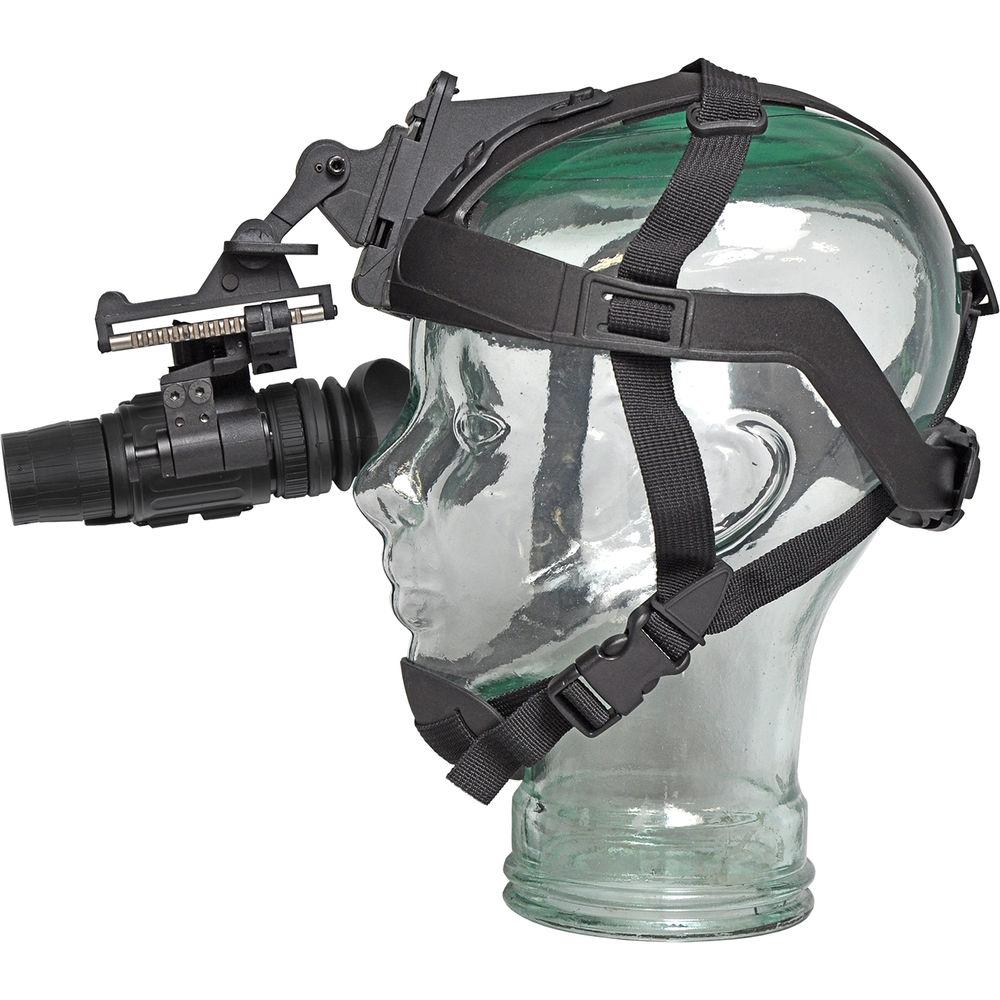

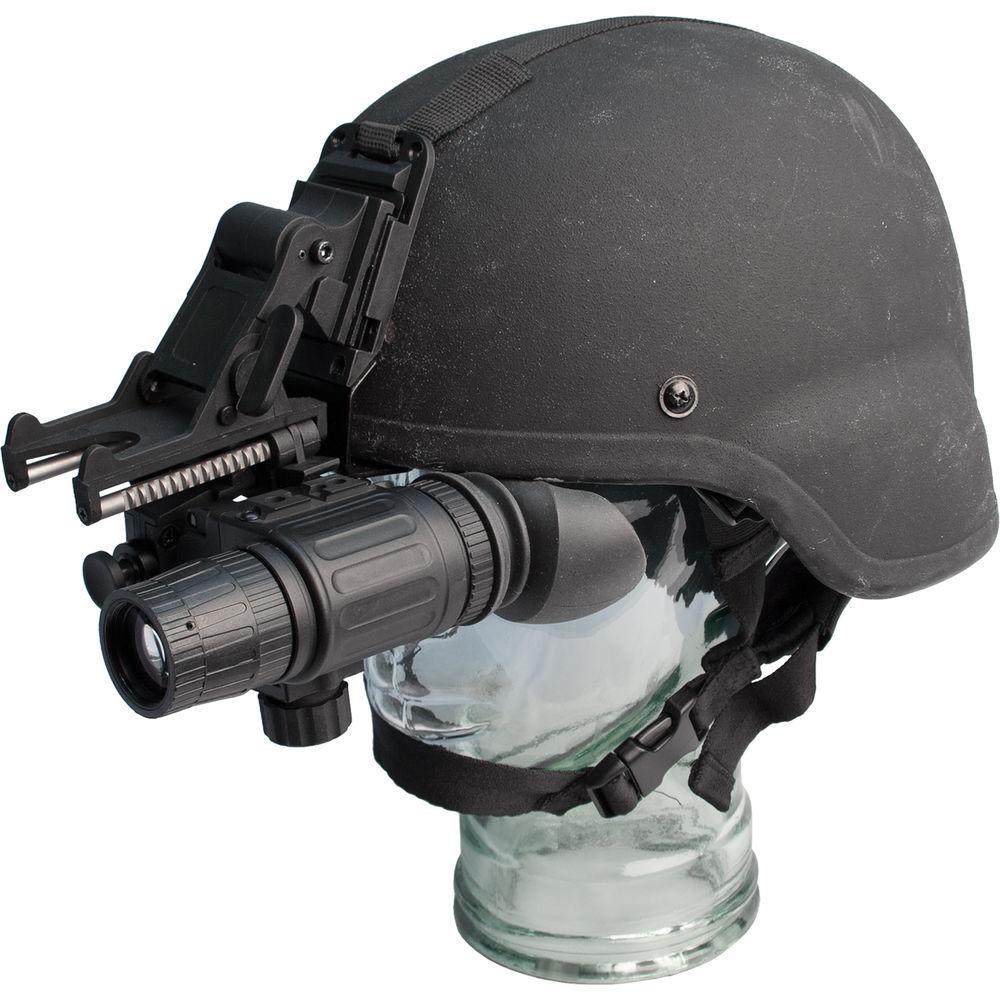

- Mounting point for a headgear
- Knurled adjusters and rings give a non-slip grip
- Wide winged rubber eyecup
- Water resistant
UPC: 658175115236 In the Box ATN NVM14-WPT 3rd-Gen Multi-Purpose Night Vision Monocular (White Phosphor, Matte Black) - CR123A Battery
- Battery Adapter
- Objective Lens Cap
- Winged Eyecup
- Soft Carrying Case
- Neck Cord
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN NVM14-WPT 3rd-Gen Multi-Purpose Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN NVM14-WPT Specs Intensifier Tube | 3rd generation GaAs photocathode 22 SNR 64 lp/mm resolution White phosphor screen | Magnification | 1x | Angle of View | 40° | Lens System | f/1.2, 27mm | Eye Relief | 1.0" / 25.0 mm | Minimum Focus Distance | 9.8" / 25.0 cm | Dioptric Correction | +2 to -6 | Infrared Illuminator | Yes, built-in | Bright Light Cut-off | Activates at 100-300 lx for 10 seconds | Battery / Runtime | 1 x CR123A battery / 60 hours | Weatherproofing | Water resistant | Operating Temperature | -40 to 122°F / -40 to 50°C | Storage Temperature | -58 to 158°F /-50 to 70°C | Dimensions | 4.7 x 2.7 x 1.9" / 12.0 x 6.9 x 4.9 cm | Weight | Monocular: 9.9 oz / 280.0 g |
