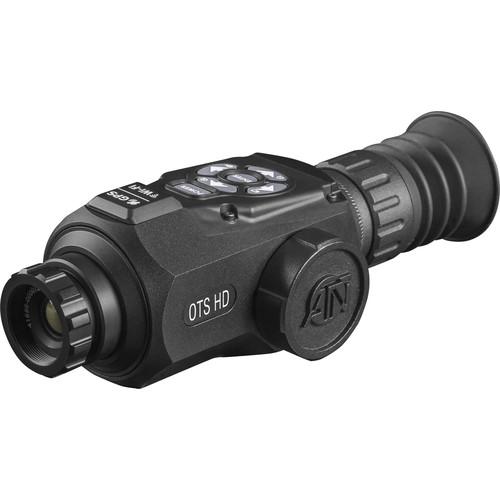

User Manual for ATN OTS-HD 384 1.25-5x Thermal Digital Monocular Click to enlarge the picture
Contents of the user manual for the ATN OTS-HD 384 1.25-5x Thermal Digital
- Product category: Thermal Imagers ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Thermal Imagers
|
User manual for the ATN OTS-HD 384 1.25-5x Thermal Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|
Product description Enhance your outdoors experience to a new level with the ATN OTS-HD 384 1.25-5x Thermal Digital Monocular. This Bluetooth and Wi-Fi capable thermal vision device features the Obsidian T II Core sensor, high-definition (HD) video recording, built-in GPS, and multitude of in-view functions. At 1 GHz processing speed, the Obsidian II core seamlessly manages the thermal imaging sensor, a micro-display, and Wi-Fi/Bluetooth connectivity. It allows you to activate and use layers of functionalities like color palettes, and the smart rangefinder. One defining highlight of this riflescope's capabilities is 1280 x 960 HD video recording at 30 fps. With the built-in Bluetooth 4.1 and Wi-Fi capabilities, you can have others view on connected iOS or Android devices what you see on your micro-display in real time. Another noteworthy highlight the Smart Rangefinder. You can save your data on the an external 4-64GB microSD card. The monocular also offers a micro-HDMI output port and a micro-USB port for use with an optional external battery pack.
Beyond this, the monocular features a 19mm germanium objective lens that offers a 1.25-5x zoom magnification. The black polymer housing is durable and lightweight. It offers a water-resistant performance that allows you to use this scope in any weather conditions. On the top of this optic you will find a compact control pad with menu buttons. To offer you a comfortable viewing experience and to prevent spillover of light from the display, the eyepiece offers a long 65mm eye relief and a wide rubber eyecup. For more stability while viewing, you can mount this device on a tripod using its built 1/4"-20 socket. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Sensor
-
- 384 x 288 Obsidian T II sensor
- 50 mK thermal sensitivity
- 7-14µm spectral range
- Optical Performance
-
- 1.25-5x magnification
- 19mm objective lens
- 16 x 12.5° angular field of view
- 32.8' minimum focus distance
- 65mm eye relief
- Video Recording, Micro-Display
-
- Captures JPEG images and MOV videos
- Digital image stabilization
- Smooth Zoom provides seamless zooming
- 1280 x 720p HD LCD micro-display
- 1280 x 960 at 30 fps recording resolution
- Use and Handling
-
- Intuitive user interface
- In-view sensor readouts and status indicators
- Smart Rangefinder feature
- ATN Obsidian app allows control, live stream, and review via Wi-Fi
- Electronics
-
- Wi-Fi and Bluetooth radios
- ATN Obsidian app allows remote reviewing, control, and sharing on social media
- Compatible with iOS and Android smart devices
- Built-in microSD memory slot for 4-64GB microSD cards
- Micro-HDMI and micro-USB ports
- GPS, E-Compass, 3D Gyroscope
-
- GPS: geotagging and elevation
- GS7 3D gyroscope
- E-compass
- E-barometer
- 3D accelerator
- 3D magnetometer
- Microphone
- Construction Details
-
- Polymer construction
- Wide rubber eyecup
- Tethered objective cap
- 1/4"-20 socket for mounting on a tripod
- Weather-resistant performance
UPC: 658175114635 In the Box ATN OTS-HD 384 1.25-5x Thermal Digital Monocular (9 Hz, Matte Black) - 4 x AA Batteries
- Tethered Lens Cap
- Soft Carry Case
- Hand Strap
- Lens Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN OTS-HD 384 1.25-5x Thermal Digital Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN OTS-HD 384 Specs | Array Configuration | 384 x 288 Obsidian TII core
Amorphous silicon | | Spectral Response | 7-14 µm | | Sensitivity | <50 mK | | Magnification | 1.25-5x | | Field of View | 16 x 12.5° maximum | | Objective Diameter | 19mm | | Minimum Focus Distance | 32.8' / 10.0 m | | Eye Relief | 65 mm | | Processor | OTS-HD Obsidian
1 GHz | | Display | 1280 x 720p HD LCD | | Video Output Resolution | 1280 x 960 at 30 fps | | Image Format | JPEG | | Video Format | MOV | | Integrated Sensors | GS7 3D gyroscope
3D accelerometer
3D magnetometer
E-compass
Microphone | | PC Compatible | Yes | | Wi-Fi | Yes | | Bluetooth | 4.1 | | External Memory | microSD: 4-64 GB | | Ports | microSD
Micro-USB
Micro-HDMI | | Mobile Devices | iOS & Android | | Battery / Runtime | 4 x AA lithium batteries / 8 hours | | Weatherproofing | Weather-resistant | | Dimensions | 6.9 x 3.1 x 3.1" / 17.4 x 8.0 x 8.0 cm | | Weight | 23.9 oz / 680.0 g |
