User Manual for ATN OTS-HD 640 1.5-15x19 Thermal Digital Monocular Click to enlarge the picture
Contents of the user manual for the ATN OTS-HD 640 1.5-15x19 Thermal Digital
- Product category: Thermal Imagers ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Thermal Imagers
 |
User manual for the ATN OTS-HD 640 1.5-15x19 Thermal Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|

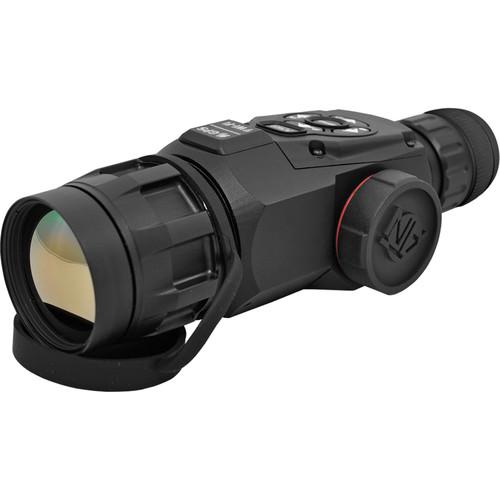

Product description The OTS-HD 640 1.5-15x19 Thermal Digital Monocular from ATN features gyroscopic image stabilization that keeps the image steady at a higher power. The OTS-HD can capture 1280 x 960 still images or video at 30 fps and saves them to an on-board microSD card slot. A micro-HDMI output lets you display the captured photos or video to a computer or TV for playback and storage. An easier way to share images is to use the built-in Wi-Fi. It features a Smart Rangefinder, with only two clicks and a simple shift of the scope you will be able to range your target. Once ranged in your reticle will automatically adjust its point of impact.
Connect the monocular to any device running the free Obsidian app and stream the current view, save images to the device, and instantly post them on social media, message them, or email them to friends and family. A built-in GPS antenna enables geotagging your photos or video so you can map where every image was taken. The GPS system will also log your altitude and speed so you'll know if you'll make your next waypoint on-time or if you need to pick up your pace. - Thermal Vision
-
- Take your shot with confidence using the help of smart shooting solutions
- Record everything thing with the press of a button.
- Obsidian Core
-
- OTS-HD Obsidian Core, is an integral computer that offers you the fastest processor around
- Boasts lightning fast speed and lag-free performance
- Speed and high-resolution are at your command with just the touch of a button
- Smart Rangefinder
-
- With only two clicks and a simple shift of the scope you will be able to range your target
- Ranged in your reticle it will automatically adjust its point of impact
- Video Recording
-
- Record video and still images
- 1.5x optical and 15x digital zoom
- 1280 x 960 at 30 fps
- Image stabilization
- Micro-HDMI port to connect to video recorder, TV, or computer
- Stores to on-board microSD port, supports cards from 4 to 64GB
- Built-in microphone to capture sound, can be turned off
- Intuitive User Interface
-
- Ease of use and array of features with the Obsidian 2.0
- E-compass, pitch and yaw angles, distance to target, ballistic corrections, and zoom are some of the information points displayed on your screen
- E-Barometer
-
- Gives you precise accurate data about the atmospheric pressure
- Gyroscope
-
- Integrated gyroscope helps to minimize hand-shake
- Especially useful at high magnifications
- E-Compass
-
- Digital e-compass
- In-view real-time display of current direction
- Bluetooth 4.1 and Wi-Fi Module
-
- Connect the monocular to an iPhone running the free Obsidian app
- In the app, live-stream the view and watch on the phone or tablet
- Record and share /images/videos via Bluetooth 4.1 or on social media, messages, and emails
- Other Features
-
- Smart HD channel
- Ergonomic design
- 3D Gyroscope GS7
- 3D Accelerometer
- 3D Magnetometer
- RAV (Recoil Activated Video)
- Smooth zoom
- Weather-resistant
UPC: 658175112419 In the Box ATN OTS-HD 640 1.5-15x19 Thermal Digital Monocular Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN OTS-HD 640 1.5-15x19 Thermal Digital Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN TIMNOH642A Specs | Sensor | 384 x 288 | | Magnification | 1.5-15x | | Angle of View | 24 x 19° | | Objective Lens Diameter | 19mm | | Display | Micro: HD | | Core | ATN Obsidian T II | | Eye Relief | 65 mm | | Range | Human Detection: 800 m
Human Recognition: 250 m
Human Identification: 400 m | | Video Recording | Resolution: 1280 x 960 at 30 fps | | microSD Card Slot | From 4 to 64 GB | | Micro USB Input | External battery pack | | Wi-Fi | iOS & Android | | Bluetooth | 4.1 | | Battery Life | 8 hours | | Battery Type | 4 AA (Lithium recommended) | | Dimensions | 6.9 x 3.2 x 3.1" (17.5 x 7.9 x 8.1 cm) | | Weight | 1.55 lb (0.70 kg) |
