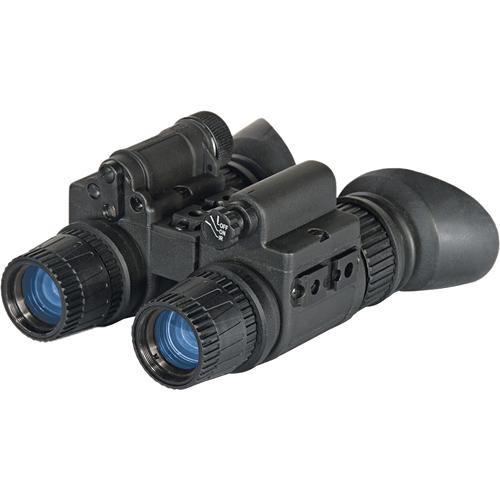

User Manual for ATN PS-15-4 Night Vision Binocular Goggle Click to enlarge the picture
Contents of the user manual for the ATN PS-15-4 Night Vision Binocular Goggle
- Product category: Night Vision Binoculars ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Night Vision Binoculars
|
User manual for the ATN PS-15-4 Night Vision Binocular Goggle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|
Product description ATN (American Technologies Network) is an established leader in the world of night vision and tactical optical designs. Their products are designed with diligence and technological advancements, with a focus upon value and functionality. The PS-15 Night Vision Binocular provides the operator with enhanced depth-perception via true stereoscopic viewing; dual objectives, oculars, and image intensifiers ensure long-term viewing comfort and an increased sense of 'reality' within the viewing experience. An integral IR illuminator enables close up and long-range viewing under total-darkness conditions, and the rugged housing is waterproof to a depth of 66' for 60 minutes. This version of the PS-15 is configured with a pair of premium 4th generation image intensifiers with a specified resolution rating of 64-72 lp/mm. Many variables affect the distance that one can see with a night vision device; the object's size, the level of details being sought, the conditions of observation, the performance level of the NVD. The important factors to consider when evaluating any night vision device are the intensifier tube's generation, s/n ratio, level of magnification, specified resolution, along with the clarity & light transmission performance of the optical stack. All night vision devices sold by have bright-light-protection systems. This does not mean that bright light will not damage the device; exposure to a bright-light source will compromise the longevity and performance of any image intensifier tube. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARvquczvctxcafusctcb), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Multitasking
- Can be used hand-held, head mounted for hands-free operation, adapted for camera/camcorder applications
- Rugged Construction
- Waterproof to 66'/20 m, ABC system for bright-light control, auto-off/on circuitry
- Dual 4th Generation Intensifiers
- Resolution: 64-72 lp/mm Fourth generation intensifiers feature a filmless cathode and an auto-gated power supply for superb performance under dynamic lighting conditions.
In the Box ATN PS-15-4 Night Vision Binocular Goggle Soft Carry Case Commercial Headgear 2 x CR123A Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN PS-15-4 Night Vision Binocular Goggle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN PS-15 Specs | Intensifier Tube | 4th Generation | | Magnification | 1.0x | | Angle of View | 40.0° | | Field-of-View (@ 1000 Yds) | 2100' (697 m at 1000 m) | | Minimum Focus Distance | 9.8" (25 cm) | | Eye Relief | Not Specified by Manufacturer | | Dioptric Correction | Not Specified by Manufacturer | | Interpupillary Adjustment | 57-71mm | | Lens System | 27mm f/1.2 objective lenses | | Infrared Illuminator | Yes, integral | | Power Source | 2 CR123A batteries | | Weatherproofing | Waterproof, 20m/66' for 60 minutes | | Temperature Ranges | Operating: -40 to 122°F (-40 to 50°C) Storage: -58 to 158°F (-50°C to 70°C) | | Dimensions | 5.3 x 4.5 x 2.7" (13.4 x 11.3 x 6.8 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
