User Manual for ATN PVS14 6015-WPT 3rd-Generation Multi-Purpose Night Vision Monocular with Headgear Click to enlarge the picture
Contents of the user manual for the ATN PVS14 6015-WPT 3rd-Generation Multi-Purpose Night
- Product category: NV Monoculars & Multi-Systems ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN NV Monoculars & Multi-Systems
 |
User manual for the ATN PVS14 6015-WPT 3rd-Generation Multi-Purpose Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|

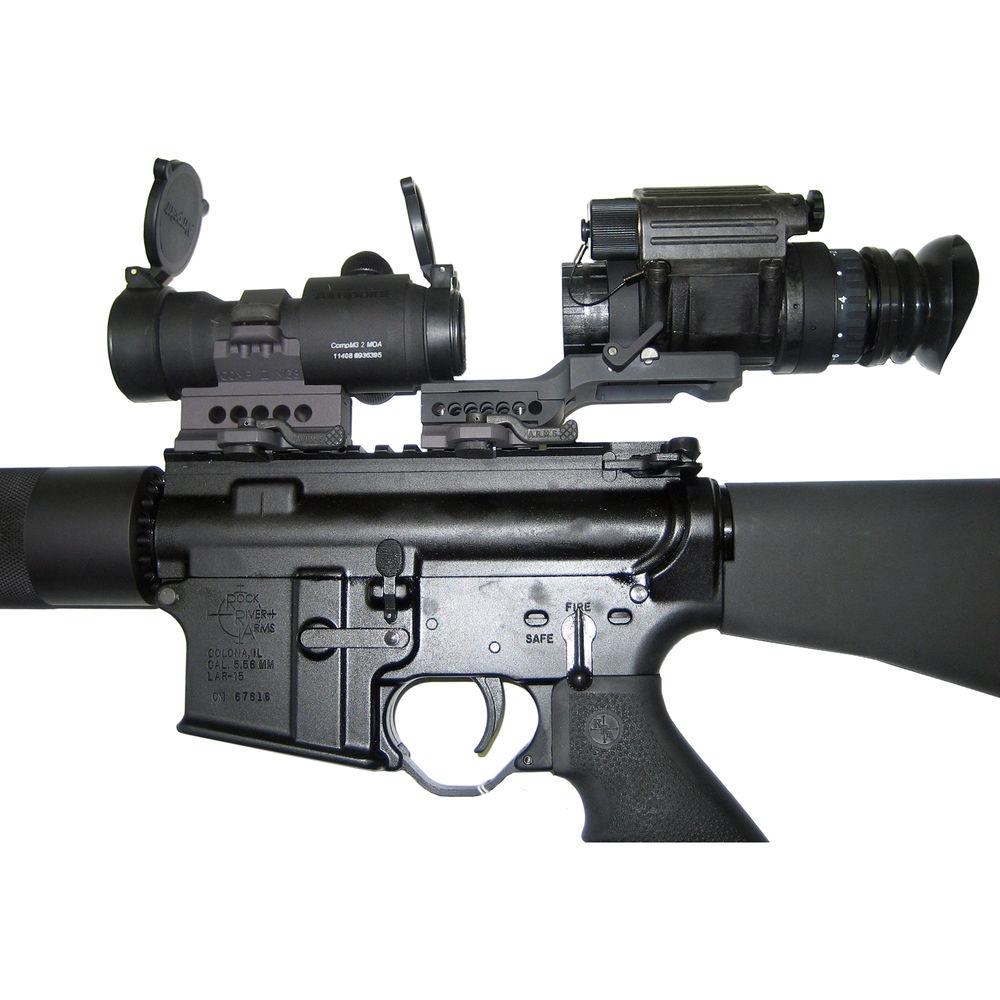

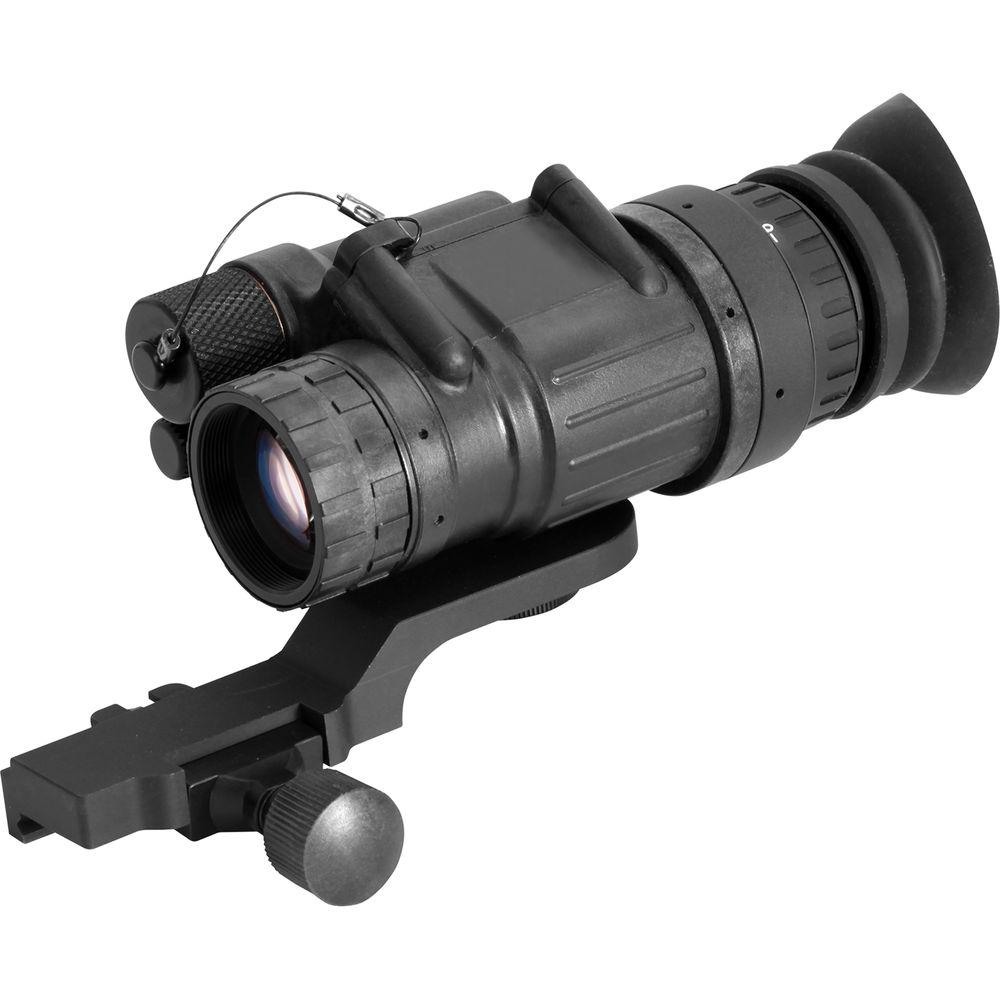

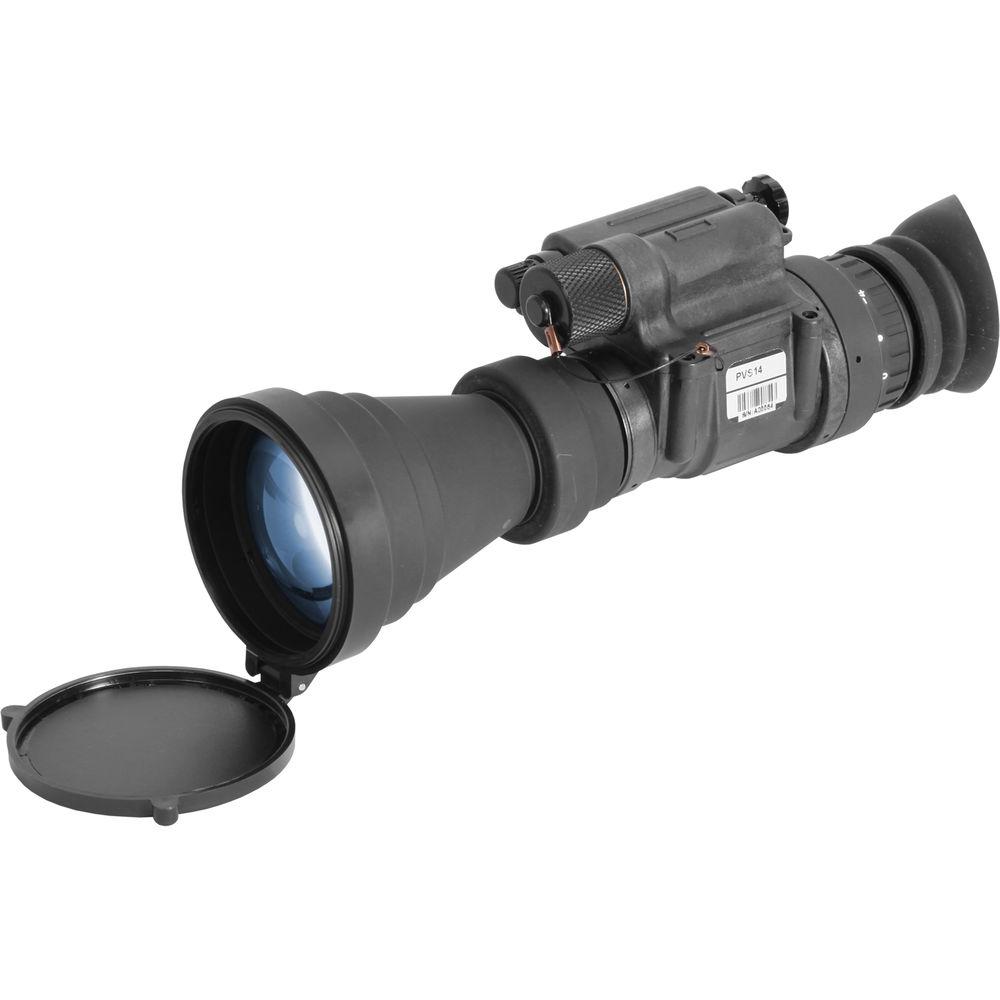

Product description Own the night with the ATN PVS14/6015-WPT 3rd-Generation Multi-Purpose Night Vision Monocular with Headgear. This 3rd-generation night vision monocular is optimized for the needs of law enforcement and military personnel and can be used as a handheld device or be mounted on your firearm or headgear. This waterproof, durable, ergonomic, and ultra-compact night-vision device measures only 4.5" in length and can be coupled with the same unit for binocular operation. Its optical system is built around a 3rd-generation intensifier tube, enhanced with white phosphor screen technology. Unlike generic image-intensifier tubes (IITs), the white phosphor screen generates high-resolution black-and-white images. The tube also features a manual gain for more control of image properties. The f/1.2, 27mm lens system offers coated all-glass elements, a 9.8" close-focus distance, and a wide 40° angle of view. To protect the tube from accidental damage due to flashes of light, the electronics feature a bright light cutoff function, and to ensure proper brightness and contrast it has an automatic screen brightness control. Another highlight is a built-in illuminator for casting extra infrared light on your targets in total darkness.
To enable operators to venture almost anywhere, this night vision device uses only one AA battery and has a waterproof polymer body that can also withstand extreme temperatures—from -60 to 120°F (-51 to 49°C). For ease of adjustment and non-slip operation in any weather, all the rings and adjusters are heavily knurled. To make for a comfortable fit and prevent leakage of light exiting the eyepiece, the ocular is outfitted with an extra-wide rubber winged eyecup. Finally, to protect the exterior optics form weather and scratches, the monocular also includes two demist shields and a sacrificial objective filter. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Night Vision Sensor & IR Illuminator
-
- 3rd-generation intensifier tube
- 64 lp/mm resolution
- Manual gain control
- White phosphor screen creates black-and-white images
- Bright light cutoff is triggered when 100-300 lux of light lasts for 10 seconds
- Automatic brightness control
- Built-in IR illuminator
- Optical Performance
-
- 1x magnification

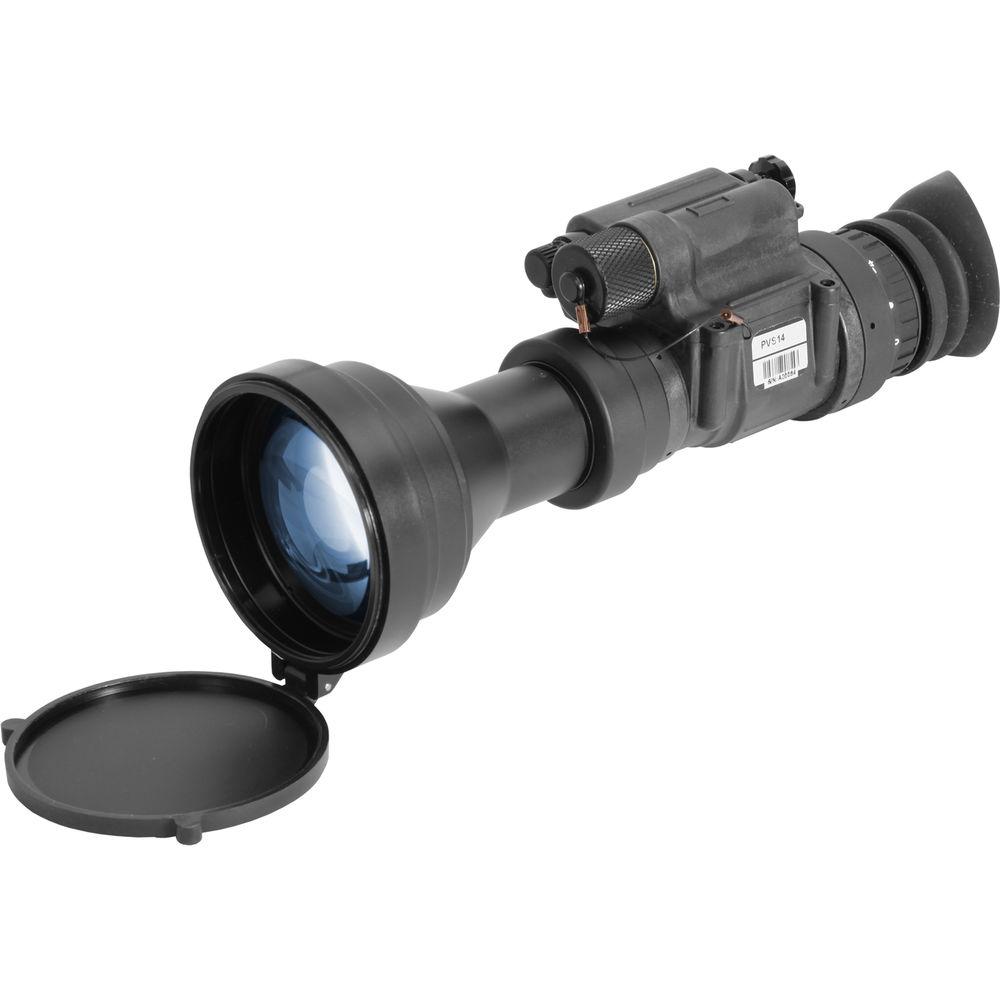

- Compatible with optional lenses
- All-glass optics
- Polished lens coatings
- 40° wide angle of view
- f/1.2, 27mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +2 to -5 diopter correction
- Built-in IR and low-battery indicators
- Can be used as a handheld device or mounted on firearm and headgear
- Two included demist shields and a sacrificial filter help protect the exterior optics
- Adjustable headgear included
- Construction Details
-
- Durable and lightweight polymer
- Compact and ergonomic design
- Built-in mounting screw socket
- Knurled adjusters and rings give a non-slip grip
- Tethered battery cap
- Wide winged rubber eyecup
- Waterproof
UPC: 658175115243 In the Box ATN PVS14/6015-WPT 3rd-Generation Multi-Purpose Night Vision Monocular with Headgear (White Phosphor, Matte Black) - AA Battery

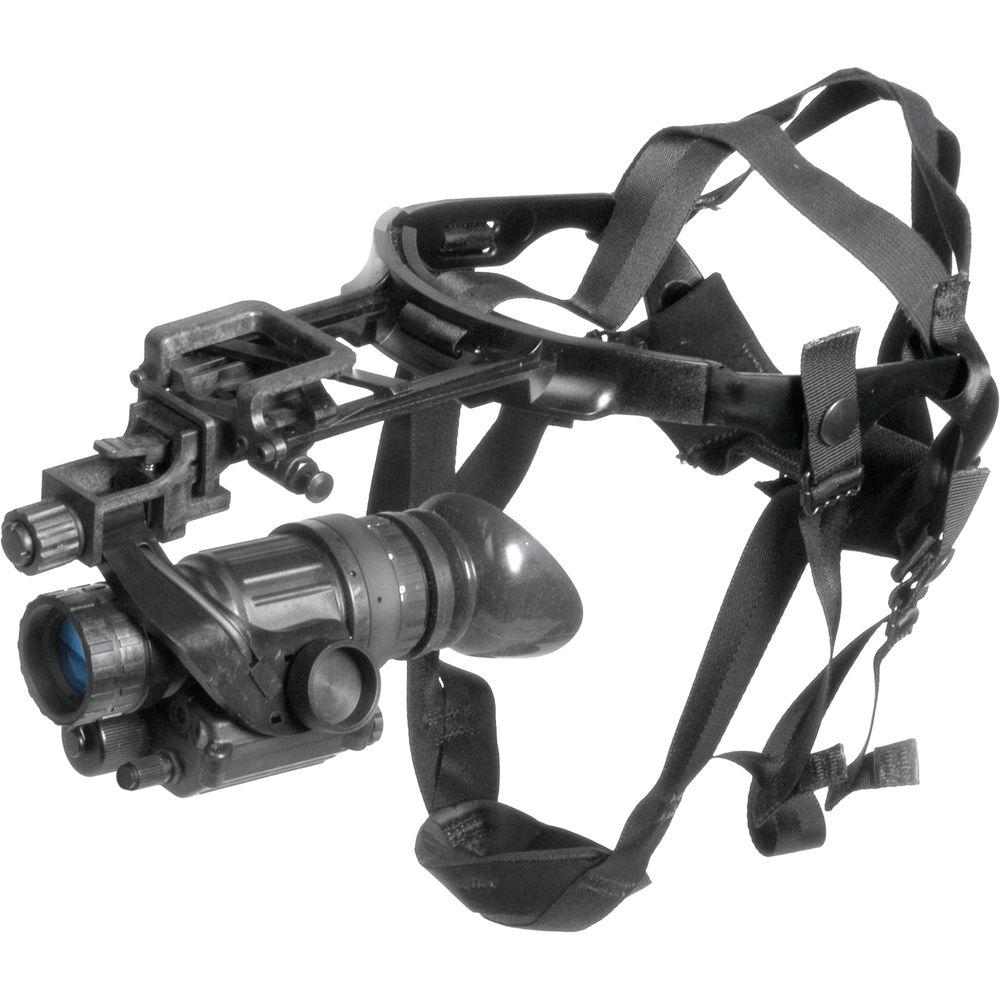

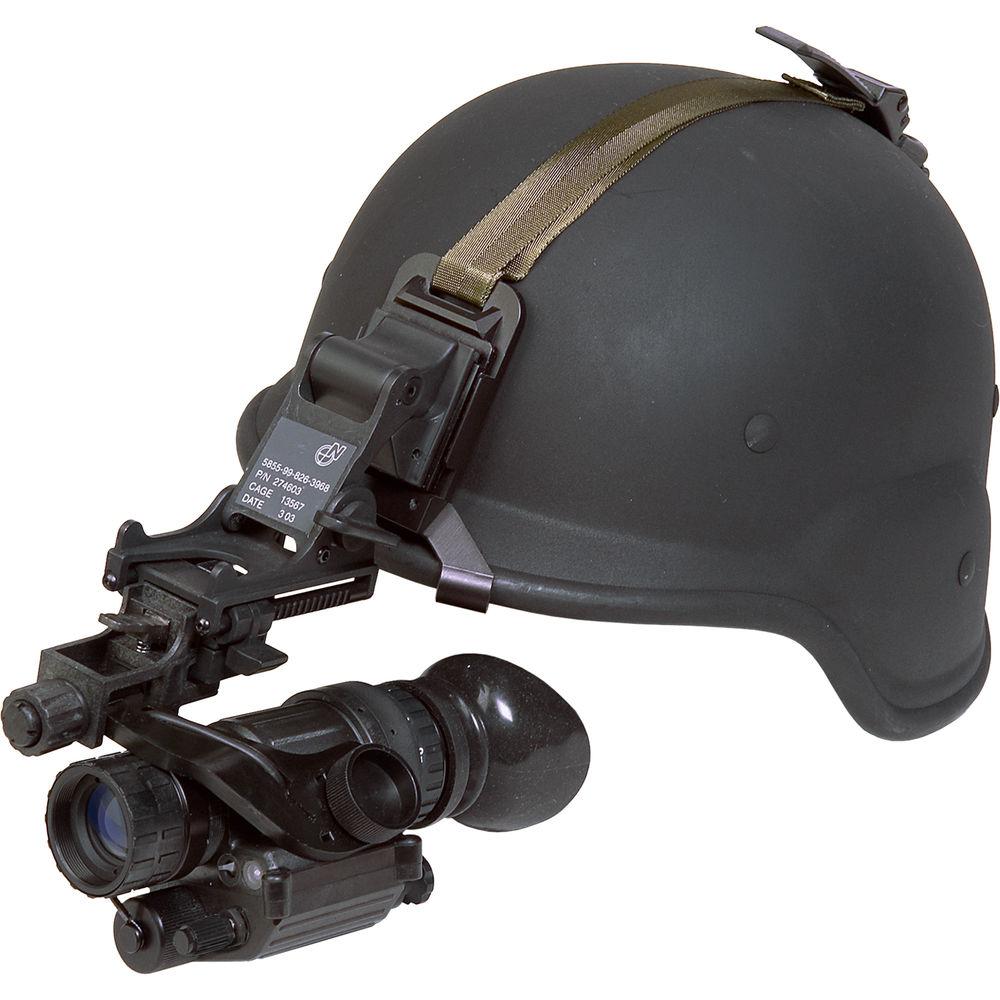

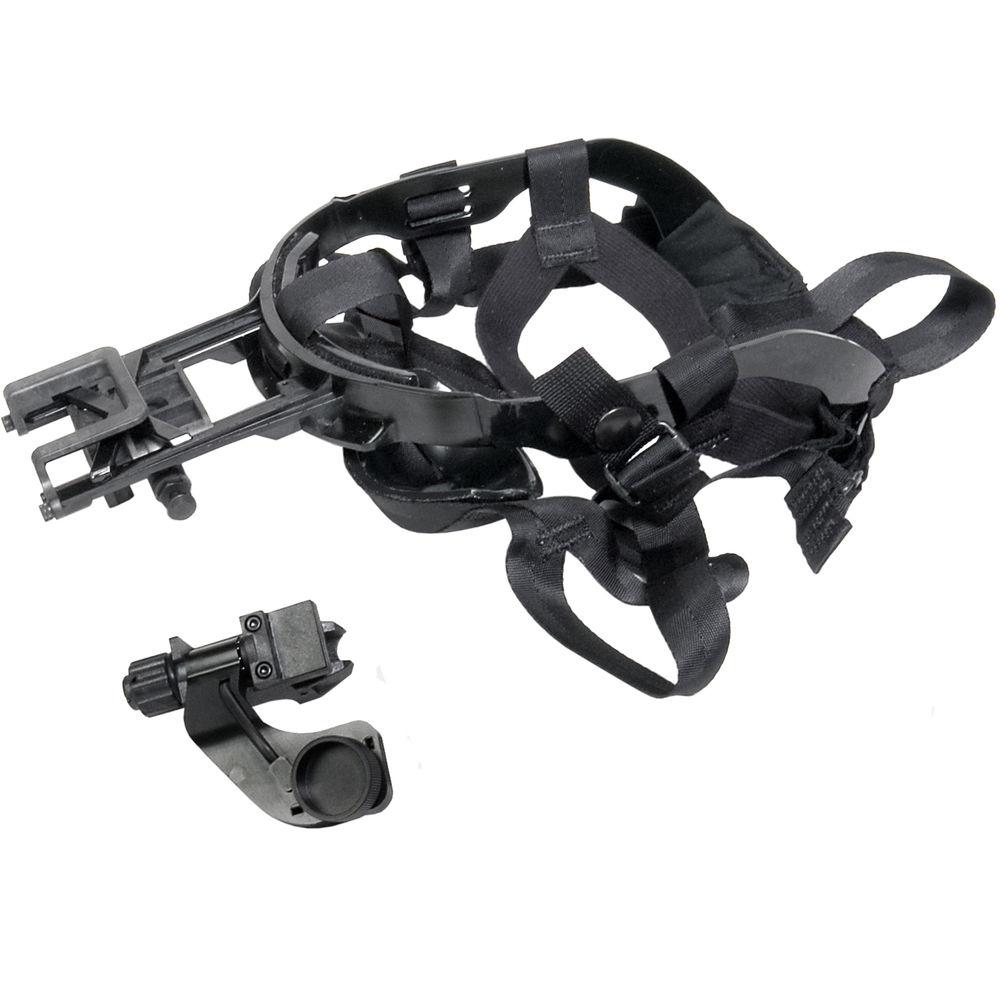

- Headgear
- Winged Eyecup
- Sacrificial Filter
- 2 x Demist Shields
- Soft Carrying Case
- Neck Cord
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN PVS14 6015-WPT 3rd-Generation Multi-Purpose Night Vision Monocular with Headgear in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN PVS14/6015-WPT Specs | Intensifier Tube | 3rd generation
GaAs photocathode
Manual gain control
22 SNR
64 lp/mm resolution
White phosphor screen | | Magnification | 1x | | Angle of View | 40° | | Lens System | f/1.2, 27mm | | Minimum Focus Distance | 9.8" / 25.0 cm | | Dioptric Correction | +2 to -5 | | Infrared Illuminator | Yes, built-in | | Battery / Runtime | 1 x AA battery / 50 hours | | Weatherproofing | Waterproof | | Operating Temperature | -60 to 120°F / -51 to 49°C | | Storage Temperature | -60 to 185°F /-51 to 85°C | | Dimensions | 4.5 x 2.25 x 2.0" / 11.4 x 5.7 x 5.1 cm | | Weight | Monocular: 12.5 oz / 355.0 g |
