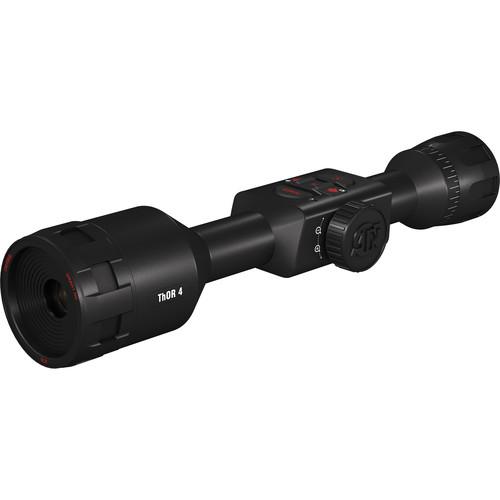

Product description ATN's ThOR 4 384 1.25-5x Thermal Riflescope packs an uncooled thermal array, a color display, and sophisticated electronics with wireless capability into a compact and strong aluminum body that closely resembles a regular riflescope with a 30mm maintube. But besides the form, there is little similarity to a more familiar day telescopic sight. Using this scope not only enables you to seek out your targets during the day or at night, and through fog, smoke, and light obstructions, but provides an opportunity to record and broadcast your activities directly from the scope via a built-in Wi-Fi radio. For instance, its Dual Stream Video capability allows users to stream videos over Wi-Fi and simultaneously record them on an external memory card. Other useful features include the Obsidian core processor, E-Compass, and a multitude of in-view functions, reticles, and ballistic calculators. The Obsidian core seamlessly manages sensors, the micro-display, and Wi-Fi/Bluetooth connectivity. It allows you to activate and use layers of functionalities, various reticle patterns, and windage and ballistic data and calculators. One defining function of this riflescope's capabilities is its Recoil Activated Video, which automatically activates video recording at 1280 x 960 at 30/60 fps when a built-in accelerator senses a recoil. It allows you to concentrate on your game or targets and automatically captures scenes and actions in your field of view right after you make that perfect shot. A multitude of built-in sensors allow you to stamp your images and videos with location and weather data. Other noteworthy highlights are the Smart Rangefinder that estimates distances to your target and automatically adjusts point of impact, and the Ballistic Calculator that takes into account your firearm, caliber, ammunition, range, wind, and aiming angle and makes trajectory corrections.
The black anodized aluminum housing is durable and lightweight. It offers a water-resistant performance that allows you to use this scope in any weather conditions. On the top of this optic you will find a compact control pad with menu buttons and a knurled digital zoom knob on the left side. For attaching to your firearm, the scope includes three Picatinny/Weaver 30mm rings: two standard rings and one cantilever ring. - Thermal Sensor
-
- 384 x 288 ATN generation 4 thermal core
- 7-14µm spectral response
- 60 Hz refresh rate
- Optical Performance
-
- 1.25-5x magnification via a side zoom wheel
- 16 x 12.5° angle of view
- 33' minimum focus distance
- 90mm eye relief
- Electronics & Sensors
-
- Obsidian dual core processor
- Wi-Fi and Bluetooth
- Built-in microSD memory slot with a 4-64GB capacity
- USB Type-C port for charging and PC connection
- E-compass
- 3D gyroscope
- E-barometer
- 3D accelerator
- Microphone
- Display & Video Recording
-
- 1280 x 720 HD display
- 1280 x 960 at 30/60 fps recording resolution
- Black hot, white hot, and color mode
- Smooth Zoom provides seamless magnification adjustments
- Captures JPEG images and MOV videos
- Dual Stream allows simultaneous streaming and recording
- ATN Obsidian app allows control, live stream, and review via Wi-Fi
- Use and Handling
-
- Intuitive user interface
- Compact control pad on the top
- Rotary zoom dial knob on the left side
- In-view sensor readouts and status indicators
- Smart Rangefinder feature estimates distances and adjusts point of impact
- Ballistic Calculator makes corrections for your firearm, caliber, ammunition, range, wind, and aiming angle
- One Shot Zero allows an easy way to zero the scope
- RAV: recoil-activated video recording
- Construction Details
-
- Aluminum alloy construction
- 30mm maintube diameter
- Impact-resistant electronics
- Two straight and one cantilever 30mm Picatinny/Weaver rings are included
- Weather-resistant performance
UPC: 658175115076 In the Box ATN ThOR 4 384 1.25-5x Thermal Riflescope (Matte Black) - Rubber Eyecup
- 2 x 30mm Straight Rings
- 30mm Cantilever Ring
- Scope Cover
- USB Type-C Cable
- Lens Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN ThOR 4 384 1.25-5x Thermal Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN ThOR 4 384 Specs | Array Configuration | 384 x 288 Obsidian TII core | | Spectral Response | 7-14 µm | | Sensitivity | <50 mK | | Magnification | 1.25-5x | | Field of View | 16 x 12.5° maximum | | Minimum Focus Distance | 32.8' / 10.0 m | | Eye Relief | 90 mm | | Maintube Diameter | 30 mm | | Processor | Obsidian dual core | | Display | 1280 x 720p HD display | | Video Output Resolution | 1280 x 960 at 30/60 fps | | Image Format | JPEG | | Video Format | MOV | | Integrated Sensors | 3D gyroscope
3D accelerometer
E-compass
Microphone | | Wi-Fi | Yes | | Bluetooth | Yes | | External Memory | microSD: 4-64 GB | | Ports | microSD
USB Type-C | | Mobile Devices | iOS & Android | | Battery / Runtime | 1 x Internal rechargeable battery / 16 hours | | Weatherproofing | Weather-resistant | | Dimensions | 13.1 x 3.0 x 3.0" / 33.2 x 7.6 x 7.6 cm | | Weight | 1.93 lb / 880.0 g |
