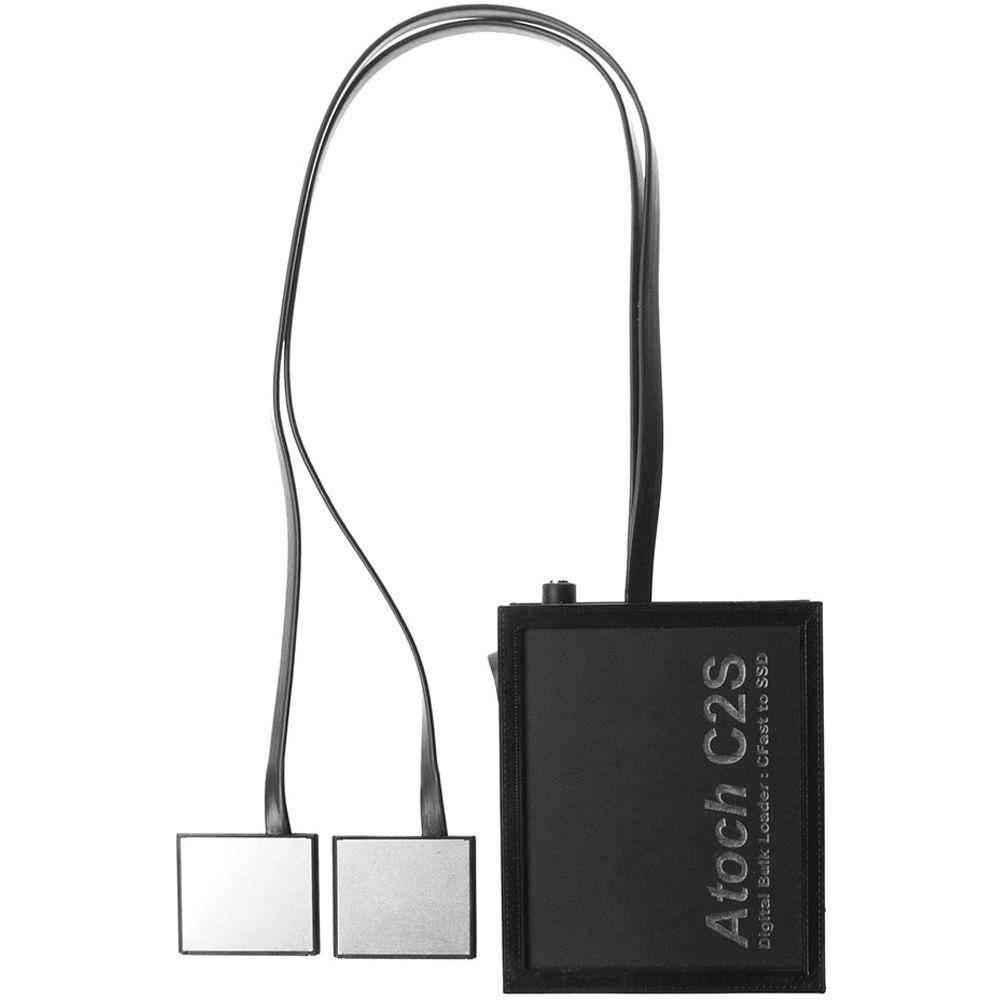

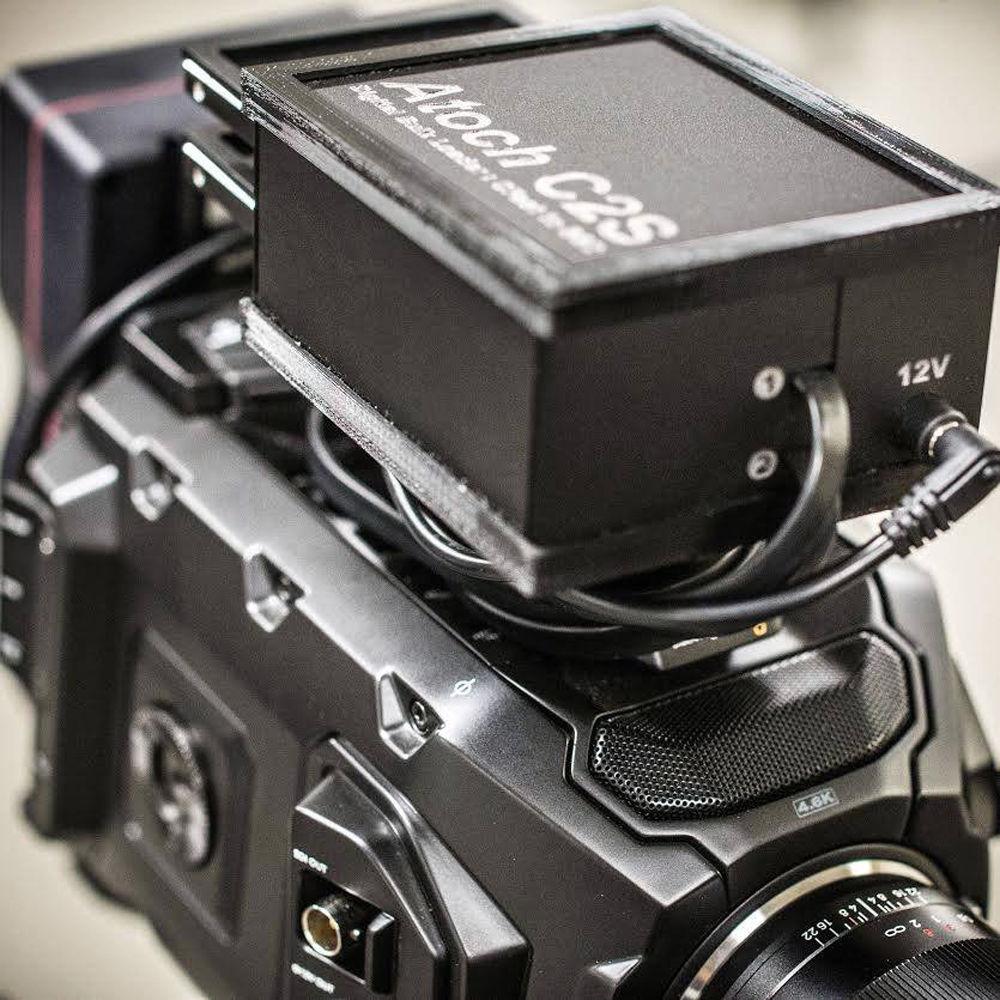

Product description The C2S CFast to SSD Solution from Atoch allows users of the 4K & 4.6K versions of the Blackmagic URSA and URSA Mini, as well as the URSA Mini Pro, to record footage captured by their camera directly onto SSDs, as compared to CFast cards. Operating as a "digital bulk loader," the C2S has two 2.5" / 9.5mm SATA drive bays, each of which is equipped with a wired CFast adapter that plugs directly into each of the CFast card slots on the URSA, URSA Mini, or URSA Mini Pro. Each 2.5" drive bay supports SSDs up to 2TB, for a total storage capacity of 4TB, or the equivalent of 16 x 256GB CFast cards. Not only will the C2S negate the need to carry around multiple CFast cards, users will also be able to swap out drive media less frequently, as larger capacity SSDs are a more cost-effective purchase than CFast cards.
In dual card mode, the C2S supports up to 4.6K RAW recording at 60 fps. In single card mode, the C2S is able to record compressed RAW video at any resolution at all available compression levels, which are 3:1 for the 4K sensor and both 3:1 and 4:1 for the 4.6K sensor, as well as all available resolutions and frame rates of Apple ProRes. Additionally, when used with Atoch's recommended SSDs, the C2S supports a greater maximum data rate than the 4.6K version of the URSA and URSA Mini are designed to output.
The Atoch C2S has helped to trim costs and streamline post-production workflows for many projects. This device is powered using the included D-Tap to DC cable and for those who wish to use 7mm SSDs within the C2S' 9.5mm drive bays, two SSD spacers are also included. General Features - In-Camera SSD Control
- Use your camera's user interface to format, record, and playback your footage just like you would with a CFast card. Even though CFast card sizes are limited, your URSA, URSA Mini, or URSA Mini Pro won't know the difference between your inserted SSDs and a CFast card inside the camera, even all the way up to 2TB
- Universal Ergonomics

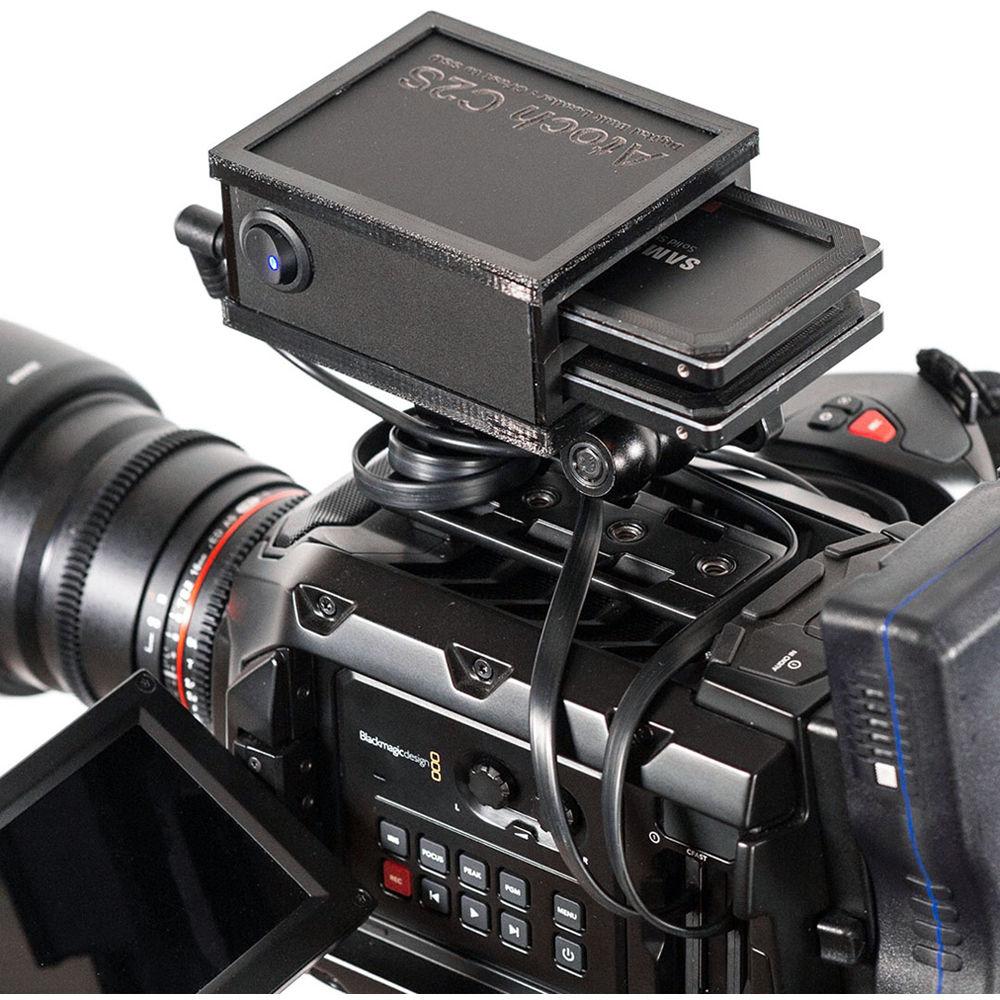

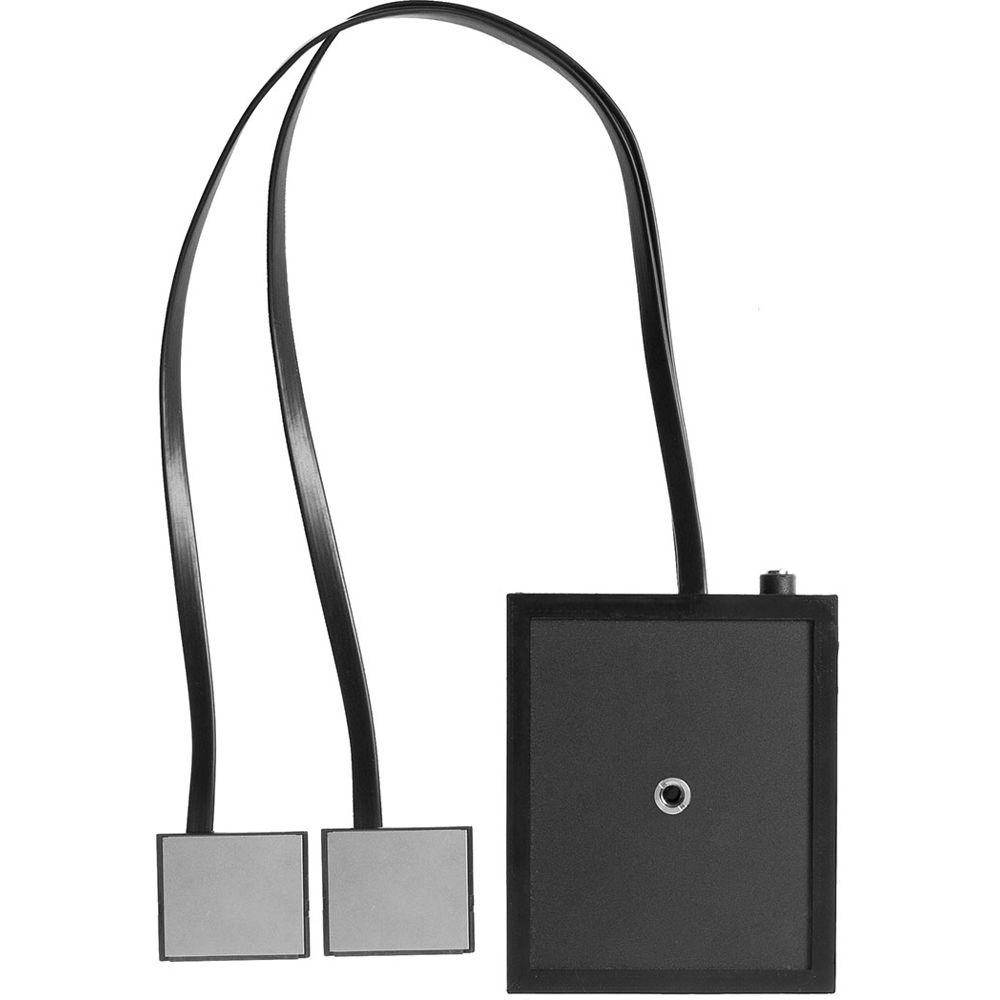

- With a 0.25" threaded mount on the underside of the Atoch C2S, it can be mounted as easily as almost any field monitor or external recorder. And with the use of a magic arm, the Atoch C2S can be swung around to nearly any position around the camera for improved ease of use for virtually any shooting circumstance. No need to permanently make your camera longer or wider, possibly making your shooting experience unwieldy, or causing issues on a gimbal. With your choice of magic arm or ball mount, your Atoch C2S is configurable to your specific shooting style
- Universal Power

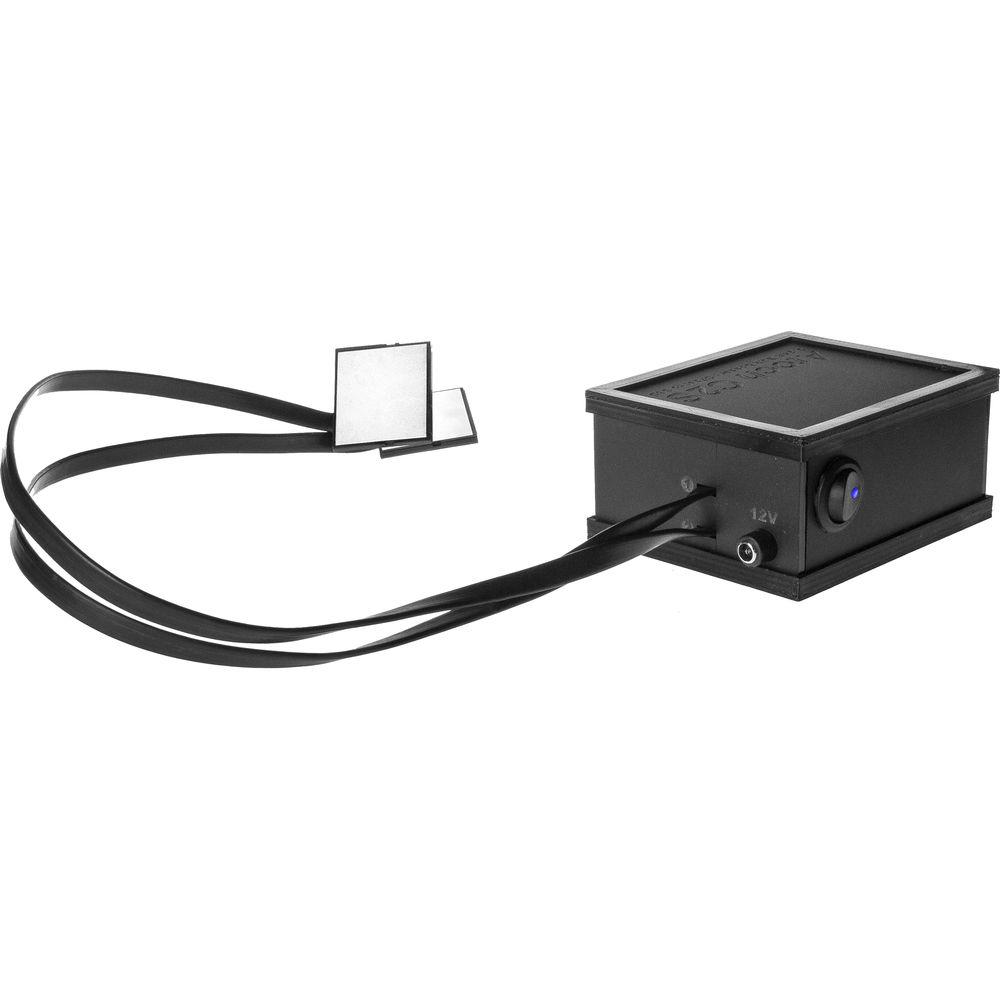

- The Atoch C2S takes 12-24V directly and Atoch supplies a D-Tap cable so users can connect it directly to their battery or battery plate; whether you use Gold Mount or V-Lock batteries, the Atoch C2S can be powered with ease. With an LED-verified power switch, users can also see when their Atoch C2S is functioning properly, and even switch it off to save power
- Fanless Cooling
- Designed with audio in mind, the Atoch C2S helps keep your SSDs cool by allowing natural air to pass over and under your drives. There is no need for any additional power drain from powering noisy fans
- Secure Drive Grip
- Inside of the Atoch C2S is a SATA connector which grips SSDs tightly and without risking damage to its pins. There is no need to worry about SSDs falling out or remounting them when they've been jostled or bumped on set. The Atoch C2S is well suited for run and gun productions
- URSA Mini Pro
- Both CFast ports on the URSA Mini Pro are compatible with the C2S using Western Digital Blue SSDs, SanDisk Ultra 3D DDSs (not SanDisk Ultra II), and Digistor Professional Video SSDs.
In the Box Atoch C2S CFast to SSD Solution for Blackmagic URSA, URSA Mini, and URSA Mini Pro (4K & 4.6K) 1 x D-Tap to DC Cable 2 x SSD Spacers (7 to 9.5mm) Lifetime Product Support & Troubleshooting Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atoch C2S CFast to SSD Solution for Blackmagic URSA, URSA Mini, and URSA Mini Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtoch C2S Specs | Number of Drive Bays | 2 x 2.5" / 9.5 mm | | Supported Memory Interface | Standard SATA Solid-State Drives (SSDs) | | Supported SSDs | SanDisk Extreme Pro, Samsung 850 Pro | | Maximum Supported SSD Capacity | 2 TB | | Power | 12-24 VDC | | Dimensions | 3.5 x 4.3 x 2.0" / 8.9 x 10.8 x 5.1 cm | | Weight | 11.7 oz / 331.7 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.8 x 5.4 x 5.1" |
