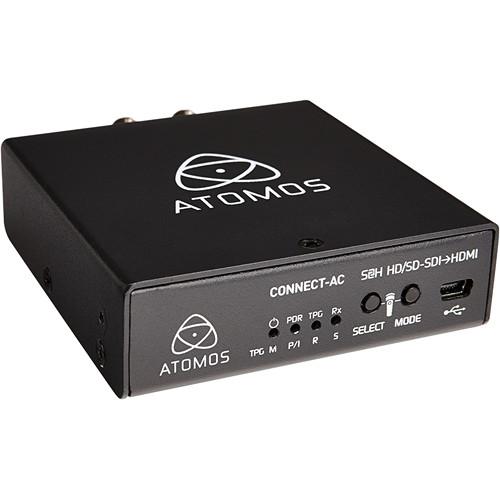

User Manual for Atomos Connect-AC S2H Converter with AC Cable Click to enlarge the picture
Contents of the user manual for the Atomos Connect-AC S2H Converter with AC
- Product category: Signal Converters Atomos
- Brand: Atomos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atomos Signal Converters
|
User manual for the Atomos Connect-AC S2H Converter with AC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atomos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atomos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atomos product will considerably shorten its lifespan!
|
Product description The Atomos Connect-AC S2H Converter with AC Cable converts an SDI signal to an HDMI output and SDI loop output, supporting resolutions up to 1080i60/50, including 1080p30/25. The device also features a test pattern generator, audio test tone, flashlight mode for use in dark locations, and performs pulldown removal and insertion.
A figure-of-8 AC cable is included for power. You can use the converter table-top or rack-mounted in an optional Atomos Connect-AC Rack-Mount Kit, which can hold four units. UPC: 853815005124 In the Box Atomos Connect-AC S2H Converter with AC Cable Figure-of-8 AC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Connect-AC S2H Converter with AC Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtomos S2H Specs | Inputs | 1x 3G/HD/SD-SDI (supports embedded audio) | | Outputs | 1x HDMI (supports embedded audio)
1x 3G/HD/SD-SDI loop output (supports embedded audio) | | Firmware Updates | Via USB port | | Supported Formats | 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080p30 (60i), 1080p25 (50i), 1080p24 (60i), 1080p23.98 (60i), 720p60, 720p59.94, 720p50, 480i, 576i | | Processing | Pulldown Removal:
25PsF (50i) to 25p
30PsF (60i) to 30p
24p (as 3:2-60i) to 24p
Pulldown Insertion:
25p to 25PsF (50i)
30p to 30PsF (60i)
24p to 24p (as 3:2-60i) | | | | Package Weight | 1.17 lb | | Box Dimensions (LxWxH) | 8.1 x 6.55 x 3.15" |
