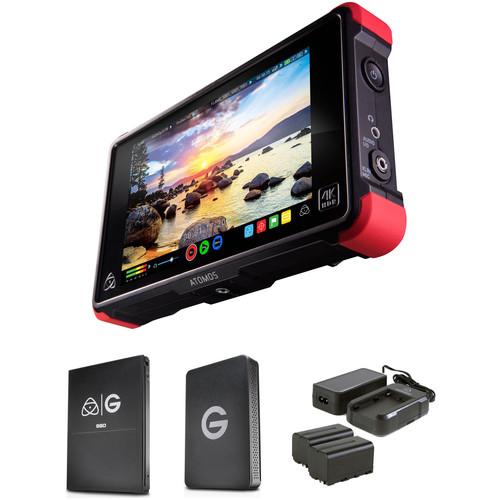

Product description Record, monitor, store, and transfer high-resolution video with this Atomos Ninja Flame with 1TB G-Technology SSD Kit from . Consisting of the Atomos Ninja Flame 4K recorder, a G-Technology 1TB SSD, an ev|Series Reader, two 5200mAh batteries, a battery charger, and a power adapter, this kit has everything you need to start shooting and transferring 4K and HD video right out of the box. The included ev|Series reader is compatible with G-Technology hardware. See below for more information on each individual item in this kit. - Atomos Ninja Flame 7" 4K HDMI Recording Monitor The Atomos Ninja Flame is a 7", 1920 x 1200 on-camera recording monitor combining 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage, as well as high-brightness viewing of Rec. 709 footage. It utilizes an HDMI input to support clean output signals at resolutions up to UHD 4K, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs.
The 10-bit panel and AtomHDR display technology support a brightness range of over 10 stops, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images, or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of a separately available sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Ninja Flame features built-in protective armor with silicone-covered corners and chamfered edges. Compared to the original Ninja, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor features a 3.5mm microphone input, with on-screen audio level display. Additionally, the monitor features a variety of on-screen exposure analysis, framing, and focus assist tools. Included with the basic kit are a Master Caddy II 2.5" drive enclosure and an AC adapter power supply. A travel case for storing the monitor is also included to protect it during storage and transport. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- 4K HDMI input/output
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- UHD 4K downscale for HD monitoring
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- Recording
-
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
- Additional Features
-
- 3.5mm microphone input
- Audio level meters and mic level adjustment
- Dual Sony L-Series type battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
UPC: 814164020671 - G-Technology Atomos Master Caddy 4K (1TB) A robust media solution designed for Atomos recorders, the G-Technology Atomos Master Caddy 4K contains a 1TB solid-state drive capable of recording and storing HD as well as 4K video. Shaped like a standard Atomos drive caddy, the Master Caddy 4K SSD will be compatible with any Atomos recorder that uses Master Caddys, including those in the Flame, Inferno, and Shogun series. When video needs to be transferred, simply insert the Master Caddy 4K into the separately available ev Series Reader specially designed for the Master Caddy 4K and offload files at speeds up to 500 MB/s. UPC: 705487203431
- G-Technology ev|Series Reader Atomos Master Caddy Edition Seamlessly incorporate Atomos media into your storage workflow with the G-Technology ev|Series Reader Atomos Master Caddy Edition. Whether using standard drives housed in Atomos Master Caddys or G-Technology's Master Caddy drives, this ev|Series Reader offers a convenient way to import your videos. The I/O panel holds a USB-C port for plugging into your computer with the included cables and a SATA port for integrating with other G-Technology Evolution hardware. UPC: 705487203394
- Atomos Power Kit for Shogun/Ninja Inferno & Flame The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756
In the Box - Ninja Flame 7" 4K HDMI Recording Monitor ydxybuaayuffaa
- Travel Case for Ninja Video Recorder
- Master Caddy II
- AC Adapter
- Limited 1-Year Warranty, Extended to 3 Years with Online Registration
- G-Technology - Atomos Master Caddy 4K (1TB)
- G-Technology - ev|Series Reader Atomos Master Caddy Edition
- Power Kit for Shogun/Ninja Inferno & Flame
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Ninja Flame with 1TB G-Technology SSD and Power Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Ninja Flame 7" 4K HDMI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Output
1 x HDMI Type A (HDMI 1.4b) Input | | Audio | 1 x 3.5 mm Mic/Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | HDMI | | Encoding Formats | 3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
1920 x 1080
ProRes 422, LT, HQ
DNxHD 220x, 145, 36 | | Recording Media | 1 x 2.5" SSD (SATA III) | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 11.6 x 7.05 x 4.0" | - G-Technology Atomos Master Caddy 4K (1TB)
| | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 500 MB/s | | | | Dimensions | 4.1 x 2.9 x 0.5" / 104 x 74 x 12 mm | | Weight | 4.5 oz / 127 g | | | | Box Dimensions (LxWxH) | 6.4 x 4.8 x 2.3" | - G-Technology ev|Series Reader Atomos Master Caddy Edition
| Interface | 1 x USB Type-C
1 x SATA | | Dimensions | 5.1 x 3.2 x 0.9" / 130 x 81 x 22 mm | | Weight | 6.4 oz / 181 g | | | | Box Dimensions (LxWxH) | 6.4 x 4.8 x 2.3" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" |
