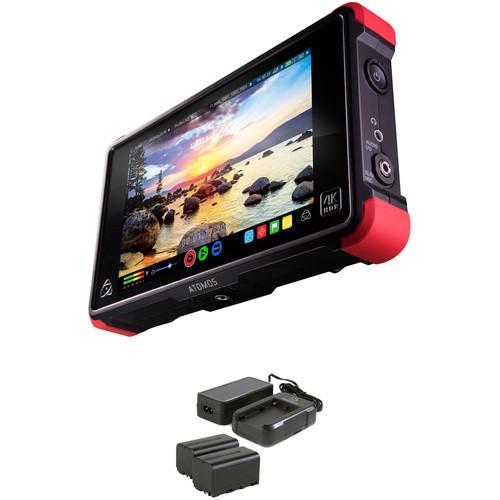

User Manual for Atomos Ninja Flame with Power Kit Click to enlarge the picture
Contents of the user manual for the Atomos Ninja Flame with Power Kit
- Product category: Recorders & Duplication Atomos
- Brand: Atomos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atomos Recorders & Duplication
|
User manual for the Atomos Ninja Flame with Power Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atomos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atomos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atomos product will considerably shorten its lifespan!
|
Product description This Atomos Ninja Flame with Power Kit from is a great option if you already have essential Atomos accessories for recording media. This kit includes a power kit which provides two NP-F type batteries to power the Ninja Flame recorder as well as a single-slot charger for replenishing the batteries after they've been drained. If you want to know more about the individual items in this kit, check out the features below. - Atomos Ninja Flame 7" 4K HDMI Recording Monitor The Atomos Ninja Flame is a 7", 1920 x 1200 on-camera recording monitor combining 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage, as well as high-brightness viewing of Rec. 709 footage. It utilizes an HDMI input to support clean output signals at resolutions up to UHD 4K, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs.
The 10-bit panel and AtomHDR display technology support a brightness range of over 10 stops, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images, or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of a separately available sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Ninja Flame features built-in protective armor with silicone-covered corners and chamfered edges. Compared to the original Ninja, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor features a 3.5mm microphone input, with on-screen audio level display. Additionally, the monitor features a variety of on-screen exposure analysis, framing, and focus assist tools. Included with the basic kit are a Master Caddy II 2.5" drive enclosure and an AC adapter power supply. A travel case for storing the monitor is also included to protect it during storage and transport. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- 4K HDMI input/output
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- UHD 4K downscale for HD monitoring
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- Recording
-
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
- Additional Features
-
- 3.5mm microphone input
- Audio level meters and mic level adjustment
- Dual Sony L-Series type battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
UPC: 814164020671 - Atomos Power Kit for Shogun/Ninja Inferno & Flame The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756
In the Box - Ninja Flame 7" 4K HDMI Recording Monitor zfrvdssebredwvdqcusxtayayr
- Travel Case for Ninja Video Recorder
- Master Caddy II
- AC Adapter
- Limited 1-Year Warranty, Extended to 3 Years with Online Registration
- Power Kit for Shogun/Ninja Inferno & Flame
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Ninja Flame with Power Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Ninja Flame 7" 4K HDMI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Output
1 x HDMI Type A (HDMI 1.4b) Input | | Audio | 1 x 3.5 mm Mic/Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | HDMI | | Encoding Formats | 3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
1920 x 1080
ProRes 422, LT, HQ
DNxHD 220x, 145, 36 | | Recording Media | 1 x 2.5" SSD (SATA III) | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 11.6 x 7.05 x 4.0" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" |
