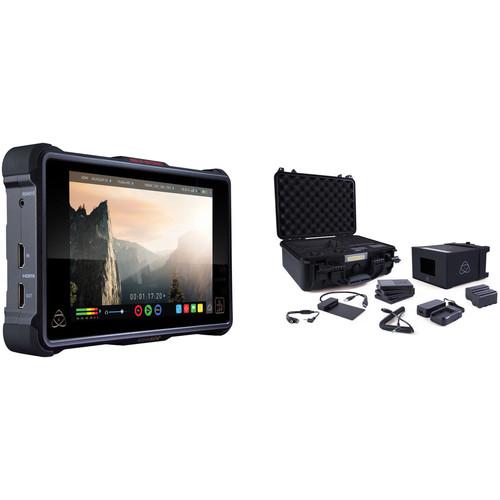

User Manual for Atomos Ninja Inferno with Accessory Kit Click to enlarge the picture
Contents of the user manual for the Atomos Ninja Inferno with Accessory Kit
- Product category: Recorders & Duplication Atomos
- Brand: Atomos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atomos Recorders & Duplication
|
User manual for the Atomos Ninja Inferno with Accessory Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atomos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atomos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atomos product will considerably shorten its lifespan!
|
Product description Upgrading your rig and workflow for better monitoring and outboard recording? The Atomos Ninja Inferno with Accessory Kit from is a full out-of-the box solution; just add SSD media, and you're ready to shoot. The Ninja Inferno can record 4K HDMI 2.0 signals at up to 60 fps—perfect for high-resolution cameras such as the Panasonic GH5. Batteries for the Ninja Inferno and a charger, SSD Caddys plus a docking station, power and control cables, as well as a sunhood are all included in the accessory kit. All the accessories, with the addition of the monitor itself, can be packed away nicely into the included HPRC hard case with custom-cut foam for protection during storage and transport. For more information on the individual items included in this kit, check out the features below. - Atomos Ninja Inferno 7" 4K HDMI Recording Monitor
- Ninja Inferno HDR 4Kp60 Monitor Recorder Launch
Able to record DCI and UHD 4K signals at up to 60 fps, the Atomos Ninja Inferno makes a great companion to cameras and camcorders that output uncompressed video over HDMI. The monitor itself features 10-bit FRC processing and AtomHDR display technology that supports a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered. In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is available, as displaying a wider brightness range reduces the overall brightness of the monitor. Incoming video signals can be recorded in a wide range of Apple ProRes and Avid DNx codecs which maintain high quality while not requiring the storage space of uncompressed video. Both ProRes and DNx are edit-friendly, requiring no conversion in post-production to ensure smooth playback and compatibility with most common video editing software. Standard 2.5" SATA III recording media is supported, with compatible SSDs able to record in all formats including 4K and high-frame-rate HD. Note: check the Atomos website for an updated list of supported drives Built to withstand the rigors of production, the Ninja Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Like its predecessor, the Ninja Flame, the Inferno features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times with hot-swapping. For audio recording, the monitor supports balanced XLR inputs with 48V phantom power and XLR outputs via separately available audio breakout cables. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools. A power supply, SSD Caddy, and a travel case are included with the unit. - AtomHDR
- With AtomHDR you can monitor up to 10 stops of dynamic range of your camera's LOG image. Most conventional monitors can only display 6 or 7 stops, which is fine for standard footage, but a LOG image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.
- 4K 60p Capabilities
- Record high-resolution 4K footage in DCI or UHD formats up to 60 fps, including 24 and 25 fps for a more film-like aesthetic. All recordings are stored as high quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit-rates are available to fit your project and storage needs.
- Audio I/O
- Audio can be input and output via the multi-pin locking connector. Separately available breakout cables can provide XLR audio input with 48v phantom power and output. A 3.5mm headphone jack on the side can be used for convenient audio monitoring.
- 7" Daylight Viewable Screen
- The Ninja Inferno's 7" LCD screen is illuminated by a bright 1500 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
- HDR Signal Management
- LOG and HDR signals can be difficult to monitor with conventional equipment. Though, with the Ninja Inferno's built-in HDR signal management functions, the LOG signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.
UPC: 814164020688 - Atomos Accessory Kit for Shogun/Ninja Inferno & Flame
- Ninja Inferno HDR 4Kp60 Monitor Recorder Launch
The Atomos Accessory Kit includes everything you'll need for a complete workflow with your Shogun/Ninja Inferno and Flame monitors/recorders. - Kit Contents
-
- HPRC hard flight case
- 2.5mm female to dual 2.5mm male control cable
- Two NP-F750 5200mAh batteries
- Fast charger
- USB 3.0 docking station
- Coiled DC barrel to D-Tap cable
- Four Master Caddy II drive caddies
- AC power adapter
- HDR sunhood
UPC: 814164020749 In the Box - Ninja Inferno 7" 4K HDMI Recording Monitor wdxvtarxusuququdbazyywsdwvcrs
- Power Supply
- Master Caddy II
- Travel Case
- Limited 1-Year Warranty (3-Year with Product Registration)
- Accessory Kit for Shogun/Ninja Inferno & Flame
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Ninja Inferno with Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Ninja Inferno 7" 4K HDMI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 2.0) Output
1 x HDMI Type A (HDMI 2.0) Input | | Embedded Audio | HDMI: 8-Channel | | Audio | 1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
DCI 4K: 24/25/30/50/60
UHD 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | HDMI | | Encoding Formats | 3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB | | Recording Media | 1 x 2.5" SSD (SATA III) | | Phantom Power | +48 V | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
33 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 1.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 12.85 x 8.6 x 3.95" | - Atomos Accessory Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 15.9 x 14.1 x 7.1" |
