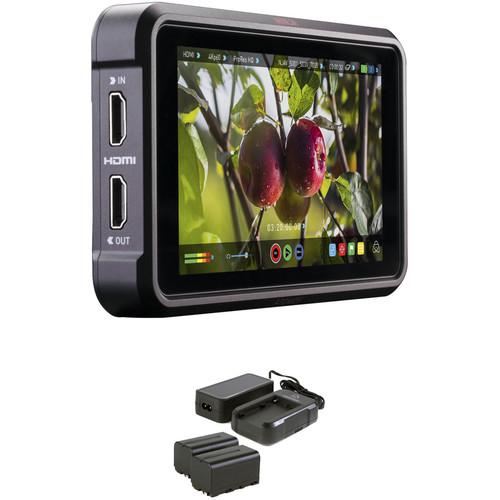

User Manual for Atomos Ninja V 5" 4K HDMI Recording Monitor Kit with 2 L-Series Batteries, Charger, and Power Adapter

• Product category: Recorders & Duplication Atomos
• Brand: Atomos
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Atomos Recorders & Duplication

Product description

• Atomos Ninja V 5" 4K HDMI Recording Monitor
  • Atomos Ninja V - Hands-On Review
  The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" on-camera monitor/recorder that records and plays back DCI 4K, UHD 4K, and HD video from purpose-built mini-SSDs. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.

  Built to withstand the rigors of production, the Ninja V features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A power supply and SSD Caddy are included with the unit. Designed with an interface that differs somewhat from prior units, the Ninja V's HDR functions are accessed through the MON buttons and its ProRes options are chosen via the arrows on the unit's upper left corner. The Ninja V can record to both AtomX SSDmini or standard 2.5" SSD drives, fitting up to 150 minutes of 4K video on an 1TB drive. Separately available AtomX Ethernet/NDI and SYNC Expansion Modules enable you to output live video over IP or add wireless timecode for multicamera shoots respectively.

  AtomHDR

  • With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.

  Supported Log Formats

  • • ARRI Log C
    • Canon CLog / CLog 2
    • Fuji F-Log
    • JVC JLog
    • Sony SLog2 / SLog3
    • Panasonic Vlog
    • RED LogFilm

  HDR Recording

  • • ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
    • Canon CLog / CLog2 / Clog3
    • Fuji F-Log
    • JVC JLog1
    • Panasonic Vlog
    • PQ10k, HLG
    • RED LogFilm / Log3G10 / Log3G12
    • Sony SLog / SLog2 / SLog3

  HDR Monitoring

  • • ARRI ALEXA Wide Gamut
    • Canon Cinema / DCI P3 / DCI P3+ / BT2020
    • Fuji F-Log
    • JVC LS300
    • Panasonic V Gamut
    • Rec. 2100
    • Rec. 709
    • RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
    • Sony SGamut / SGamut3 / SGamut3.cine / BT2020
    • Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 on screen
    • Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 / BT2020 / DCI P3 on loop out

  4K 60p Capabilities

  • Record high-resolution 4K footage in DCI or UHD formats up to 60 fps, including 24 and 25 fps for a more film-like aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.

  SSD Recording

  • Record to standard 2.5" SSD drives or to compact AtomX SSDmini drives, capturing up to 150 minutes of 4K video on a 1TB drive.

  Audio I/O

  • Input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port; output audio using the 3.5mm headphone port for convenient audio monitoring.

  5" Daylight Viewable Screen

  • The Ninja V features a 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

  HDR Signal Management

  • Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Ninja V's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.

  Anamorphic De-Squeeze

  • The Ninja V supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.

  Edit-Ready Recording

  • Incoming video signals can be recorded in a wide range of Apple ProRes and Avid DNx codecs which maintain high quality while not requiring the storage space of uncompressed video. Both ProRes and DNx are edit-friendly, requiring no conversion in post-production to ensure smooth playback and compatibility with most common video editing software.

  Optional Expansion Modules

  • The Ninja V features a bidirectional high-speed video port along with power and audio which enables the use of the AtomX Ethernet/NDI and SYNC modules along with future module releases.
  UPC: 814164021074
• Atomos Power Kit for Shogun/Ninja Inferno & Flame
  • Atomos Ninja V - Hands-On Review
  The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756

• Ninja V 5" 4K HDMI Recording Monitor rsdzzxztqvzsqbxawbrsqsc
• Power Supply
• Master Caddy II
• Limited 1-Year Warranty
• Upgradeable to Limited 3-Year Warranty with Product Registration

• Power Kit for Shogun/Ninja Inferno & Flame

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Atomos Ninja V 5" 4K HDMI Recording Monitor

  Panel Type	IPS-Type LCD
  Display Size	5.0" / 12.7 cm
  Screen Resolution	1920 x 1080
  Aspect Ratio	16:9
  Touchscreen	Yes
  Maximum Brightness	1000 cd/m2
  Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
  Pixels Per Inch (ppi)	427 ppi
  Color Gamut	100% Rec. 709
  Real-Time LUT Monitoring	SDR

  Video	1 x HDMI Type A (HDMI 2.0) Output 1 x HDMI Type A (HDMI 2.0) Input
  Embedded Audio	HDMI: 8-Channel
  Audio	1 x 3.5 mm Mic/Line Input 1 x 3.5 mm Headphone Output
  Built-In Speaker	None
  Power	1 x Barrel Input
  Other I/O	1 x LANC (2.5 mm)
  Card Slot	None

  Video Format	HDMI (8/10-Bit 4:2:2) DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 120/60/50/30/25/24 1080i: 60/50 720p: 60/50
  Video Signal Conversion	HDMI to SDI DCI 4K: 24/25/30/50/60 UHD 4K: 24/25/30/50/60 1080p: 24/25/30/50/60/100/120 1080i: 50/60 720p: 50/60

  Pulldown Conversion	2:2, 3:2
  Encoding Formats	3840 x 2160 ProRes 422, LT, HQ DNxHR HQ, HQX, SQ, LB
  Recording Media	1 x 2.5" SSD (SATA III) 1 x AtomX SSDmini (SATA III)

  DC Input Power	6.2 to 16.8 VDC
  Battery Type	1 x L-Series
  Power Consumption	10 W (Typical) 19 W (Maximum)

  Mounting	2 x 1/4"-20 Female

  Material of Construction	Aluminum, Polycarbonate
  Dimensions (W x H x D)	5.94 x 3.6 x 1.22" / 151 x 91.5 x 31 mm
  Weight	11.3 oz / 320 g

  Box Dimensions (LxWxH)	7.7 x 5.7 x 4.3"

• Atomos Power Kit for Shogun/Ninja Inferno & Flame

  Box Dimensions (LxWxH)	7.2 x 4.35 x 3.8"
