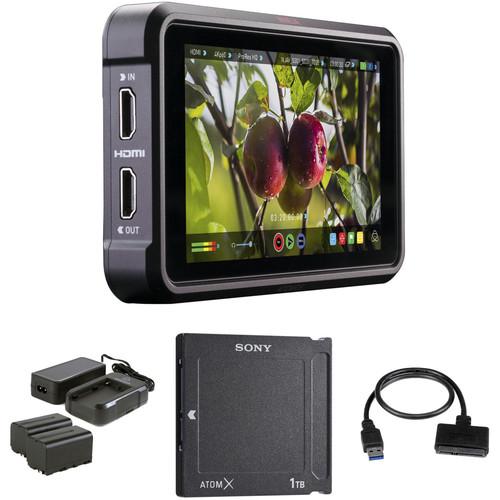

Product description This Atomos Ninja V 5" 4K Recording Monitor with 1TB Sony AtomX SSDmini Kit put together by B&H consists of everything you need to record HD video to an external SSD. The kit includes a 5" Atomos V recording monitor, two L-series batteries, a battery charger with AC adapter, a 1TB Sony AtomX SSDmini, and a USB to SATA III connector cable. The 1920 x 1080 display features 1000 cd/m² brightness and a 10-stop dynamic range, supports popular log formats, records and plays back up to DCI 4K video, and includes an HDMI input and output. The Ninja V can record up to 150 minutes of 4K video onto the included AtomX 1TB SSDmini using the USB to SATA III adapter cable. The included power kit provides two L-series batteries with a charger to power your Ninja V. - Atomos Ninja V 5" 4K HDMI Recording Monitor
- Atomos Ninja V - Hands-On Review
The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" on-camera monitor/recorder that records and plays back DCI 4K, UHD 4K, and HD video from purpose-built mini-SSDs. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered. Built to withstand the rigors of production, the Ninja V features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A power supply and SSD Caddy are included with the unit. Designed with an interface that differs somewhat from prior units, the Ninja V's HDR functions are accessed through the MON buttons and its ProRes options are chosen via the arrows on the unit's upper left corner. The Ninja V can record to both AtomX SSDmini or standard 2.5" SSD drives, fitting up to 150 minutes of 4K video on an 1TB drive. Separately available AtomX Ethernet/NDI and SYNC Expansion Modules enable you to output live video over IP or add wireless timecode for multicamera shoots respectively. AtomHDR - With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.
Supported Log Formats -
- ARRI Log C
- Canon CLog / CLog 2
- Fuji F-Log
- JVC JLog
- Sony SLog2 / SLog3
- Panasonic Vlog
- RED LogFilm
HDR Recording -
- ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
- Canon CLog / CLog2 / Clog3
- Fuji F-Log
- JVC JLog1
- Panasonic Vlog
- PQ10k, HLG
- RED LogFilm / Log3G10 / Log3G12
- Sony SLog / SLog2 / SLog3
HDR Monitoring -
- ARRI ALEXA Wide Gamut
- Canon Cinema / DCI P3 / DCI P3+ / BT2020
- Fuji F-Log
- JVC LS300
- Panasonic V Gamut
- Rec. 2100
- Rec. 709
- RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
- Sony SGamut / SGamut3 / SGamut3.cine / BT2020
- Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 on screen
- Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 / BT2020 / DCI P3 on loop out
4K 60p Capabilities - Record high-resolution 4K footage in DCI or UHD formats up to 60 fps, including 24 and 25 fps for a more film-like aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.
SSD Recording - Record to standard 2.5" SSD drives or to compact AtomX SSDmini drives, capturing up to 150 minutes of 4K video on a 1TB drive.
Audio I/O - Input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port; output audio using the 3.5mm headphone port for convenient audio monitoring.
5" Daylight Viewable Screen - The Ninja V features a 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
HDR Signal Management - Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Ninja V's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.
Anamorphic De-Squeeze - The Ninja V supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.
Edit-Ready Recording - Incoming video signals can be recorded in a wide range of Apple ProRes and Avid DNx codecs which maintain high quality while not requiring the storage space of uncompressed video. Both ProRes and DNx are edit-friendly, requiring no conversion in post-production to ensure smooth playback and compatibility with most common video editing software.
Optional Expansion Modules - The Ninja V features a bidirectional high-speed video port along with power and audio which enables the use of the AtomX Ethernet/NDI and SYNC modules along with future module releases.
UPC: 814164021074 - Atomos Power Kit for Shogun/Ninja Inferno & Flame
- Atomos Ninja V - Hands-On Review
The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756 - Sony AtomX SSDmini (1TB)
- Atomos Ninja V - Hands-On Review
This 1TB Sony AtomX SSDmini is designed specifically for the Atomos Ninja V recorder, but it works with most Atomos recorders (some recorders require an optional adapter). It supports sequential write speeds up to 500 MB/s and sequential read speeds up to 550 MB/s. The high write speed enables it to capture high-quality 4K footage in any of Atomos' codecs without dropping frames. and the read speed makes for fast offloading of material and smooth playback with no dropped frames. The housing of the SSDmini is 20% shorter than conventional SSDs as per the Atomos design, allowing it to work seamlessly with Ninja V recording monitors. The solid-state design of this SSD can provide up to 1500 G/0.5 ms of shock resistance. - Compatibility
-
- Ninja V
- Ninja Inferno
- Ninja Flame
- Shogun Inferno
- Shogun Flame
- Sumo (with optional SSDmini adapter)
- Sumo19M (with optional SSDmini adapter)
UPC: 027242915374 StarTech USB 3.0 to 2.5" SATA III Drive Adapter Cable (19.7") - Atomos Ninja V - Hands-On Review
Access internal 2.5" drives from a USB-enabled computer with the USB 3.0 to 2.5" SATA III Hard Drive Adapter Cable from StarTech. This adapter sports a SATA interface that is compatible with SATA I, II, and III-based hard drives and SSDs. On the other end, it has a typical USB type-A connector that utilizes USB 3.0 technology, which delivers speeds of up to 5 Gbps. It draws power from a USB bus-powered port. In addition, UASP enhances the transfer speeds when the adapter is connected to a UASP-enabled host controller. - USB Attached SCSI Protocol
- UASP is supported in Windows 8, Mac OS X (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. It also shows an 80% reduction in required processor resources.
UPC: 065030854696 In the Box - Ninja V 5" 4K HDMI Recording Monitor dwsfsdvfztxuqswxbtcufvvfetweqsqwtrs
- Power Supply
- Master Caddy II
- Limited 1-Year Warranty
- Upgradeable to Limited 3-Year Warranty with Product Registration
- Power Kit for Shogun/Ninja Inferno & Flame dwsfsdvfztxuqswxbtcufvvfetweqsqwtrs
- Sony - AtomX SSDmini (1TB)
- StarTech - USB 3.0 to 2.5" SATA III Drive Adapter Cable (19.7")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Ninja V 5" 4K Recording Monitor with 1TB Sony AtomX SSDmini Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Ninja V 5" 4K HDMI Recording Monitor
| Panel Type | IPS-Type LCD | Display Size | 5.0" / 12.7 cm | Screen Resolution | 1920 x 1080 | Aspect Ratio | 16:9 | Touchscreen | Yes | Maximum Brightness | 1000 cd/m2 | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | Pixels Per Inch (ppi) | 427 ppi | Color Gamut | 100% Rec. 709 | Real-Time LUT Monitoring | SDR | | Video | 1 x HDMI Type A (HDMI 2.0) Output 1 x HDMI Type A (HDMI 2.0) Input | Embedded Audio | HDMI: 8-Channel | Audio | 1 x 3.5 mm Mic/Line Input 1 x 3.5 mm Headphone Output | Built-In Speaker | None | Power | 1 x Barrel Input | Other I/O | 1 x LANC (2.5 mm) | Card Slot | None | | Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 120/60/50/30/25/24 1080i: 60/50 720p: 60/50 | Video Signal Conversion | HDMI to SDI DCI 4K: 24/25/30/50/60 UHD 4K: 24/25/30/50/60 1080p: 24/25/30/50/60/100/120 1080i: 50/60 720p: 50/60 | | Pulldown Conversion | 2:2, 3:2 | Encoding Formats | 3840 x 2160 ProRes 422, LT, HQ DNxHR HQ, HQX, SQ, LB | Recording Media | 1 x 2.5" SSD (SATA III) 1 x AtomX SSDmini (SATA III) | | DC Input Power | 6.2 to 16.8 VDC | Battery Type | 1 x L-Series | Power Consumption | 10 W (Typical) 19 W (Maximum) | | Mounting | 2 x 1/4"-20 Female | | Material of Construction | Aluminum, Polycarbonate | Dimensions (W x H x D) | 5.94 x 3.6 x 1.22" / 151 x 91.5 x 31 mm | Weight | 11.3 oz / 320 g | | Box Dimensions (LxWxH) | 7.7 x 5.7 x 4.3" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" | - Sony AtomX SSDmini (1TB)
| Connections | 1 x SATA (SATA III) | Interface | SATA III (6 Gb/s) | Maximum Read Speed | 550 MB/s | Maximum Write Speed | 500 MB/s | | Operating Shock | 1500 G / 0.5 ms | | Dimensions | 2.97 x 3.15 x 0.31" / 75.5 x 80 x 7.8 mm | Weight | 3.1 oz / 88 g | | Box Dimensions (LxWxH) | 5.8 x 4.5 x 4.1" | - StarTech USB 3.0 to 2.5" SATA III Drive Adapter Cable (19.7")
| Number of Bays | 1 x 2.5" | Connections | 1 x USB Type-A (USB 3.1 Gen 1) | Compatible Drive Interface | SATA III | UASP Support | Yes | | Operating Temperature | 32 to 140°F / 0 to 60°C | Operating Humidity | 40 to 85% | Storage Temperature | 14 to 158°F / -10 to 70°C | | Bridge Chipset | ASMedia ASM1051E | Dimensions (W x H x D) | 0.4 x 19.7 x 1.9" / 9.0 x 500.0 x 49.0 mm | Weight | 1.4 oz / 41.0 g | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 0.25" |
