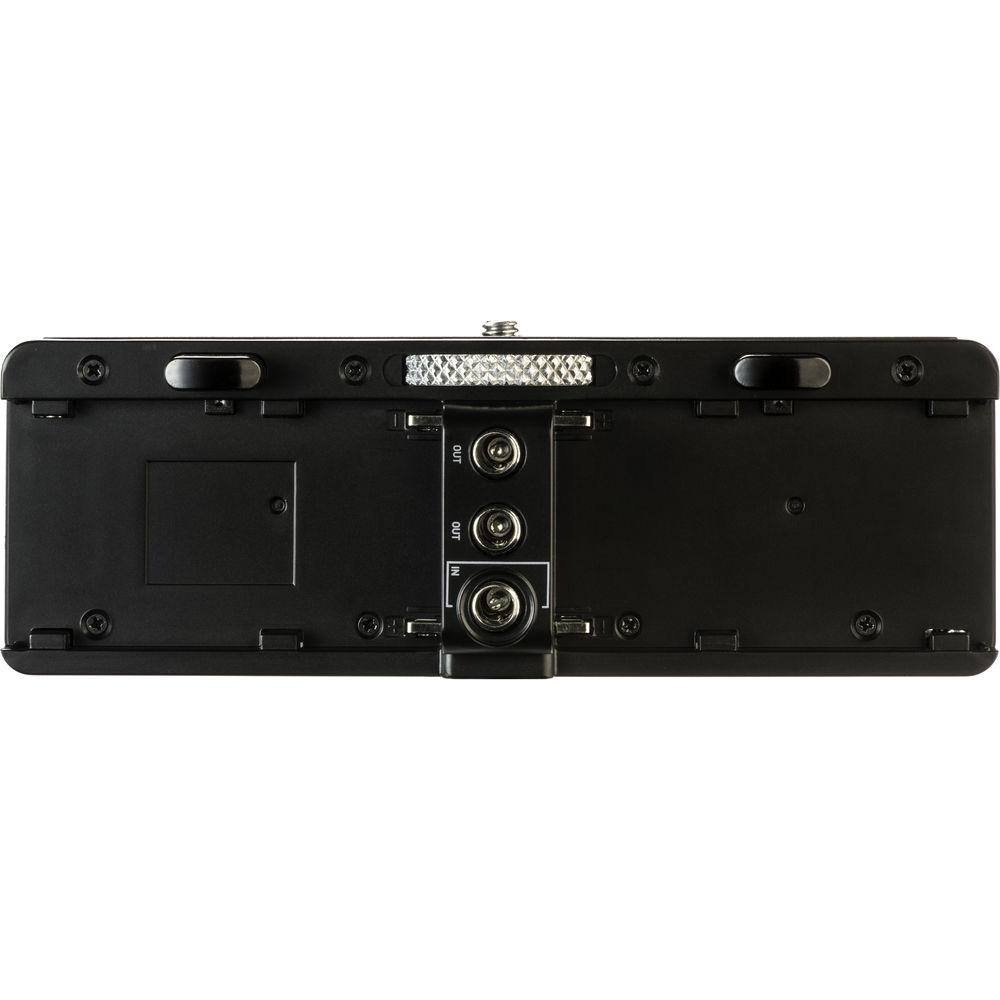

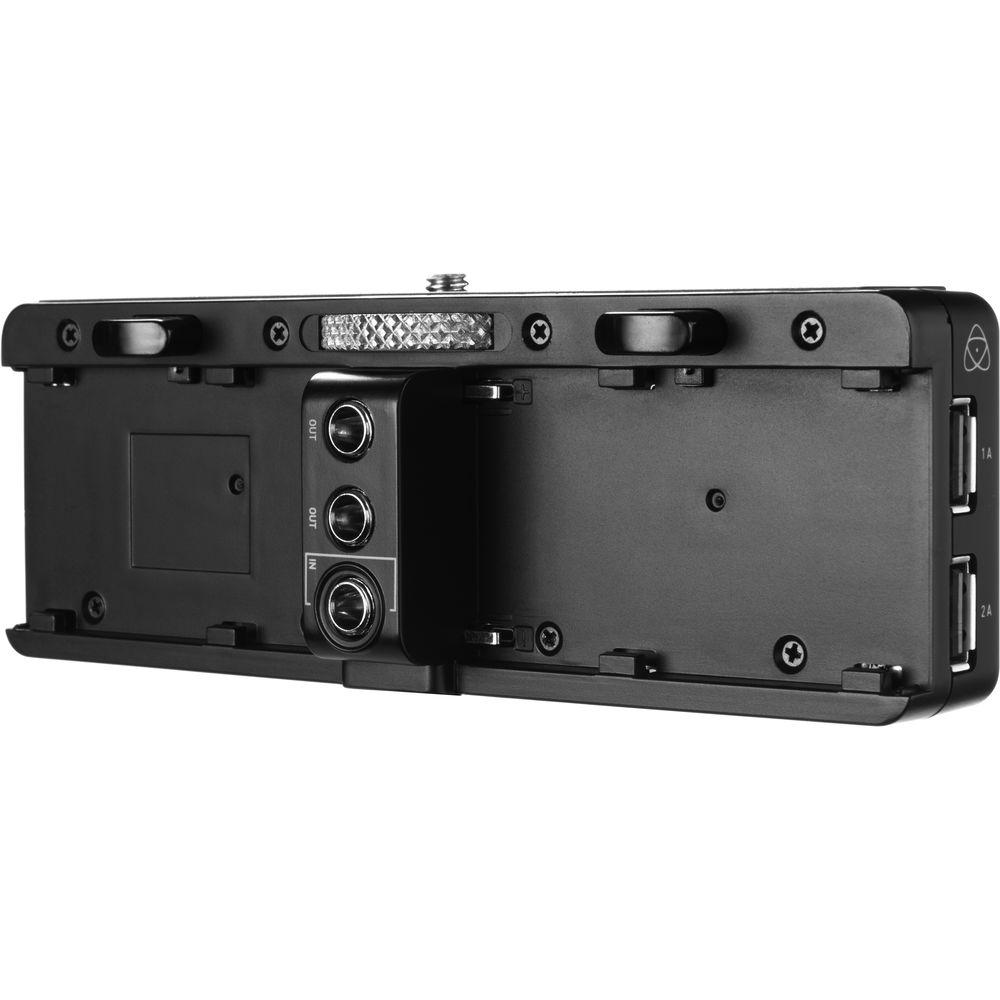

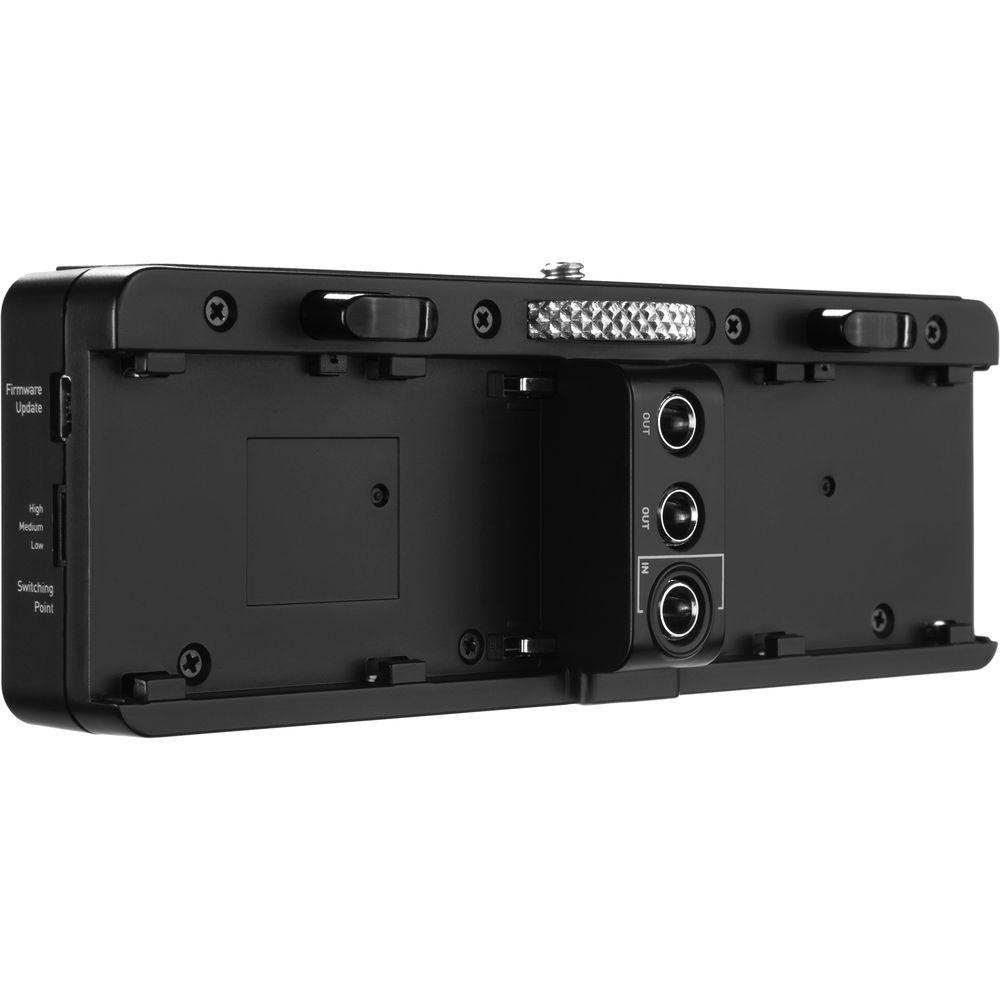

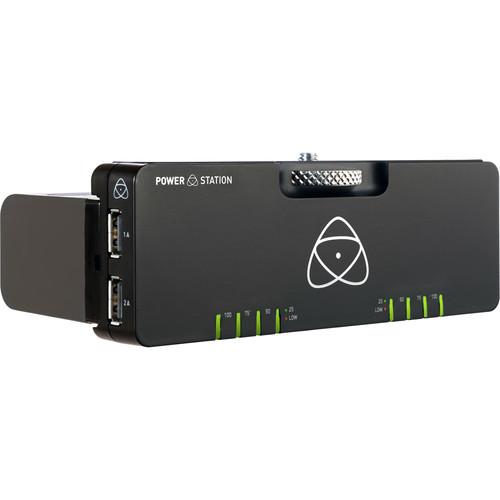

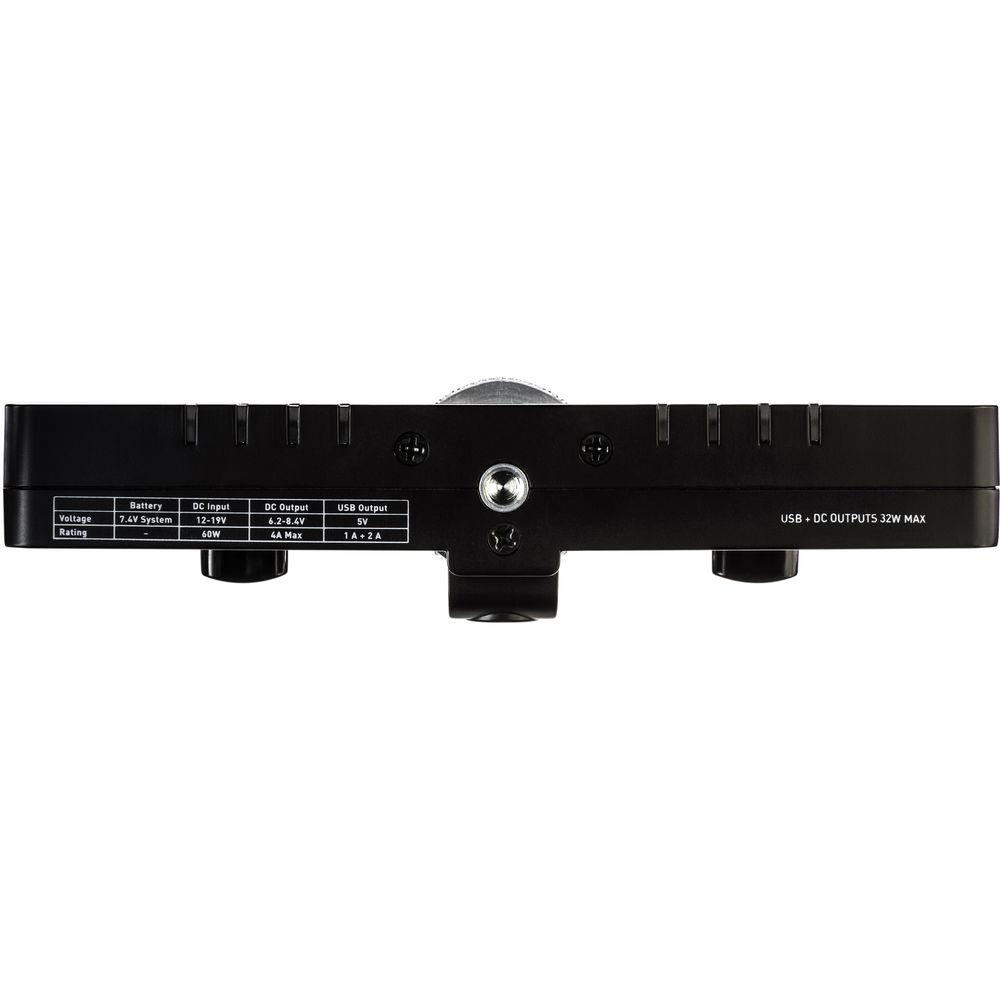

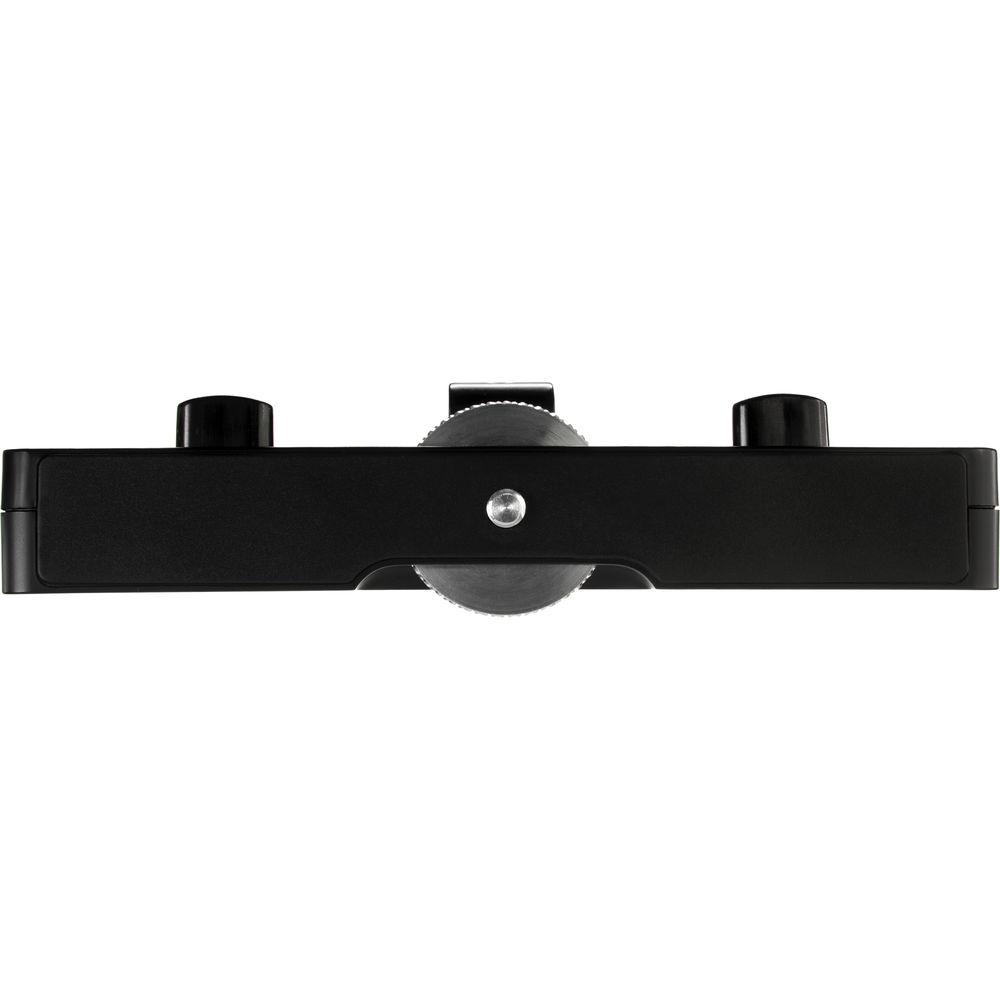

Product description The Atomos Power Station Video is a dual battery system for powering your camera and additional devices in the field. It mounts underneath your camera using a 1/4"-20 screw with thumbwheel and features slots for two Sony L-series type batteries. Two DC outputs allow powering of up to two devices, such as your camera and an external monitor. In addition to the two DC power outputs, the Power Station also features a flexible dual USB power source which can power two USB devices, or one high-powered 2A device, such as an iPad.

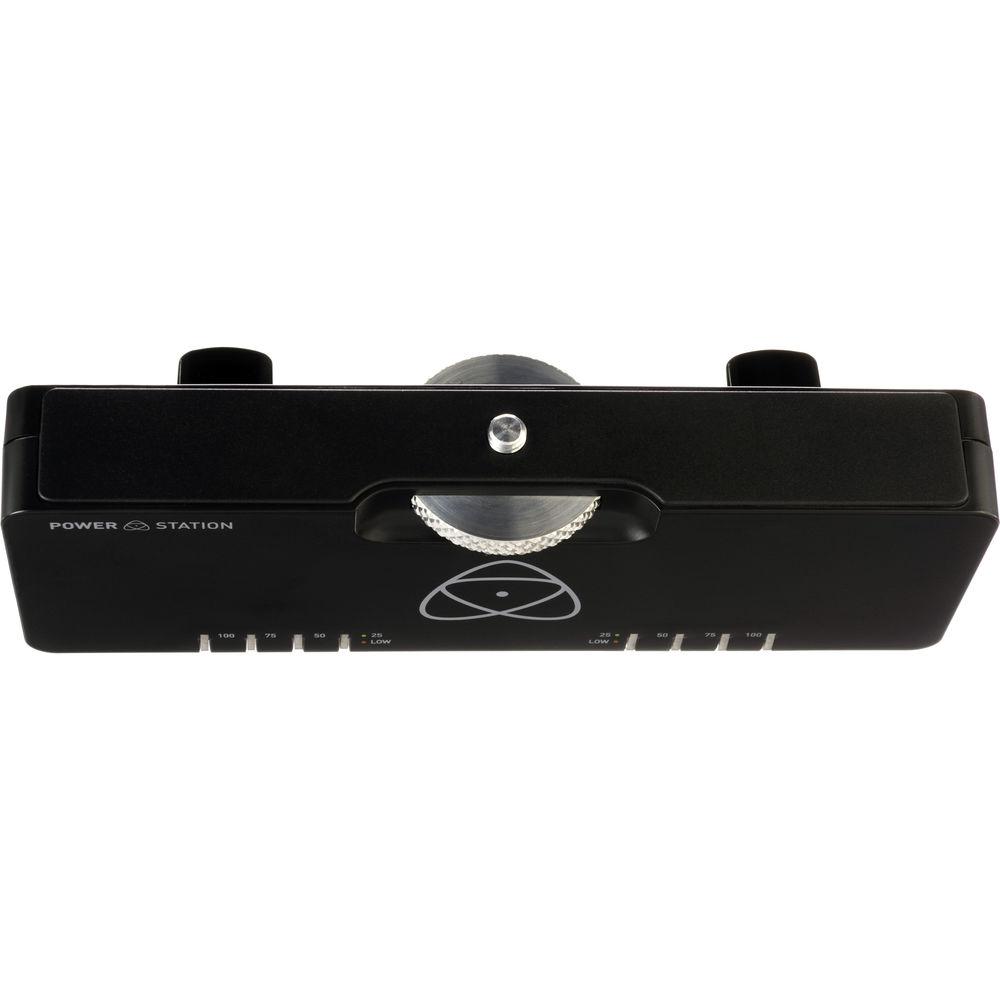

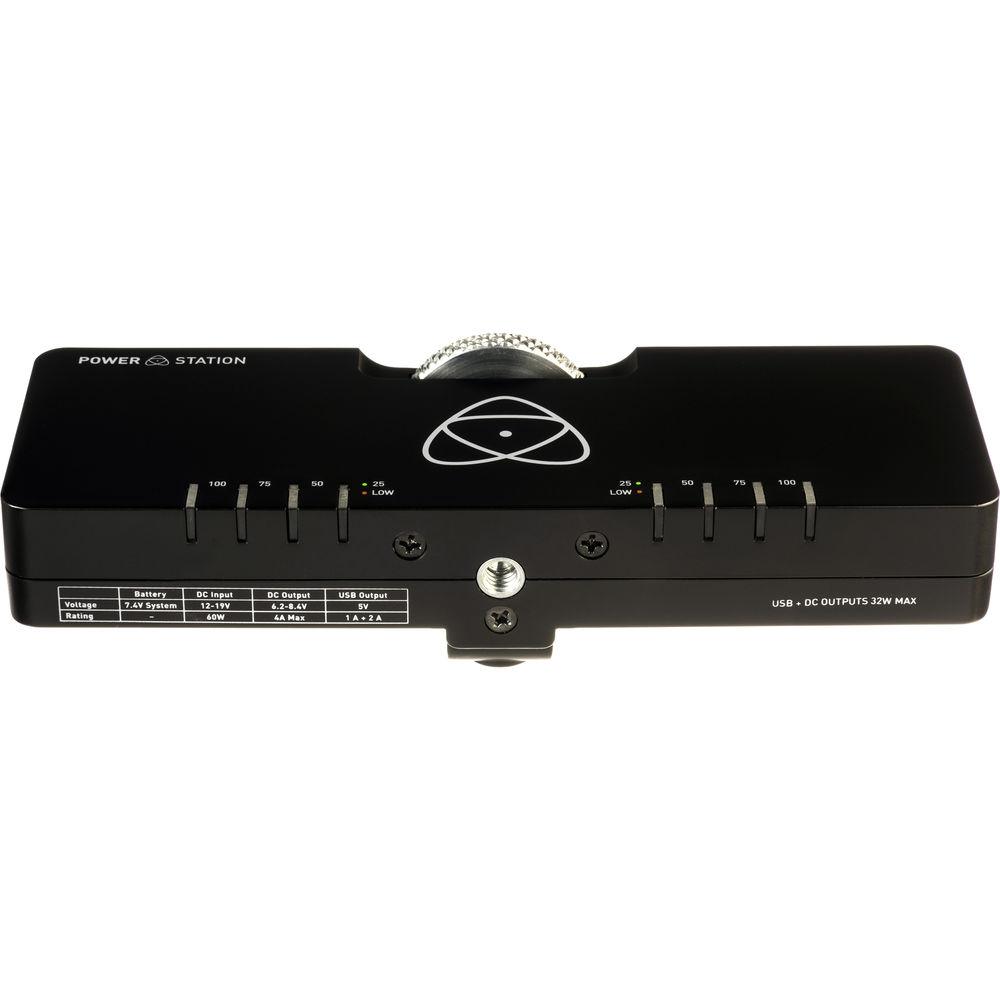

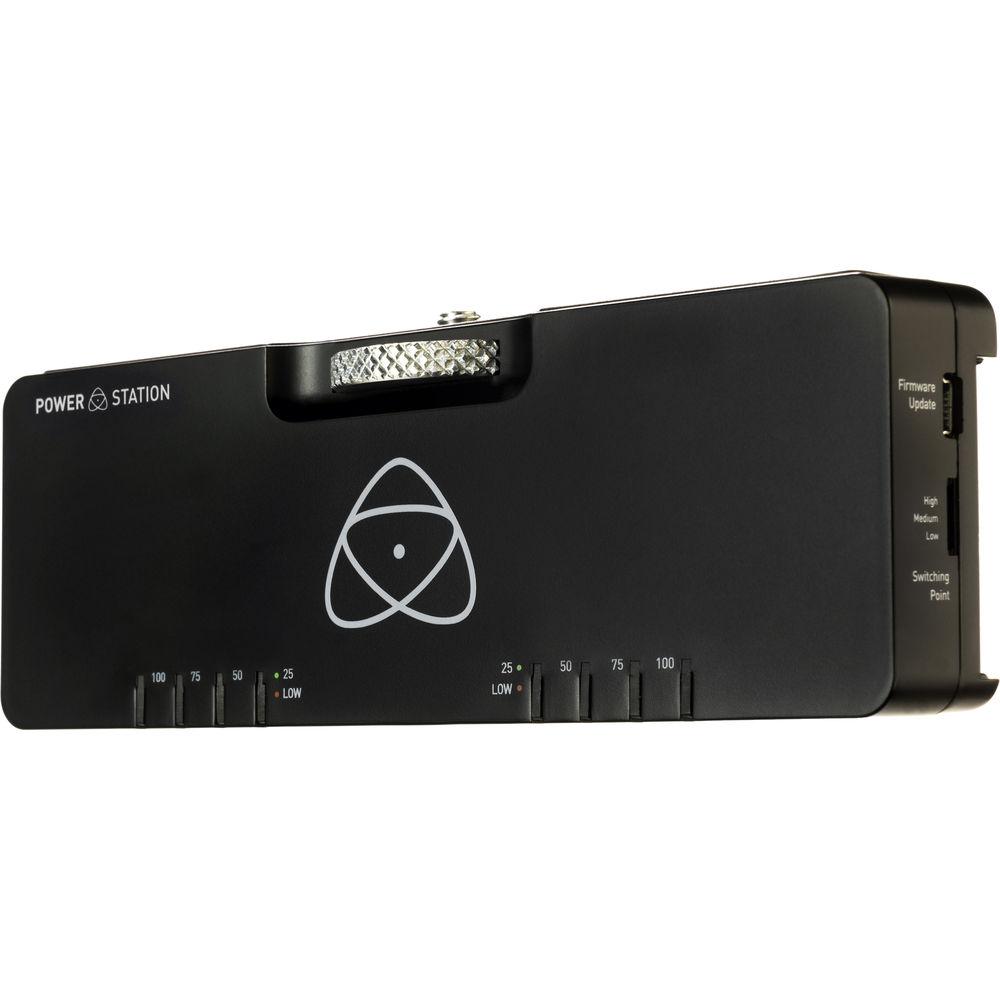

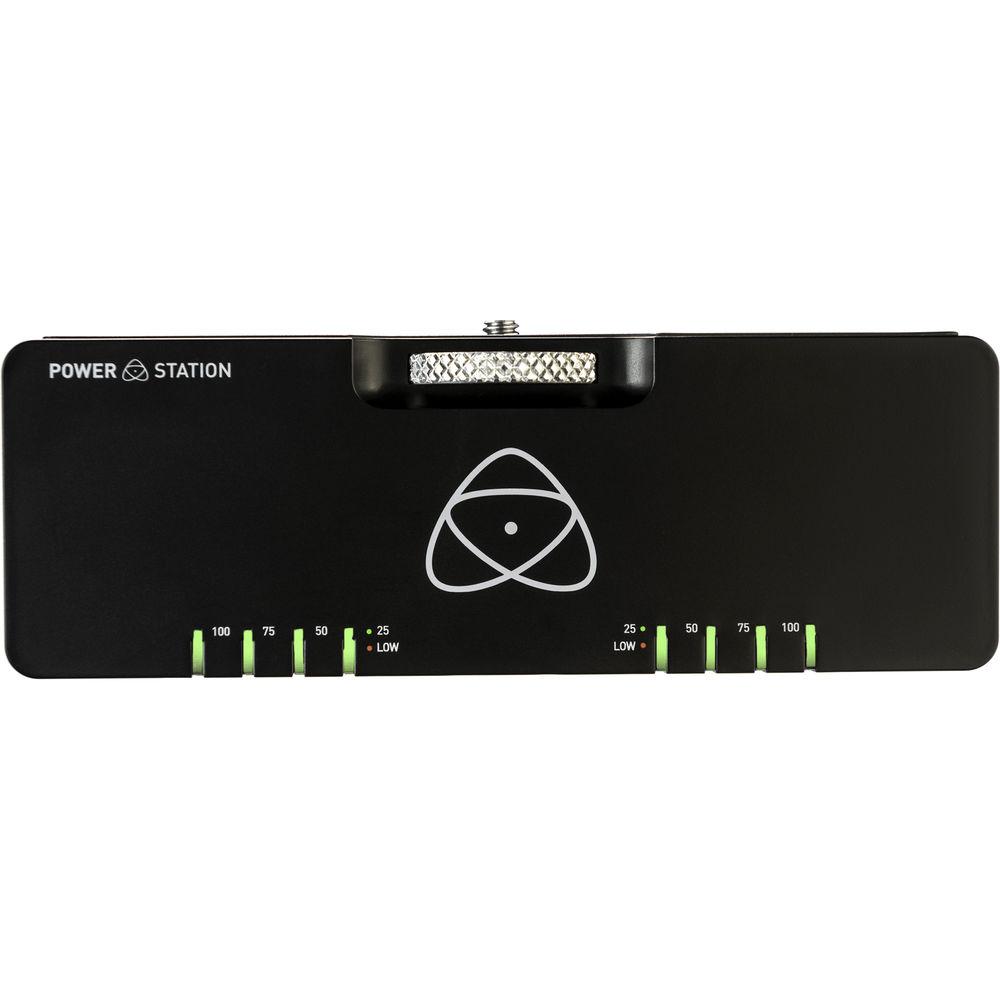

This Video bundle packages the Power Station with a pair of 7800mAh batteries, which can charge an iPhone 5 from 0 to 100% three times. To monitor the power remaining on your attached batteries, there are independent left and right LED displays on the front of the Power Station, providing a quick 5-step guide from 100% to 10% battery life. And because batteries are hot-swappable, you can replace batteries on-the-fly without losing power to your devices. Also included with the Video bundle are DC battery adapters for the Panasonic GH4, Nikon D810, Canon 5D Mark III, Sony FS100/700, and Sony a7 series cameras. -
- Dual battery system
- Accepts Sony L-Series type batteries
- Batteries are hot-swappable
- 1/4"-20 Camera screw
- Dual 8.4 VDC power outputs
- Optional DC adapter cables available for popular cameras
- Dual 5 VDC USB power outputs; charge a single high-powered 2A device or two 1A device
- Independent 5-step battery level meters
- Includes two 7800mAh batteries
- Battery adapters included for Panasonic GH4, Nikon D810, Canon 5D Mark III, Sony FS100/700, and Sony a7 series cameras
- Works with Atomos monitor/recorders
UPC: 814164020084 In the Box Atomos Power Station Video 2 x 7800mAh NP-F975 Type Batteries AC Adapter DC Power Cable for Atomos Shogun Battery Adapter for Panasonic DMW-BLF19 Battery Adapter for Sony NP-FW50 Battery Adapter for Sony NP-F550 Battery Adapter for Nikon EN-EL15 Battery Adapter for Canon LP-E6 Soft Travel Case 6 x Touch Fastener Cable Management Straps Limited 1-Year Warranty (2-Year with Product Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Power Station Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtomos ATOMPWS002 Specs | Material of Construction | ABS polycarbonate | | Input Voltage | DC Input: 12 to 19 VDC
D-Tap (via optional adapter): 12 to 19 VDC
Battery: 7.4 VDC (8.4 VDC max.), 2 slots | | Battery Type | Sony L-series | | Power Outputs | On DC Power: 2 x 8.4 VDC, 4 A max. | | USB Charging | 2 x USB outputs, 5 VDC, 3 A max. total | | Maximum Power Output | 38 W | | Battery Charging | 2 x 1.6 A (on DC power)
(approx. 3 hours to charge NP-F570 battery) | | Dimensions (WxHxD) | 6.3 x 2.2 x 1.4" (16.0 x 5.5 x 3.5 cm) | | Weight | 4.4 oz (125 g) | | | | Package Weight | 3.975 lb | | Box Dimensions (LxWxH) | 12.3 x 7.8 x 4.1" |
