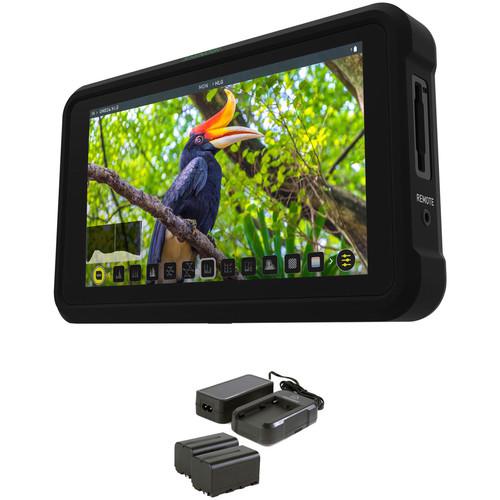

Product description This Atomos Shinobi 5.2" HDMI Monitor with Power Kit has been put together by B&H to offer the tools you need to monitor up to DCI 4K video. The lightweight Shinobi 5.2" on-camera monitor features a 1920 x 1080 display, 1000 cd/m² brightness, LUT support, and can input up to DCI 4K video over HDMI.
The Shinobi can be charged with a single L-series battery via its built-in plate or with the included AC adapter. The power kit includes two NP-F750 5200mAh batteries, a battery charger, and an AC power adapter. - Atomos Shinobi 5.2" 4K HDMI Monitor The Shinobi 5.2" 4K HDMI Monitor is a 5.2" on-camera monitor that monitors DCI 4K, UHD 4K, and HD video input. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.
Built to withstand the rigors of production, the Shinobi features a lightweight plastic chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A 12V power supply is included with the unit. AtomHDR - With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.
Supported Log Formats -
- ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600
- Canon CLog / CLog 2 / CLog 3
- Fuji F-Log
- JVC JLog
- Nikon N-Log
- Sony SLog / SLog2 / SLog3
- Panasonic Vlog
- RED Log3G10 / RED LogFilm
- PQ10k
- HLG
HDR Monitoring -
- Sony SGamut / SGamut3 / SGamut3.cine
- Canon Cinema / DCI P3 / DCI P3+
- Panasonic V Gamut
- Arri Alexa Wide Gamut
- Rec709 / BT.2020
- JVC
- RED WideGamut / RED DragonColor / DragonColor2
- RED Color2 / RED Color3 / RED Color4
4K DCI/UHD and HD Capabilities - Monitor 4K footage in DCI or UHD formats up to 29.97 fps and 1080p up to 59.94 fps.
Audio Monitoring - Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.
5.2" Daylight Viewable Screen - The Shinobi features a 5.2" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
HDR Signal Management - Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.
Anamorphic De-Squeeze - The Shinobi supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.
UPC: 814164021265 - Atomos Power Kit for Shogun/Ninja Inferno & Flame The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756
In the Box - Shinobi 5.2" 4K HDMI Monitor eqzdvrrtwettzszvcxtvewuf
- Power Supply
- Limited 1-Year Warranty
- Upgradeable to Limited 3-Year Warranty with Product Registration
- Power Kit for Shogun/Ninja Inferno & Flame
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Shinobi 5.2" Monitor with Power Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Shinobi 5.2" 4K HDMI Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 5.2" / 13.2 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1000 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) 10-Bit Uncompressed, 8-Bit 422, Dependent on Camera | | Pixels Per Inch (ppi) | 427 ppi | | Color Gamut | 100% Rec. 709 | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform, Zebra, Vectorscope | | | | Video | 1 x HDMI Type A (HDMI 2.0) Input | | Embedded Audio | HDMI: 2-Channel | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10-Bit 4:2:2)
DCI 4K: 29.97/25/24/23.98
UHD 4K: 29.97/25/24/23.98
1080p: 59.94/50/29.97/25/24/23.98
720p: 59.94/50 | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 4 W (Typical)
7 W (Maximum) | | | | Mounting | 2 x 1/4"-20 Female | | | | Operating Temperature | 104°F / 40°C (Recommended) Setting TFT brightness to minimum can extend operating time in high temperature conditions | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 5.94 x 3.6 x 1.24" / 151 x 91.5 x 31.5 mm | | Weight | 6.91 oz / 196 g | | | | Box Dimensions (LxWxH) | 7.8 x 5.7 x 3.4" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" |
