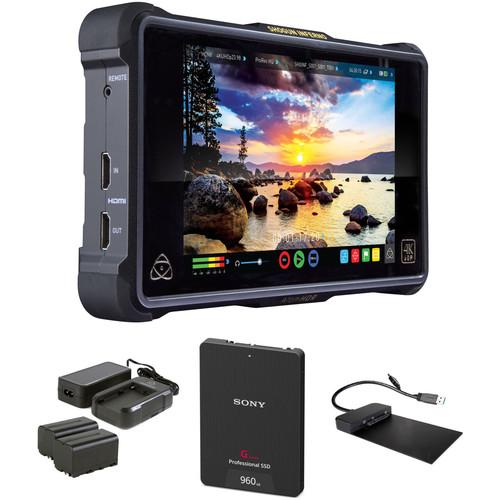

Product description Monitor and record your scenes using everything you need with this Atomos Shogun Inferno Sony SSD ProRes/Raw Bundle put together by B&H. The kit includes the 7" Atomos Shogun Inferno recording monitor, two L-series NP-F750 5200mAh batteries, a battery charger with AC adapter, a powered docking station, and a Sony 2.5" 960GB G Series SATA SSD hard drive.
The Shogun Inferno features a 1920 x 1200 touchscreen display with 1500 cd/m2 brightness. It records UHD 4K video up to 60p and 1080p up to 240 fps, and has 4K HDMI and 12G-SDI inputs and outputs. The monitor records to the Sony 2.5" 960GB SSD drive via the included Master Caddy interface, which can then be offloaded to your computer using the included USB docking station. The fast drive reads up to 550 MB/s and writes up to 500 MB/s.
The kit also includes two L-series batteries to power your Shogun Inferno, as well as a battery charger with an AC adapter. - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
- Atomos Shogun Inferno records Apple ProRes RAW
The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high-brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes, and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an optional snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-series battery plates that support battery hot swapping, enabling longer runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, and focus assist tools. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- UHD 4K downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs/outputs
- Four 3G-SDI inputs (or single 12G-SDI)
- SDI/HDMI cross conversion
- Genlock/LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30/50/60 fps in ProRes or DNxHR
- 1080p recording up to 240 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- ProRes Raw and ProRes Raw HQ
- Record up to 5.7p30, 4Kp60, HDp240
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- Ten metadata fields
- Additional Features
-
- Dual Sony L-series battery slots support hot swapping for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020718 - Atomos Power Kit for Shogun/Ninja Inferno & Flame
- Atomos Shogun Inferno records Apple ProRes RAW
The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756 - Sony 960GB G Series 2.5" SATA SSD
- Atomos Shogun Inferno records Apple ProRes RAW
Designed for use with Atomos on-camera/portable recorders and monitors, as well as Backmagic Design's HyperDeck Shuttle, HyperDeck Studio, HyperDeck Studio 12G, and HyperDeck Studio Pro, the 960GB G Series 2.5" SATA Internal SSD from Sony provides users with a capacity of 960GB for their professional recorder. Using Error Correction Code (ECC) technology, this SSD helps ensure high-speed data writing at up to 500 MB/s and 4K video recording at speeds of up to 550 MB/s, as well as a 2400 TBW lifespan. Built-in data protection technology helps preserve data, even in the event of power loss or improper disconnect, while sturdy connectors help ensure up to 3000 insertion/removal cycles. Sony's 960GB SATA 2.5" Internal SSD is compatible with Windows and Mac. Protection includes a limited warranty of 10 years or 2400 TBW, whichever is reached first. - Sony-tested transfer speeds of 550 MB/s read and 500 MB/s write
- Sony's ECC (Error Correction Code) enables 2400 TBW (terabytes written)
- Data protection technology that helps preserve the drive's contents, even in the event of a power loss or improper disconnect
- Sturdier connectors tested to 3000 insertion / removal cycles
- Supports Windows 10, 8.1, and 7, as well as Mac OS 10.12, 10.11, 10.10, and 10.9
- Recommended for use with Atomos on-camera/portable recorders and monitors like the Shogun Inferno, Shogun Flame, Shogun Studio, Ninja Flame, Ninja Blade, and Sumo
- Recommended for use with Blackmagic Design's HyperDeck Shuttle, HyperDeck Studio, HyperDeck Studio 12G, and HyperDeck Studio Pro
UPC: 027242905801 - Atomos Powered Docking Station with USB 3.1 Gen 1 & 2.0
- Atomos Shogun Inferno records Apple ProRes RAW
A low-profile offload dock for your Atomos drive caddies, the Atomos Powered Docking Station will be an elegant addition to your computer desk as well as compact accessory for your transport bag. It supports a single drive caddy at a time and efficiently offloads the drive contents direct to your computer via an integrated USB cable. Both Master Caddy and Master Caddy II models are supported. This powered model is an upgrade over the previous Atomos USB 3.0 docking station, additionally featuring support for an Atomos RAID Caddy power cable for if you ever need to connect a RAID caddy.
The integrated USB cable features one USB 3.0 and one USB 2.0 connector, with the latter provided for compatibility with older computers. Older computer models may require both ports to be connected for a sufficient supply of power. UPC: 853815005827 In the Box - Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor avtdfwxvedrzaxwfuvvrbyaafyyzc
- XLR Breakout Cable
- Master Caddy II
- AC Power Adapter
- Limited 1-Year Warranty (3-Year with Product Registration)
- Power Kit for Shogun/Ninja Inferno & Flame
- Sony - 960GB G Series 2.5" SATA SSD
- Powered Docking Station with USB 3.1 Gen 1 & 2.0
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Shogun Inferno Sony SSD ProRes Raw Docking Station Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (12G-SDI) Output
1 x HDMI Type A (HDMI 2.0) Input
4 x BNC (3G-SDI) Input | | Embedded Audio | HDMI: 8-Channel
SDI: 12-Channel | | Audio | 1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x Genlock/LTC (BNC)
1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120/240
1080i: 50/60
720p: 50/60
SDI (8/10-Bit 4:2:2)
DCI 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120
1080PsF: 24/25/30
1080i: 50/60
720p: 50/60 | | Video Signal Conversion | HDMI to SDI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI to HDMI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | SDI, HDMI | | Encoding Formats | 4096 x 2160
ProRes Raw, Raw HQ, 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
3840 x 2160
ProRes 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
1920 x 1080
ProRes 422, LT, HQ at up to 240 fps
DNxHD 220x, 145, 36 at up to 240 fps | | Recording Media | 1 x 2.5" SSD (SATA III) | | Phantom Power | +48 V | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 12.6 x 6.75 x 3.95" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" | - Sony 960GB G Series 2.5" SATA SSD
| | | Interface | SATA I (1.5 Gb/s) | | Maximum Read Speed | 550 MB/s | | Maximum Write Speed | 500 MB/s | | | | Endurance (Total Bytes Written) | 2400 TB | | | | Box Dimensions (LxWxH) | 5.2 x 3.9 x 0.9" | - Atomos Powered Docking Station with USB 3.1 Gen 1 & 2.0
| Supported Caddy Models | Master Caddy, Master Caddy II | | USB Connectors | 1 x USB 3.0
1 x USB 2.0 | | | | Box Dimensions (LxWxH) | 8.5 x 3.5 x 1.1" |
