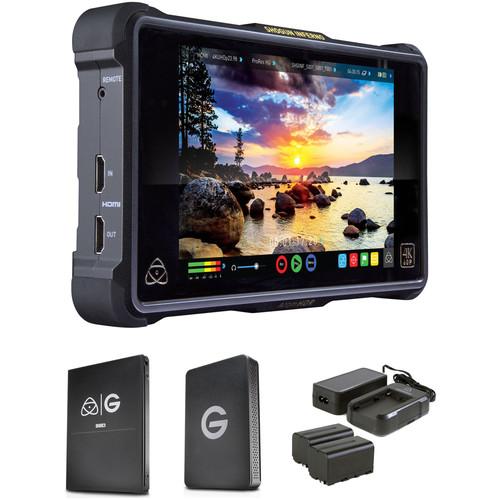

Product description Atomos Shogun Inferno Updates Software to 8.11 Read More Record, monitor, store, and transfer high-resolution video with this Atomos Shogun Inferno Kit from . Consisting of the Atomos Shogun Inferno 4K recorder, a G-Technology 512GB SSD, an ev|Series Reader, two 5200mAh batteries, a battery charger, and a power adapter, this kit has everything you need to start shooting and transferring 4K and HD video right out of the box. The included ev|Series reader is directly compatible with select G-Technology ev|Series hardware. See below for more information on each individual item in this kit. - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
- Hands-On Review: Atomos Shogun Inferno
- Sony FS700 HFR Setup for Shogun Inferno
The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high-brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes, and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an optional snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-series battery plates that support battery hot swapping, enabling longer runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, and focus assist tools. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- UHD 4K downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs/outputs
- Four 3G-SDI inputs (or single 12G-SDI)
- SDI/HDMI cross conversion
- Genlock/LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30/50/60 fps in ProRes or DNxHR
- 1080p recording up to 240 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- ProRes Raw and ProRes Raw HQ
- Record up to 5.7p30, 4Kp60, HDp240
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- Ten metadata fields
- Additional Features
-
- Dual Sony L-series battery slots support hot swapping for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020718 - G-Technology Atomos Master Caddy 4K (512GB)
- Hands-On Review: Atomos Shogun Inferno
- Sony FS700 HFR Setup for Shogun Inferno
A robust media solution designed for Atomos recorders, the G-Technology Atomos Master Caddy 4K contains a 512GB solid-state drive capable of recording and storing HD as well as 4K video. Shaped like a standard Atomos drive caddy, the Master Caddy 4K SSD will be compatible with any Atomos recorder that uses Master Caddys, including those in the Flame, Inferno, and Shogun series. When video needs to be transferred, simply insert the Master Caddy 4K into the separately available ev Series Reader specially designed for the Master Caddy 4K and offload files at speeds up to 500 MB/s. UPC: 705487203424 - G-Technology ev|Series Reader Atomos Master Caddy Edition
- Hands-On Review: Atomos Shogun Inferno
- Sony FS700 HFR Setup for Shogun Inferno
Seamlessly incorporate Atomos media into your storage workflow with the G-Technology ev|Series Reader Atomos Master Caddy Edition. Whether using standard drives housed in Atomos Master Caddys or G-Technology's Master Caddy drives, this ev|Series Reader offers a convenient way to import your videos. The I/O panel holds a USB-C port for plugging into your computer with the included cables and a SATA port for integrating with other G-Technology Evolution hardware. UPC: 705487203394 - Atomos Power Kit for Shogun/Ninja Inferno & Flame
- Hands-On Review: Atomos Shogun Inferno
- Sony FS700 HFR Setup for Shogun Inferno
The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756 In the Box - Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor vtavdtvuawdytc
- XLR Breakout Cable
- Master Caddy II
- AC Power Adapter
- Limited 1-Year Warranty (3-Year with Product Registration)
- G-Technology - Atomos Master Caddy 4K (512GB)
- G-Technology - ev|Series Reader Atomos Master Caddy Edition
- Power Kit for Shogun/Ninja Inferno & Flame
