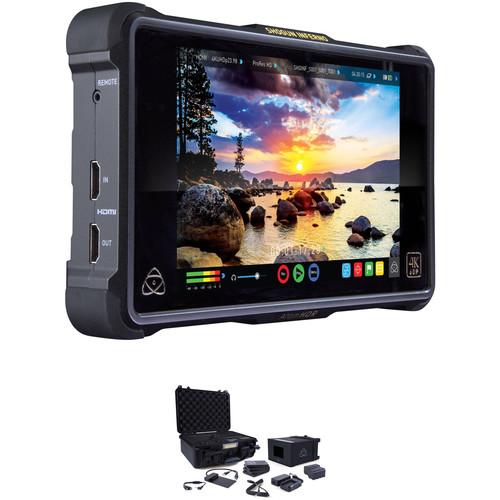

Product description This B&H Kit pairs the Atomos Shogun Inferno Recording Monitor with a dedicated Accessory Kit that includes many accessories for the monitor. The Shogun Inferno features a 7", 1920 x 1200 high-definition touchscreen display and a 1500 cd/m² brightness that allows for visibility even in bright outdoor conditions. It offers HDMI and 12G-SDI inputs and outputs and is capable of recording up to Ultra HD 4K/60 signals to 2.5" SSDs. The Accessory Kit includes a hard case, batteries, charger, docking station, sunhood, cables, and drive caddies that support Atomos-approved 2.5" SSDs (sold separately). - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
- Atomos Shogun Inferno records Apple ProRes RAW
The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high-brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes, and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an optional snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-series battery plates that support battery hot swapping, enabling longer runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, and focus assist tools. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- UHD 4K downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs/outputs
- Four 3G-SDI inputs (or single 12G-SDI)
- SDI/HDMI cross conversion
- Genlock/LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30/50/60 fps in ProRes or DNxHR
- 1080p recording up to 240 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- ProRes Raw and ProRes Raw HQ
- Record up to 5.7p30, 4Kp60, HDp240
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- Ten metadata fields
- Additional Features
-
- Dual Sony L-series battery slots support hot swapping for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020718 - Atomos Accessory Kit for Shogun/Ninja Inferno & Flame
- Atomos Shogun Inferno records Apple ProRes RAW
The Atomos Accessory Kit includes everything you'll need for a complete workflow with your Shogun/Ninja Inferno and Flame monitors/recorders. - Kit Contents
-
- HPRC hard flight case
- 2.5mm female to dual 2.5mm male control cable
- Two NP-F750 5200mAh batteries
- Fast charger
- USB 3.0 docking station
- Coiled DC barrel to D-Tap cable
- Four Master Caddy II drive caddies
- AC power adapter
- HDR sunhood
UPC: 814164020749 In the Box - Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor zfrvdssebredwvdqcusxtayayr
- XLR Breakout Cable
- Master Caddy II
- AC Power Adapter
- Limited 1-Year Warranty (3-Year with Product Registration)
- Accessory Kit for Shogun/Ninja Inferno & Flame
zfrvdssebredwvdqcusxtayayr Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Shogun Inferno with Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (12G-SDI) Output
1 x HDMI Type A (HDMI 2.0) Input
4 x BNC (3G-SDI) Input | | Embedded Audio | HDMI: 8-Channel
SDI: 12-Channel | | Audio | 1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x Genlock/LTC (BNC)
1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120/240
1080i: 50/60
720p: 50/60
SDI (8/10-Bit 4:2:2)
DCI 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120
1080PsF: 24/25/30
1080i: 50/60
720p: 50/60 | | Video Signal Conversion | HDMI to SDI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI to HDMI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | SDI, HDMI | | Encoding Formats | 4096 x 2160
ProRes Raw, Raw HQ, 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
3840 x 2160
ProRes 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
1920 x 1080
ProRes 422, LT, HQ at up to 240 fps
DNxHD 220x, 145, 36 at up to 240 fps | | Recording Media | 1 x 2.5" SSD (SATA III) | | Phantom Power | +48 V | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 12.6 x 6.75 x 3.95" | - Atomos Accessory Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 15.9 x 14.1 x 7.1" |
