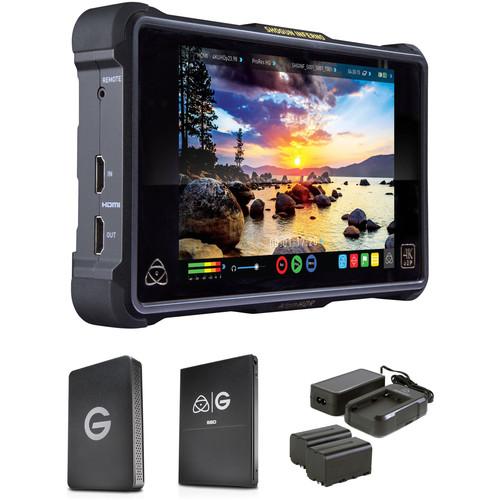

Product description The Atomos Shogun Inferno with G-Technology 2TB SSD, Reader, and Power Kit put together by B&H includes everything you need to get recording 4K from your camera; just add an HDMI or SDI cable. The 2TB G-Technology Atomos Master Caddy 4K fits right into the Shogun Inferno recorder and can store high-quality 4K video recordings. To offload, plug the SSD right into the G-Technology ev|Series Reader. Two batteries and a charger are provided courtesy of the included Atomos Power Kit. See below for more information on the individual items included in this kit. - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
- Atomos Shogun Inferno records Apple ProRes RAW
The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high-brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes, and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an optional snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-series battery plates that support battery hot swapping, enabling longer runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, and focus assist tools. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- UHD 4K downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs/outputs
- Four 3G-SDI inputs (or single 12G-SDI)
- SDI/HDMI cross conversion
- Genlock/LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30/50/60 fps in ProRes or DNxHR
- 1080p recording up to 240 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- ProRes Raw and ProRes Raw HQ
- Record up to 5.7p30, 4Kp60, HDp240
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- Ten metadata fields
- Additional Features
-
- Dual Sony L-series battery slots support hot swapping for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020718 - G-Technology ev|Series Reader Atomos Master Caddy Edition
- Atomos Shogun Inferno records Apple ProRes RAW
Seamlessly incorporate Atomos media into your storage workflow with the G-Technology ev|Series Reader Atomos Master Caddy Edition. Whether using standard drives housed in Atomos Master Caddys or G-Technology's Master Caddy drives, this ev|Series Reader offers a convenient way to import your videos. The I/O panel holds a USB-C port for plugging into your computer with the included cables and a SATA port for integrating with other G-Technology Evolution hardware. UPC: 705487203394 - G-Technology Atomos Master Caddy 4K (2TB Capacity)
- Atomos Shogun Inferno records Apple ProRes RAW
The G-Technology Atomos Master Caddy 4K is an approved device for use with select Atomos devices. The Master Caddy encloses your SSD drive—drive not included—protecting it and enabling you to go from Atomos device to ev Caddy reader. This version supports SSDs up to 2TB and transfer rates up to 500 Mb/s, which enable capturing 4K video at up to 60fps and HD video at up to 240 fps.
The Master Caddy 4K is built from aircraft grade aluminum for a balance between durability and weight, making this a durable and portable SSD enclosure. It is compatible with the ev Caddy Reader Series, which allows you to go from Atomos device to reader without removing the drive from the Caddy. - Supports 2.5" SSDs (HDDs are not recommended)
- Compatible with:
- Shogun Inferno
- Ninja Inferno
- Shogun
- Shogun Studio
- Shogun Flame
- Ninja Flame
- Supports up to 4K60p and HD at 240fps
UPC: 705487207330 - Atomos Power Kit for Shogun/Ninja Inferno & Flame
- Atomos Shogun Inferno records Apple ProRes RAW
The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756 In the Box - Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor zsuwabaw
- XLR Breakout Cable
- Master Caddy II
- AC Power Adapter
- Limited 1-Year Warranty (3-Year with Product Registration)
- G-Technology - ev|Series Reader Atomos Master Caddy Edition
- G-Technology - Atomos Master Caddy 4K (2TB Capacity)
- Power Kit for Shogun/Ninja Inferno & Flame
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Shogun Inferno with G-Technology 2TB SSD, Reader, and Power Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (12G-SDI) Output
1 x HDMI Type A (HDMI 2.0) Input
4 x BNC (3G-SDI) Input | | Embedded Audio | HDMI: 8-Channel
SDI: 12-Channel | | Audio | 1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x Genlock/LTC (BNC)
1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120/240
1080i: 50/60
720p: 50/60
SDI (8/10-Bit 4:2:2)
DCI 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120
1080PsF: 24/25/30
1080i: 50/60
720p: 50/60 | | Video Signal Conversion | HDMI to SDI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI to HDMI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | SDI, HDMI | | Encoding Formats | 4096 x 2160
ProRes Raw, Raw HQ, 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
3840 x 2160
ProRes 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
1920 x 1080
ProRes 422, LT, HQ at up to 240 fps
DNxHD 220x, 145, 36 at up to 240 fps | | Recording Media | 1 x 2.5" SSD (SATA III) | | Phantom Power | +48 V | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 12.6 x 6.75 x 3.95" | - G-Technology ev|Series Reader Atomos Master Caddy Edition
| Interface | 1 x USB Type-C
1 x SATA | | Dimensions | 5.1 x 3.2 x 0.9" / 130 x 81 x 22 mm | | Weight | 6.4 oz / 181 g | | | | Box Dimensions (LxWxH) | 6.4 x 4.8 x 2.3" | - G-Technology Atomos Master Caddy 4K (2TB Capacity)
| Interface | SATA 6 Gb/s | | Capacity | Supports SSDs up to 2 TB | | Transfer Rate | 500 Mb/s | | System Requirements | Mac OS 10.9+
Windows 7+ (via reformat) | | Dimensions | 4.1 x 2.9 x 0.48" / 10.41 x 7.37 x 1.22 cm | | | | Box Dimensions (LxWxH) | 6.5 x 4.75 x 2.25" | - Atomos Power Kit for Shogun/Ninja Inferno & Flame
| | | Box Dimensions (LxWxH) | 7.2 x 4.35 x 3.8" |
