Product description Atomos Shogun Studio: a Dual-Channel 3RU 4K Monitor/Recording Deck Read More - Hands-On Review: Atomos Shogun Inferno
The Atomos Shogun Studio 4K Monitor / Recorder combines two color-calibrated 1920 x 1200 resolution displays with 4K video recording and edit-ready codecs in a 3 RU chassis with removable rackmount ears. This configuration is well-suited for live event, studio, and on-set DIT work. The Shogun Studio utilizes 4K HDMI and 6G-SDI inputs to record clean output signals at resolutions up to UHD 4K (3840 x 2160) at 23.98, 24, 25, 29.97, and 30p, as well as Full HD (1920 x 1080) video up to 120 fps when used with capable cameras. The Shogun records 10-bit, 4:2:2 UHD 4K and HD video to Apple ProRes HQ, 422, or LT formats. It can also record HD video using Avid's DNxHD format and UHD 4K video using Avid's DNxHR. Video is recorded to single or raided 2.5" HDD and SSDs for fast and reliable write speeds.
As a monitor, the Shogun features a 7" IPS capacitive touchscreen display with resolution of 1920 x 1200. It is Rec. 709 color calibrated and supports multi-frequency operation (48/50/60 Hz) for monitoring of a variety of input frame rates. An SDI loop output is available for passing the signal to an additional monitor. As an added convenience, 4K signals can be internally down-converted and output in 1080p at the same frame rate.

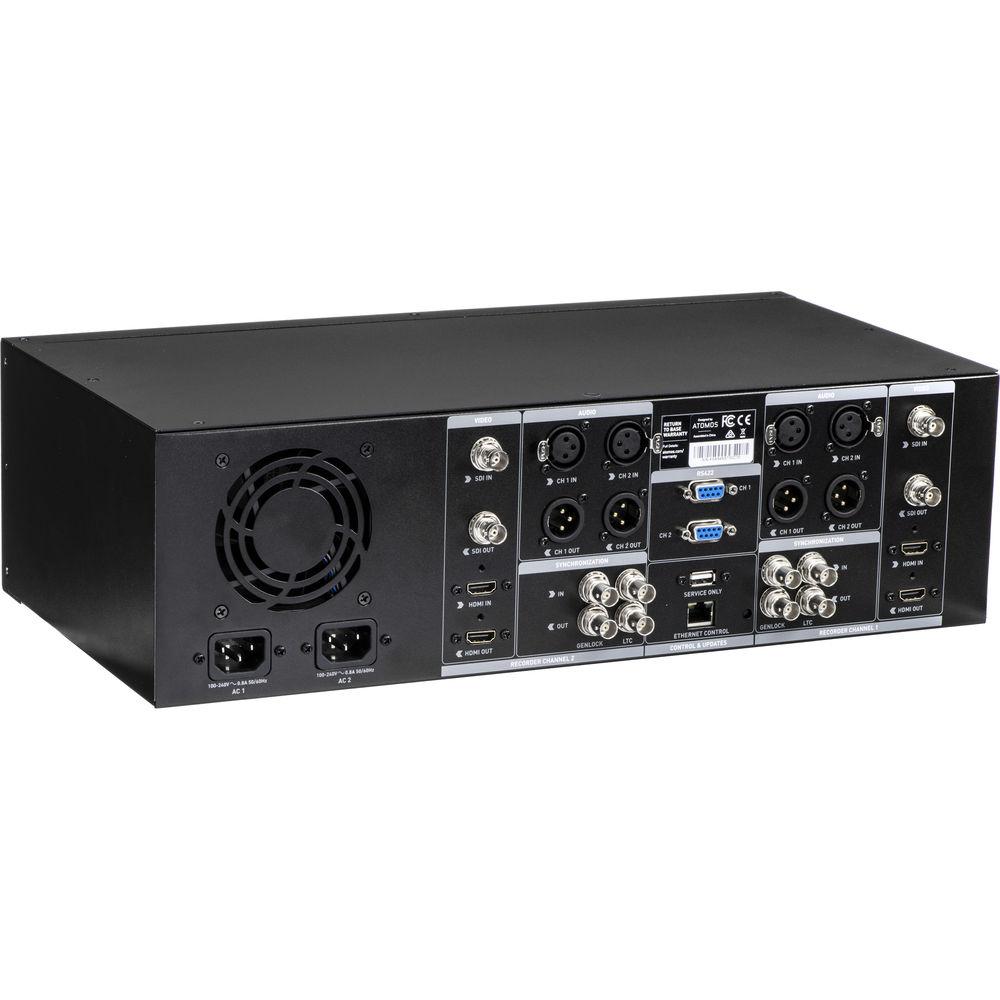

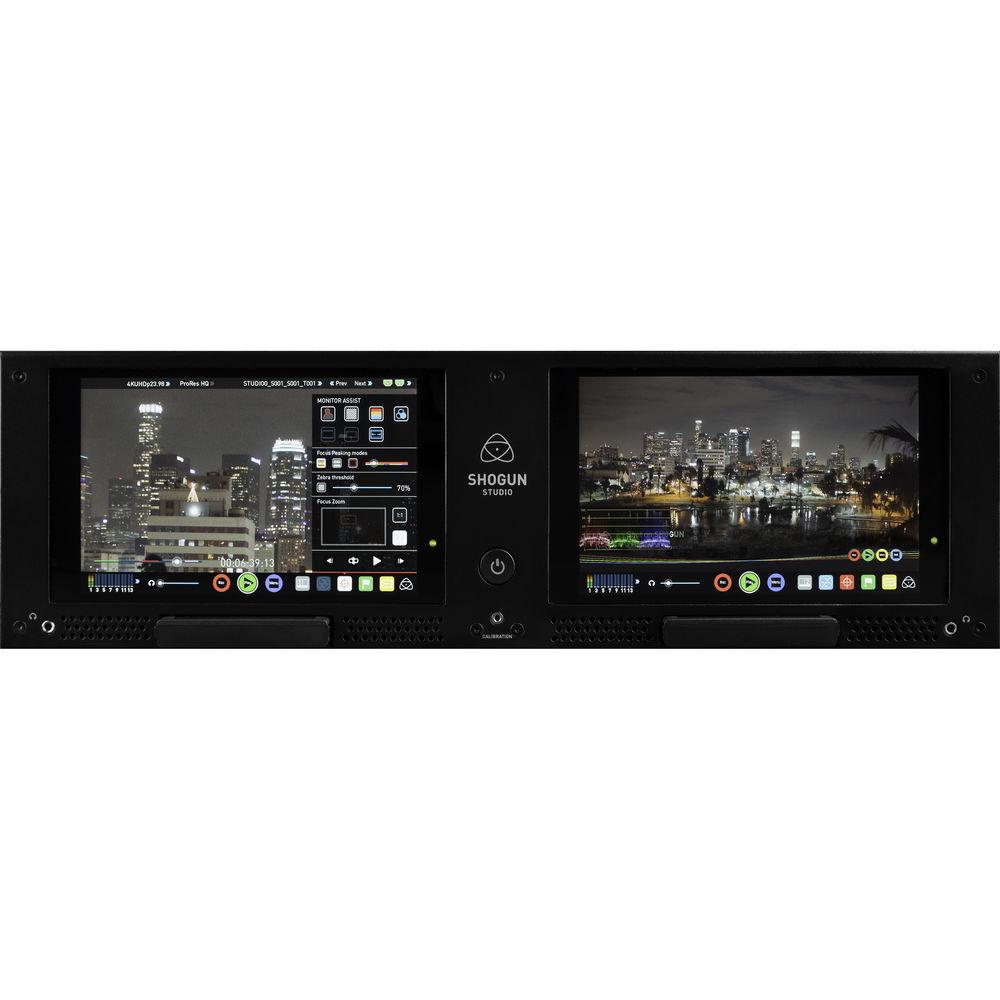

The Shogun Studio supports Tally function, custom 3D LUTs, and Genlock In for multi-camera syncing. There are also a variety of onscreen tools to help you set up your shots, including a full waveform monitor, RGB parade display, vectorscope, focus peaking, framing, focus, and exposure-assisting tools. With two slots, one for each monitor for a master recording caddy, you can simultaneously record the signal being fed to each monitor. - Dual Monitors in a Rackmount Chassis

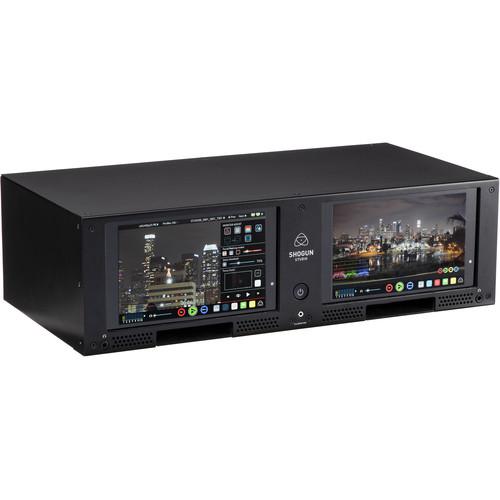

- The Shogun Studio installs two Shogun monitors in a 3 RU rackmount chassis with removable rackmount ears. This configuration is suitable for live event, studio, on-set, and broadcast professionals.
- Record UHD 4K & Raw Video
- Bypass your camera's internal compression and record UHD 4K (3840 x 2160) video to Apple ProRes over HDMI or 6G-SDI at 23.98, 24, 25, 29.97, or 30 fps. The 4K-capable HDMI input makes the Shogun particularly useful for recording 4K output signals from cameras such as the Sony a7S and Panasonic GH4.
- 1080p up to 120 fps
- Record up to 120 fps in Full HD (1920 x 1080) for high-resolution slow-motion shots.
- 10-Bit ProRes 422 Recording
- Record in Apple ProRes 422 or Avid DNxHD or DNxHR formats from your camera's uncompressed SDI or HDMI output, bypassing a round of internal compression and data loss. Uncompressed Cinema DNG Raw 4K video is also supported from capable cameras.
- 7" IPS Touchscreen Monitor with Rec. 709 Color Calibration
- Each of the monitors incorporate a 7" IPS screen features a 1920 x 1200 resolution and provides a wide viewing angle of 178° for easier off-axis monitoring. Each screen is calibrated to SMPTE Rec. 709 with 100% gamut and D65 white point, letting you monitor your colors with confidence. A standard Canon C-Log calibration is also available for use with Canon EOS Cinema cameras so you won't have to look at flat, washed-out looking images on set. On-the-fly recalibration is available with the Atomos Spyder calibration tool, sold separately.
- 3D LUT Support
- You can preview looks on set thanks to the ability to load 3D LUTs onto the Shogun. Simply load Cube files on an SSD and access via the "Display Options" button on the home screen.
- HDD or SSD Storage
- Record to single or raided 2.5" HDDs or SSDs for faster more reliable write speeds to manage 4K recording. A 2TB raided drive will give your over 5 hours of continuous 4K recording in 4K ProRes 422 HQ.
- Monitoring Tools
- The Shogun offers a comprehensive set of tools to help you set up, focus, and properly exposure your shots. These tools include a full waveform monitor, RGB parade display, luma overlay, vectorscope with zoom, and a test pattern generator for signal calibration. The monitor also provides focus peaking with multiple levels and colors, false color in two modes, and fully adjustable zebra from 0 to 100%.
- Supports Video Playback
- You can review what you've shot thanks to in-device video playback. The touchscreen interface allows you to navigate clips and provides softkeys to play, pause, rewind, and stop footage. Additionally, the playback will display a preview frame of the selected clip in the file browser.
- 4K to HD Down-Conversion
- 4K signals can be internally down-converted and output at 1080p resolution in the same frame rate as the input. This enables secondary monitoring on an HD field monitor, or recording a lower resolution proxy copy to a second recording device.
- Start/Stop Trigger
- Trigger record start/stop and record timecode straight from the camera with Atomos' HDMI timecode trigger protocols from Sony, Canon, and other cameras. Over SDI you have full support of all protocols. You also have control over file naming for automatic backup and version control of your footage.
Note: The SDI trigger is manufacturer-specific, you will need to select your camera make from the menu to enable. - Optional CFast Adapter
- Record to small, lightweight, and highly reliable CFast media cards using the optional SATA to CFast adapter.
- Create FCPX XML Projects
- Create Final Cut Pro X XML projects in the field so you are ready to edit straight away. Favorite/reject flags in the metadata let you quickly finding and uploading the best shots into FCP X or Adobe Premiere Pro.
- Genlock Support
- Lock to an external Genlock reference signal to synchronize the Shogun's SDI playout when using multi-camera setups.
- Timecode
- The Shogun lets you synchronize with your camera's timecode. Record Run, Free Run, and Time-of-Day timecodes are also available for independent external recording.

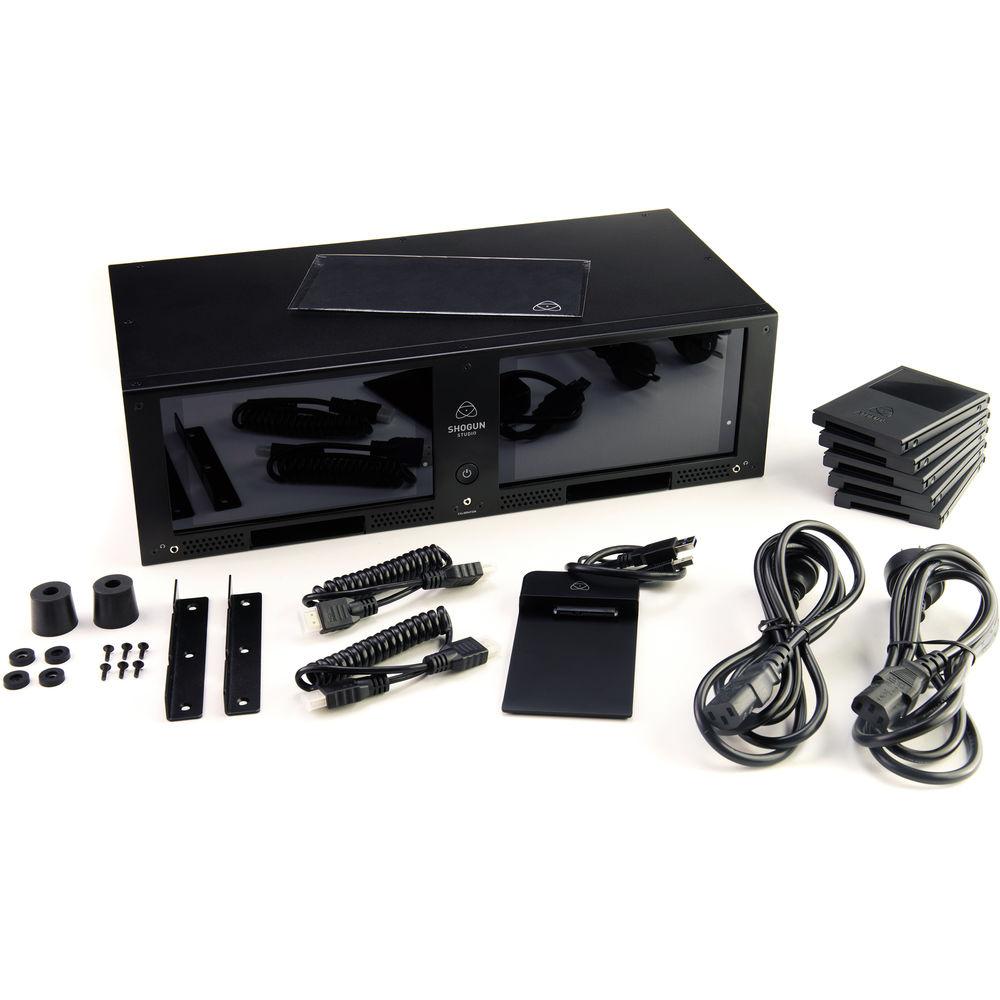

UPC: 814164020329 In the Box Atomos Shogun Studio 4K Monitor / Recorder 6G-SDI, HDMI IEC C14 AC Cable 5 x Master Caddies Docking Station Detachable Rack Ears Limited 1-Year Warranty, Extendable to 3 Years with Product Registration User Manual PDF 4.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Shogun Studio 4K Monitor Recorder 6G-SDI, HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtomos ATOMSHSTU01 Specs | | | Screen Size | Dual 7.1" capacitive touch panels | | Resolution | 1920 x 1200
