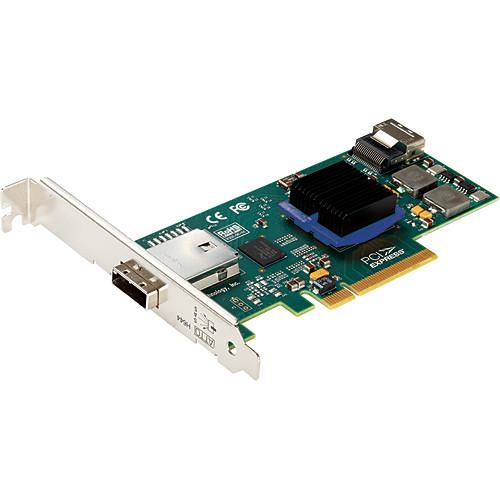

User Manual for ATTO Technology ExpressSAS 6 Gbps SAS SATA Host Bus Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology ExpressSAS 6 Gbps SAS
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
|
User manual for the ATTO Technology ExpressSAS 6 Gbps SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description 4 Facts about Fibre Channel Networks You Should Know Read More vwreuseavvwfxuyuaybrzd The ExpressSAS 6 Gbps SAS/SATA Host Bus Adapter from ATTO Technology is engineered for the most stringent IT server and digital media workgroup environments and is compatible with multiple operating systems, applications and drives.The ExpressSAS Host Bus Adapter is ideal for both IT and digital video environments that require a high level of performance and it provides SAS/SATA II connectivity to up to 256 end devices. The adapter boasts of the highest available SAS and SATA performance for direct attached storage infrastructures. The ExpressSAS Host Bus Adapter provides high-speed 6Gbps performance at 600Mbps per port. It utilizes a serial, point-to-point architecture, in addition to PCI Express 2.0 bus technology. This adapter has found a great demand in the IT and digital media applications which require more performance than 3Gbps SAS/SATA can provide. The ExpressSAS HBA features four internal ports, four external ports and allows connections to 256 end-point devices. Included with the HBA is an easy-to-use utility enabling management, monitoring and configuration which leverages an intuitive GUI. ATTO's exclusive, field-proven Advanced Data Streaming (ADS) Technology helps users meet the most demanding performance requirements of bandwidth-intensive applications. The ADS achieves this performance increase by integrating a combination of features engineered to allow for the controlled acceleration of data transfers. - Industry Proven Technology
- The ExpressSAS 6Gbps host bus adapter product line is the first 6Gbps-based family of HBAs available in the market. This adapter doubles the performance of 3Gbps SAS/SATA host bus adapters and works seamlessly with a wide array of 3rd party products, including HDDs and SSDs, tape drives and many other SAS and SATA infrastructure products.
- User Benefits
- Highest available Mbps & IOPS performance Superior system performance with latest SAS/SATA technology Low power consumption Support for virtualized server environments
- Flexible Connectivity Solutions
- ExpressSAS 6Gbps SAS/SATA HBAs are available in the widest selection of port configurations, providing the most flexible connectivity to SAS/SATA storage. Users benefit from efficient scalability and more options to choose the best SAS/SATA HBA for their application.
- Performance Engineered
- ExpressSAS 6Gbps host bus adapters combine 6Gbps SAS speeds and x8 PCI Express 2.0 with powerful hardware and software elements to manage latency in real-time environments. Exclusive Advanced Data Streaming technology maximizes CPU processes to deliver smooth and reliable data transfers and the highest consistent performance. ATTO pays close attention to detail in-board design and signal integrity to minimize transmission errors and data corruption. These differentiating capabilities make ATTO the premier choice for high-performance direct-attached SAS/SATA storage connectivity.
- Advanced Management Tools
- ATTO's easy-to-use configuration tool features an intuitive GUI that simplifies the installation, management and monitoring of the host bus adapter. With advanced troubleshooting and performance tuning capabilities, ExpressSAS HBAs provide users with sophisticated diagnostics and the flexibility to control settings for specific applications.
UPC: 603175007005 In the Box ATTO Technology ExpressSAS 6 Gbps SAS/SATA Host Bus Adapter ATTO ExpressSAS CD Including Drivers, User Manuals and Utilities Low-Profile or Standard Bracket and Installation Procedure 3 Year Standard Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ExpressSAS 6 Gbps SAS SATA Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology H644 Specs | | | Ports | Four Internal, Four External Ports | | BUS | x8 PCI Express 2.0 Host Interface Supports PCI Express Base Spec 2.0 Supports PCI Express CEM Spec 2.0 | | | | Connector 1 | 4 x 1 Mini SAS (SFF 8088 External) | | Connector 2 | 4 x 1 Mini SAS (SFF 8087 Internal) | | | | Transfer Rate | Up to 6 Gbps per port performance | | Form Factor | PCI Low-profile specification | | Device Support | 256 | | | | Operating Temperature | 32-104°F (0-40°C) | | Storage Temperature | -40 -157°F (-40-70°C) | | Operating Humidity | 5 - 95% Non-Condensing | | Storage Humidity | 5 - 95% Non-Condensing | | Airflow | 100 lf/m Minimum | | | | Power Supply | 12V @ 0.6A; 3.3V @ 0.2A, 8W 8.3W (typical) | | | | Operating System Support | Windows Server 2003, 2008, Windows XP, Vista, 7 Red Hat & SUSE Linux Mac OS X (10.4.x - 10.6.x) VMware ESX Server 3.5 VMware ESX Server vSphere 4.1 | | | | Agency Approval | FCC Part 15, Subpart B, Class A EN55024: 1998A + A1: 2001 & A2: 2003 EN60825-1: 1994-2: 2004 EN55022: 2006, Class B | | | | Dimensions (L x H) | 6.6 x 2.713" (16.76 x 6.89 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.8 x 7.3 x 1.8" |
