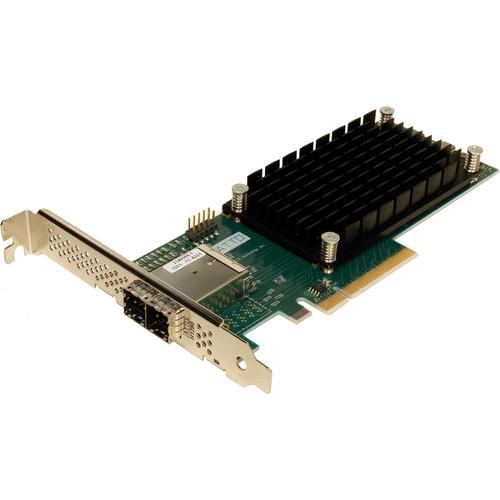

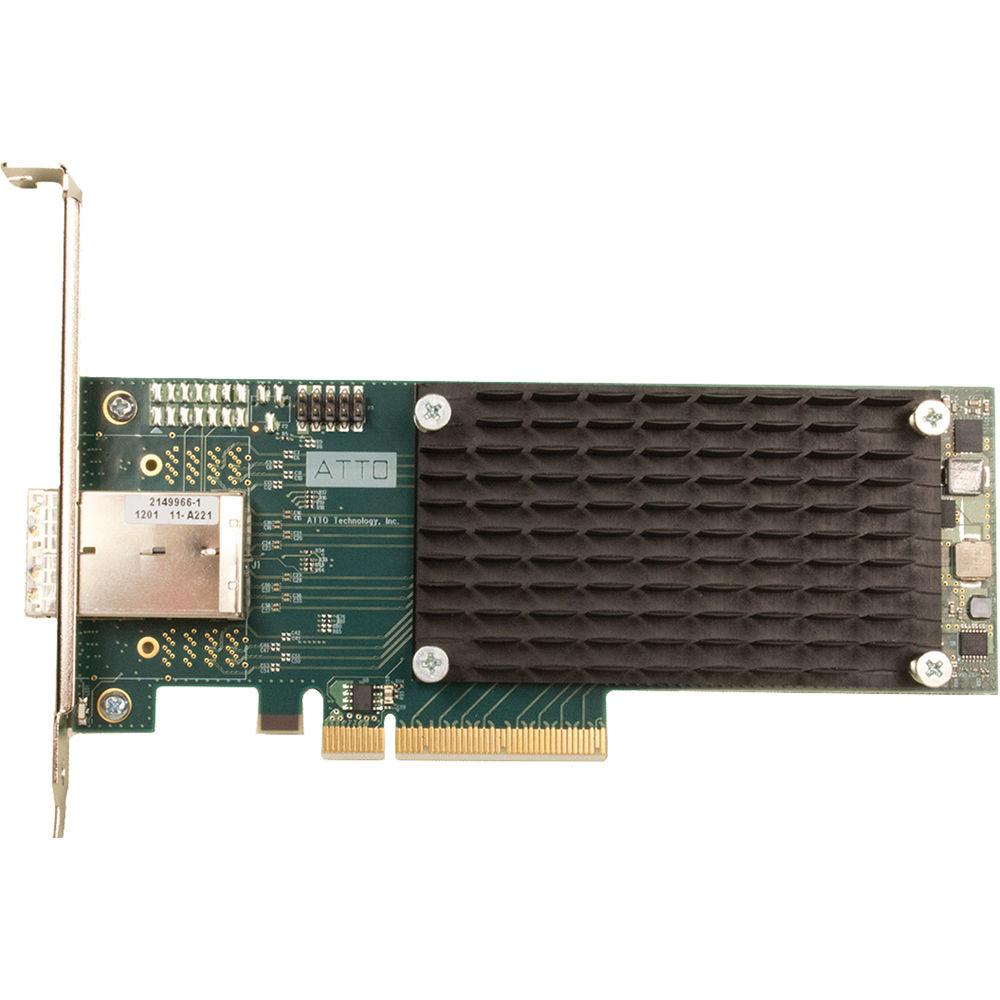

User Manual for ATTO Technology ExpressSAS H1280 8-Port External 12 Gb s SAS to PCIe 3.0 HBA Click to enlarge the picture
Contents of the user manual for the ATTO Technology ExpressSAS H1280 8-Port External
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
 |
User manual for the ATTO Technology ExpressSAS H1280 8-Port External contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|

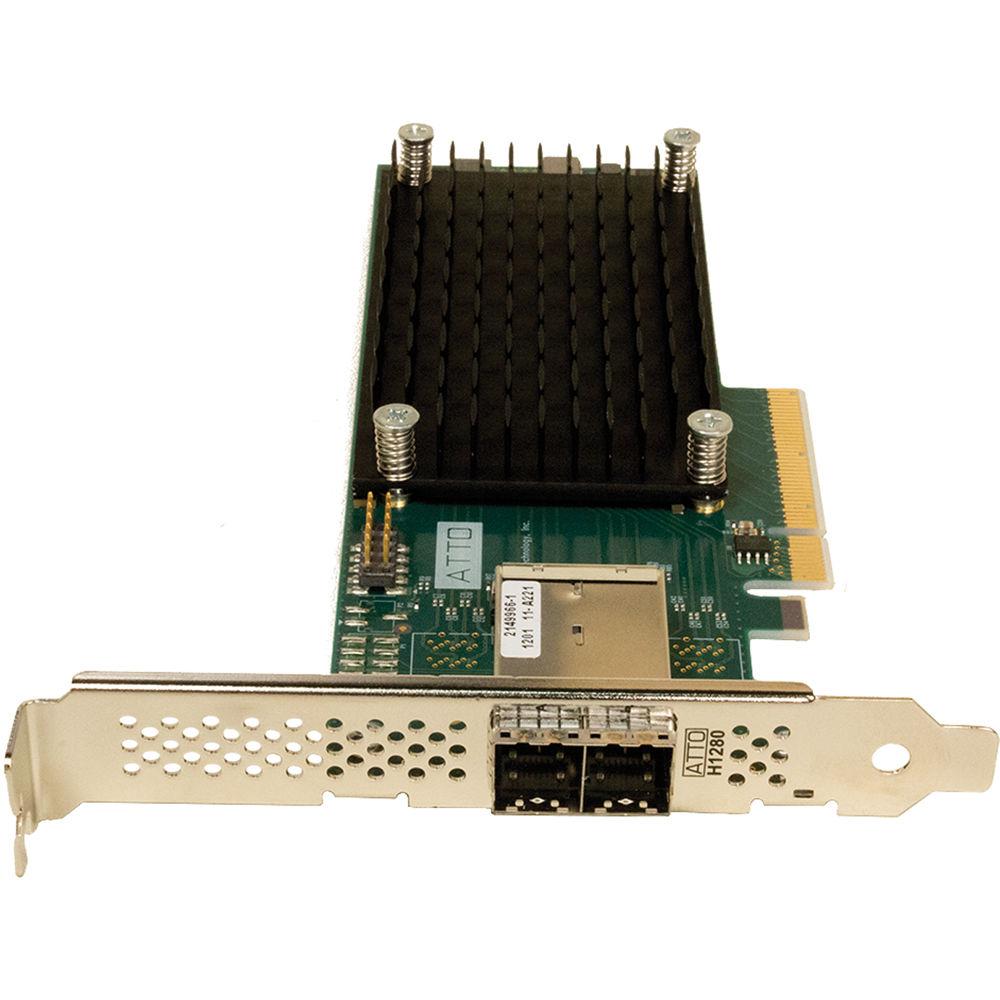

Product description The ExpressSAS H1280 8-Port External 12 Gb/s SAS to PCIe 3.0 HBA from ATTO Technology offers fast connections to direct-attached SAS or SATA storage. The cards two external 4-port SFF 8644 mini-SAS HD connectors support up to eight SAS links. With a wide variety of port configurations and built-in RAID 0, 1 and 10, these adapters offer flexibility for every range of application. The speed of the 12 Gb/s SAS interface, coupled with a PCIe 3.0 x8 host interface, delivers a dense and efficient connection to all types of storage, from rack-mounted servers and workstations in data center, data warehousing, VOD, and other high-availability, high-performance applications. - Industry Proven Technology
- The ExpressSAS 12 Gb/s SAS Host Bus Adapter (HBA) provides data protection to direct attached SAS and SATA storage. With a wide variety of port configurations and built-in RAID 0, 1, and 10, this adapters offer flexibility for every range of application
- Flexible Connectivity Solutions
- It has eight available SAS links available over two external 4-port SFF 8644 mini-SAS HD connectors to support a dense and efficient connection to storage from rackmounted servers and workstations in datacenter, data warehousing, VOD, and other high availability, high performance applications
- Performance
- This adapter combines 12 Gb/s SAS speeds and PCIe 3.0 x8 with hardware and software elements to manage latency in real-time environments. The exclusive Advanced Data Streaming (ADS) technology maximizes CPU processes to deliver smooth and reliable data transfers, and consistent performance close attention to detail in board design and signal integrity help minimize transmission errors and data corruption
- Advanced Management Tools
- ATTO's easy-to-use ConfigTool features an intuitive GUI that simplifies the installation, management and monitoring of the host bus adapter. With advanced troubleshooting and performance tuning capabilities, the adapter provides you with sophisticated diagnostics and the flexibility to control settings for specific applications The ATTO Technology offers a broad array of management and diagnostic capabilities. This adapter is able to help isolate cable and connector failures (and intermittent problems) through independent control of each port, as well as discovery and cable management of data passed through the mini-SAS HD connectors
- Advanced Data Streaming (ADS)
- Latency Management technology that controls the acceleration of data transfers to move large amounts of data, faster and more efficiently
Key Features - Automatic Link Negotiation:
12 Gb/s, 6 Gb/s, and 3 Gb/s SAS targets
6 Gb/s, 3 Gb/s and 1/5 Gb/s SATA targets - Supports up to 1024 targets
- Onboard RAID 0 and 1e configuration software included
- Supports Serial SCSI Protocol (SSP), SATA Tunneling Protocol (STP), SMP, SAT, and direct attached SATA protocol
- Supports T10-DIF standards
- 16MB on-board flash memory to store persistent parameters
- Supports SAS multiplexing
- Wide-port end device support
- Supports port multipliers
- Dual port SAS support for redundant configurations
- Support for SAS tape devices and transport layer retries (TLR) for error handling
- Target Mode Driver (TMD) development kit available for storage servers, storage systems, and appliances
- Driver support for the Windows, Linux, and VMware operating systems
User Benefits - 1200 MB/s maximum sustained throughput per port
- Over 1 million sustained IOPS
- Flexible connectivity options for internal and external storage
- Compatible with SAS and SATA technology
UPC: 603175008262 In the Box ATTO Technology ExpressSAS H1280 8-Port External 12 Gb/s SAS to PCIe 3.0 HBA Full Height and Low Profile Connection Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ExpressSAS H1280 8-Port External 12 Gb s SAS to PCIe 3.0 HBA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology ESAH-1280-000 Specs | Ports | 8 x External Ports over 2 x SFF 8644 (4x) External Mini-SAS HD Connectors | | Bus Specifications | PCIe 3.0 x8 host interface
PCIe low profile form factor
Supports PCIe base specification 3.0
Supports PCIe CEM specification 3.0 | | Connectivity | Full cable management and reporting
Easy to install full height and low profile connection brackets (included)
Designed to support 12 Gb/s SAS signaling | | Management Tools | Management APIs via CSMI and IOCTLs
Scriptable Command Line Interface (CLI) for advanced functionality, including phy and cable management
ATTO ConfigTool GUI support for management and configuration
Event and trace logging
External locate LED on bracket
Onboard temperature monitoring | | Power | Maximum 25 W
Typical: 15 W | | Reliability | 680,000 hours | | Operating System Support | Windows Server 2008 R2 and Server 2012
Windows 7 and Windows 8
SUSE Linux Enterprise Server (SLES) v 11 SP1 and 11 SP2
Red Hat Enterprise Linux (RHEL) 5 and 6
CentOS 5 and 6
VMware ESXi 5.5 | | Boot Support | UEFI v2.3.1 with HII support | | Operating Temperature | Hardware Environment:
Airflow: 100 LFM (minimum)
Temperature: 32 to 131°F (0 to 55°C)
Humidity: 10 to 90% (non-condensing)
Storage Environment:
Temperature: -40 to +158°F (-40 to +70°C)
Humidity: 5 to 95% non-condensing | | Safety and Environmental Approvals | UL, CSA, CE and IEC 60950
EU RoHS compliant (2011/65/EU) | | EMC Compliance | FCC Part 15, subpart B (Class B)
ICES-003 (Canada)
EN55022: 2010, CISPR 22 (Class B)
EN55024: 2010
VCCI V3/2013.4
AS/NZS CISPR22: 2010 | | Dimensions (LxH) | 6.60 x 2.71" (16.76 x 6.88 cm) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.843 x 7.244 x 1.811" |
