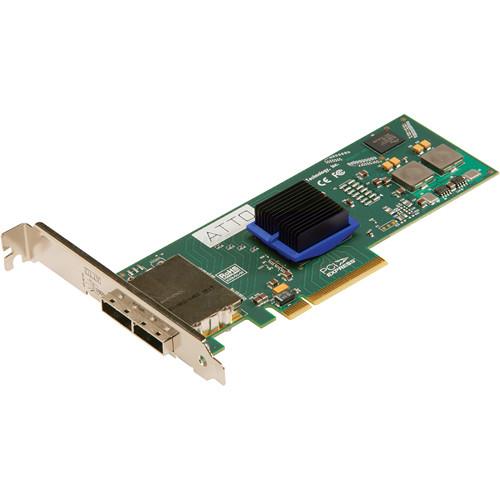

User Manual for ATTO Technology ExpressSAS H680 6 Gb s SAS SATA to PCIe 2.0 Host Bus Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology ExpressSAS H680 6 Gb
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
|
User manual for the ATTO Technology ExpressSAS H680 6 Gb contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description Engineered for demanding IT and media applications, the ExpressSAS H680 6 Gb/s SAS/SATA to PCIe 2.0 Host Bus Adapter from ATTO Technology is equipped with two external Mini-SAS (x4) SFF-8088 connectors, which can expand to accommodate eight external SFF-8088 ports and up to 1024 end-point devices. It provides fast 6 Gb/s performance for SAS and SATA devices at speeds up to 600 MB/s, or up to 1200 MB/s (9.6 Gb/s) in full duplex mode. This card uses a PCIe 2.0 x8 bus which interfaces with a PCIe slot on your host system.
Included with all ATTO HBAs is an easy-to-use utility ConfigTool that enables management, monitoring, and configuration which leverages an intuitive GUI. Additionally, ATTO's Advanced Data Streaming technology helps users meet the demanding performance requirements of bandwidth-intensive applications. ADS achieves this performance increase by integrating a combination of features engineered to allow for the controlled acceleration of data transfers. - 8-Channel SAS controller serial attached SCSI external
- Allows connections to 256 end-point devices
- Advanced Data Streaming Technology
UPC: 603175006992 In the Box ATTO Technology ExpressSAS H680 6 Gb/s SAS/SATA to PCIe 2.0 Host Bus Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ExpressSAS H680 6 Gb s SAS SATA to PCIe 2.0 Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology H680 Specs | Host Interface | x8 PCIe 2.0 | | Data Transfer Rate | 600 Mbps Per Port | | Interfaces | Serial Attached SCSI | | RAID Support | No | | Drive Support | 256 x Physical | | Platform Compatibility | PCMac | | Ports | 8 x external SAS (serial attached SCSI) ports | | Form Factor | Low-profile Plug-in Card | | Certificates | RoHS | | Green Compliance | Yes | | Dimensions (H x W) | 2.71 x 6.60" (6.88 x 16.76 cm) | | Weight | Not Specified by the Manufacturer | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.7 x 7.2 x 1.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
