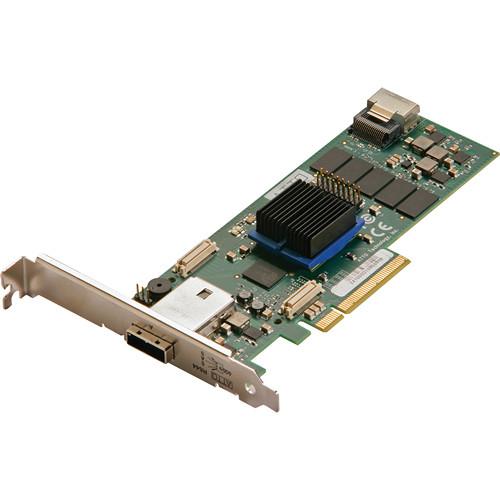

User Manual for ATTO Technology ExpressSAS R644 4 Port-External 4-Port Internal 6 Gbps SAS SATA RAID Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology ExpressSAS R644 4 Port-External
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
|
User manual for the ATTO Technology ExpressSAS R644 4 Port-External contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description 4 Facts about Fibre Channel Networks You Should Know Read More - The ATTO Difference - Adaptive Path Optimization
- The ATTO Difference - CacheAssure
- The ATTO Difference - DriveAssure
The ExpressSAS R644 4 Port-External/4-Port Internal 6 Gbps SAS/SATA RAID Adapter from ATTO Technology offers the fastest available connectivity to SAS or SATA storage with integrated RAID protection. The adapter provides 6 Gbps SAS/SATA connectivity to Direct Attached Storage via 4 external/4 internal ports. With transfer rates of up to 1200MBps per port, the 6Gbps SAS/SATA RAID Adapter is well suited for high-bandwidth workflows, such as digital content creation, streaming video and audio, transactional databases and email and Web servers. The 6 Gbps SAS/SATA RAID Adapter combines advanced engineering and innovative features to ensure smooth data transfers and consistent performance. Leveraging ATTO's market-tested RAID stack and exclusive latency management features, this adapter helps customers create, share and protect data and digital assets more effectively. - Long-Standing RAID Experience
- The ExpressSAS 6 Gbps SAS/SATA RAID adapter features the time-proven ATTO RAID Stack, DVRAID and CacheAssure, proprietary technologies developed to provide the most robust RAID based connectivity solution in the industry.
- Flexible Connectivity Solutions
- The ExpressSAS 6 Gbps SAS/SATA RAID adapter is ideal for a wide variety of IT and digital media environments that require high-performance and parity RAID protected data. This adapter offers driver support for Windows, Linux and Mac OS X that provides a single connectivity solution for customers with heterogeneous operating system environments.
- Performance Engineered
- The ExpressSAS 6 Gbps SAS/SATA RAID adapter allows you to instantly protect their critical data while enhancing performance. It is designed to maintain full performance in degraded mode and to minimize downtime with 50% faster rebuilds, limiting exposure to a second drive failure. Its latency management features like Advanced Data Streaming (ADS) Technology and DriveAssure minimize data transfer interruptions to ensure the highest level of consistent performance.
- Advanced Management Tools
- The Configuration Tool features an intuitive GUI that simplifies RAID group configuration, management and monitoring. The ExpressSAS 6 Gbps SAS/SATA RAID adapter offers the most advanced performance tuning capabilities and troubleshooting utilities, providing users with sophisticated diagnostics and the flexibility to control settings for specific applications.
- Applications
- The ExpressSAS RAID adapter adds high-performance RAID data protection to direct-attached SAS and SATA JBOD storage. It is an ideal connectivity solution for high-performance media and entertainment and general IT environments. The adapter delivers affordable host-level RAID for high-bandwidth workflows such as digital content creation, streaming video, transactional databases and email and Web servers.
- Advanced Data Streaming (ADS)
- The Latency-management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently.
- DriveAssure Technology
- Drive assessment and latency management technology that minimizes the likelihood of RAID groups becoming degraded or taken offline due to slow drives, ensuring uninterrupted access to data.
- CacheAssure Technology
- The ExpressSAS 6 Gbps SAS/SATA RAID adapter's flash-based protection module provides a maintenance-free solution that safeguard against the loss of cached data during a power or system failure.
- Data Recovery Mode
- The adapter features mechanism that increases the probability of fully or partially recovering data that is lost due to a disk failure and offline RAID group.
- User Benefits
-
- High performance host-based RAID for direct attached storage
- Four port configurations for flexible connectivity
- Full performance in degraded or rebuild mode
- Flash-based cache protection protects against lost data during power or system failure
- More options for retrieving data from a failed drive with Data Recovery mode
- 50% faster rebuilds
- Efficient scalability with host-level RAID
- Maintain high priority workflows with tunable rebuilds
- RAID group partitioning for better management
UPC: 603175007272 In the Box ATTO Technology ExpressSAS R644 4 Port-External/4-Port Internal 6 Gbps SAS/SATA RAID Adapter Full-Height Bracket 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ExpressSAS R644 4 Port-External 4-Port Internal 6 Gbps SAS SATA RAID Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology R644 Specs | Ports | 4 external/4 internal | | Bus Interface | x8 PCIe 2.0 | | Form Factor | Low profile | | Connectors | 1 Mini SAS (x4) SFF 8088 external, 1 Mini SAS (x4) SFF 8087 internal | | Management Tools | - User-friendly GUI for quick and easy RAID setup
- Command Line Interface for advanced functionality
- ATTO Configuration Tool: BIOS-based RAID management and configuration utility
| | External Connectivity | x4 Mini SAS connectors | | RAID Features and Functionality | - SAS 2.0, SAS, SATA and SATA II support
- RAID levels 0, 1, 4, 5, 6, 10, 40, 50, 60, JBOD, DVRAID
- ATTO RAID stack
- Command coalescing
- Staggered drive spin-up
- RAID level migration
- Hot swap with auto rebuild
- Online performance metrics and event logs
- Native command queuing
- 512MB ECC protected cache memory
- SES, SNMP and S.M.A.R.T. support
- Pass-through support for tape and tape devices
- Configurable stripe size
- Online capacity expansion
- Global and dedicated hot spares
- Automatic and tunable online rebuilds
- N-way mirroring
| | Operating System Support | - Windows Server 2003, 2008, Windows XP, Vista, 7
- SUSE Linux
- Red Hat Linux
- Mac OS X 10.4.x - 10.7.x
| | Agency Approval | - FCC Part 15, Subpart B, Class B
- EN55024: 1998 + A1: 2001 + A2: 2003
- EN55022: 2006, + A1: 2007 Class B
| | Compliance | - EN60950-1
- EU RoHS compliant (2002/95/EC)
| | Hardware | - Temperature: 32 to 104 °F (0 to 40°C)
- Humidity: 10 to 90% non-condensing
| | Storage | - Temperature: -40 to 157°F (-40 to 70°C)
- Humidity: 5 to 95% non-condensing
| | Operating Voltage | 9.6 W (typical) | | Airflow | 150 lf/m minimum recommended | | Dimensions (L x H) | 6.600 x 2.713" (16.764 x 6.891 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 2.1" |
