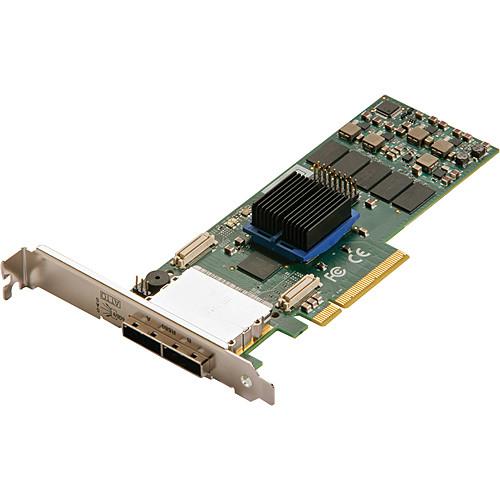

User Manual for ATTO Technology ExpressSAS R680 8-Port External 6 Gb s SAS SATA RAID Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology ExpressSAS R680 8-Port External
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
|
User manual for the ATTO Technology ExpressSAS R680 8-Port External contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description 4 Facts about Fibre Channel Networks You Should Know Read More - The ATTO Difference - Adaptive Path Optimization
- The ATTO Difference - CacheAssure
- The ATTO Difference - DriveAssure
The ExpressSAS R680 8-Port External 6 Gb/s SAS/SATA RAID Adapter from ATTO Technology adds high-performance RAID protection to direct attached SAS and SATA JBOD storage. Delivering improved performance and flexibility with enterprise-class features, ExpressSAS 6Gb/s SAS/SATA RAID adapters provide 1GB of ECC protected cache memory in an affordable RAID solution for general IT and media and entertainment environments. General Features - Eight external ports in a low-profile form factor
- 1GB ECC protected cache memory
- PCIe 2.0 x8 / PCIe 3.0 compatible host connection
- 9.6 Gb/s throughput in full-duplex mode
- SAS 2.0, SAS, SATA II, SATA connectivity
- Supports RAID Levels 0, 1, 4, 5, 6, 10 50, 60, and DVRAID, an advanced RAID level for digital video environments
- Advanced Data Streaming (ADS) technology
- Adaptive Path Optimization available to provide redundancy in storage connections
- Data Recovery Mode for additional data protection
- Supports up to 256 end devices
- Windows, Linux, and macOS driver support
- GUI-based configuration utility
UPC: 603175007241 In the Box ATTO Technology ExpressSAS R680 8-Port External 6 Gb/s SAS/SATA RAID Adapter Full-Height Bracket Firmware CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ExpressSAS R680 8-Port External 6 Gb s SAS SATA RAID Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology R680 Specs | Ports | 8 External | | Bus Specifications | PCI express 2.0 x8 host interface | | Form Factor | Low profile | | Connectors | 2 Mini-SAS (x4) SFF 8088 (External) | | Connectivity | External: x4 mini SAS connectors Low profile form factor; Full-height bracket included | | Operating System Support | Windows, Mac, and Linux | | Agency Approvals and Compliance | FCC part 15, subpart B, Class B
EN55024: 1998 + A1: 2001 + A2: 2003 EN55022: 2006, Class B EN60950-1: 2001 RoHS-6 compliant | | Operating Temperature | 32 - 104°F / 0 - 40°C | | Storage Temperature | -40 - 157°F / -40 - 70°C | | Operating Humidity | 10 - 90% non-condensing | | Storage Humidity | 5 - 95% non-condensing | | Operating Voltage | 9.6 W | | Air Flow | 150 lf/m (min) recommended | | Dimensions | 6.60 x 2.71" (16.76 X 6.88 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.7 x 7.2 x 1.9" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
