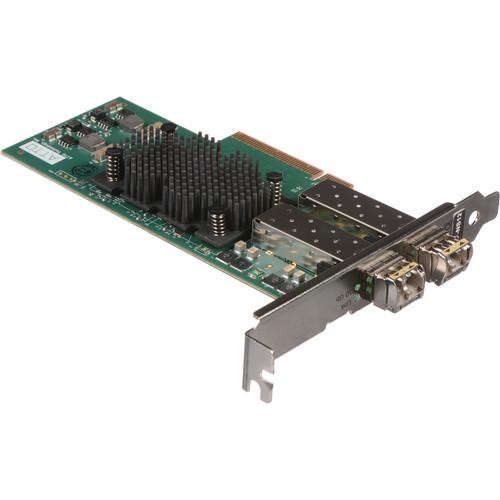

User Manual for ATTO Technology FastFrame NS12 Dual-Port 10 GbE PCIe 2.0 Network Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology FastFrame NS12 Dual-Port 10
- Product category: Network Interface Cards & Adapters ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Network Interface Cards & Adapters
|
User manual for the ATTO Technology FastFrame NS12 Dual-Port 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description The FastFrame NS12 Dual-Port 10 GbE PCIe 2.0 Network Adapter from ATTO Technology provides opportunities for link aggregation for additional bandwidth, or for link failover. This adapter conserves PCI slots for a more flexible system design, while drawing less power than competing solutions. A lower power rating means lower energy costs, lower data center maintenance fees, and fewer worries about heat dissipation. This high-performance adapter includes a pluggable optical SFP+ tranceiver and support for direct attach copper cables. 10GbE Interface - LC SFP+ SR Optical Interface (2 SFPs included)
- Data Center Bridging (DCB)/Enhanced Ethernet
Offloads (Reduce CPU Overhead): - TCP/UDP Checksum (IPv4 & IPv6)
For Windows & Linux - NUMA & RSS (allows load-balancing across CPUs)
For Virtualization - Advanced Packet Filtering
Host Bus Specifications - PCI Express 2.0 x8 mechanical and electrical interconnect
- Backward compatible with PCI Express 1.1
- Supports PCIe Base Spec 2.0, CEM Spec 2.0
Driver Support - Linux RHEL, SLES (Latest Kernels)
Other General Features - Industry-Proven Technology
- The FastFrame NS12 is built on an industry standard Ethernet technology from Intel. It simplifies networking administration, integrates seamlessly into existing environments and reduces the total cost of ownership by improving connection bandwidth and eliminating redundant network infrastructure components.
- Flexible Connectivity Solutions
- The FastFrame NS12 provides the most flexible and scalable connectivity for today's data center environments. By leveraging data center bridging and support for software iSCSI initiators FastFrame NS12 offers the ability to support both local and storage area networks. With broad operating system support NS12 offers optimized connectivity for high bandwidth environments.
- Performance Engineered
- The FastFrame NS12 with support for link aggregation and failover, offers redundancy and high availability for critical network applications. The FastFrame NS12 provides industry-leading throughput and latency management with minimal CPU utilization and power consumption. With 10 Gb/s data transfer rate and multiple offloads (IPsec, TCP, IPv4, UDP) FastFrame NS12 is the premier connectivity choice for bandwidth-intensive applications such as data back-up and restoration, clustered computing, IP content delivery, medical imaging and video rendering. With multi-core processors driving the need for higher bandwidth, FastFrame NS12 delivers superior throughput to meet that need.
- Advanced Network Management
- The FastFrame NS12 provides a common foundation for both Ethernet and storage networks. It leverages unified network investments and eliminates the need for multiple adapters and switches, while reducing power and cooling expenses. By providing multi-protocol support and leveraging 10 GB converged enhanced Ethernet links, FastFrame NS12 dramatically reduces the cost and complexity of a data center's cabling infrastructure.
UPC: 603175007500 In the Box ATTO Technology FastFrame NS12 Dual-Port 10 GbE PCIe 2.0 Network Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology FastFrame NS12 Dual-Port 10 GbE PCIe 2.0 Network Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology NS12 Specs | | | Networking Ports | 2 x 10Gb LC | | Transceiver Slots | 2 x Enhanced Small Form-factor Pluggable (SFP+) | | Host Connection | PCIe 2.0 x8 (Low-Profile Slot) | | | | Chipset | Intel 82599 | | Supported IEEE Standards | 802.1as, 802.1q, 802.1qaz, 802.1qbb, 802.3ae | | Operating System Support | Linux, VMware, Windows, macOS/OS X | | | | Power Consumption | 5.9 W | | Power Source | Bus Powered | | | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 5 to 95% | | | | Certifications | RoHS, as per Manufacturer | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 1.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
