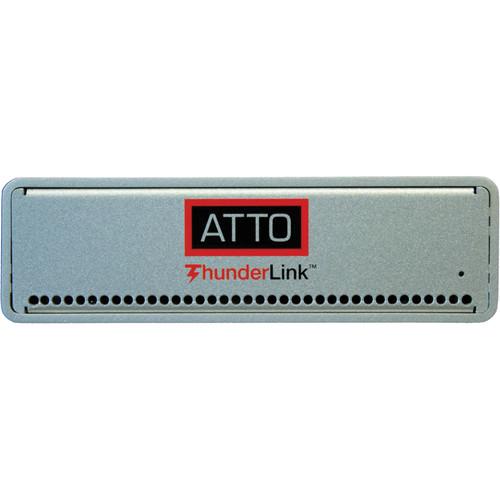

User Manual for ATTO Technology ThunderLink FC 2162 Thunderbolt 2 to 16 Gb s Fibre Channel Desklink Device Click to enlarge the picture
Contents of the user manual for the ATTO Technology ThunderLink FC 2162 Thunderbolt
- Product category: Network Interface Cards & Adapters ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Network Interface Cards & Adapters
|
User manual for the ATTO Technology ThunderLink FC 2162 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description - Choosing the Right Thunderbolt Product
- What is Thunderbolt 3?
The ThunderLink FC 2162 Thunderbolt 2 to 16Gb Fibre Channel Desklink Device from ATTO Technology provides maximum throughput for high-bandwidth network connectivity for IT, media, and entertainment applications. It offers cost-effective access to storage, previously not available using FireWire or USB. With dual-channel configuration, and support for load balancing and failover, the 16 Gb/s Fibre Channel Desklink device can be used to achieve optimal I/O and data throughput, for advanced video and access to IT applications. It can support both, local and storage area networks for Mac OS X 10.9 and later, and Windows 7 and 8.1 platforms, and VMware ESXi 5.5 and later, providing a single connectivity solution for users with heterogeneous operating system environments. General Features - Performance Engineered
- This Fibre Channel Desklink device is designed to provide fast, redundant and highly available connectivity to Fibre Channel storage, and is engineered to manage latency for real-time applications. Advanced Data Streaming (ADS) technology provides controlled acceleration of data to deliver consistent performance and reliable data transfers for video editing, digital audio, video on demand, or database applications. ATTO pays close attention to detail in board design and signal integrity, to minimize transmission errors and data corruption. Fibre Channel drivers with support for multipathing, make ATTO the premier choice for high-performance Fibre Channel SAN connectivity.
- Advanced Management Tools
- ConfigTool features an intuitive GUI that simplifies the installation, management, and monitoring of the Desklink device. With advanced troubleshooting and performance tuning capabilities, ConfigTool provides users with sophisticated diagnostics, and the flexibility to control settings for specific applications.
- MultiPath Director
- Storage connectivity solution for a wide array of certified, enterprise-class storage systems from storage providers. Multiple paths to storage for improved data integrity and reliability.
Technical Features - Dual 16Gb Fibre Channel ports.
- Two SFP+ LC optical modules (included).
- Supports 4K video file transfer and display simultaneously, with dual 20 Gb/s Thunderbolt 2.
- Daisy chain up to five additional Thunderbolt technology-enabled devices.
- Backwards compatible with 10 Gb/s Thunderbolt.
- Complete SAN connectivity when combined with ATTO FibreConnect Fibre Channel switches.
General Features - Auto Negotiation to 16Gb, 8Gb, and 4Gb devices.
- Supports arbitrated loop, point-to-point, and direct fabric/switch attach.
- ANSI Fibre Channel: FC-FS, FCP, FC-AL, FC-AL2, FC-PLDA, FC-FLA.
- Flash ROM for field upgrades.
- Software RAID support with ATTO's Power Center software.
- Supports NPIV and Virtual Fabric.
Advanced Software Features User Benefits - Optimal performance for a wide range of applications.
- Increased switch port availability.
- Reduces cost per MB of data transferred.
- Seamless integration into existing FC SANs
- Support for virtualized server environments.
- Extensive certification with SAN infrastructure components.
Applications - The Desklink delivers high-performance and reliable connectivity solutions for the demanding storage environments, including digital content creation, tape streaming and backup, rich content delivery, server clustering, and complex databases. It enables users to achieve the I/O performance for real-time and transactional applications.
In the Box ATTO Technology ThunderLink FC 2162 Thunderbolt 2 to 16 Gb/s Fibre Channel Desklink Device (UK/EMEA) 2 x SFP+ LC Optical Modules IEC C-13 Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ThunderLink FC 2162 Thunderbolt 2 to 16 Gb s Fibre Channel Desklink Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology TLFC-2162-DE0 Specs | | | Networking Ports | 2 x 16Gb LC | | Other Ports | 2 x Thunderbolt 2 | | Transceiver Slots | 2 x Enhanced Small Form-factor Pluggable (SFP+) | | Host Connection | Thunderbolt 2 | | | | Operating System Support | VMware, Windows, macOS/OS X | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A | | Adapter Power Output | 12 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | Certifications | RoHS, as per Manufacturer | | LED Indicators | Yes | | Dimensions | 4.5 x 1.5 x 9.0" / 11.4 x 3.8 x 22.8 cm |
