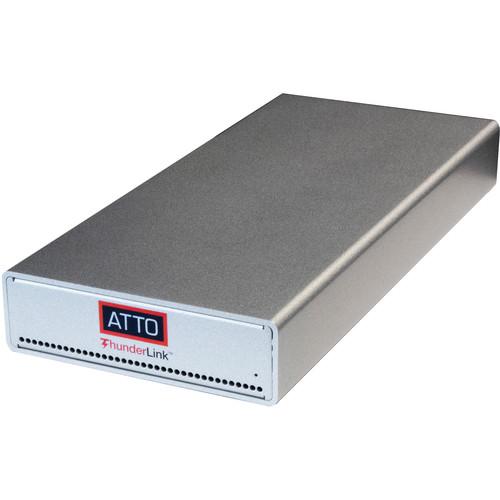

User Manual for ATTO Technology ThunderLink FC 3322 Thunderbolt 3 to 32 Gb s Fibre Channel Adapter with UK EMEA Power Cords Click to enlarge the picture
Contents of the user manual for the ATTO Technology ThunderLink FC 3322 Thunderbolt
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
|
User manual for the ATTO Technology ThunderLink FC 3322 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description - Choosing the Right Thunderbolt Product
- What is Thunderbolt 3?
The ThunderLink FC 3322 Thunderbolt 3 to 32 Gb/s Fibre Channel Adapter from ATTO Technology acts as an external Thunderbolt 3 to fiber channel adapter that helps in connecting Thunderbolt-enabled workbooks and mobile workstations to 32 Gb/s fiber channel networks and storage devices. With dual channel configurations, the 32 Gb/s fiber channel adapter is an ideal solution for failover and load balancing through the MultiPath Director. In addition, the adapter comes with ADS (Advanced Data Streaming) technology and the ATTO ConfigTool for customized performance settings. General Features - Able to achieve maximum line rate of Thunderbolt 3
- Two optical SFP+ LC modules included
- Dual port 40 Gb/s Thunderbolt 3 with DisplayPort and device daisy-chain support
- ADS (Advanced Data Streaming) technology
- Auto negotiation to 32 Gb, 16 Gb, and 8 Gb devices
- Supports Windows 7 and later and macOS Sierra and later
- ATTO ConfigTool and a graphical user interface for customized performance settings
- Kensington Security Slot for additional security
- Includes locking power supply to fasten directly and securely with ATTO Thunderbolt adapters
In the Box ATTO Technology ThunderLink FC 3322 Thunderbolt 3 to 32 Gb/s Fibre Channel Adapter with UK/EMEA Power Cords 2 x Optical SFP+ LC Modules IEC C-13 Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ThunderLink FC 3322 Thunderbolt 3 to 32 Gb s Fibre Channel Adapter with UK EMEA Power Cords in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology TLFC-3322-DE0 Specs Auto-Negotiation | 32 Gb, 16 Gb, and 8 Gb devices | Input Connectors | 2 x 40 Gb/s Thunderbolt 3 (USB Type-C) | Output Connectors | 2 x 32 Gb/s Fibre Channel | Connector Type | 2 x Optical SFP+ LC (included) | LEDs | External LEDs for online and speed status for each port | Power Adapter | Input: 100-240 VAC, 50-60 Hz, 0.6 A (max) Output: 12 VDC | Temperature | Operating: 32 to 97°F / 0 to 36°C (at 10,000' / 3048 m) Operating: 32 to 104°F / 0 to 40°C (at 6000' / 1,829 m) Non-Operating: -40 to 158°F / -40 to 70°C | Humidity | Operating: 10 to 90%, non-condensing Non-Operating: 5 to 95%, non-condensing | Supported OS | Windows 7 and later macOS Sierra and later | Dimensions | 8.7 x 4.1 x 1.2" / 22.0 x 10.3 x 3.0 cm | Weight | Not specified by manufacturer | | Package Weight | 3.68 lb | Box Dimensions (LxWxH) | 13.8 x 11.0 x 3.2" |
