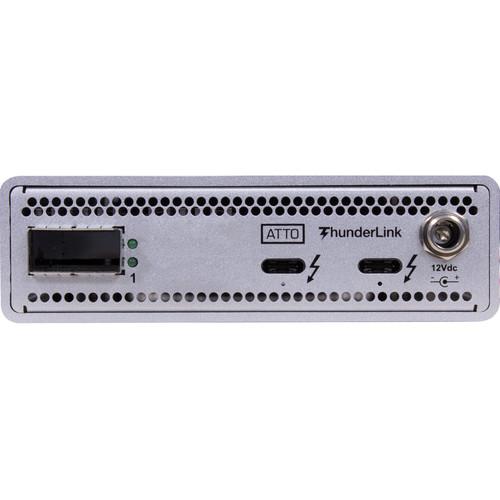

User Manual for ATTO Technology ThunderLink NQ 3401 Thunderbolt 3 to Single 40Gb Ethernet with QSFP Module Click to enlarge the picture
Contents of the user manual for the ATTO Technology ThunderLink NQ 3401 Thunderbolt
- Product category: Network Interface Cards & Adapters ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Network Interface Cards & Adapters
|
User manual for the ATTO Technology ThunderLink NQ 3401 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description - Choosing the Right Thunderbolt Product
- What is Thunderbolt 3?
With the ThunderLink NQ 3401 Thunderbolt 3 to Single 40Gb Ethernet{s} from ATTO, users can connected Thunderbolt-enabled all-in-one workstations and notebooks to 40 Gb/s Ethernet networks and storage devices. Users will be able to take advantage of data throughput rates of up to 40 Gb/s, which provides the bandwidth for applications such as data backup, clustered computing, IP content delivery, medical imaging, video rendering, and much more.
In addition to supporting a variety of bandwidth intensive tasks, this adapter also supports the daisy chaining of devices, including simultaneous 4K video and file transfers, USB connectivity, and more. Setup is simple, as the ThunderLink comes compatible with Windows 7 and later and macOS Sierra and later, and features Advanced Data Streaming (ADS) technology to maximize CPU processes for more reliable performance. General Features - With a low-profile form factor and Thunderbolt 3 connectivity, ATTO's 40GbE ThunderLink NQ provides a flexible and scalable connectivity option for today's high-bandwidth environments.
- Bandwidth capabilities to support for 4K video file transfer and display simultaneously.
- This ATTO Thunderbolt product utilizes Advanced Data Streaming (ADS) Technology which maximizes CPU processes to deliver smooth and reliable data transfers and consistent performance
UPC: 603175008804 In the Box ATTO Technology ThunderLink NQ 3401 Thunderbolt 3 to Single 40Gb Ethernet with QSFP Module (UK/EMEA) Power Adapter IEC C-13 Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ThunderLink NQ 3401 Thunderbolt 3 to Single 40Gb Ethernet with QSFP Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology TLNQ-3401-DE0 Specs | | | Networking Ports | 1 x 40Gb LC | | Other Ports | 2 x Thunderbolt 3 | | Transceiver Slots | 1 x Quad Small Form-factor Pluggable (QSFP) | | Host Connection | Thunderbolt 3 | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.1qaz, 802.1qbb, 802.2az, 802.3ab, 802.3ad | | Operating System Support | Windows, macOS/OS X | | Transfer Rates | Thunderbolt 3: 40 Gb/s | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A | | Adapter Power Output | 12 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | Certifications | RoHS, as per Manufacturer | | Lock Slot | Yes | | LED Indicators | Yes | | Dimensions | 8.7 x 4.1 x 1.2" / 22.0 x 10.3 x 3.1 cm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
