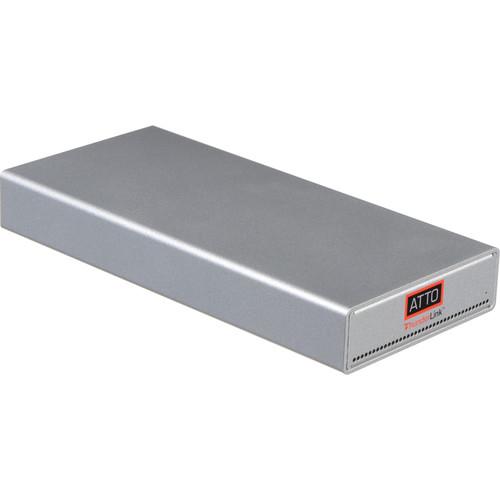

User Manual for ATTO Technology ThunderLink NS 2101 Thunderbolt 2 to 1-Port 10Gb Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology ThunderLink NS 2101 Thunderbolt
- Product category: Network Interface Cards & Adapters ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Network Interface Cards & Adapters
|
User manual for the ATTO Technology ThunderLink NS 2101 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description 4 Facts about Fibre Channel Networks You Should Know Read More - Choosing the Right Thunderbolt Product
- What is Thunderbolt 3?
Connect all-in-one systems and laptops to 10 Gb/s Ethernet storage devices using the ThunderLink NS 2101 Thunderbolt 2 to 1-Port 10Gb Ethernet Adapter from ATTO Technology. ThunderLink 10GbE, with support for link aggregation and failover, offers redundancy and high availability for critical network applications. With 10 Gb/s data transfer rates and multiple offloads (TCP, IPv4, UDP), the ThunderLink NS 2101 can be used for bandwidth-intensive applications such as data backup and restoration, clustered computing, IP content delivery, medical imaging, and video rendering. General Features - Single 10GbE port configuration
- Pluggable optical SFP+ LC module included
- Up to 10 Gb/s throughput per Ethernet port
- Dual 20 Gb/s Thunderbolt 2 with DisplayPort and device daisy-chain support
- Supports Data Center Bridging and software iSCSI initiators
- Supports macOS and Windows
- Advanced Data Streaming (ADS) technology
- TCP, UDP and IPv4 checksum offloading, IPsec offloading, and Tx/TCP segmentation offloading
- Compatible with Thunderbolt 3 Apple hosts via legacy adapter
- Kensington Security Slot for additional security via Kensington Lock
- Includes locking power supply to fasten directly and securely with ATTO Thunderbolt adapters
UPC: 603175008477 In the Box ATTO Technology ThunderLink NS 2101 Thunderbolt 2 to 1-Port 10Gb Ethernet Adapter (US) 1 x SFP+LC Optical Module 110V Power Cord (US) Limited 3-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ThunderLink NS 2101 Thunderbolt 2 to 1-Port 10Gb Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology TLNS-2101-D00 Specs | | | Networking Ports | 1 x 10Gb Ethernet (RJ45) | | Other Ports | 2 x Thunderbolt 2 | | Transceiver Slots | 1 x Enhanced Small Form-factor Pluggable (SFP+) | | Host Connection | Thunderbolt 2 | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ad, 802.3ae | | Operating System Support | Windows, macOS/OS X | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A | | Adapter Power Output | 12 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | Certifications | RoHS, as per Manufacturer | | LED Indicators | Yes | | Dimensions | 8.7 x 4.1 x 1.2" / 22.0 x 10.3 x 3.1 cm | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.6 x 9.8 x 3.4" |
