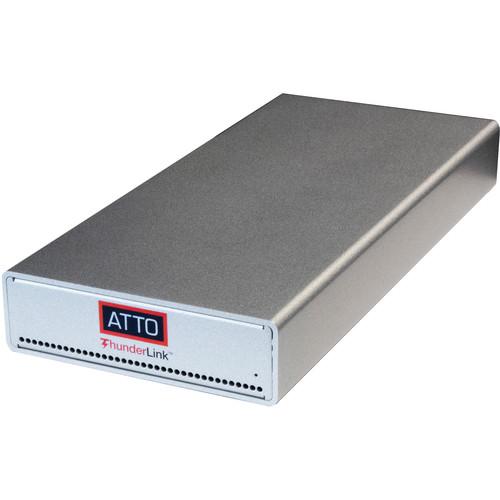

User Manual for ATTO Technology ThunderLink NS 3101 Thunderbolt 3 to 1-Port 10GbE Adapter with UK EMEA Power Cords Click to enlarge the picture
Contents of the user manual for the ATTO Technology ThunderLink NS 3101 Thunderbolt
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
|
User manual for the ATTO Technology ThunderLink NS 3101 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description - Choosing the Right Thunderbolt Product
- What is Thunderbolt 3?
The ThunderLink NS 3101 Thunderbolt 3 to 1-Port 10GbE Adapter from ATTO Technology acts as an external Thunderbolt 3 to 10GbE adapter and helps in connecting Thunderbolt-enabled systems (all-in-ones, workbooks, and mobile workstations) to 10 Gb/s Ethernet networks and storage devices. With 10 Gb/s data transfer rates, the adapter can be used for bandwidth-intensive applications such as data backup and restoration, clustered computing, IP content delivery, medical imaging, and video rendering. General Features - Single 10GbE port configuration
- Pluggable optical SFP+ LC module and quad to serial small form factor pluggable adapter included
- Up to 10 Gb/s throughput per port
- Dual port 40 Gb/s Thunderbolt 3 with DisplayPort and device daisy-chain support
- Supports macOS and Windows
- ADS (Advanced Data Streaming) technology
- TCP, UDP, and IPv4 checksum offloading, IPsec offloading, and Tx/TCP segmentation offloading
- Kensington Security Slot for additional security via Kensington Lock
- Includes locking power supply to fasten directly and securely with ATTO Thunderbolt adapters
UPC: 603175008910 In the Box ATTO Technology ThunderLink NS 3101 Thunderbolt 3 to 1-Port 10GbE Adapter with UK/EMEA Power Cords Optical SFP+ LC Module Quad to Serial Small Form Factor Pluggable Adapter IEC C-13 Power Cord (UK/EMEA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ThunderLink NS 3101 Thunderbolt 3 to 1-Port 10GbE Adapter with UK EMEA Power Cords in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology TLNS-3101-DE0 Specs | Throughput | Up to 10 Gb/s per port | | Input Connectors | 2 x 40 Gb/s Thunderbolt 3 (USB Type-C) | | Output Connectors | 1 x 10 GbE | | Connector Type | 2 x Optical SFP+ LC (included) | | LED Indicators | 2 LED indicators per port | | Network Standards | 802.3ae - 10GBASE-SR, 10GBASE-LR
802.3az - Energy Efficient Ethernet
802.1p - Priority Encoding
802.1q - VLAN tagging
802.3ad - Link Aggregation
802.1qbb - Priority Flow Control
802.1qaz - Enhanced Transmission
8023.AD - Load-balancing, failover | | Operating System Support | Windows 7 and later
macOS Sierra and later | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -40 to 158°F / -40 to 70°C | | Humidity | Operating: 10 to 90%, non-condensing
Storage: 5 to 95%, non- condensing | | Dimensions | 8.7 x 4.1 x 1.2" / 22.0 x 10.3 x 3.0 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 11.6 x 9.7 x 3.3" |
