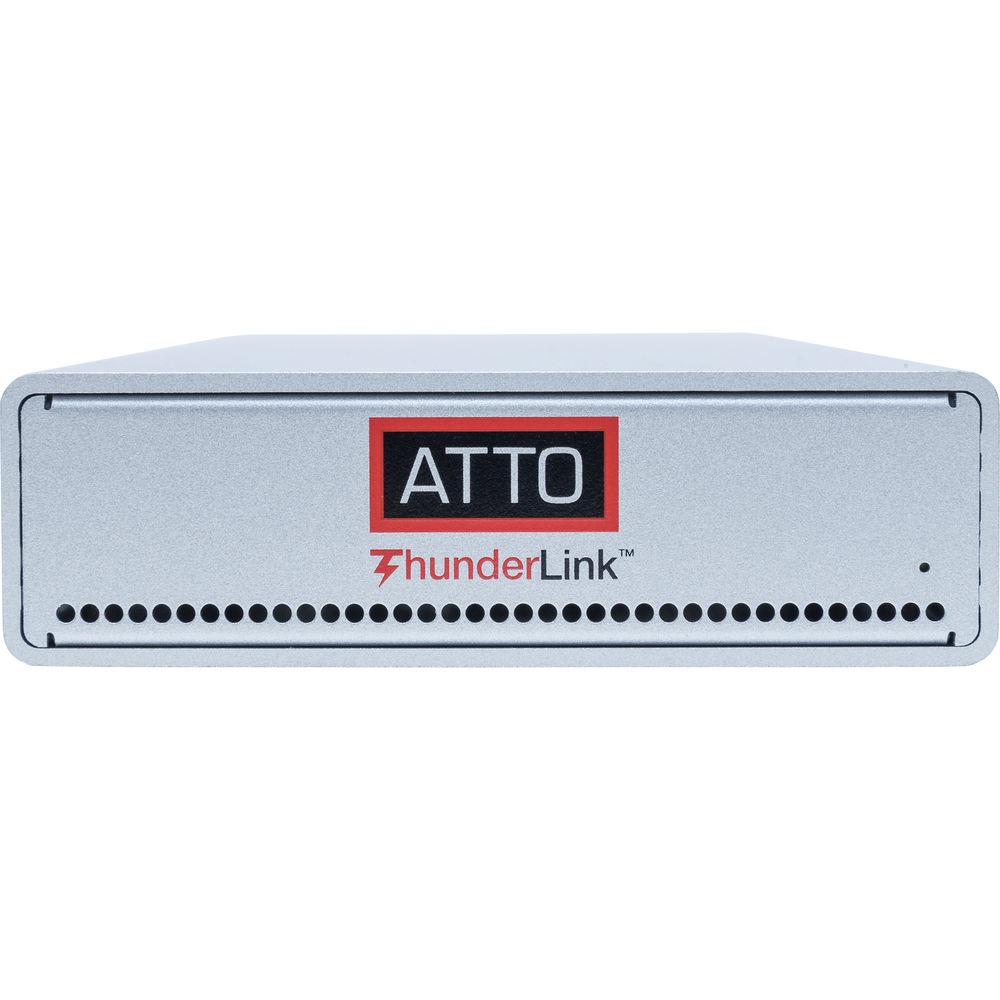

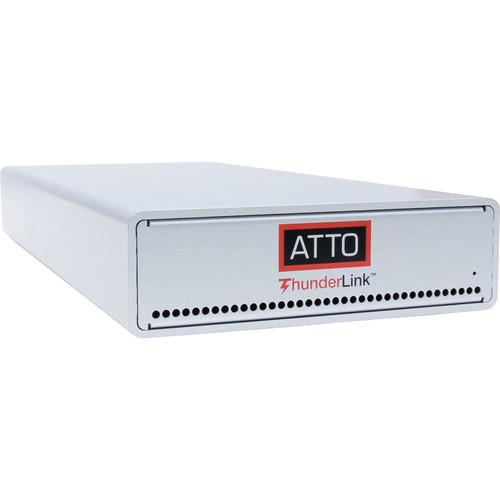

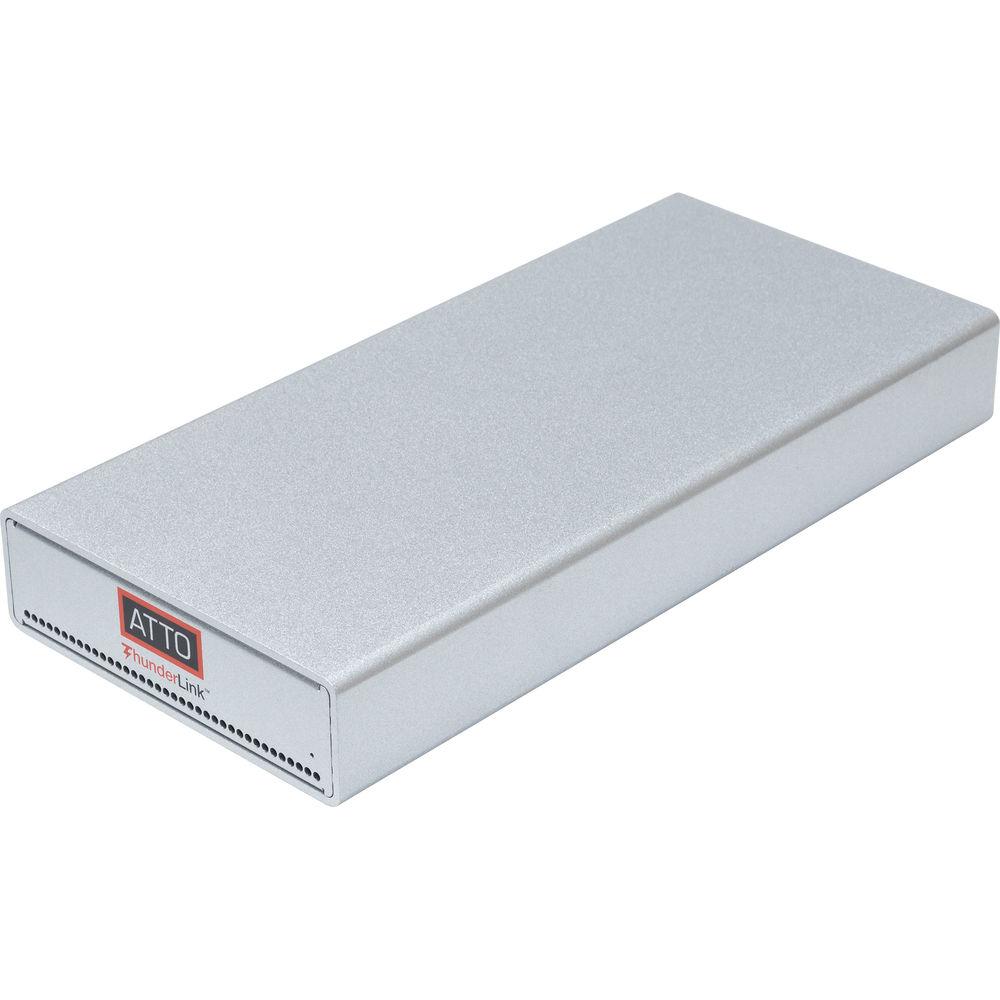

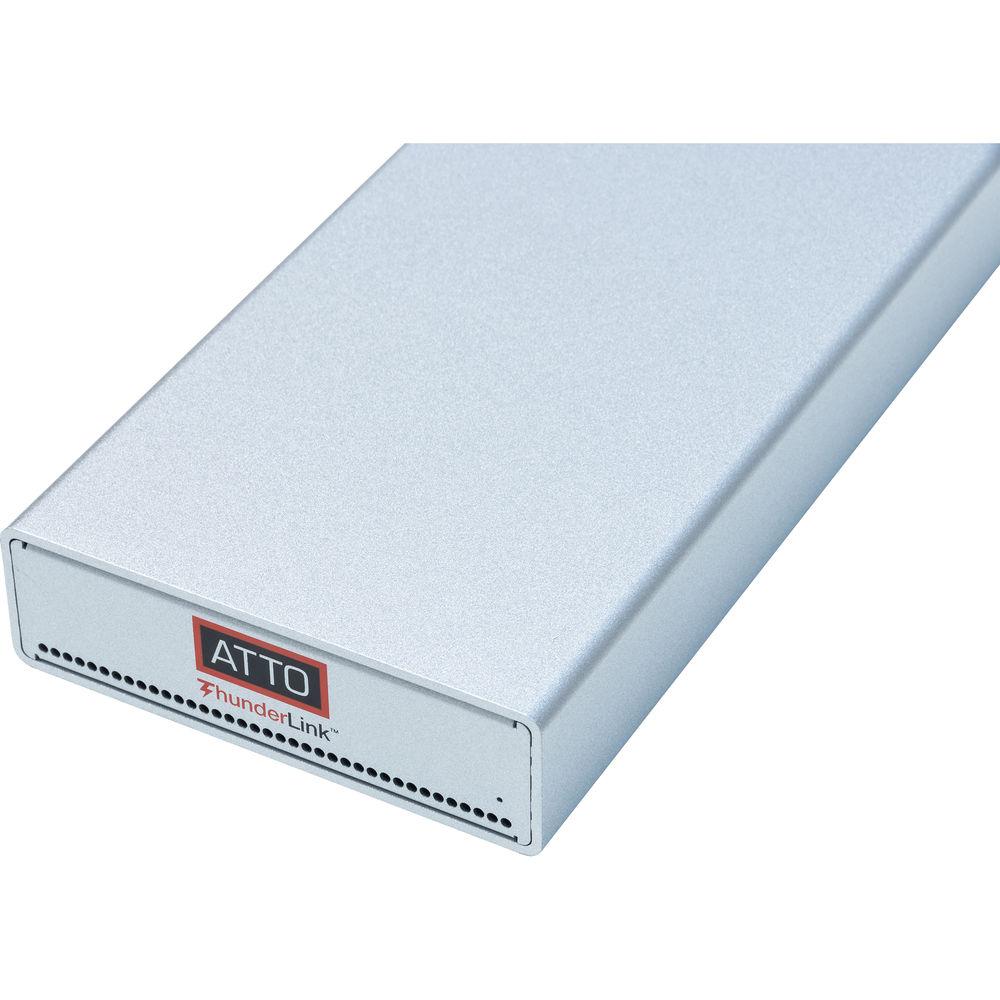

User Manual for ATTO Technology ThunderLink SH 3128 Thunderbolt 3 to SAS SATA Adapter Click to enlarge the picture
Contents of the user manual for the ATTO Technology ThunderLink SH 3128 Thunderbolt
- Product category: Controller Cards ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Controller Cards
 |
User manual for the ATTO Technology ThunderLink SH 3128 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description Delivering high-performance and reliable connectivity for demanding storage environments, including digital content creation, tape streaming and backup, rich content delivery, server clustering, complex databases, and more, the ThunderLink SH 3128 Thunderbolt 3 to SAS/SATA Adapter from ATTO allows users to achieve high I/O performance for real-time and transactional applications. It is equipped with two 40 Gb/s Thunderbolt 3 ports, which support DisplayPort, USB 3.1 Gen 2, and PCIe protocols, plus daisy chaining for up to six devices, as well as two SFF-8644 mini-SAS ports, each of which supports four devices at speeds up to 12 Gb/s SAS-3. All in all, this adapter lets you connect SAS and SATA devices, including storage and LTO 8 tape drives, to your Windows or Mac system running Thunderbolt 3. Thunderbolt 3 enables a maximum throughput of 2750 MB/s, and thanks to expanders, up to 3500 drives or tape drives are supported. If you don't have Thunderbolt 3, this adapter can be used with Thunderbolt 2 systems via a legacy adapter. Included is a 110V power cord that only works in the USA and protection is provided by a limited 3-year warranty. General Features - Advanced Data Streaming (ADS) Technology
- ATTO's exclusive Advanced Data Streaming (ADS) Technology helps maximizes CPU processes to deliver smooth and reliable data transfers and consistent performance.
- ATTO Config Tool
- ATTO's user-friendly Config Tool features a GUI that helps to simplify the installation, management, and monitoring of the Thunderbolt adapter. With advances troubleshooting and performance-tuning capabilities, Config Tool provides users with the diagnostics and flexibility to control settings for specific applications.
Technical Features - 40 Gb/s Thunderbolt 3 to 12 Gb/s SAS/SATA with support for up to 3500 disk or tape devices through expanders
- Dual 40 Gb/s Thunderbolt 3 with DisplayPort, USB 3.1 Gen 2, and PCIe support
- Up to 2750 MB/s total throughput
- Thunderbolt-certified for Windows and Mac
- Dual Thunderbolt 3 ports enable the daisy chaining of up to six devices
- Mini-SAS high density connectors for copper and optical cable usage with cable management support
- ATTO Config Tool for customized performance settings
- Interoperable with leading storage hardware and software vendors
- Limited 3-year standard warranty
- On-board Power Center Pro RAID software is included that supports RAID 0, 1, 1e, and 10
- Compatible with 20 Gb/s Thunderbolt 2
Key Features - Auto-negotiation between 12 Gb/s, 6 Gb/s and 3 Gb/s SAS/SATA devices
- Supports Serial SCSI Protocol (SSP), SATA Tunneling Protocol (STP, SMP, SAT, and direct-attached SATA protocol)
- SES and S.M.A.R.T. support
- Flash ROM for user-friendly field updates
- Wide port end device support
- Support for SAS tape devices and transport layer retries (TLR) for error handling
User Benefits - High MB/s and IOPS performance
UPC: 603175009092 In the Box ATTO Technology ThunderLink SH 3128 Thunderbolt 3 to SAS/SATA Adapter (USA) 110V Power Cord Locking Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology ThunderLink SH 3128 Thunderbolt 3 to SAS SATA Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

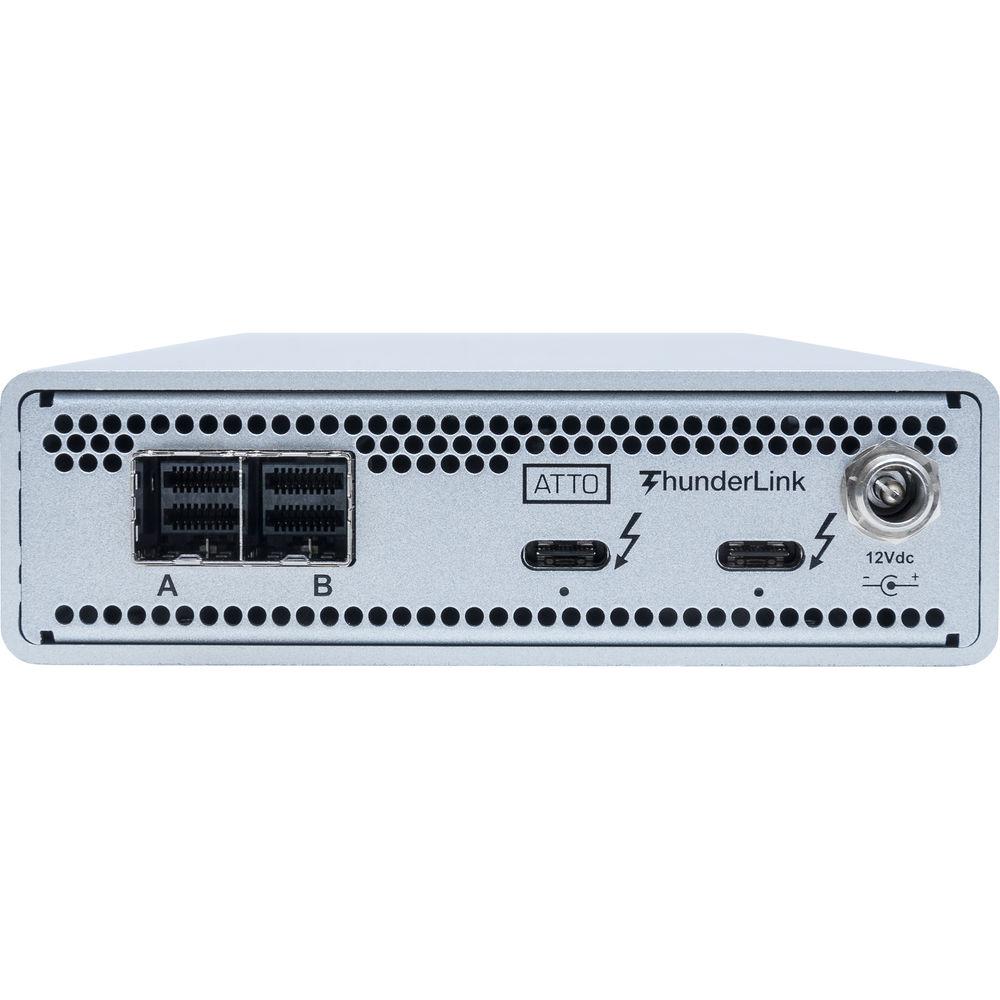

Technical parametersATTO Technology ThunderLink SH 3128 Specs | Input Connectors | 2 x 40 Gb/s Thunderbolt 3 | | Output Connectors | 2 x 12 Gb/s Mini-SAS (SFF-8644) | | Power Adapter | Input: 100-240 VAC, 50-60 Hz, 0.6 A max
Output: 12 VDC | | Operating System Support | Windows and macOS | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Non-Operating: -40 to 158°F / -40 to 70°C | | Humidity | Operating: 10 to 90% (non-condensing)
Non-Operating: 5 to 95% (non-condensing) | | Dimensions | 8.66 x 4.07 x 1.20" / 22.00 x 10.34 x 3.05 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.7 x 9.7 x 3.2" |
