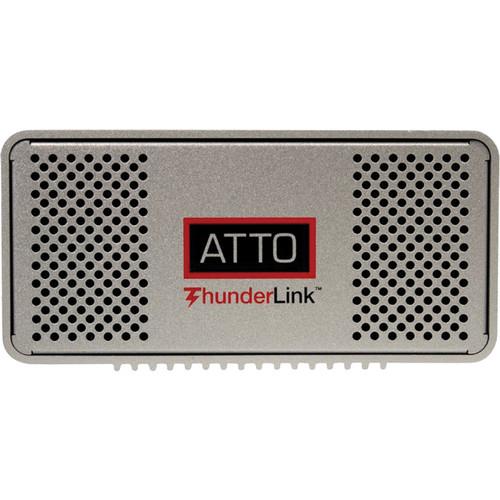

User Manual for ATTO Technology TLNS-2102 20 Gb s Thunderbolt 2 to 10 GbE Desklink Device Click to enlarge the picture
Contents of the user manual for the ATTO Technology TLNS-2102 20 Gb s
- Product category: Network Interface Cards & Adapters ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Network Interface Cards & Adapters
|
User manual for the ATTO Technology TLNS-2102 20 Gb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description 4 Facts about Fibre Channel Networks You Should Know Read More The TLNS-2102 20 Gb/s Thunderbolt 2 to 10 GbE Desklink Device (UK/EMEA) from ATTO Technology allows you to connect Thunderbolt enabled computers to 10 GbE networks to provide maximum throughput for high bandwidth network connectivity and demanding IT and media and entertainment applications. It offers cost effective access to storage, previously not available using FireWire or USB. The Desklink device provides flexible and scalable connectivity for high bandwidth content creation environments. By leveraging support for software iSCSI initiators, including ATTO Xtend SAN, this devices can support both local and storage area networks. It offers driver support for Mac OS X 10.9 and later, and Windows 7 and 8 (Linux when Thunderbolt-enabled platforms become available), providing a single connectivity solution for customers with heterogeneous operating system environments. Performance Engineered - With 10 Gb/s data transfer rates and multiple offloads (TCP, IPv4, UDP), ATTO Ethernet Desklink devices offer connectivity choice for bandwidth-intensive applications such as data back-up and restoration, IP content delivery, medical imaging, and video rendering. With multi-core processors driving the need for higher bandwidth, ThunderLink 10 GbE delivers enhanced throughput to meet that need.
Advanced Management Tools - ThunderLink 10 GbE Desklink devices provide a common foundation for both local and storage networks. The ThunderLink NS 2102 leverages standard OS management and monitoring tools to reduce the cost and complexity of a data center's administration and infrastructure.
Technical Features - Dual 10 GbE (SFP+ LC Optical) ports
- Supports 4K video file transfer and display simultaneously with dual 20 Gb/s Thunderbolt 2
- Supports ATTO Xtend SAN iSCSI initiator
- Daisy chain up to five additional Thunderbolt technology-enabled devices
- Backwards compatible with 10 Gb/s Thunderbolt
- Advanced Data Streaming (ADS) Technology
- Minimized interrupts for low latency
- TCP, UDP, IPv4 checksum offloading, and Tx/TCP segmentation offloading
General Features - Data rate per port: 10 GbE
- TCP, UDP, IPv4, and IPv6 checksum offloading
- Tx/TCP segmentation offload (Large Send Offload (LSO))
- Interrupt coalescing/moderation
- Interrupt levels INTA, MSI, MSI-X
- Data Center Bridging (DCB) Support:
-Priority-Based Flow Control 802.1Qbb rev.0
-Enhanced Transmission Selection 802.1Qaz rev.0 protocol - Header splits and replication in receive
- Receive side scaling for multiple Rx queues
- Direct Cache Access (DCA) eliminates cache misses and reduces CPU load
- IEEE 802.3 2005 flow control support
- 802.1p: Priority encoding
- 802.3ad: Link aggregation
- VLAN support with tag insertion and stripping
- Plug and play specification support
- Advanced packet filtering
Advanced Software Features - PCI hot-plug/active peripheral interconnect
Applications - ThunderLink 10 GbE Desklink device solutions combine the performance of 10 Gigabit Ethernet, the benefits of Enhanced Ethernet, and the potential of iSCSI initiator software to meet the performance and economic needs of growing data centers. The ThunderLink NS 2102 is suitable for applications that require low latency, high bandwidth data transfers, such as data backup and restoration, video-on-demand and video streaming, medical imaging, and clustered databases.
In the Box ATTO Technology TLNS-2102 20 Gb/s Thunderbolt 2 to 10 GbE Desklink Device (UK/EMEA) IEC C-13 Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology TLNS-2102 20 Gb s Thunderbolt 2 to 10 GbE Desklink Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology TLNS-2102-DE0 Specs | | | Networking Ports | 2 x 10Gb LC | | Other Ports | 2 x Thunderbolt 2 | | Host Connection | Thunderbolt 2 | | | | Supported IEEE Standards | 802.1, 802.3ae | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A | | Adapter Power Output | 12 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 5.0 x 2.5 x 9.0" / 12.7 x 6.4 x 22.9 cm |
