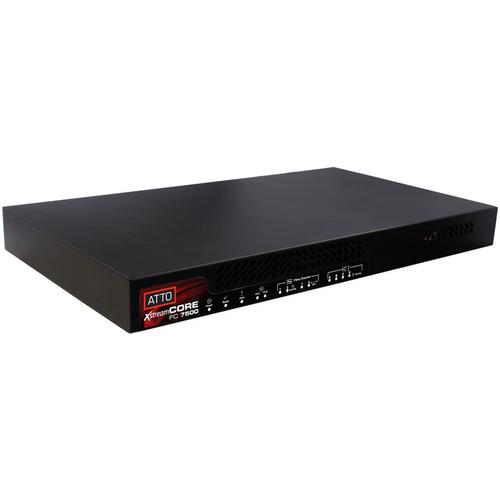

User Manual for ATTO Technology XstreamCORE FC 7550 16 Gb s Fibre Channel Storage Controller Click to enlarge the picture
Contents of the user manual for the ATTO Technology XstreamCORE FC 7550 16
- Product category: Network Switches, Bridges & Hubs ATTO Technology
- Brand: ATTO Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATTO Technology Network Switches, Bridges & Hubs
|
User manual for the ATTO Technology XstreamCORE FC 7550 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATTO Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATTO Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATTO Technology product will considerably shorten its lifespan!
|
Product description The 4-port XstreamCORE FC 7550 16 Gb/s Fibre Channel Storage Controller from ATTO Technology adds enterprise Fiber Channel connectivity to SAS JBOD, JBOF, and RAID storage with all the benefits of capacity aggregation and ATTO xCORE Data acceleration technology. The XstreamCORETM's architecture pushes the envelope on performance adding less than 4 microseconds of latency to storage. ATTO storage controller doesn't alter the data path and improves data flow by creating a higher performing shared storage network, using off-the-shelf SAS JBOD, JBOF, and RAID arrays. The XstreamCORE offloads compute, memory and network resources from client servers to allow those resources to process more transactions, dedicate more resources to application usage and better utilize server resources for virtualization. The XstreamCORE allows IT administrators to build a complete, modular, open storage solution using all flash SSDs, all capacity HDDs, or a hybrid mix of SSDs and HDDs with faster flash storage shared among all attached clients. Table of Contents
|
Upload User Manual
Have you got an user manual for the ATTO Technology XstreamCORE FC 7550 16 Gb s Fibre Channel Storage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATTO Technology FC 7550 Specs | Input Connectors | 4 x 16 GB Fiber channel (SFP+) | | Output Connectors | 4 x 12 GB mini-SAS HD (x4) | | Architecture Latency | <4 ms | | I/O Per Second (IOPS) | Maximum 4K: 1,200,000 | | Maximum Throughput | 6.4 | | Initiators | Up to 64 supported | | Internal HDDs Supported | Up to 960 per controller | | Form Factor | 1U rackmount | | Power Supplies | Two/Hot swap | | Power and Airflow (Desktop/Rack) | Input: 85 to 264 VAC, 0.5 A, 47 to 63 Hz
11 CFM (Ambient air not exceed 104°F (40°C))
Front to ceiling | | Operating Temperature | 41 to 104°F (5 to 40°C) at 10,000' (3048 m) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | Operating: 10 to 90%
Storage: 5 to 95% | | Approvals and Compliance | EN 60950, CSA 60950, CB IEC 60950, UL
60950, BSMI 22, EN55022: 2006, Class A, EN55024, EN61000
RoHS Compliant 2011/65/EU | | Dimensions | 1.7 x 9.9" (4.3 x 25 cm) | | Weight | 9.7 lb (4.4 kg) |
