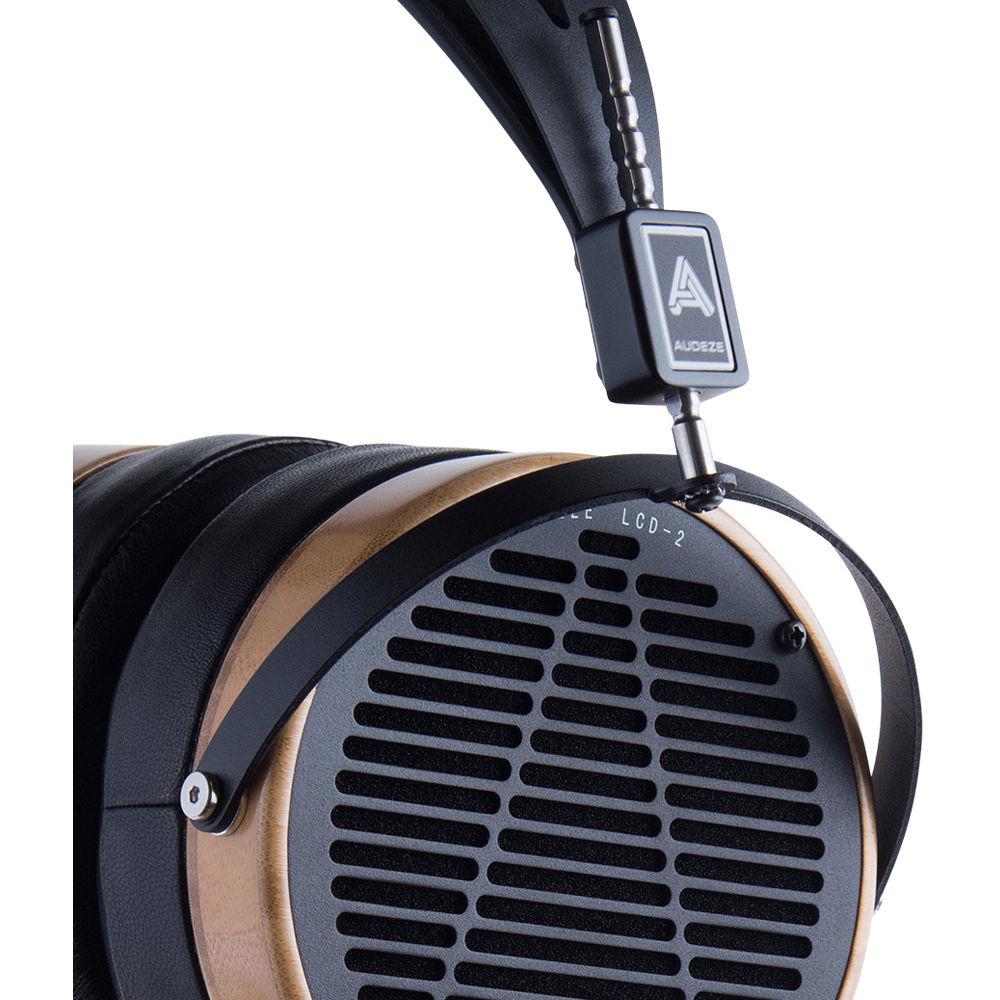

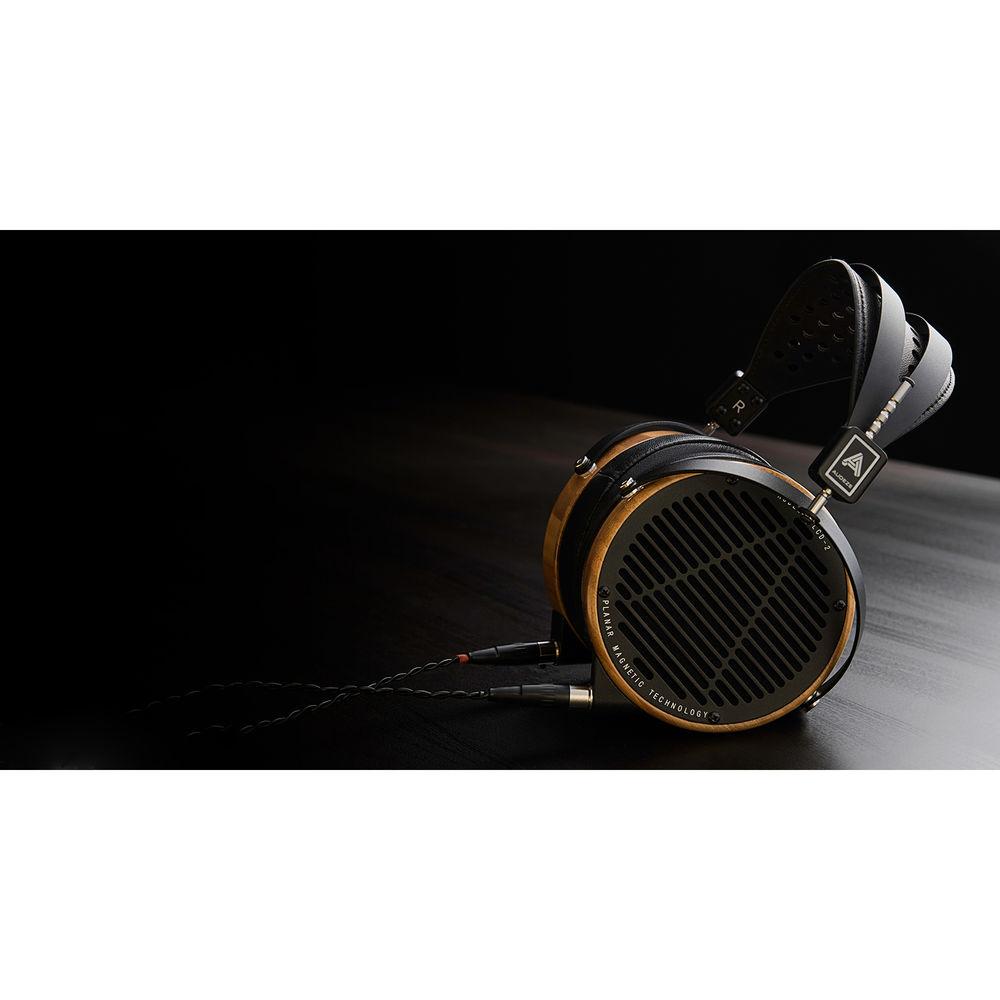

Product description The Audeze LCD-2 - High Performance Planar Magnetic Headphone With Ruggedized Travel Case (Bamboo, Leather-Free) are designed for personal Hi-Fi listening when connected to an external headphone amplifier or integrated amplifier. Instead of utilizing traditional dynamic cone drivers, the headphones implement a neodymium magnetic planar transducer design to deliver a frequency response of 5 to 50,000 Hz with a THD of less than 1%, an impedance of 70 Ω, an efficiency of 93 dB per 1 mW, and a total output SPL of over 130 dB when driven by 15 watts.
Magnetic planar technology differs from traditional dynamic cone designs by suspending a thin lightweight diaphragm within a parallel magnetic plane comprised of an array of magnets. The diaphragm is much lighter when compared to a traditional dynamic cone and has a printed circuit spread across a thin-film substrate on the surface of the diaphragm, as opposed to a cone attached to a voice coil. When the audio signal from the amplifier reaches the circuit, it magnetizes the diaphragm within the field and produces sound.
The benefits of a magnetic planar design include faster transient response due to the lighter diaphragm, a wide frequency with low distortion, better heat dissipation, fewer moving parts for greater durability without the kind of sonic degradation that cones are susceptible to, and better amplifier compatibility because the circuit functions as an almost entirely restive load.
The magnetic structure creates a uniform magnetic field across the diaphragm without the need for additional ferromagnetic material traditionally found in other planar headphones to remove magnetic interference, reduce harmonic distortion, and lower overall weight.

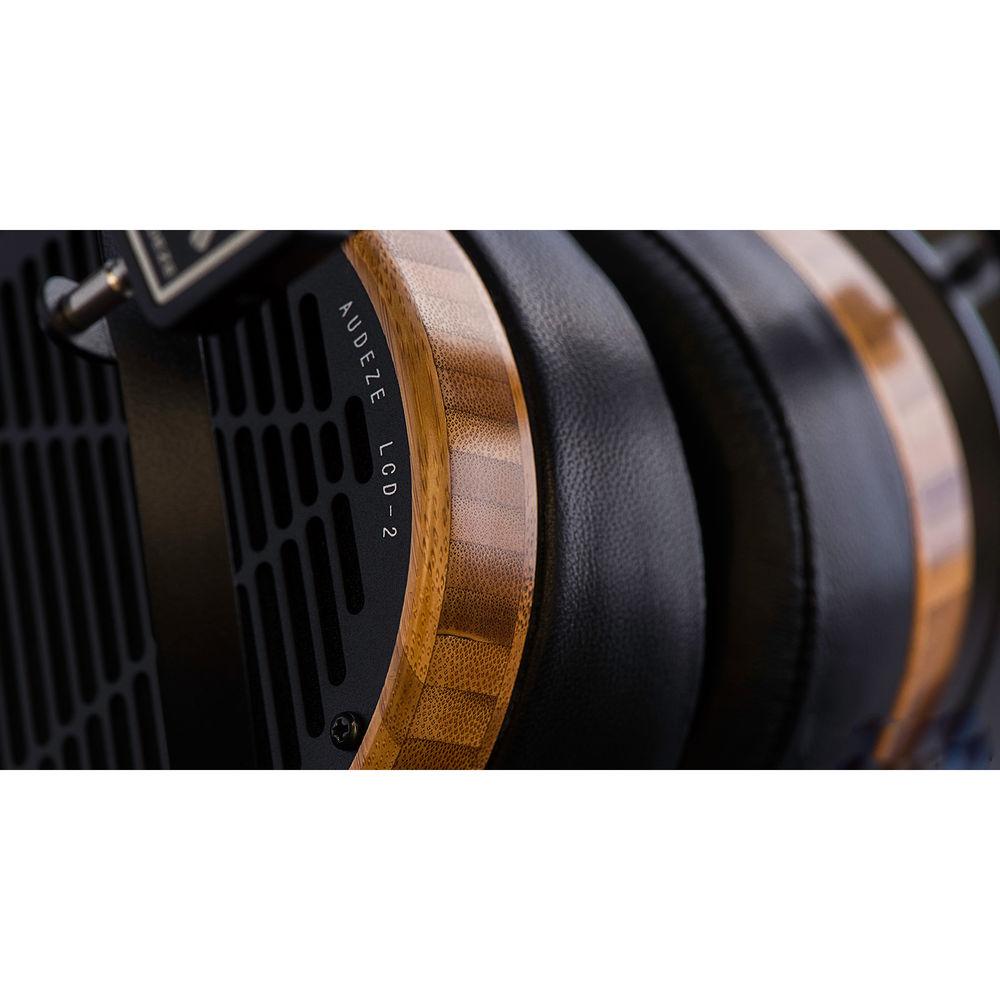

The headphone earcups are made of Bamboo with leather-free earpads for listeners who prefer not to use animal products. They come with a ruggedized travel case, a 1/4" to 4-pin mini-XLR cable, a 4-pin XLR to dual 4-pin mini-XLR cable, and a 1/4" to 1/8" stereo adapter. They are handcrafted in the USA and a personalized frequency response graph is available through support@audeze.com. UPC: 819343010191 In the Box Audeze LCD-2 - High Performance Planar Magnetic Headphone With Ruggedized Travel Case (Bamboo, Leather-Free) 8.2' (2.5 m) 1/4" (6.35 mm) to Dual 4-Pin Mini XLR Cable 8.2' (2.5 m) 4-Pin XLR to Dual 4-Pin Mini XLR Cable 1/4" (6.35 mm) to 1/8" (3.5 mm) Stereo Adapter Ruggedized Travel Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audeze LCD-2 - High Performance Planar Magnetic Headphone With Ruggedized Travel Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudeze LCD2 Specs | | | Driver Type | Planar | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 5 Hz to 20 kHz | | Sensitivity | 93 dB at 1 mW | | Impedance | 70 Ohms | | Maximum Sound Pressure Level (SPL) | 130 dB | | Maximum Power Handling | 15,000 mW | | Total Harmonic Distortion (THD) | 1% | | | | Audio Connector | 1/4" (6.3 mm)
4-Pin XLR | | Adapter (Included) | 1/8" (3.5 mm) TRS | | | | Detachable | Yes | | Cable Length | 8.2' / 2.50 m | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 13.0 x 10.2 x 8.3" |
