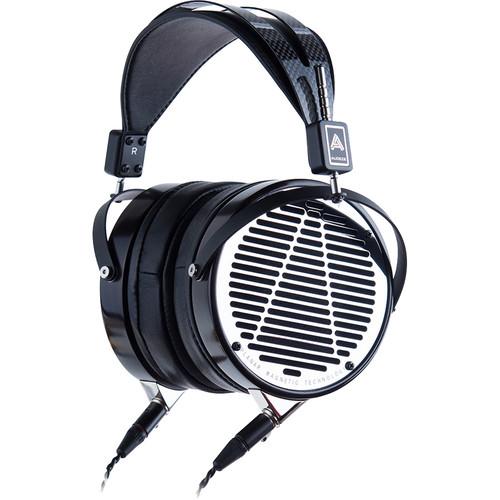

User Manual for Audeze LCD-4 - High Performance Planar Magnetic Headphone With Professional Travel Case Click to enlarge the picture
Contents of the user manual for the Audeze LCD-4 - High Performance Planar
- Product category: Professional Headphones Audeze
- Brand: Audeze
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audeze Professional Headphones
 |
User manual for the Audeze LCD-4 - High Performance Planar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audeze product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audeze user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audeze product will considerably shorten its lifespan!
|

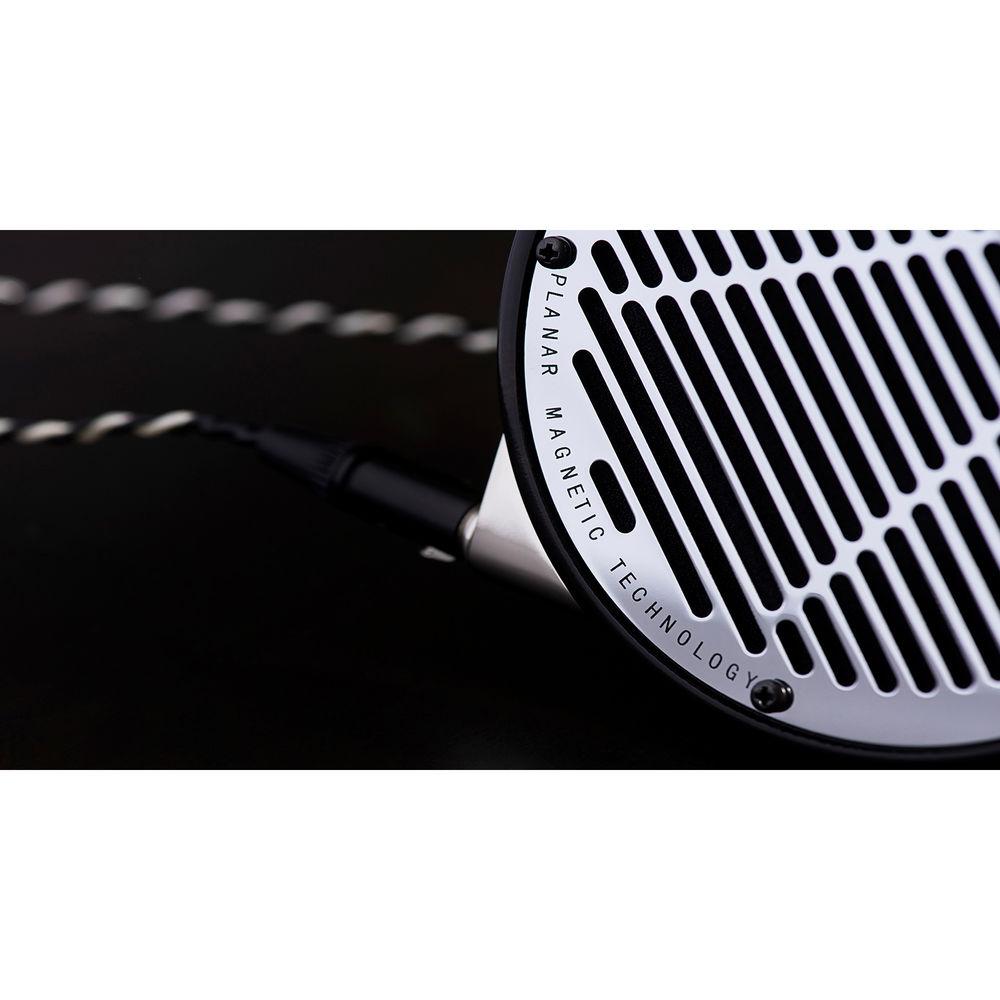

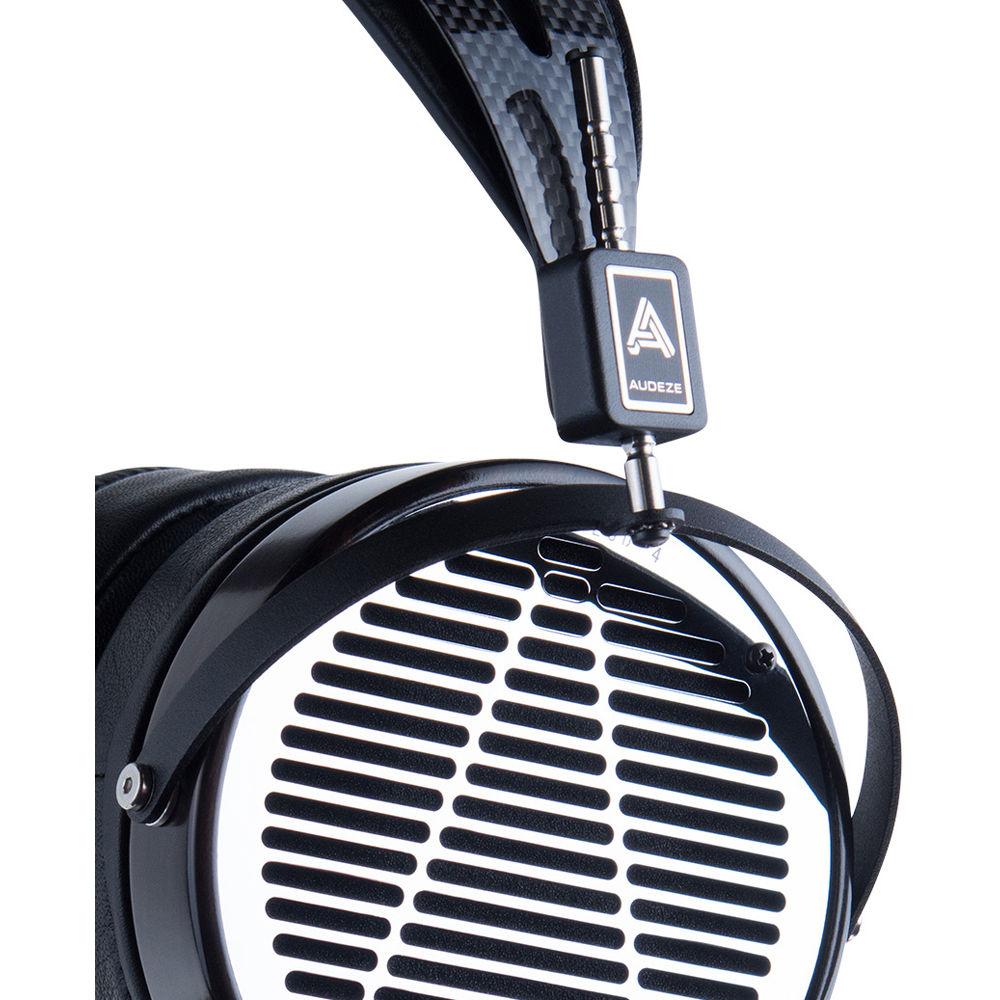

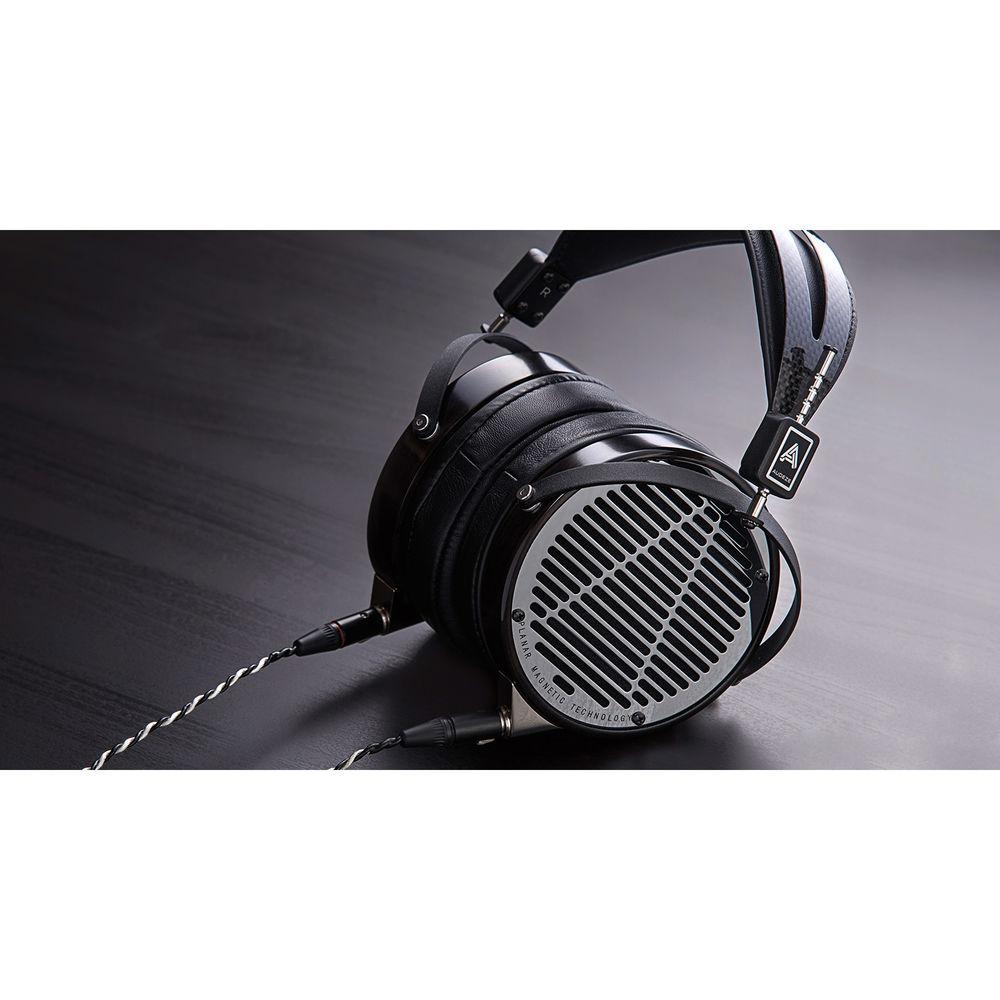

Product description The Audeze LCD-4 - High Performance Planar Magnetic Headphones With Professional Travel Case are designed for reference and personal Hi-Fi listening when connected to an external headphone amplifier or integrated amplifier. Instead of utilizing traditional dynamic cone drivers, the headphones implement nano-grade uniforce diaphragms and Double Fluxor magnet arrays for a powerful magnetic flux density of 1.5 Tesla. The headphones deliver a frequency response of 5 to 50,000 Hz with a THD of less than 1%, an impedance of 100 ohms, an efficiency of 100 dB per 1 mW, and a total output SPL of over 130 dB when driven by 15 watts. A new suspension-type carbon fiber and leather headband ensure a comfortable fit.
Magnetic planar technology differs from traditional dynamic cone designs by suspending a thin lightweight diaphragm within a parallel magnetic plane comprised of an array of magnets. The diaphragm is much lighter when compared to a traditional dynamic cone and has a printed circuit spread across a thin-film substrate on the surface of the diaphragm as opposed to a cone attached to a voice coil. When the audio signal from the amplifier reaches the circuit, it magnetizes the diaphragm within the field and produces sound.
The benefits of a magnetic planar design include faster transient response due to the lighter diaphragm, a wide frequency with low distortion, better heat dissipation, fewer moving parts for greater durability, without the kind of sonic degradation that cones are susceptible to, and better amplifier compatibility because the circuit functions as an almost entirely restive load.
The headphones also implement the company's patent-pending Fazor technology to guide and manage the flow of sound for better clarity, phasing, 3-D imaging, and frequency response. The magnetic structure creates a uniform magnetic field across the diaphragm, without the need for additional ferromagnetic material traditionally found in other planar headphones to remove magnetic interference, reduce harmonic distortion, and lower overall weight.
The headphones come with a professional travel case as well as a premium 1/4" to dual 4-pin mini-XLR headphone cable. They are handcrafted in the USA. UPC: 819343010801 In the Box Audeze LCD-4 - High Performance Planar Magnetic Headphone With Professional Travel Case 1/4" (6.35 mm) to Dual 4-Pin Mini XLR Cable Professional Travel Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audeze LCD-4 - High Performance Planar Magnetic Headphone With Professional Travel Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudeze LCD-4 Specs | | | Driver Size | 4.17" / 106 mm | | Driver Type | Planar | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 5 Hz to 50 kHz | | Sensitivity | 105 dB at 1 mW | | Impedance | 200 Ohms | | Maximum Sound Pressure Level (SPL) | 130 dB | | Maximum Power Handling | 15,000 mW | | Total Harmonic Distortion (THD) | 0.1% | | | | Audio Connector | 1/4" (6.3 mm) TRS | | Connector to Earpiece | 2 x Mini XLR 4-Pin | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 15.2 x 12.5 x 11.1" |
