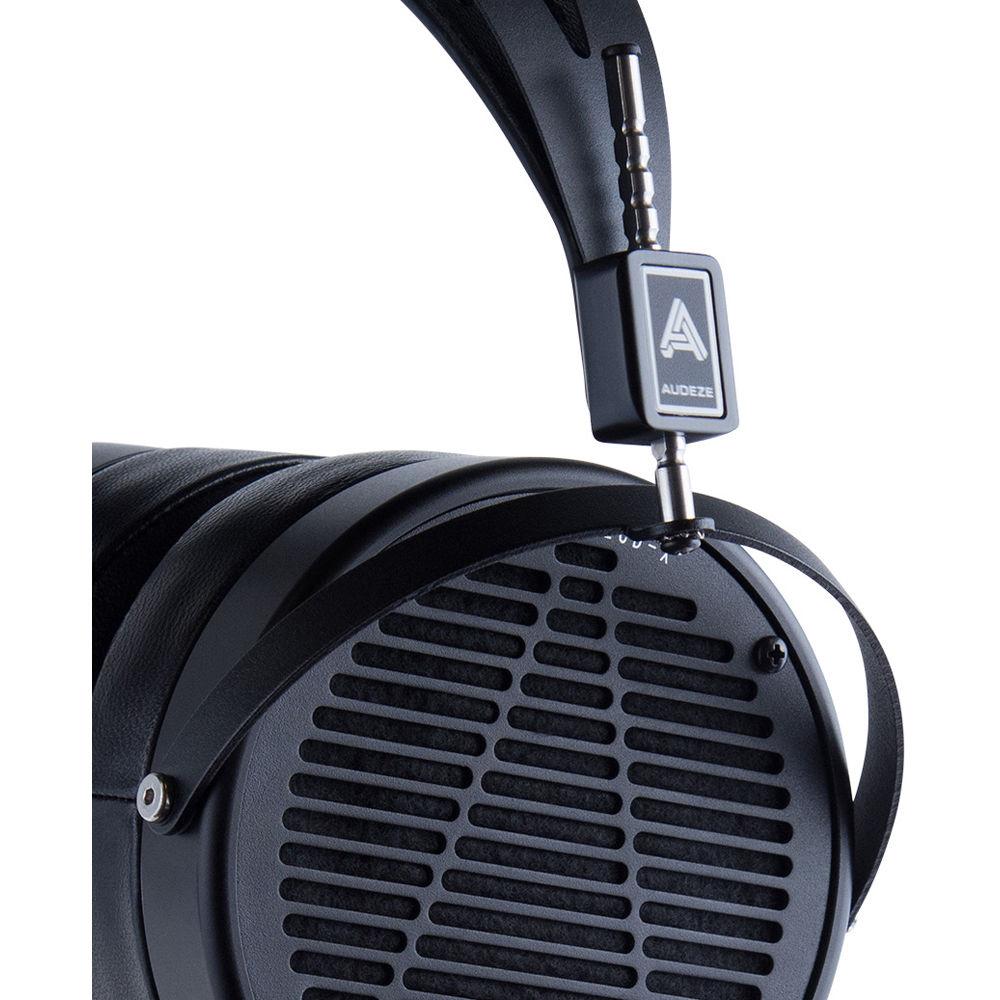

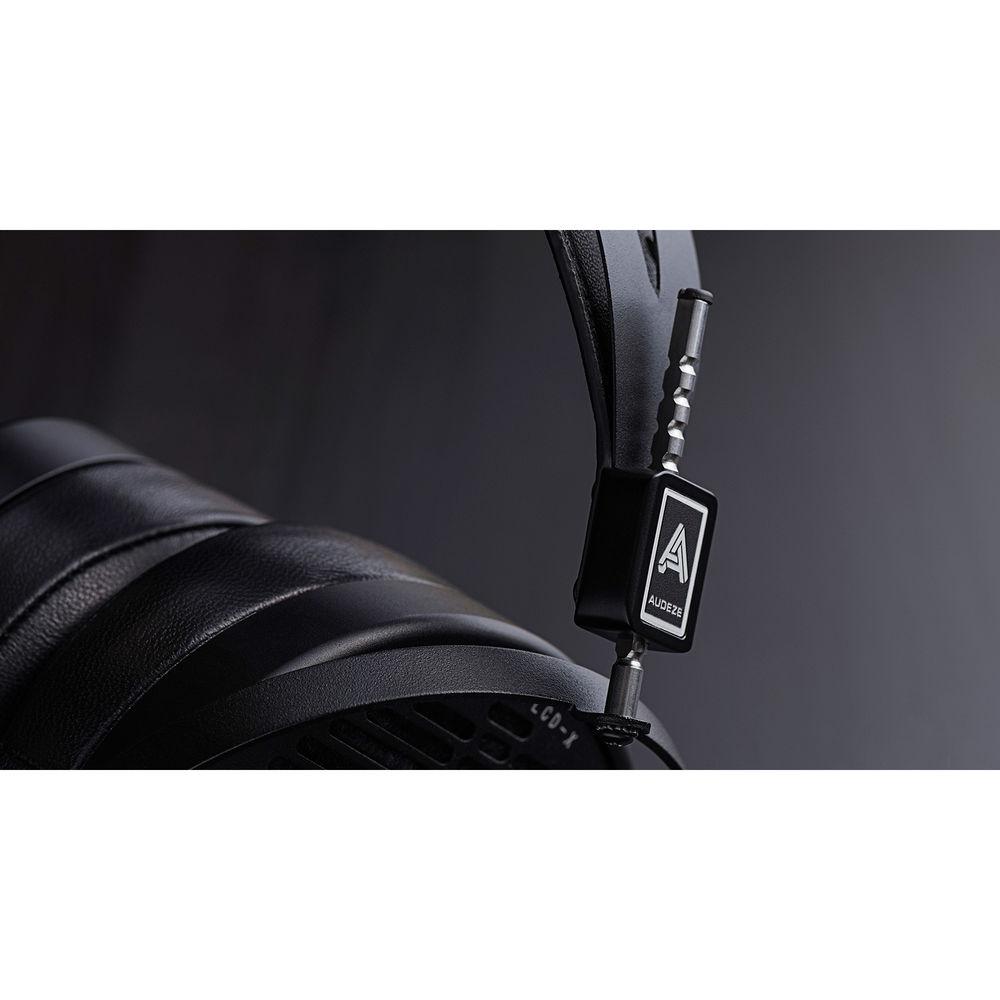

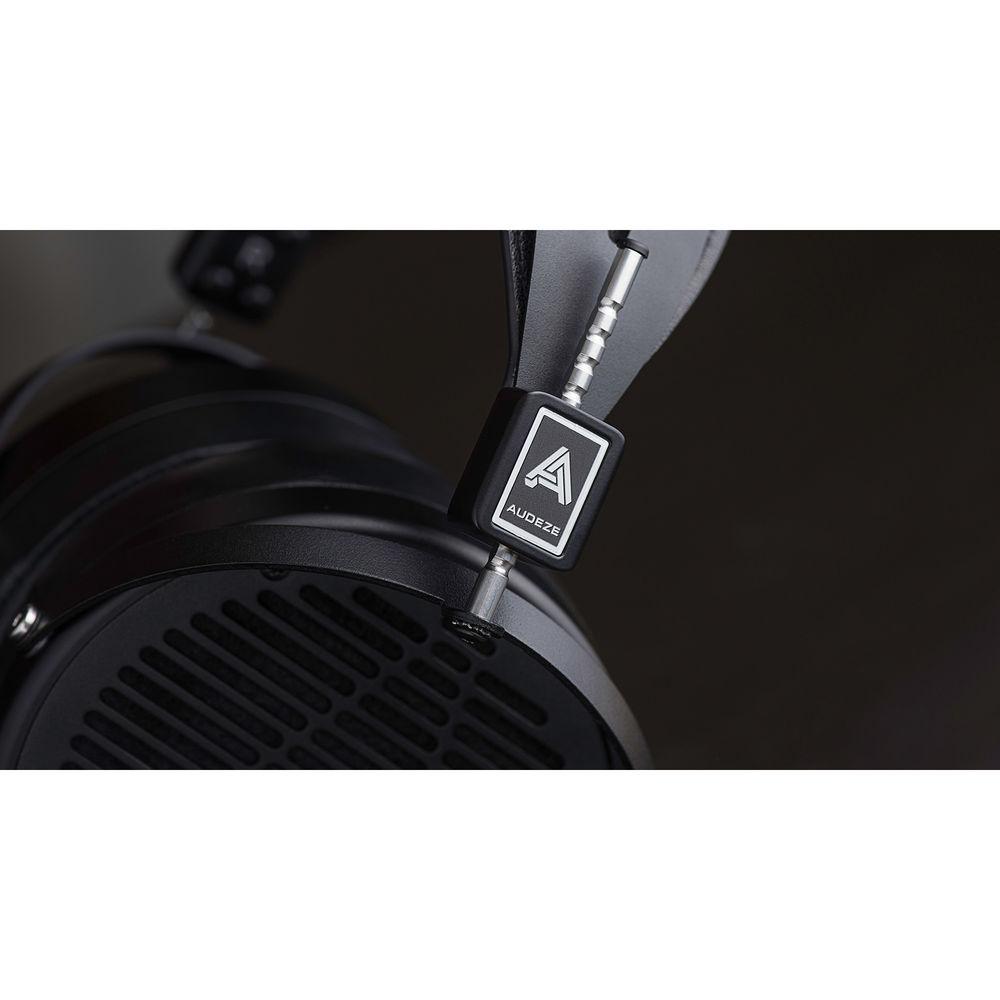

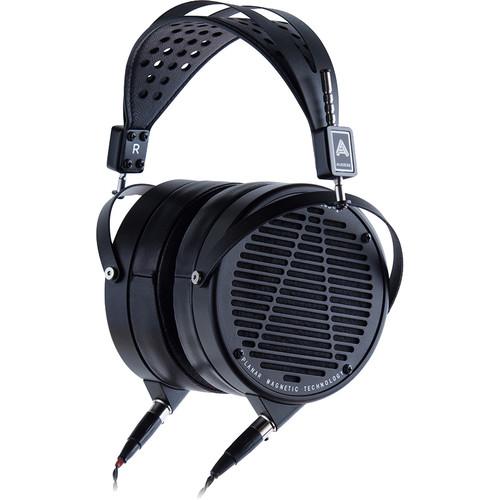

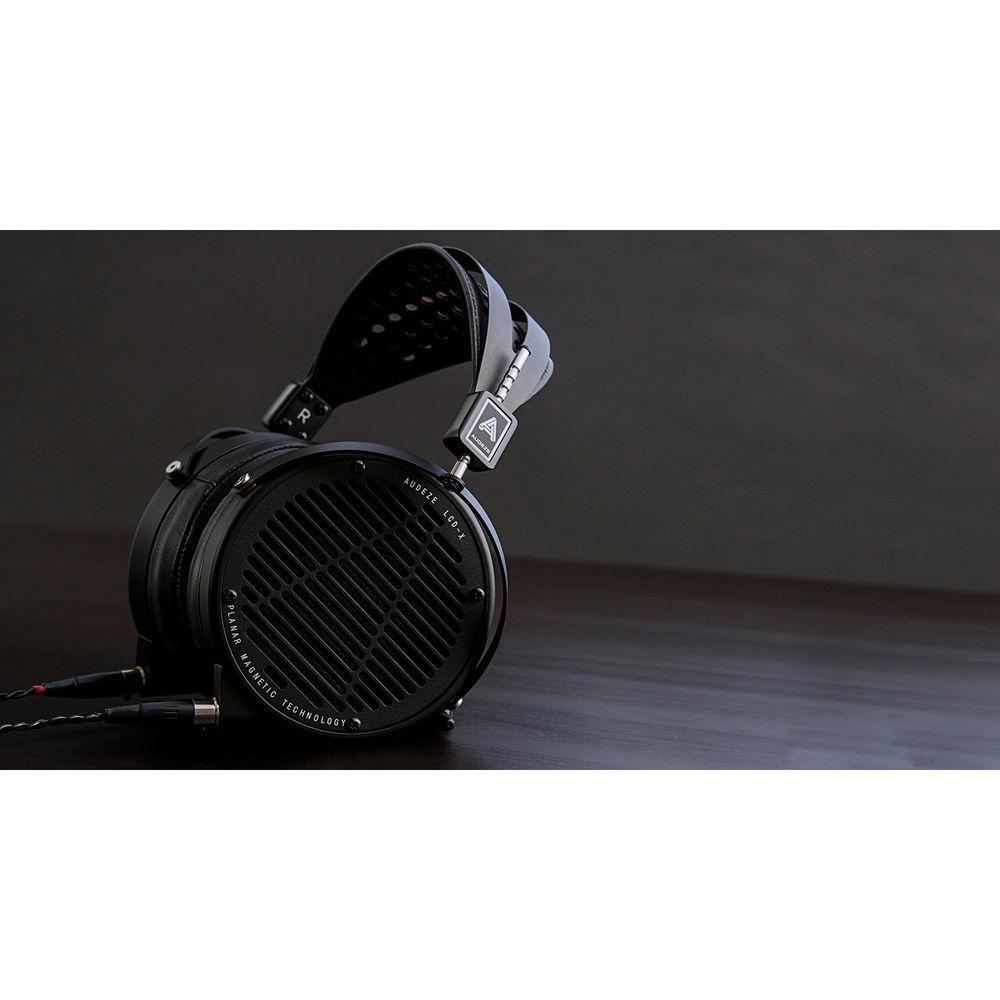

User Manual for Audeze LCD-X - Music Creator Special - Planar Magnetic Headphones Click to enlarge the picture
Contents of the user manual for the Audeze LCD-X - Music Creator Special
- Product category: Professional Headphones Audeze
- Brand: Audeze
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audeze Professional Headphones
 |
User manual for the Audeze LCD-X - Music Creator Special contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audeze product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audeze user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audeze product will considerably shorten its lifespan!
|
Product description The Audeze LCD-X - Music Creator Special are high-performance reference planar magnetic headphones, designed for professional mixing, mastering, and reference level personal Hi-Fi listening when connected to a low-powered external headphone amplifier or portable device. The Music Creator Special offers the same LCD-X headphones at a more affordable price, but without the professional travel case.
The headphones are sensitive enough to be driven by portable music players such as iPods, iPhones, and other smartphones. Instead of utilizing traditional dynamic cone drivers, the headphones implement a neodymium magnetic planar transducer design to deliver a frequency response of 5 to 50,000 Hz with a THD of less than 1%, an impedance of 20 Ohms, an efficiency of 103 dB per 1 mW, and a total output SPL of over 130 dB when driven by 15 watts.
Magnetic planar technology differs from traditional dynamic cone designs by suspending a thin lightweight diaphragm within a parallel magnetic plane comprised of an array of magnets. The diaphragm is much lighter when compared to a traditional dynamic cone and has a printed circuit spread across a thin-film substrate on the surface of the diaphragm as opposed to a cone attached to a voice coil. When the audio signal from the amplifier reaches the circuit, it magnetizes the diaphragm within the field and produces sound.
The benefits of a magnetic planar design include faster transient response due to the lighter diaphragm, a wide frequency with low distortion, better heat dissipation, fewer moving parts for greater durability without the kind of sonic degradation that cones are susceptible to, and better amplifier compatibility because the circuit functions as an almost entirely restive load.
The magnetic structure creates a uniform magnetic field across the diaphragm without the need for additional ferromagnetic material traditionally found in other planar headphones to remove magnetic interference, reduce harmonic distortion, and lower overall weight. The headphones also feature Audeze's patent-pending Fazor elements that guide and manage the flow of sound through the earcups for a more enveloping sound stage and improved frequency extension.
The headphone earcups are made of anodized aluminum with black lambskin leatherette earpads. The Audeze LCD-X are handmade in the USA and ship with a 1/4" to dual 4-pin mini-XLR cable and a 1/4" to 1/8" stereo adapter. UPC: 819343011396 In the Box Audeze LCD-X - Music Creator Special - Planar Magnetic Headphones (Lambskin Leather) 1/4" to Dual 4-Pin Mini XLR Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audeze LCD-X - Music Creator Special - Planar Magnetic Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudeze LCD-X Specs | | | Driver Size | 4.2" / 106 mm | | Driver Type | Planar | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 5 Hz to 20 kHz | | Sensitivity | 103 dB at 1 mW | | Impedance | 20 Ohms | | Maximum Sound Pressure Level (SPL) | 130 dB | | Maximum Power Handling | 15,000 mW | | Total Harmonic Distortion (THD) | 1% | | | | Audio Connector | 1/4" | | Connector to Earpiece | Mini XLR 4-Pin | | | | Detachable | Yes | | Cable Length | 8.2' / 2.50 m | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 12.0 x 10.2 x 7.1" |
