User Manual for Audient ASP510 - Rack Mountable Surround Sound Controller

Click to enlarge the picture
Audient ASP510 - Rack Mountable Surround Sound Controller Contents of the user manual for the Audient ASP510 - Rack Mountable Surround
  • Product category: Studio Monitor Controllers Audient
  • Brand: Audient
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audient Studio Monitor Controllers

Audient ASP510 - Rack Mountable Surround Sound Controller Audient ASP510 - Rack Mountable Surround Sound Controller
User manual for the Audient ASP510 - Rack Mountable Surround contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audient product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audient user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audient product will considerably shorten its lifespan!



Product description

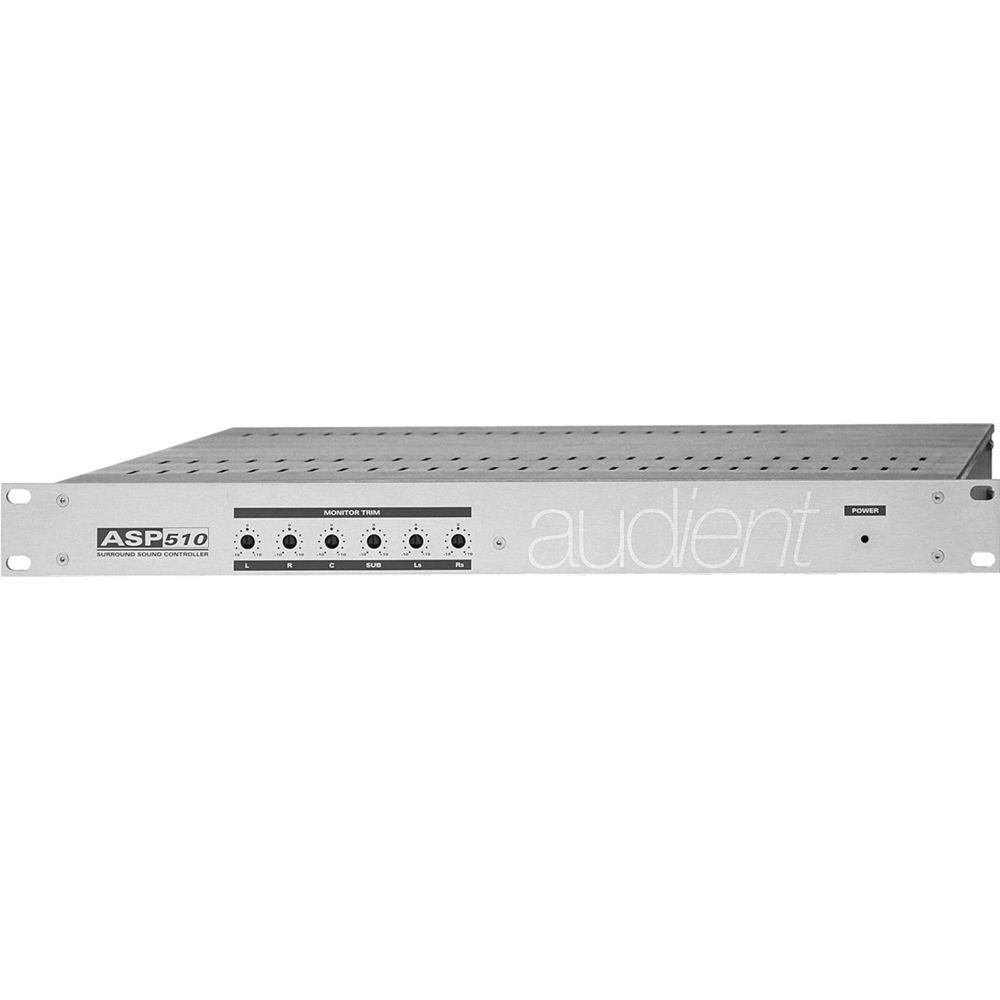

The ASP510 from Audient is an easy-to-use controller designed for seamless integration with your console or DAW-based surround monitoring setup to provide full control of recording and monitoring functions in a variety of formats, including Dolby Surround and DTS. Perfect for use in surround music, film, video, and gaming production applications, the ASP510 supports three 5.1 surround and three stereo sources on DB25 connectors. The main unit has front-panel level controls for each of the six output channels, but most of the system control falls to the included remote.

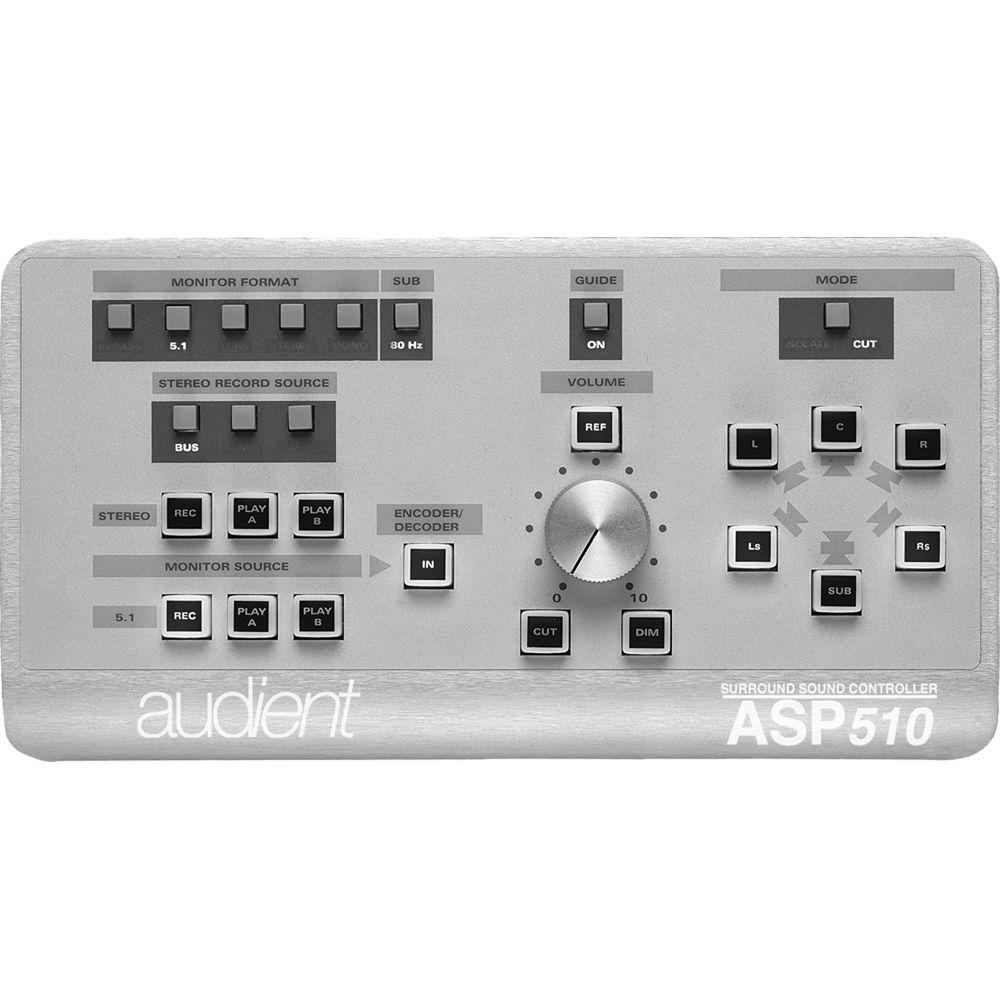

The desktop remote unit, which connects to the main rack unit via a standard CAT5 cable, offers a plethora of control buttons for monitor format selection, stereo and surround source selection, cut and isolate functions for individual speakers, and more. A single knob is provided for main volume control. Other features of the system include an internal pink noise generator, a switchable 120Hz filter, and direct input of a guide track to the left and right monitors.
  • Seamless control of monitoring and record functions for a surround system
  • Rack mountable main unit with desktop remote
  • Supported formats include 5.1, LCRS, Dolby Surround, DVD, DVD-A, DTS, and SACD
  • Monitoring for three stereo and three surround sources
  • All I/Os on the main unit are via 25-Pin "D" connectors
  • Front panel speaker level controls on main unit
  • Internal pink noise generator
  • Guide track input
  • Switchable 120Hz filter
  • Remote connects to the main unit with a standard CAT5 cable
  • Large knob for main volume control on remote
  • Individual speaker cut/isolate functions
  • Monitor reference and dim levels are user-settable
  • Bypass mode for monitoring directly from your console or DAW
  • Three ways to interlock source selections - normal, lock, and gang
In the Box Audient ASP510 - Rack Mountable Surround Sound Controller
  • ASP510 Rack Unit
  • ASP510 Remote Control
  • AC Power Cord
  • CAT5 Cable
  • Owner's Manual
  • 1 Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Audient ASP510 - Rack Mountable Surround Sound Controller in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Audient ASP510 Specs

    Maximum Input Level +24dBu
    Maximum Output Level +24dBu
    Frequency Response 22Hz - 22kHz, ±0.25dB
    Noise Less than -92dBu (22Hz - 22kHz)
    THD + N Less than 0.003% @ +4dBu, 1kHz
    Crosstalk Greater than 80dB @ 1kHz
    Connectors Main Unit:
    1 x AC Power In
    1 x RJ-45 Remote Connector
    2 x Surround Play 25-Pin D Female
    1 x Surround Bus Input 25-Pin D Female
    1 x Stereo Record/Transmission & Play 25-Pin D Female
    1 x Console Interface 25-Pin D Female
    1 x Decoder 25-Pin D Female
    2 x Surround Record 25-Pin D Male
    1 x Speaker Output 25-Pin D Male
    1 x Encoder 25-Pin D Male
    Remote:
    1 x RJ-45 Connector
    Talkback Mic No
    Headphone Output No
    Dimensions (HxWxD) Main Unit: 1.75 x 19 x 11" (44 x 483 x 280mm)
    Remote: 1.6 x 9.1 x 4.7" (40 x 230 x 120mm)
    Weight Not Specified by Manufacturer
