User Manual for Audient ASP800 - 8-Channel Microphone Preamplifier and ADC with HMX & IRON Click to enlarge the picture
Contents of the user manual for the Audient ASP800 - 8-Channel Microphone Preamplifier
- Product category: Microphone Preamps Audient
- Brand: Audient
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audient Microphone Preamps
|
User manual for the Audient ASP800 - 8-Channel Microphone Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audient product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audient user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audient product will considerably shorten its lifespan!
|

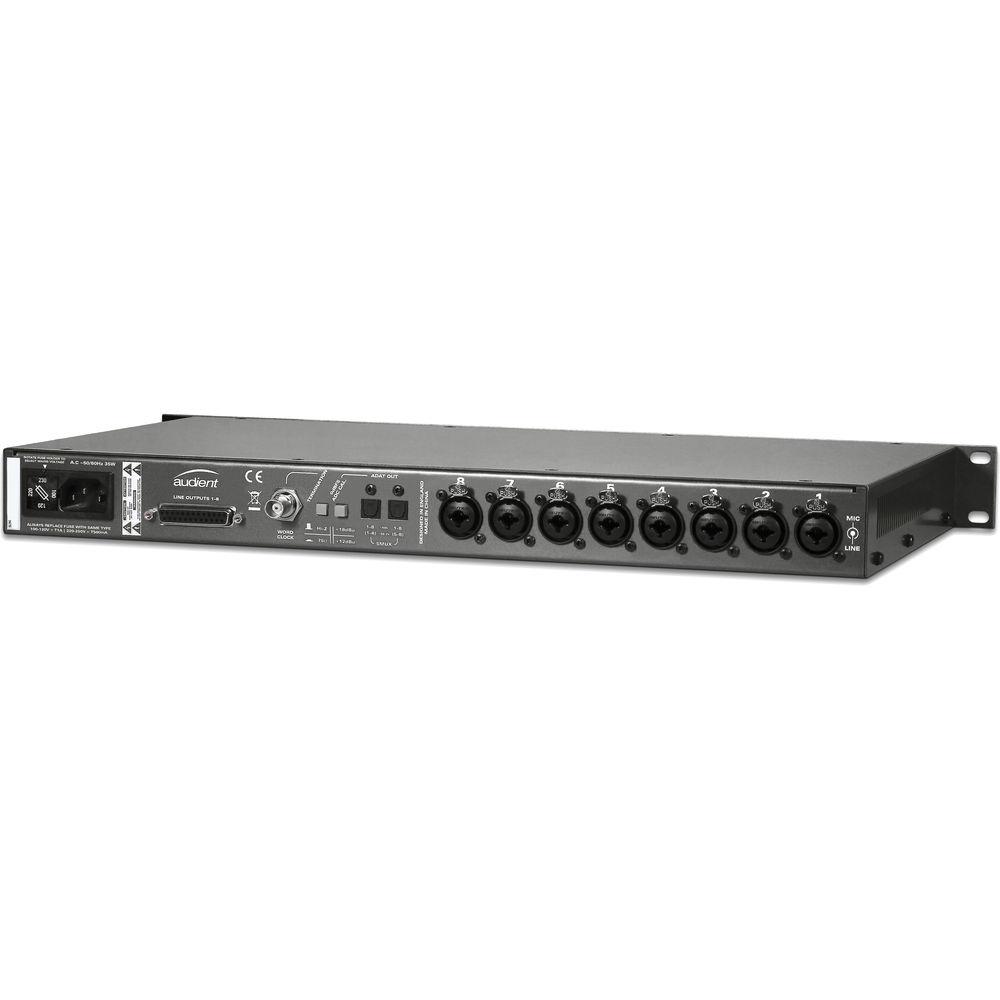

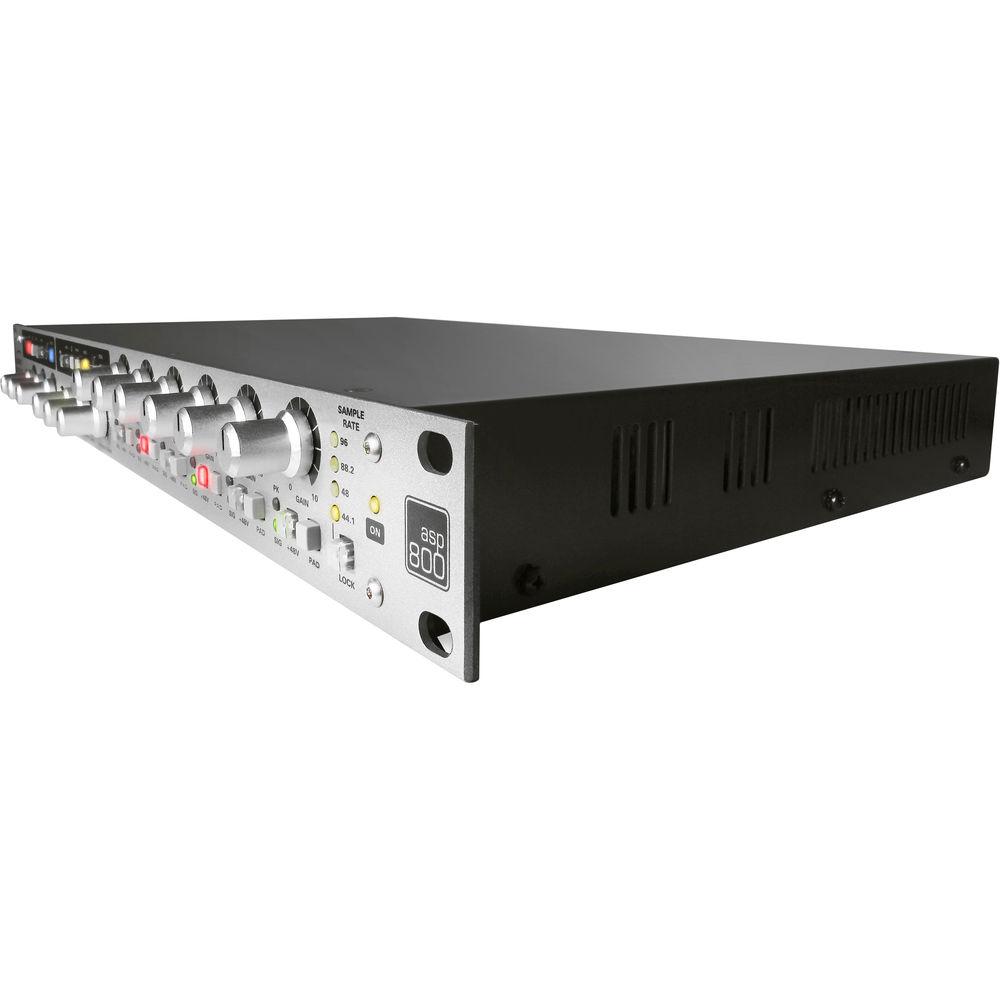

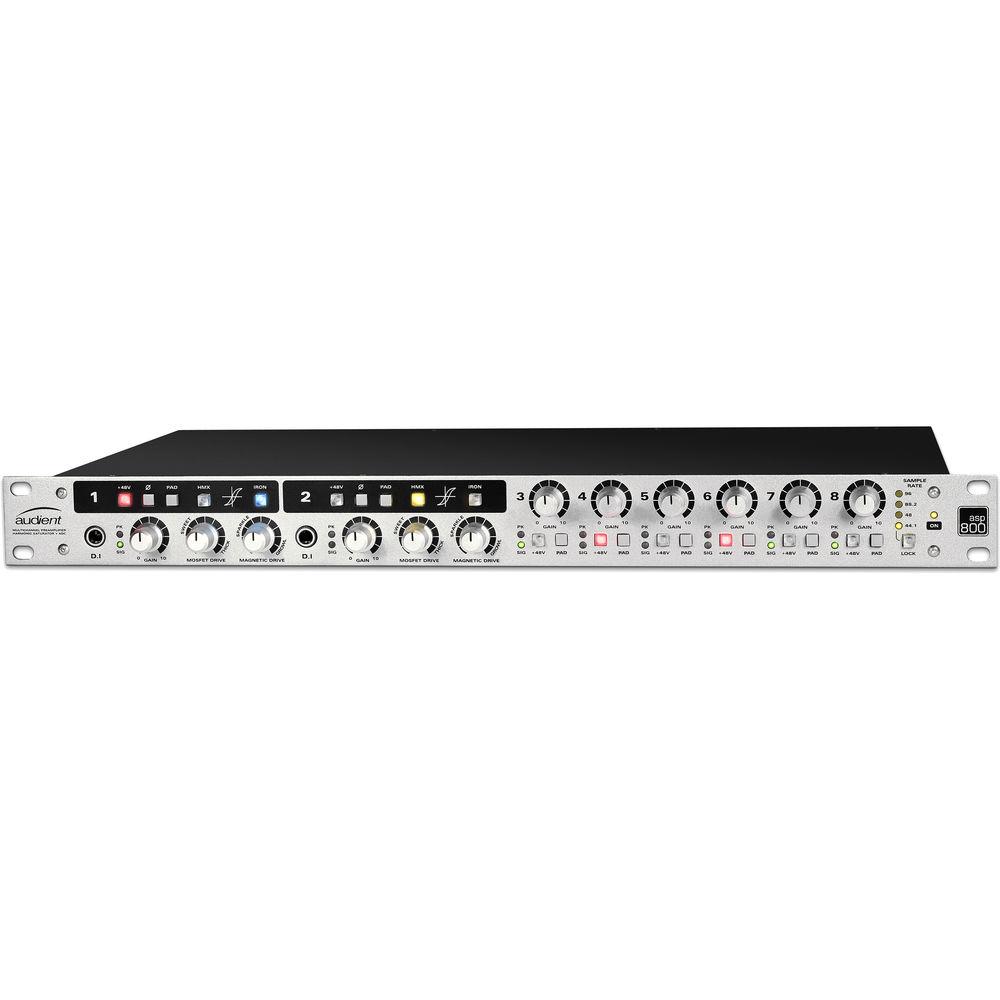

Product description Designed for professional recording studios that require expandability, the Audient ASP800 is an 8-channel Class-A microphone preamplifier and audio interface. The single 1 RU 19" rackmountable all-metal enclosure provides eight channels of preamps from the company's renowned consoles designed by David Dearden, along with 118 dB A to D converters from Burr Brown. The unit also features two JFET DI inputs as well as two channels that incorporate the company's HMX - MOSFET drive and IRON - Magnetic Transformer Drive color controls to add retro character to your guitars, keyboards, and drum machines. The front panel of the unit features two 1/8" (6.35 mm) DI inputs with a dedicated hand-milled knob for gain, MOSFET drive, and magnetic drive. An array of back-lit LED buttons allows you to switch +48V phantom power, reverse the phase 180°, engage a pad, engage the HMX MOSFET drive color control, and engage the IRON magnetic drive color control. The remaining six channels feature dedicated gain, +48V phantom power, and pad controls. A separate button allows you to lock the sampling rate of the unit at 44.1, 48, 88.2, and 96 kHz. The rear panel of the unit features eight locking balanced XLR/TRS Combo jacks, as well as ADAT SMUX Optical Outputs (1-4 and 5-8, or 1-8 on both <48 kHz), a BNC wordclock input, a wordclock termination button (75 ohms), and a 0 dBFS calibration button for matching to an interface (+18 dBu to match the iD22 and +12 dBu to match iD14). A D-Sub connector provides line outputs 1-8. - Mic Pres
- Uses Class-A mic preamplifier design developed and optimized by legend David Dearden over the course of 18 years
- Retro Channels
- Adds harmonics to signal for creating tones most often associated with 1960's tube designs and the coveted transformer zing of British audio from the 1970s
- HMX MOSFET Drive
- Produces asymmetrical harmonic distortion giving you the option to add richness and body to the pristine tone of the mic preamp
- IRON Magnetic Transformer Drive
- Uses a custom British transformer with a high-voltage MOSFET drive network designed to recreate the signature of a 1970's recording with one control that simultaneously alters drive impedance, bass response, high-frequency damping, phase shift, magnetic saturation, and transient shaping to add sparkle and growl to the signal
- Plug and Play
- As well as eight channels of mic pres, the unit features two harmonically rich JFET DI inputs to replicate the input stage of a classic valve amplifier
- Built To Last
- Features hand-milled aluminum knobs and an all-metal enclosure
In the Box Audient ASP800 - 8-Channel Microphone Preamplifier and ADC with HMX & IRON Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audient ASP800 - 8-Channel Microphone Preamplifier and ADC with HMX & IRON in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudient ASP800 Specs I/O | 2x JFET 1/4" (6.35 mm) DI inputs 8x XLR 1/4" (6.35 mm) TRS locking combo mic/line inputs 1x wordclock input 1x 8-channel D-Sub Line outputs (1-8) 2x ADAT Out (1 through 8) | Frequency Response | 10 Hz to 100 kHz ((@+/-0.5 dB) | Design | Class-A | Dimensions | 19.0 x 1.73 x 11.3" (482 x 44 x 286.5 mm) | Weight | (8.82 lb) 4 kg | | Package Weight | 11.95 lb | Box Dimensions (LxWxH) | 21.9 x 14.3 x 3.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
