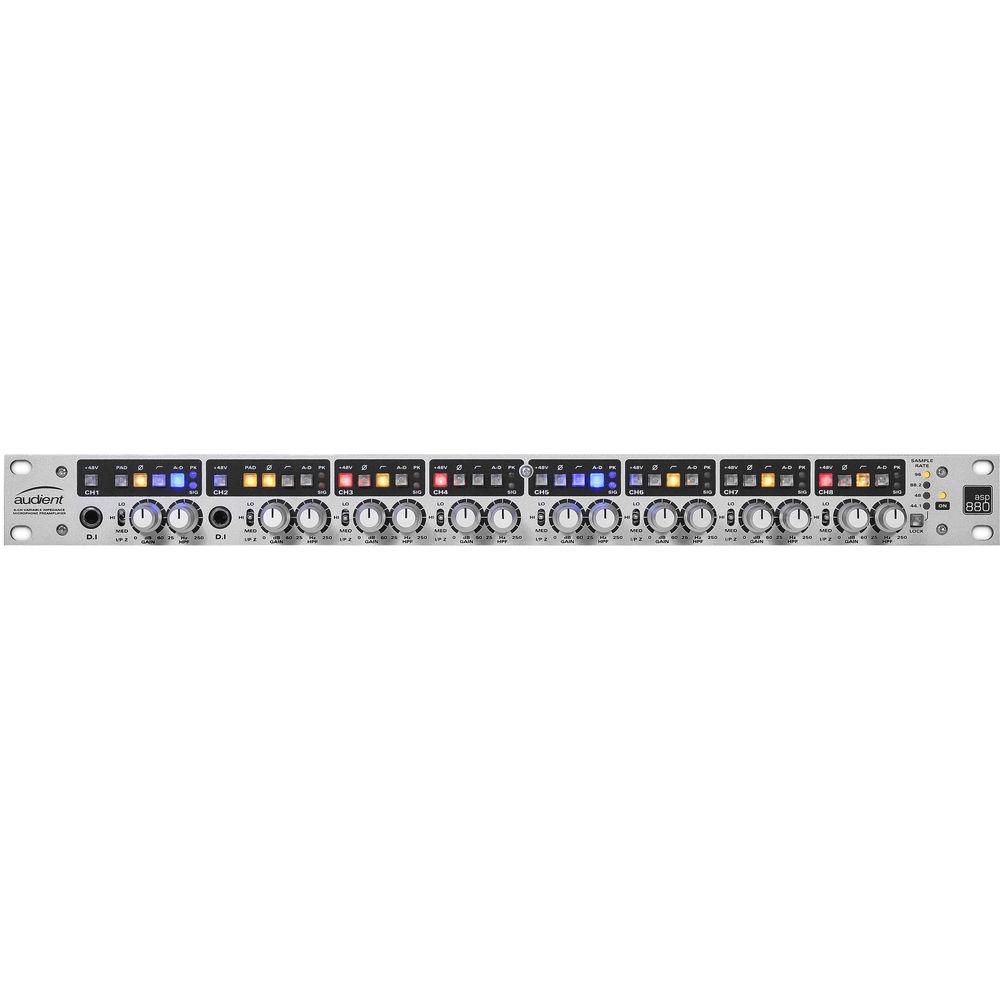

Product description Intended for professional recording studios, the Audient ASP880 offers eight Class-A microphone preamplifiers from the company's consoles designed by David Dearden via XLR/TRS combo connectors as well as Burr Brown analog to digital conversion in an all-metal 1RU 19" rackmountable enclosure. It also features a pair of front panel Class-A JFET 1/4" DI instrument inputs for recording guitars, keyboards, drum machines, and more.

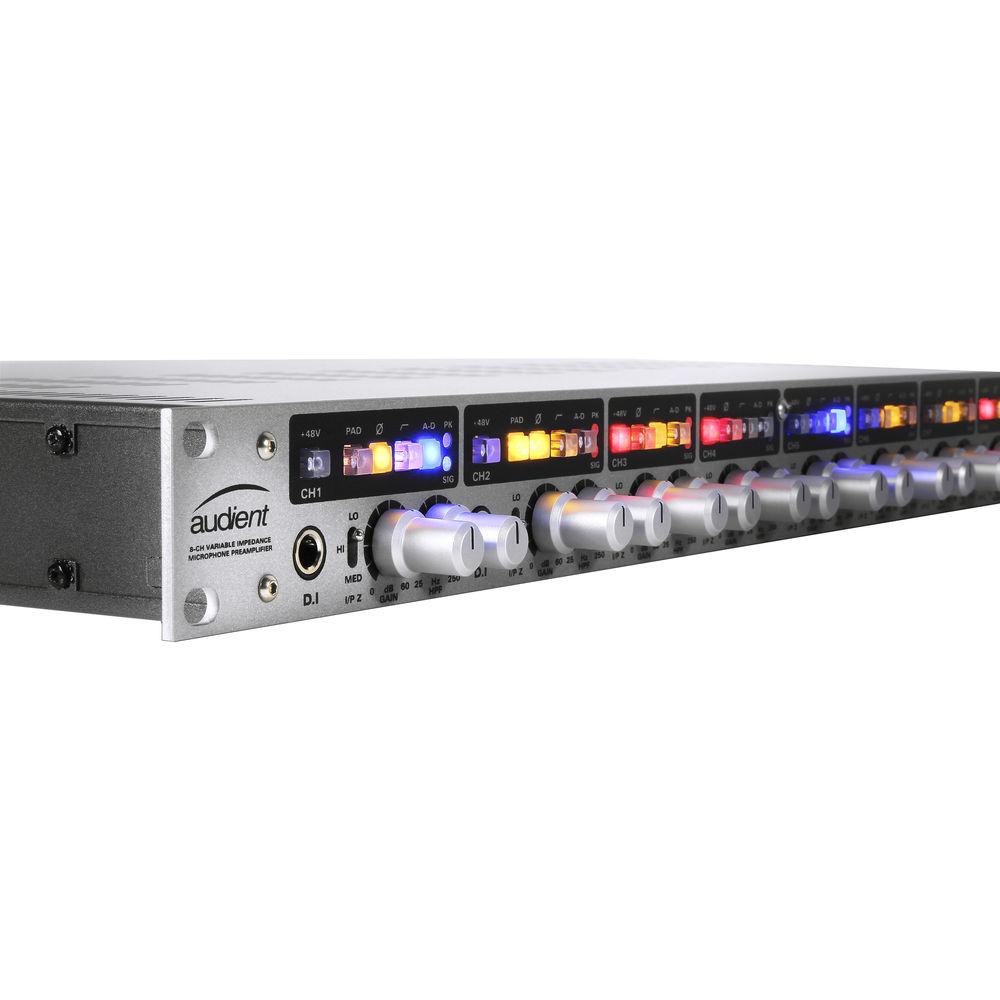

Each channel features a selectable +48V phantom power button, a selectable pad, a selectable polarity reverse switch, a variable high-pass filter, and a switch for inserting a signal processor between the preamplifier and A/D converter. A front-panel button allows you to select and lock the sample rate of the converter at 44.1, 48, 88.2, or 96 kHz. Digital outputs are provided by rear-panel ADAT, AES, and SPDIF connections. A word-clock input is also included. - Mic Pres
- Uses renowned Class-A console mic-pre design that was optimized over the course of 18 years by David Dearden
- A/D Converter
- Uses high-grade Burr Brown conversion
- Plug and Play
- Offers eight channels of mic-pre and line inputs as well as two discrete JFET DI inputs
- Analog Insert
- Allows you to insert signal processors between the preamplifier and the A/D converter
- HPF
- Allows you to selectively attenuate unwanted low frequencies
- Variable Impedance
- Allows you to match the preamplifier to ribbon microphones
- Construction
- Features all-metal construction and hand-milled aluminum knobs
In the Box Audient ASP880 - 8-Channel Microphone Preamplifier and ADC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audient ASP880 - 8-Channel Microphone Preamplifier and ADC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudient ASP880 Specs | Connections | 2x front panel 1/4" (6.3 mm) DI inputs

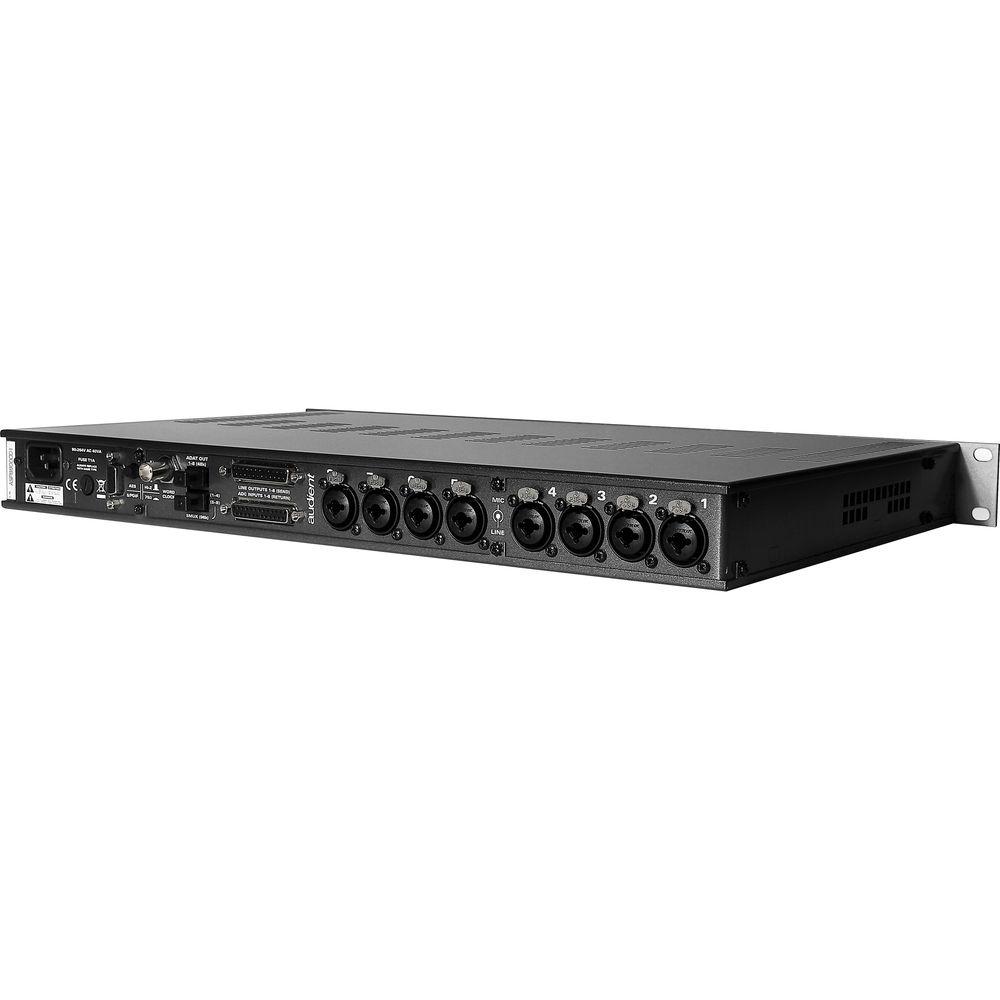

8x back-panel XLR/TRS combo inputs
1x D-Sub connector for line outputs 1-8 (send)
1x D-sub connector for ADC inputs 1-8 (return)
2x ADAT Out (1-8)
1x word clock
1x AES/SPDIF | | | | Mic Gain Range | Mic: -10 to +60 dB (-10 dB Pad)
Line: -16 to +44 dB (-10 dB Pad)
DI: -10 to +60 dB (-10 dB pad) | | Phantom Power | 48 V +/-4 V at 10 mA/Channel | | EIN | < -127.5 dBu | | CMRR | > 80 dB at 100 to 10 kHz | | Maximum Level | Mic: +22 dBu (+32 dBu with Pad)
D.I.: +16 dBu (typical), +22 dBu | | Input Impedance | Mic LO: 220 ohms Balanced
Mic MED: 12 kOhms Balanced
Mic HI: 28 kOhms balanced Line (All Z): >6 kOhms balanced
D.I.: 1 MOhm unbalanced | | Frequency Response | Mic: +/-0. 5 dB from 10 Hz to 100 kHz
D.I.: +/-0.5 dB from 10 Hz to 50 kHz | | Crosstalk | < -85 dBu at 1,000 and 10,000 Hz | | THD+N | Mic: 0.003% (-90.5 dBu)
DI: <0.03% (-70 dBu) | | SNR | Mic: > 90 dB
D.I.: 89 dB | | HPF | Sweepable from 25 to 250 Hz, 2nd Order (12 dB/Octave) | | XLR / Phone Jack | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) | | Phono (1/4") | TIP (Hot), RING (Cold) & SLEEVE (Shield) | | | | Maximum Output Level | +27.5 dBu | | Output Impedance | <100 ohms balanced | | | | Maximum Input Level | +18 dBu | | Reference Level | 0 dBFS = +18 dBu | | Input Impedance | >10 kOhms balanced | | Frequency Response | +/-0.5 dB at 10 Hz to Fs/2 | | Crosstalk | <-80 dBu at 1 and 10 kHz | | THD + N | -1 dBFS (1kHz): <0.002% (-94 dB)
-6 dBFS (1 kHz): <0.002% (-94 dB) | | Dynamic Range | 113 dB unweighted
115 dB A-weighted | | LED | PEAK LED LINEUP: +16 dBu (-2 dBFS)
SIGNAL LED LINEUP: Variable Brightness from -30 dBu to -10 dBu (-28 dBFS) | | | | Sample Rate | ADAT 8x CHANNELS SMUX: 44.1 to 96 kHz
AES | S/PDIF 8 Channels: 44.1 to 96 kHz | | Clock | Internal or External | | Wordclock Input | 75 ohm BNC
Optional 75 ohm termination | | Power Supply | Gloval low noise internal SMPS, fanless | | Line Voltage | 90 to 264 V (a.c) | | Rails | +/-18 VDC, +48 VDC & +5 VDC | | Fuse | T1A (1 ampere time delay) | | Power Consumption | Maximum 40 W | | Dimensions | 19.0" x 1.75 x 12.6" (482 x 44.4 x 321 mm) | | Weight | 8.8 lb (4.0 kg) | | | | Package Weight | 11.45 lb | | Box Dimensions (LxWxH) | 22.0 x 15.5 x 3.0" |
