User Manual for Audient iD44 - 20-Input 24-Output High-Performance AD DA Interface & Monitoring System Click to enlarge the picture
Contents of the user manual for the Audient iD44 - 20-Input 24-Output High-Performance
- Product category: Audio Interfaces & Systems Audient
- Brand: Audient
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audient Audio Interfaces & Systems
 |
User manual for the Audient iD44 - 20-Input 24-Output High-Performance contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audient product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audient user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audient product will considerably shorten its lifespan!
|

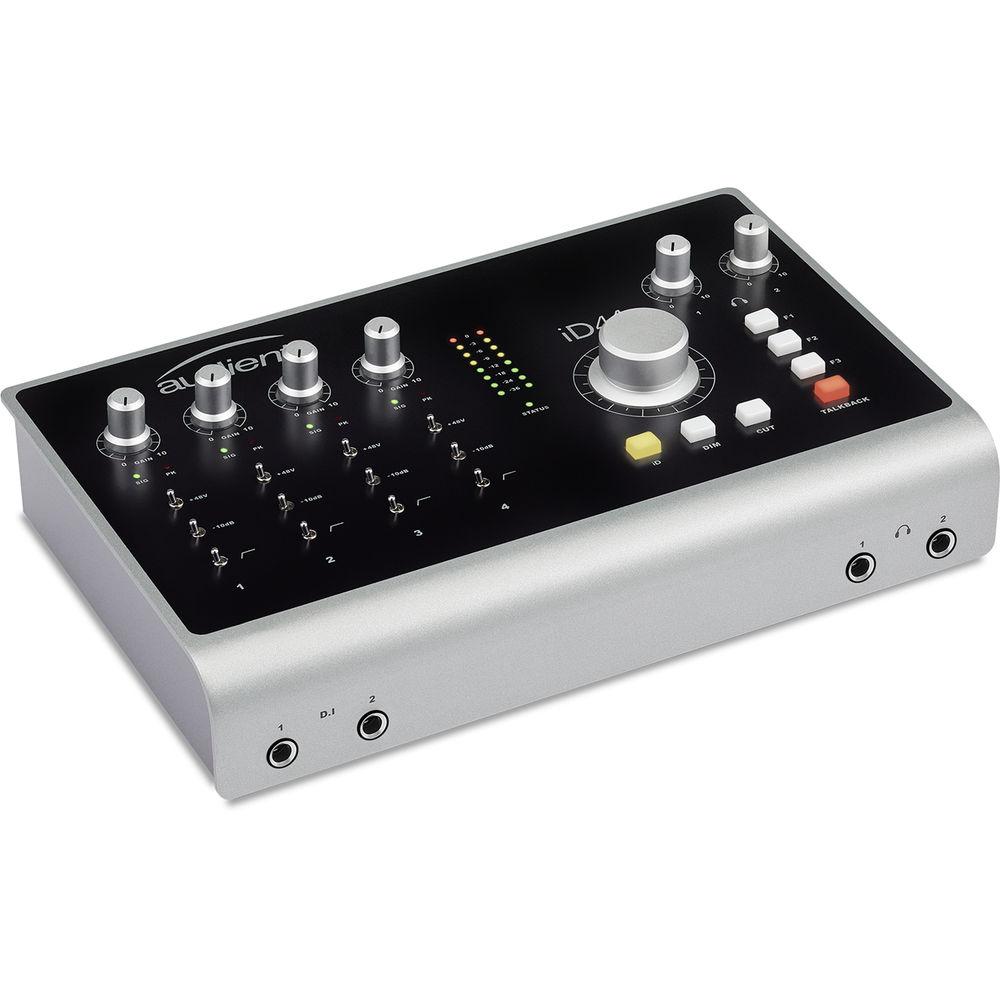

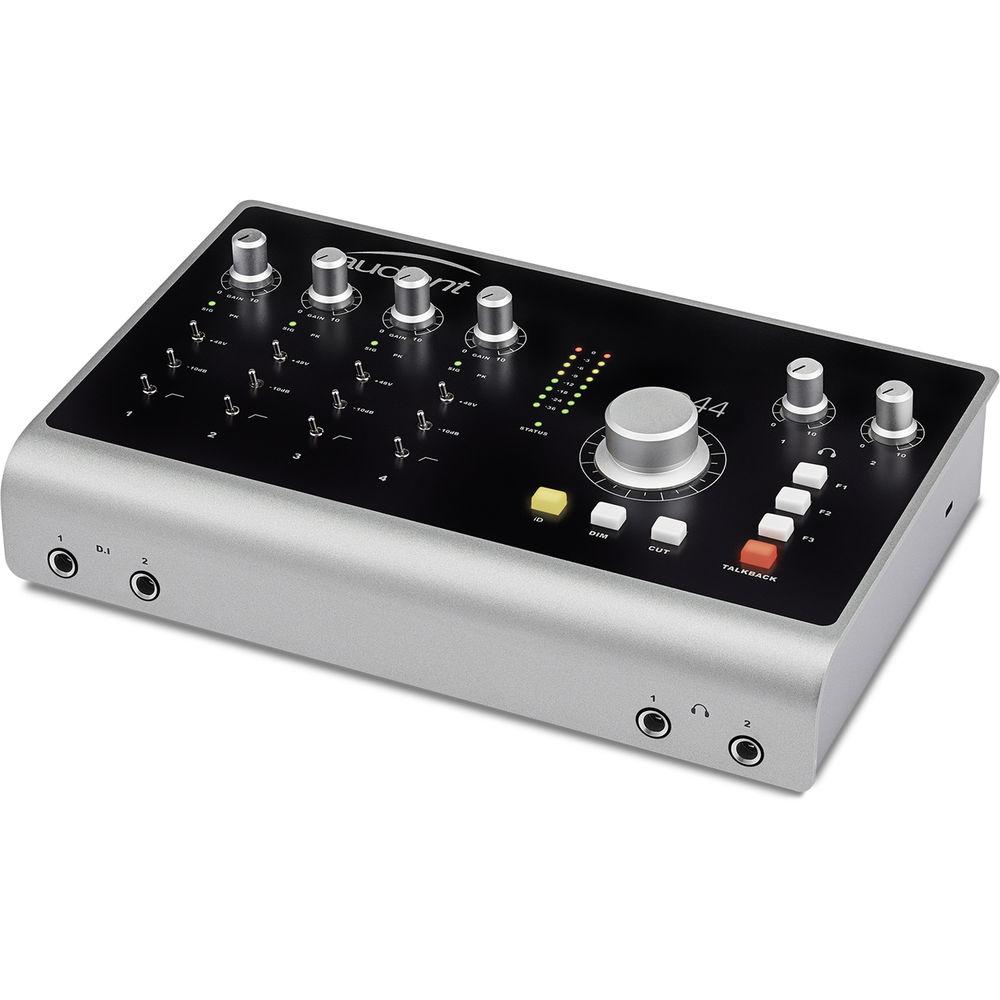

Product description Building upon the success of the iD22, the Audient iD44 High Performance AD/DA Interface & Monitoring System was designed to cater to engineers and studio professionals who want to integrate the recording interface into a larger studio setup while still leveraging four of the company's renown Class-A console grade microphone preamplifiers. Housed in a desktop style chassis, it transforms your DAW into a world-class recording system by connecting directly to your microphones, computer, and monitors.

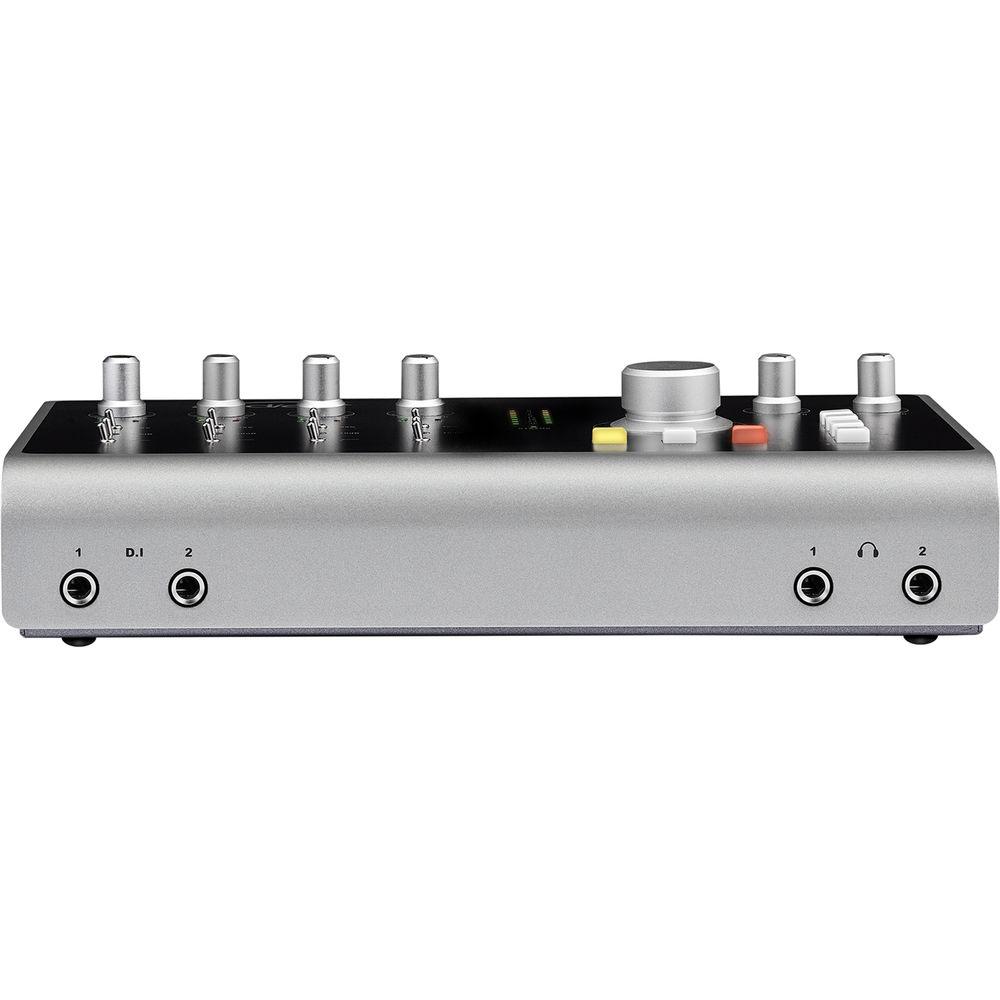

The iD44 includes two harmonically rich JFET DI inputs, which are designed to replicate the input stage of a classic valve amplifier. Two fully balanced insert points enable you to integrate your favorite outboard equipment prior to conversion. The insert return gives you direct access to the analog-to-digital converters, providing the cleanest signal path possible and making it great for print-backs or integrating outboard analog line-level sources. Two independent headphone outputs allow for two separate cue mixes, allowing artists to setup a monitor mix that will help them perform to their highest potential.

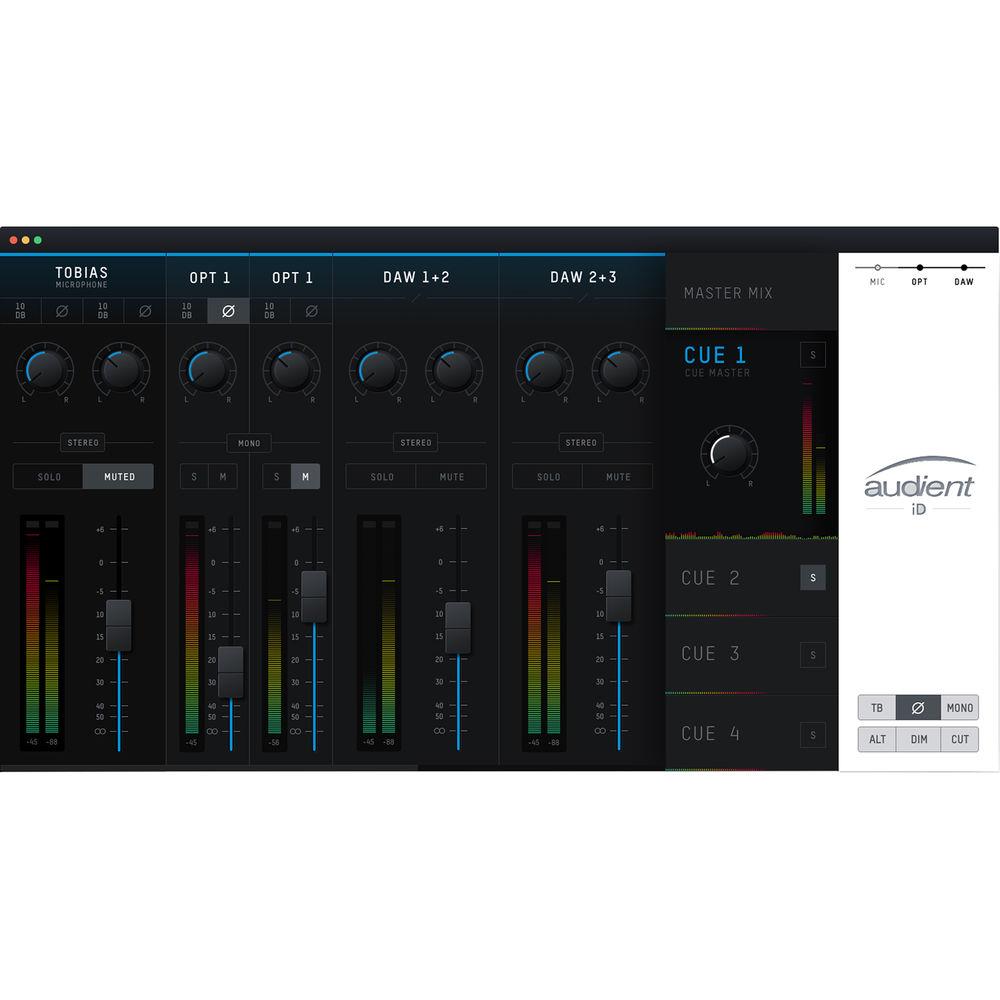

The iD44 offers console-style monitor control, which is inspired from Audient's heritage in analog console design. The desktop controller offers a wide range of flexible controls and functions, including dedicated talkback, cut and dim buttons, and polarity, mono, speaker-select, and cue-mix monitoring. The iD44 sports mix-focused software, and an iD Mixer. Create up to four stereo artist cue mixes, name and customize channels, save layout presets, assign hardware function buttons, quickly setup advanced routing, use presets in standalone mode, and more.

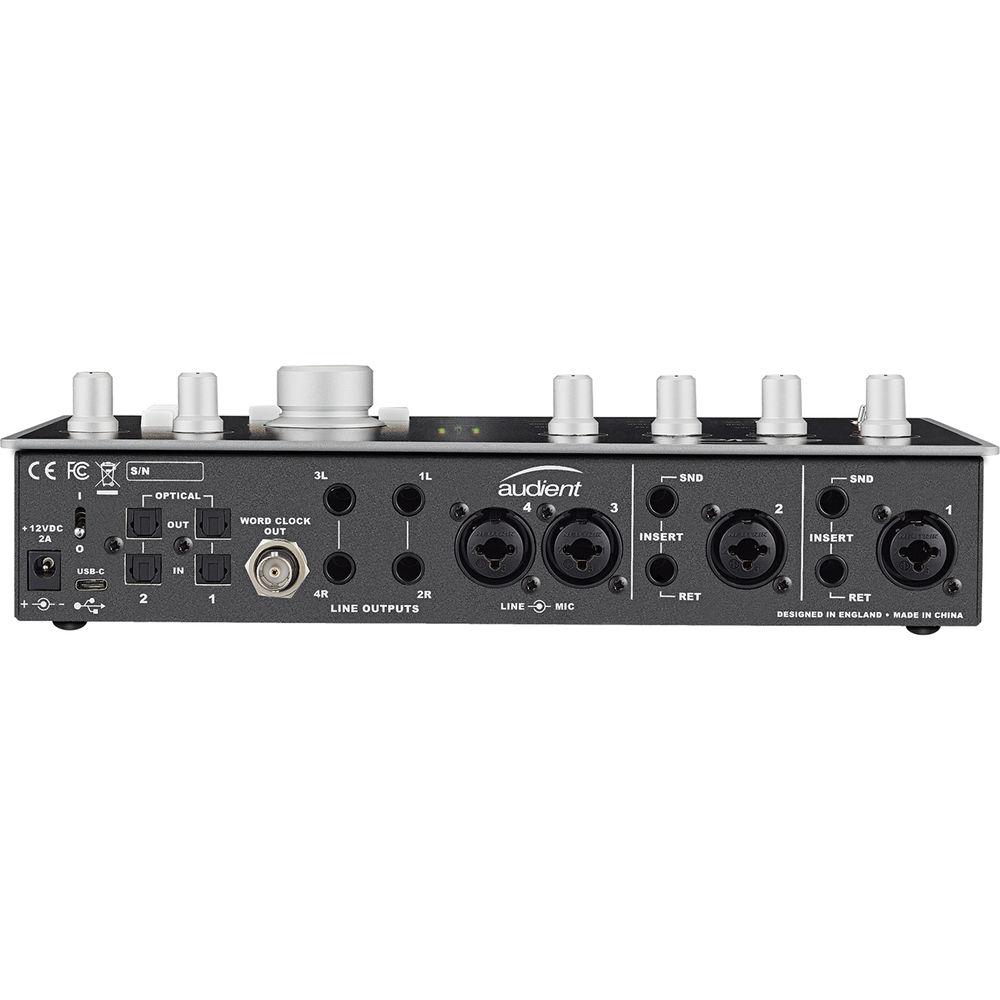

The iD44 is equipped with two Optical input and output connectors, which offer plenty of options for expansion. Supporting both ADAT and S/PDIF, iD44 enables you to add up to 16 mic preamp channels to your setup for larger sessions like tracking a live band. The Audient iD44 ships with a power supply, a standard USB cable, and a USB Type-C cable. -
- 20-input/24-output desktop interface
- Four Class-A Audient console mic preamplifiers
- Professional-quality AD/DA Converters
- Two ADAT inputs and outputs for digital expansion
- Two discrete JFET instrument inputs
- Two fully balanced inserts
- Two independent stereo headphone outputs
- Main and alt speaker outputs
- ScrollControl
- Three user defined function keys
- Dedicated talkback, dim, and cut controls
- Power switch
- Low-latency DSP mixer
- Word-clock output
- USB2.0 compliant
- 24-bit / 96 kHz
- All-metal enclosure and hand-milled aluminum knobs
In the Box Audient iD44 - 20-Input/24-Output High-Performance AD/DA Interface & Monitoring System Power Supply 2 x USB Cables Limited 1-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audient iD44 - 20-Input 24-Output High-Performance AD DA Interface & Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudient ID44 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-C (USB 2.0) | | Analog I/O | None | | Digital I/O | None | | MIDI I/O | None | | | | Gain Range | Mic Inputs:
60 dB | | Dynamic Range | A/D Converters:
120 dB
D/A Converters:
126 dB
Outputs:
124 dB | | THD+N | D/A Converters:
0.0007% | | EIN | Mic Inputs:
-127 dB | | | | Sample Rates | 96 kHz | | Bit Depth | 24-Bit | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 14.25 x 9.15 x 4.15" |
