User Manual for Audinst HUD-mini Compact USB DAC with Dual Headphone Amp Click to enlarge the picture
Contents of the user manual for the Audinst HUD-mini Compact USB DAC with
- Product category: DACs Audinst
- Brand: Audinst
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audinst DACs
 |
User manual for the Audinst HUD-mini Compact USB DAC with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audinst product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audinst user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audinst product will considerably shorten its lifespan!
|

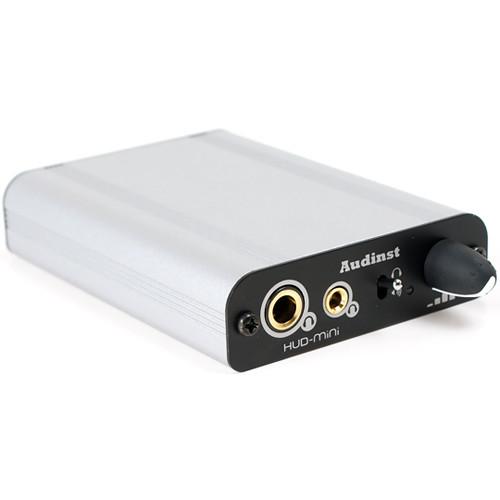

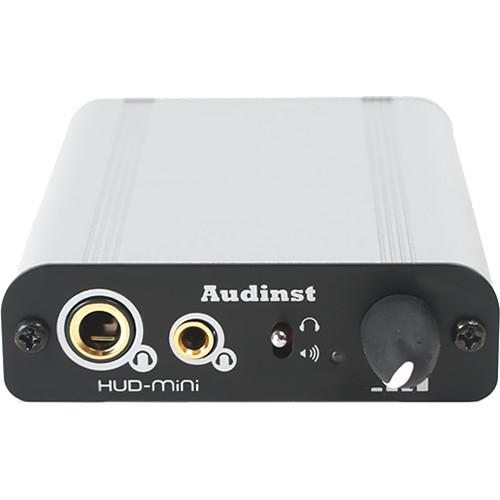

Product description The Audinst HUD-mini is a compact USB DAC designed to provide increased volume and sound quality for music lovers and audiophiles in listening rooms, home studios, and home theaters. It utilizes a Burr-Brown D/A converter, supports resolutions up to 24-bit / 192 kHz, and works with a variety of headphone impedances from 16 to 300 Ohms.Use the supplied USB cable to connect your computer to the HUD-mini, which is USB-powered to negate the need for an external power supply. A 2-color LED indicates power status and signal presence. Plug headphones into the 3.5mm and 1/4" headphone jacks and hook up speakers via the supplied 5’ RCA cable. A toggle switch allows you to switch signal between the headphone and line outputs. You can also route audio through the digital TOSLINK optical output to a stereo receiver. The front-panel volume knob controls the headphone monitoring level. - High-resolution, low jitter, Burr-Brown PCM1791A D/A
- Up to 24-bit / 192 kHz resolution
- Selectable headphone or line output and adjustable volume
- Dual unbalanced RCA line outputs
- 3.5mm and 1/4" headphone outputs

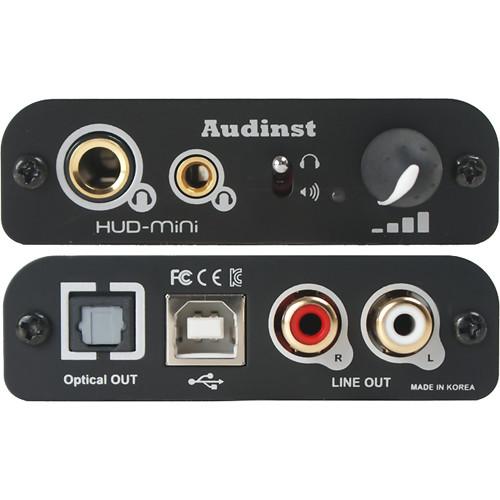

- Rear-panel digital TOSLINK optical output
- Supports multiple impedances from 16 to 300 Ohms
- Front-panel power status indicator
- Anti-pop circuit protects speakers from noise bursts during power on/off
- Includes USB and RCA cables
In the Box Audinst HUD-mini Compact USB DAC with Dual Headphone Amp 5' / 1.5m USB Type-A to Type-B Cable 5' / 1.5m RCA Cable Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audinst HUD-mini Compact USB DAC with Dual Headphone Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudinst HUD-MINI Specs | System Requirements | Mac OS X
2 GB or more system memory (4 GB or more recommended)
USB 2.0 or USB 3.0 port
Windows 7, Windows 8, Windows 8.1, Windows 10 (64-bit recommended)
Intel dual-core CPU or better, or equivalent AMD CPU (quad-core CPU recommended)
2 GB or more system memory (4 GB or more recommended)
USB 2.0 or USB 3.0 port | | Outputs | 1 x 1/4" TRS
1 x 1/8" (3.5 mm) stereo mini-jack
2 x RCA coaxial (unbalanced)
1 x TOSLINK optical (S/PDIF digital) | | Maximum Output Level | Headphone Outputs: 9 V p-p @ 300 Ohms
Line Output: 4.5 V p-p | | Maximum Power | 300 mW @ 32 Ohms | | Impedance | Headphone Outputs: 2 Ohms (16 to 300 Ohms load)
Line Output: 200 Ohms | | Signal to Noise Ratio | 113 dB (A-weighted @ 44.1 kHz) | | THD + N | 0.001% @ 44.1 kHz | | D/A Converter | Burr-Brown PCM1791A | | Resolution | Up to 24-bit / 192 kHz | | Opamp | Operating Voltage: 10 V (±5 V)
D/A and Line Output: LME49860 (DIP socket type)
Headphone Output: AD8397 (SMD type) | | USB Audio | Compatible with USB 1.1 and USB 2.0 | | Dimensions (W x D x H) | 3.0 x 3.9 x 0.9" / 75 x 100 x 22 mm | | Weight | 5.6 oz / 160 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.2 x 6.3 x 3.2" |
