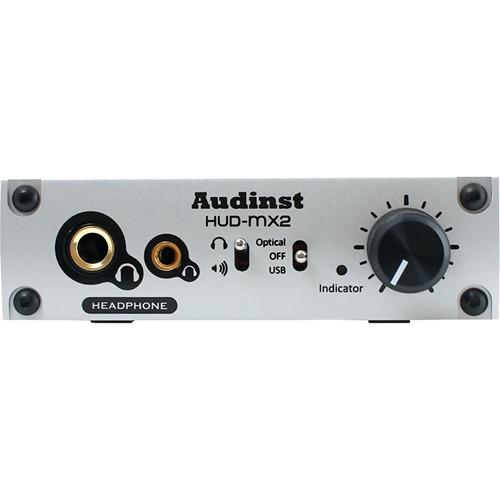

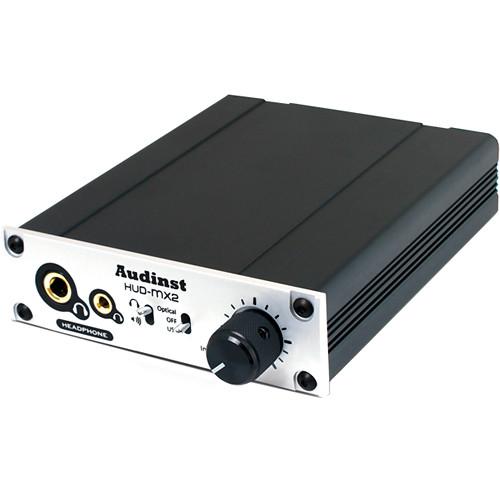

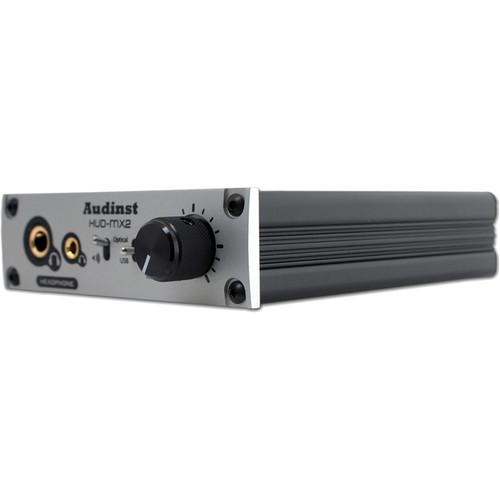

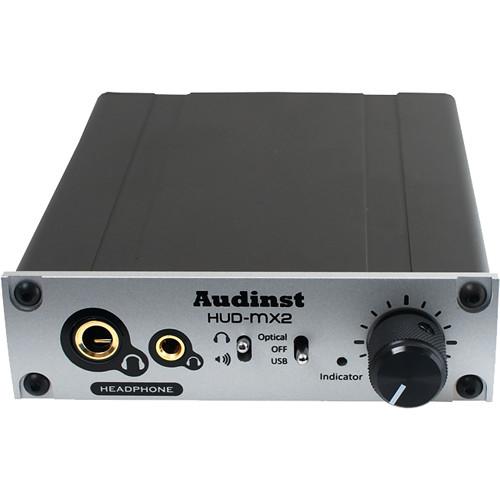

Product description The Audinst HUD-mx2 is a compact high-resolution USB DAC designed to provide increased volume and sound quality for music lovers and audiophiles in listening rooms, home studios, and home theaters. It utilizes a Texas Instruments D/A converter, supports resolutions up to 24-bit / 192 kHz, and works with a variety of headphone impedances from 16 to 300 Ohms.Use the supplied USB cable to connect your computer to the HUD-mx2, which can be powered via USB or the supplied DC adapter. A front-panel LED indicates power status. You can accept audio from the USB connection or the digital TOSLINK optical input. Plug headphones into the 3.5mm and 1/4" headphone jacks and hook up speakers via the supplied 5’ RCA cable. A toggle switch allows you to switch signal between the headphone and line outputs. You can also route audio through the digital TOSLINK optical output to a stereo receiver. The front-panel volume knob controls the headphone monitoring level. - High-resolution, low jitter, Texas Instruments D/A converter
- Supports resolutions up to 24-bit / 192 kHz
- Dedicated switches for input and output selection
- Dual unbalanced RCA line outputs
- 3.5mm and 1/4" headphone outputs

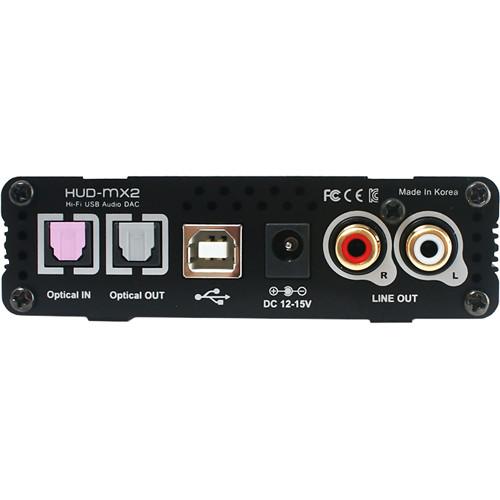

- Rear-panel digital TOSLINK optical inputs and outputs
- Supports multiple impedances from 16 to 300 Ohms
- Front-panel power status indicator
- Powered via USB or included DC adapter
- Integrated circuit protects speakers from noise bursts during input switching
- Includes USB and RCA cables
In the Box Audinst HUD-mx2 Compact High-Resolution USB DAC 5' / 1.5m USB Type-A to Type-B Cable 5' / 1.5m RCA Cable Bumpon Rubber Foot 4 x Floor-Mount Spikes Hex Wrench Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audinst HUD-mx2 Compact High-Resolution USB DAC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudinst HUD-MX2 Specs | System Requirements | Mac OS X
2 GB or more system memory (4 GB or more recommended)
USB 2.0 or USB 3.0 port
Windows 7, Windows 8, Windows 8.1, Windows 10 (64-bit recommended)
Intel Dual-Core CPU or faster, or equivalent AMD CPU (quad-core CPU recommended)
2 GB or more system memory (4 GB or more recommended)
USB 2.0 or USB 3.0 port | | Inputs | 1 x TOSLINK optical (S/PDIF digital)
1 x USB Type-B | | Outputs | 1 x 1/4" TRS
1 x 1/8" (3.5 mm) stereo mini jack
2 x RCA coaxial (unbalanced)
1 x TOSLINK optical (S/PDIF digital) | | Maximum Output Level | Headphone Outputs: +10 V p-p @ 600 Ohms (without gain jumper)
Line Output: 3.2 V p-p | | Maximum Power | 1.5 W @ 32 Ohms | | Impedance | Headphone Outputs: 2 Ohms (16 to 300 Ohms load)
Line Output: 200 Ohms | | Signal to Noise Ratio | 123 dB (A-weighted @ 44.1 kHz) | | THD + N | 0.0005% @ 44.1 kHz | | D/A Converter | Texas Instruments PCM1796 | | Resolution | Up to 24-bit / 192 kHz | | Opamp | Operating Voltage: +12 V (with power adapter), +5 V (USB power)
I/V Converter: LME49860 (SMD x 2)
Differential Amplifier: OPA2227 (DIP)
Line Output: OPA2134 (DIP)
Headphone Output: TPA6120A2 (SMD) | | USB Audio | Compatible with USB 1.1 and USB 2.0 | | Power Adapter | 12 to 15 VDC | | Dimensions (W x D x H) | 3.9 x 4.7 x 1.1" / 100 x 120 x 29 mm | | Weight | 9.2 oz / 260 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.2 x 6.1 x 3.2" |
