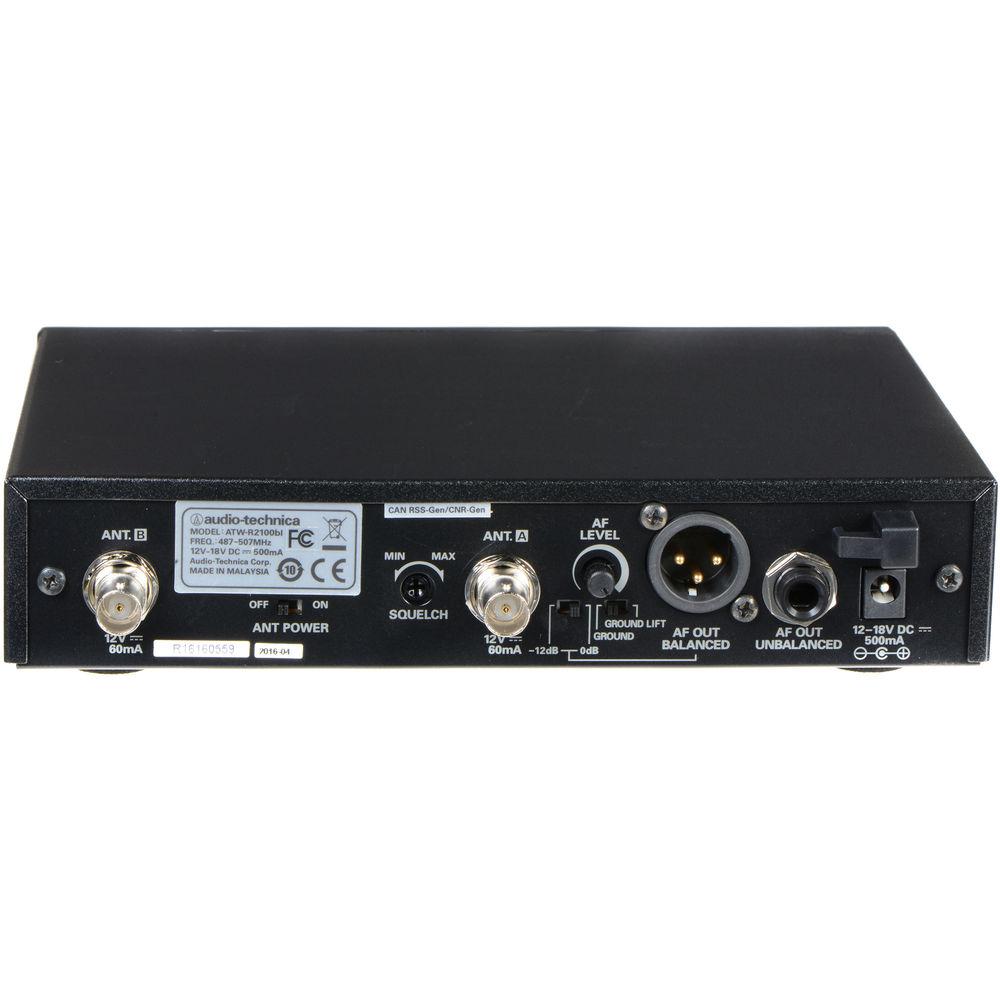

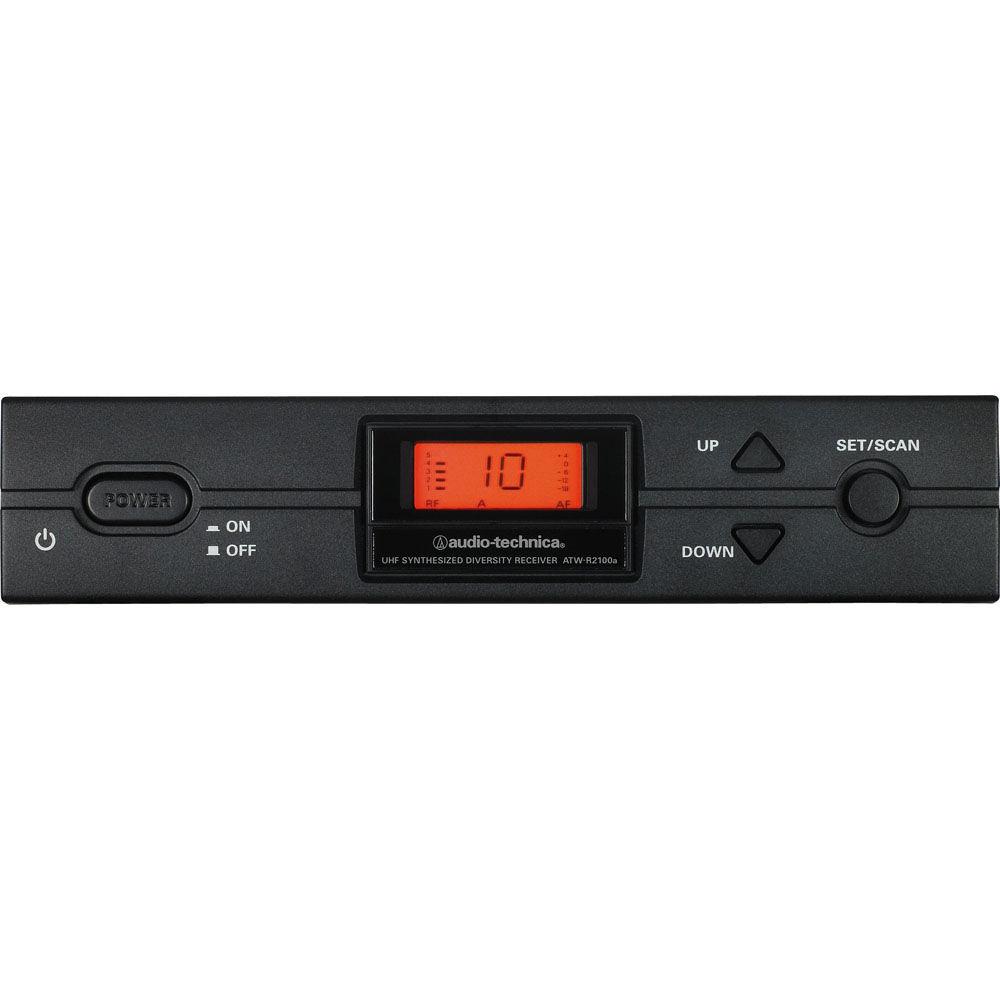

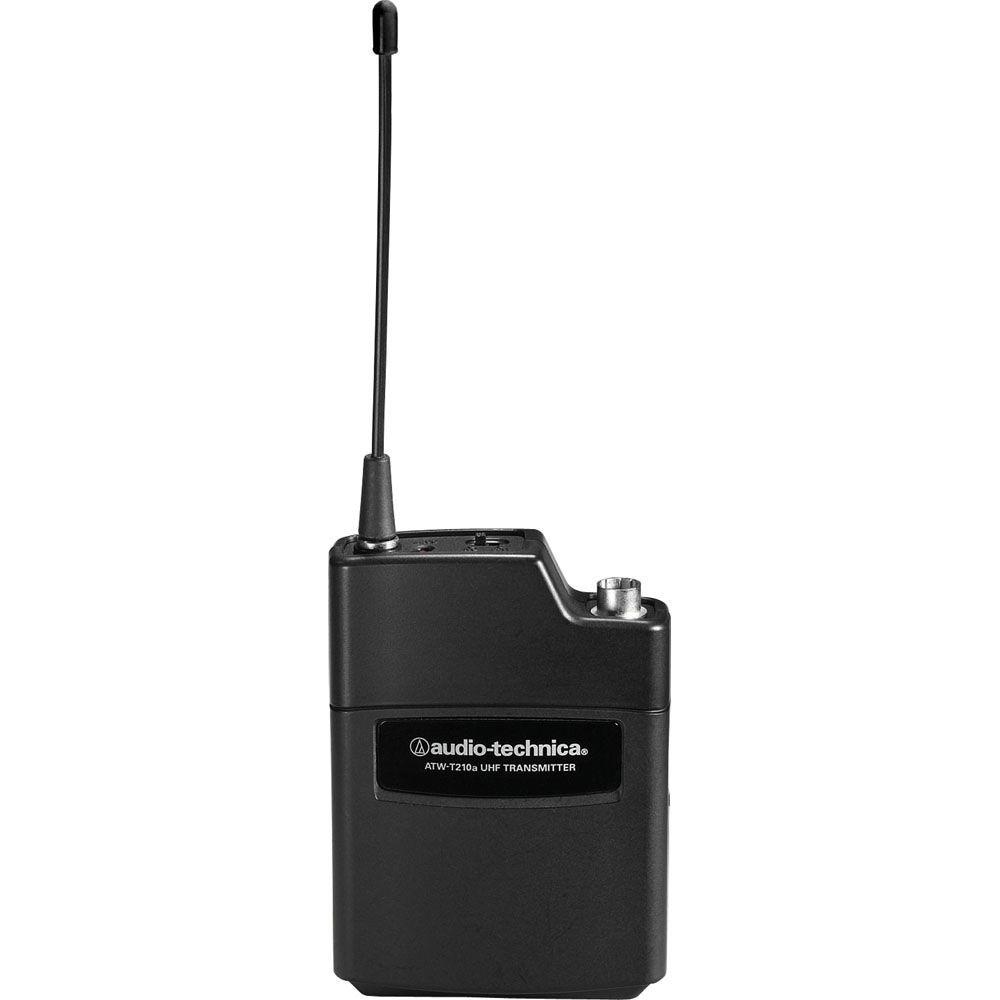

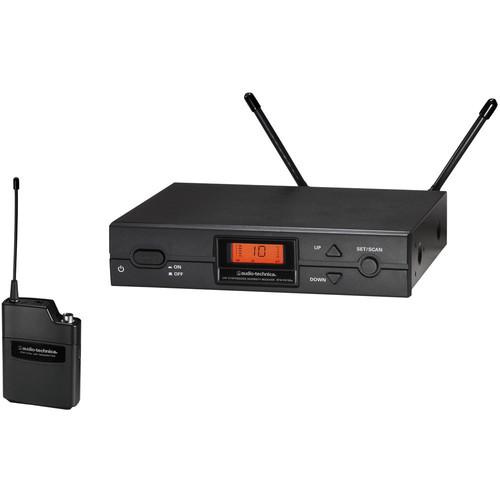

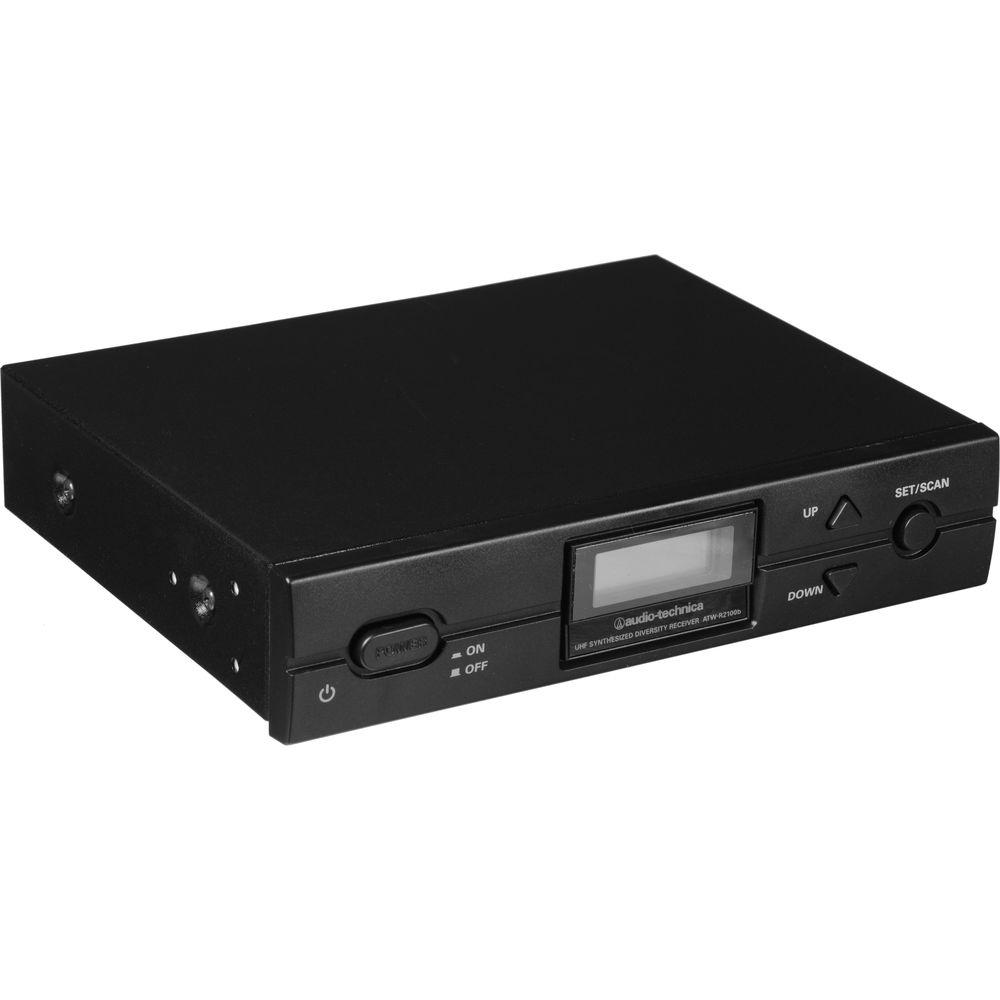

Product description The ATW-2110b Wireless UHF Bodypack System from Audio-Technica bridges the gap between affordable wireless technology and professional level quality. It includes an ATW-T210 UniPak bodypack transmitter and an ATW-R2100 diversity UHF receiver that can be used when paired with a lavalier microphone in a variety of applications for live stage, fixed installations, rehearsals, public speaking, A/V rental houses, places of worship, and more. The ATW-R2100 receiver features True Diversity operation and selects between two receiver sections, reducing dropouts and radio frequency interference. Furthermore, it features 10 user selectable UHF frequencies, allowing 10 systems to be used simultaneously. Single touch frequency scanning automatically selects clear frequencies in the area. The rear panel features a balanced XLR output and an unbalanced 1/4" phone connection. A back-lit LCD provides channel, AF, RF and diversity status information. The ATW-T210 UniPak transmitter is a lightweight bodypack microphone transmitter that operates on the same frequencies as the receiver. The transmitter features a 4-pin Hirose connection input that is compatible with Audio-Technica "CW" lavaliers and headworn microphones, and select instrument cables. The transmitter operates up to 9 hours on two 1.5V AA batteries. - Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency scanning
- 10 compatible user-switchable channels in one of two UHF frequency ranges
- Antenna power available for powered antennas & other in-line RF devices
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Tone Lock tone squelch system fights interference
- Rugged metal half-rack receiver with soft-touch controls and LCD display
- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Switchable transmitter power output with high and low settings offered
- Includes rack-mount kit and detachable UHF antennas
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
In the Box Audio-Technica 2000 Series ATW-2110b Wireless UHF Bodypack System AUATWR2100bI AUATWT210bI 2 x Flexible UHF Antennas AC Adapter Rack-Mount Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica 2000 Series ATW-2110b Wireless UHF Bodypack System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-2110BI Specs | | | Type of System | UHF Frequency Agile Diversity | | RF Carrier Frequency Range | Band bI: 487.125 to 506.500 MHZ | | Approx. Working Range | 300' typical (100 m) | | Overall Frequency Response | 100 Hz to 15 kHz | | THD & Noise | < 1% (at 1 kHz, ±20 kHz deviation) | | # Of Channels | 10 Total | | | | # Of Simultaneous Systems | 10 | | Type of Receiver | ATW-R2100 UHF Diversity Half-Rack Mount | | Type of Outputs | Balanced: XLR-male
Unbalanced: 1/4" Phone | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC, 500 mA | | Battery Type/Approx. Life | AC Power Only | | Mounting Options | Rack-Mount Adapters (Included) | | Antenna Type | Wide Band Diversity | | Dimensions (WxDxH) | 8.27 x 6.39 x 1.73" (210 x 162.2 x 44 mm) | | Weight | 2.20 lb (1.0 kg) | | | | Type of Transmitter | ATW-T210 UniPak UHF Body-Pack Transmitter | | Type of Input Connector | 4-pin Hirose connection | | Type of Microphone | Wireless Essentials microphones and cables sold separately | | Compatibility | Compatible with Audio-Technica Wireless Essentials microphones / instrument cables featuring 4-pin Hirose connections | | Battery Type/Approx. Life | Two 1.5 V AA alkaline | | Mute Switch | Off/On Switch | | Level Control | Instrument / Microphone Level Trim Controls | | Antenna Type | Replaceable 1/4 wave whip antenna | | Display | LED Battery Indicator | | Dimensions (WxDxH) | 2.60 x 0.89 x 3.63" (66 x 22.5 x 92.3 mm) | | Weight | 2.9 oz (81 g) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 15.1 x 13.3 x 3.8" |
