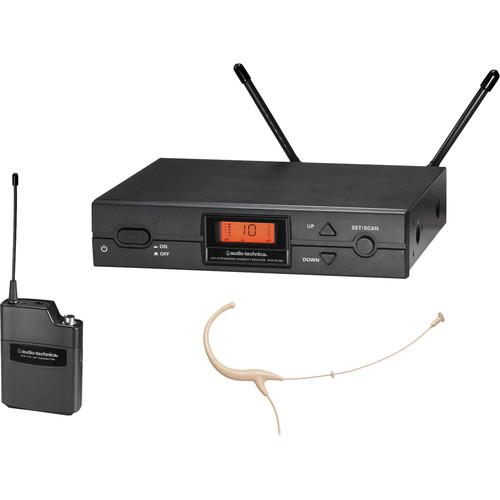

Audio-Technica 2000 Series ATW-2194bI-TH Wireless System

User Manual for Audio-Technica 2000 Series ATW-2194bI-TH Wireless System

• Product category: Wireless Systems Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Wireless Systems

Product description

• 2000 Series ATW-2110b Wireless UHF Bodypack System The ATW-2110b Wireless UHF Bodypack System from Audio-Technica bridges the gap between affordable wireless technology and professional level quality. It includes an ATW-T210 UniPak bodypack transmitter and an ATW-R2100 diversity UHF receiver that can be used when paired with a lavalier microphone in a variety of applications for live stage, fixed installations, rehearsals, public speaking, A/V rental houses, places of worship, and more. The ATW-R2100 receiver features True Diversity operation and selects between two receiver sections, reducing dropouts and radio frequency interference. Furthermore, it features 10 user selectable UHF frequencies, allowing 10 systems to be used simultaneously. Single touch frequency scanning automatically selects clear frequencies in the area. The rear panel features a balanced XLR output and an unbalanced 1/4" phone connection. A back-lit LCD provides channel, AF, RF and diversity status information. The ATW-T210 UniPak transmitter is a lightweight bodypack microphone transmitter that operates on the same frequencies as the receiver. The transmitter features a 4-pin Hirose connection input that is compatible with Audio-Technica "CW" lavaliers and headworn microphones, and select instrument cables. The transmitter operates up to 9 hours on two 1.5V AA batteries.
  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Automatic frequency scanning
  • 10 compatible user-switchable channels in one of two UHF frequency ranges
  • Antenna power available for powered antennas & other in-line RF devices
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display
  • Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
  • Switchable transmitter power output with high and low settings offered
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
• BP894-TH Subminiature Cardioid Condenser Headworn Microphone with Power Module (Beige) The beige BP894-TH Subminiature Cardioid Condenser Headworn Microphone with Power Module from Audio-Technica is for capturing audio. It is used to provide professional-grade audio in applications such as for stage, television talent, lecturers, houses of worship, and more. It features a cardioid polar pattern and a frequency response of 20 to 20,000 Hz. The microphone requires 11 to 52V phantom power for operation. The BP894-TH is built with a 55" permanently attached miniature cable. Its free end connects to the provided AT8539 power module using a 4-pin connector. This connector is also compatible with all Audio-Technica UniPak bodypack transmitters. The output of the power module is a 3-pin XLRM-type connector. A recessed switch in the power module allows the choice of a flat response or a low-frequency roll-off (via integral 80 Hz high-pass filter) to help control undesired ambient noise. This microphone includes a power module, cable clip, dual-ear mount, two windscreens, a moisture guard, a belt clip and a protective carrying case.
  • Features a rotating capsule housing with talk-side indicator for use on either ear and allows great polar pattern placement
  • Well-suited for the stage, television talent, lecturers, and houses of worship
  • Locking 4-pin microphone output connector is compatible with the included power module and all Audio-Technica UniPak bodypack wireless transmitters
  • The UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • The microphone features a low-profile design with a diameter of just 2.8 mm
  • This microphone handles high sound pressure levels easily
  UPC: 042005182190

• AUATWR2100bI

• AUATWT210bI

• 2 x Flexible UHF Antennas

• AC Adapter

• Rack-Mount Adapters

• Limited 2-Year Warranty

• AT8539 Power Supply

• AT8464-TH Dual-Ear Microphone Mount for BP892 and AT892 (Beige)

• AT8440 Lavalier Microphone Clothing Clip

• 2 x AT8163 Windscreens

• Moisture Guard

• Belt Clip

• Carrying Case

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2000 Series ATW-2110b Wireless UHF Bodypack System

  Type of System	UHF Frequency Agile Diversity
  RF Carrier Frequency Range	Band bI: 487.125 to 506.500 MHZ
  Approx. Working Range	300' typical (100 m)
  Overall Frequency Response	100 Hz to 15 kHz
  THD & Noise	< 1% (at 1 kHz, ±20 kHz deviation)
  # Of Channels	10 Total

  # Of Simultaneous Systems	10
  Type of Receiver	ATW-R2100 UHF Diversity Half-Rack Mount
  Type of Outputs	Balanced: XLR-male Unbalanced: 1/4" Phone
  Headphone Monitoring	No
  Power Requirements	12-18 VDC, 500 mA
  Battery Type/Approx. Life	AC Power Only
  Mounting Options	Rack-Mount Adapters (Included)
  Antenna Type	Wide Band Diversity
  Dimensions (WxDxH)	8.27 x 6.39 x 1.73" (210 x 162.2 x 44 mm)
  Weight	2.20 lb (1.0 kg)

  Type of Transmitter	ATW-T210 UniPak UHF Body-Pack Transmitter
  Type of Input Connector	4-pin Hirose connection
  Type of Microphone	Wireless Essentials microphones and cables sold separately
  Compatibility	Compatible with Audio-Technica Wireless Essentials microphones / instrument cables featuring 4-pin Hirose connections
  Battery Type/Approx. Life	Two 1.5 V AA alkaline
  Mute Switch	Off/On Switch
  Level Control	Instrument / Microphone Level Trim Controls
  Antenna Type	Replaceable 1/4 wave whip antenna
  Display	LED Battery Indicator
  Dimensions (WxDxH)	2.60 x 0.89 x 3.63" (66 x 22.5 x 92.3 mm)
  Weight	2.9 oz (81 g)

  Box Dimensions (LxWxH)	15.1 x 13.3 x 3.8"

• BP894-TH Subminiature Cardioid Condenser Headworn Microphone with Power Module (Beige)

  Element	Fixed-charge back plate, permanently polarized condenser
  Polar Pattern	Cardioid
  Frequency Response	20 to 20,000 Hz
  Low Frequency Roll-Off	80 Hz, 18 dB/octave (wired only)
  Open Circuit Sensitivity	-49 dB (3.5 mV) re 1V at 1 Pa
  Impedance	250 Ω (wired only)
  Maximum Input Sound Level	135 dB SPL, 1 kHz at 3% T.H.D.
  Dynamic Range	104 dB, 1 kHz at Max SPL (wired only)
  Signal-to-Noise Ratio	63 dB, 1 kHz at 1 Pa
  Power Requirements	11 to 52 V DC, 2 mA typical (wired only)
  Switch	Flat, roll-off (wired only)
  Current Consumption	0.1 mA typical at 5 V (wireless only)
  Voltage Range	2.5 to 11 V (wireless only)
  Output Connector	Power Module: integral 3-pin XLRM-type
  Cable	Length x Diameter: 55 x 0.06" (1397 x 1.6 mm)
  Dimensions (L x Diam)	Microphone: 0.26 x 0.11" (6.5 x 2.8 mm) Boom: 4.23" x 0.04" (107.4 mm x 1.09 mm) Power Module: 3.84 x 0.74" (97.6 x 18.9 mm)
  Weight	Microphone, boom and earpiece: 0.07 oz (2.0 g) Power Module: 3.0 oz (85 g)

  Box Dimensions (LxWxH)	7.2 x 4.7 x 1.6"
