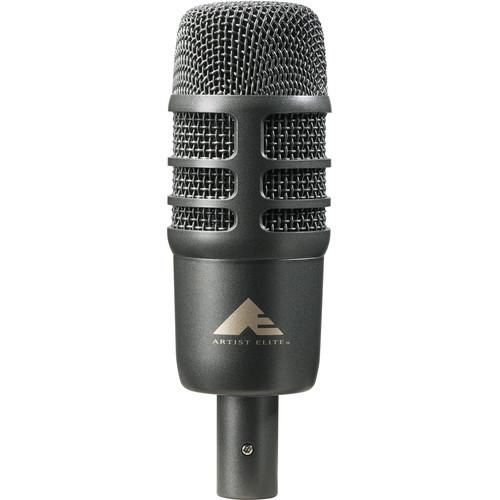

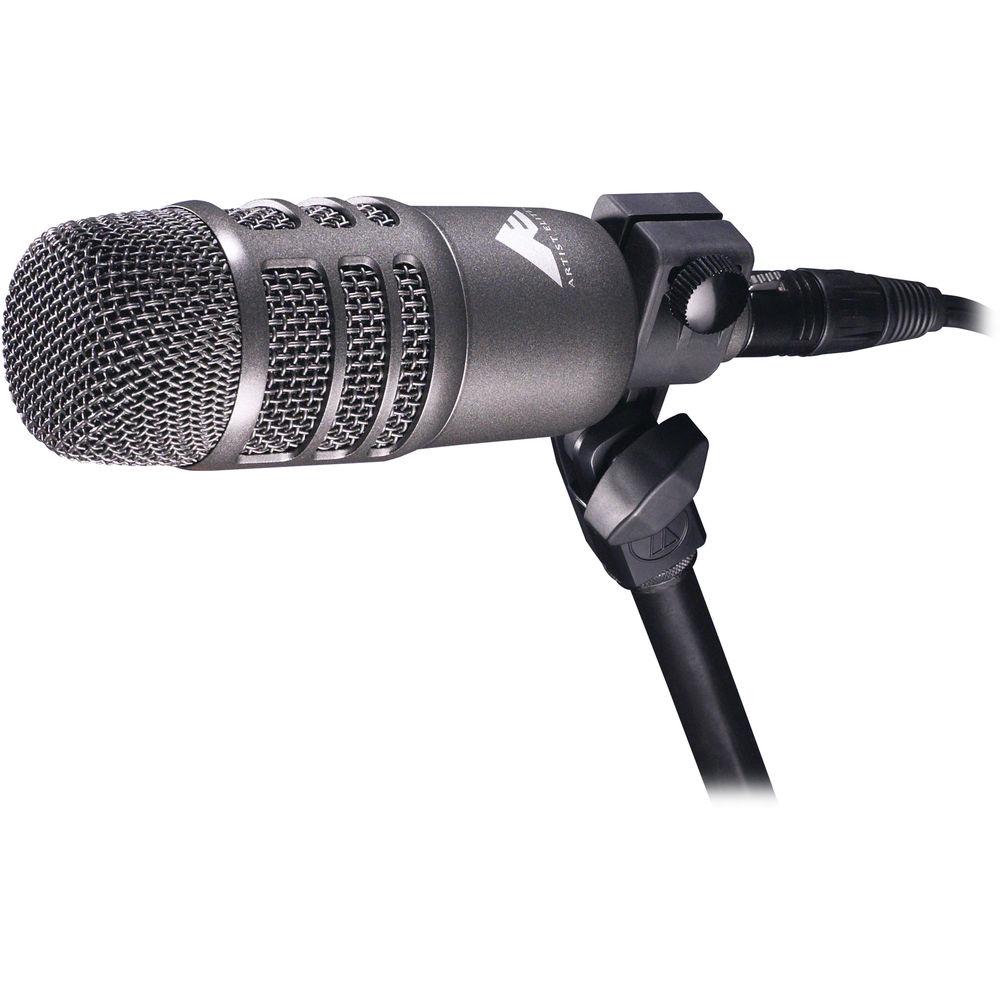

Product description The Audio-Technica AE-2500 is a cardioid kick drum microphone featuring a unique, revolutionary design. The AE-2500 features both, a condenser and dynamic element within the capsule. The dynamic element accurately reproduces signals rich in transient response, so the result is accurate, rich reproduction of sharp attacks without noise and distortion. The condenser element is in place to deliver the warm tonal, resonant response of the drum's shell. Together both elements deliver an accurate, warm kick drum signal without noise, coloration and distortion.The AE-2500 also provides a low-frequency roll-off switch. Frequencies below 80Hz can be eliminated to reduce noise and improve intelligibility. The cardioid polar pattern is effective in minimizing noise and ambiance at the off-axis sections of the microphone. A 10dB Pad switch increases head room allowing louder, transient rich signals to be reproduced without distortion. The output connection is a 5-pin XLR male and a 16.5-foot (5m), 5-pin XLR female to dual XLR 3-pin male cable is provided. The dual cable design allows users to obtain individual control over each element using two channels on a separate audio mixer or dual preamplifiers. - Dual Element Design

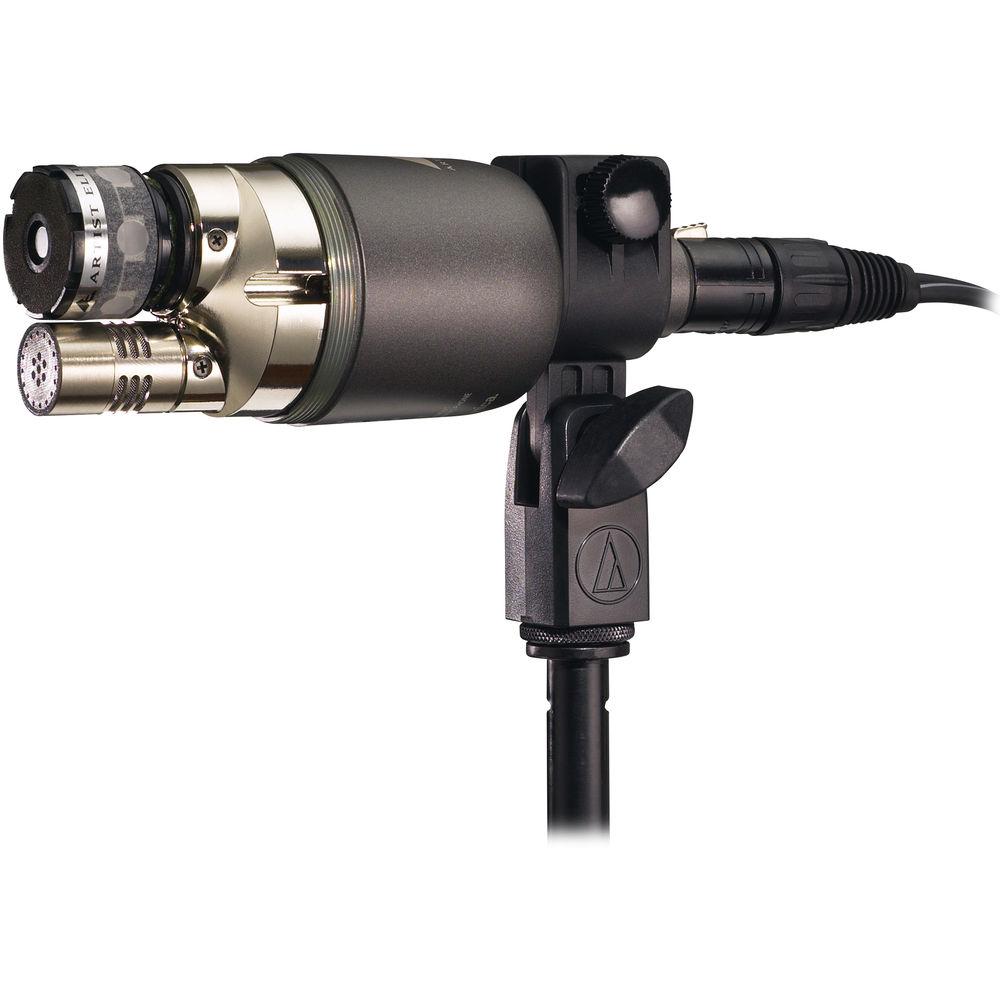

- The AE-2500 features a capsule with a dynamic and condenser element in place. The dynamic element accurately captures the drum's attack, while the condenser reproduces rich warm tones.
- High Pass Filter
- The microphones High Pass Filter switch eliminates frequencies below 80Hz. This eliminates structure born noise and other noise registered at low frequencies.
- 10dB Pad Switch
- A 10dB Pad switch increases headroom and allows the AE-2500 to better handle transient response while capturing excessively loud signals.
- 5-pin XLR Output
- The microphone features a 5-pin male XLR output. A 5-pin female XLR to dual 3-pin male XLR cable is provided and allows individual control over each element.

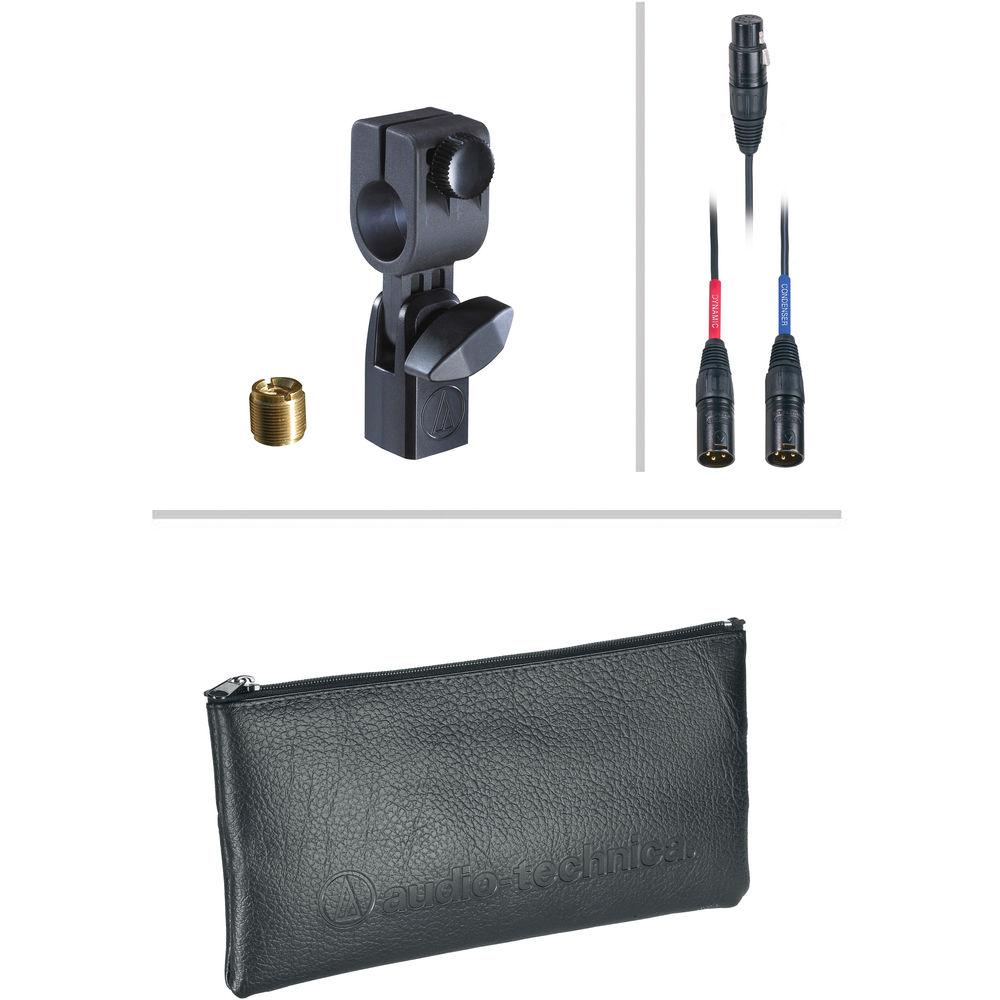

UPC: 042005128983 In the Box Audio-Technica AE-2500 - Dual Element Cardioid Kick Drum Microphone 16.5' (5 m) Cable AT8471 Isolation Clamp 3/8"-16 Threaded Adapter Protective Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AE-2500 - Dual Element Cardioid Kick Drum Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AE2500 Specs | Transducer | Dual Element - Dynamic / Condenser | | Polar Pattern | Cardioid | | Frequency Response | Condenser: 20Hz - 17kHz
Dynamic: 30Hz - 10kHz | | Dynamic Range (Typical) | 124dB, 1kHz @ Max SPL (condenser) | | Signal-to-Noise Ratio | 70dB, 1 kHz at 1 Pa (condenser) | | Maximum Input Sound Level | 148dB SPL, 1 kHz at 1% T.H.D. (condenser) | | Power Requirements | 11-52V, 3 mA typical (condenser) | | Output Impedance | Condenser: 100 ohms
Dynamic: 600 ohms | | Output Connectors | 5-pin XLRM-type | | Pad | 10dB pad (condenser) | | Low Frequency Roll-Off | 80 Hz, 12 dB per octave (condenser) | | Dimensions | 6.50 x 2.17" (165 x 55mm) (Length x Diameter) | | Weight | 13.8 oz (390 g) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 9.5 x 5.0 x 2.9" |
