User Manual for Audio-Technica AE-3000 Large-Diaphragm Cardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AE-3000 Large-Diaphragm Cardioid Instrument Microphone
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AE-3000 Large-Diaphragm Cardioid Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

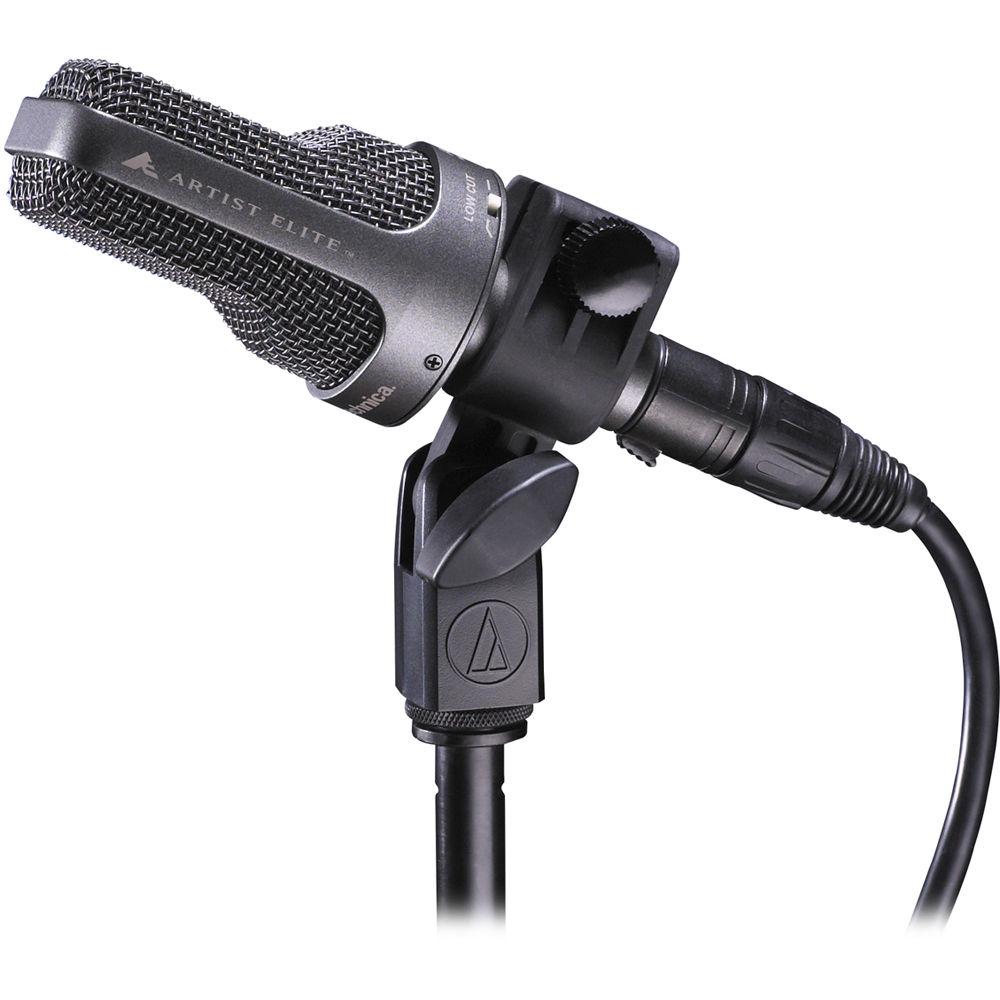

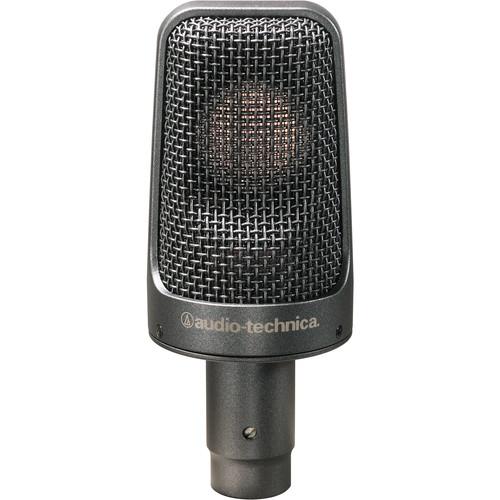

Product description The AE3000 Cardioid Condenser Instrument Microphone from Audio-Technica is a large-diaphragm side-address microphone designed for capturing instruments rich in transient response. Guitar cabinets, drums, and percussion signals are accurately reproduced without noise and distortion. The capsule features a cardioid polar pattern which effectively minimizes noise at the off-axis sections of the capsule, providing high gain-before-feedback response and minimal ambient noise. A high-pass filter switch eliminates noise below 80 Hz and a -10 dB pad increases headroom when capturing signals at close proximity or at high levels. The microphone is powered by an external 11 to 52V phantom power source. - Suitable for high-SPL applications
- The large-diaphragm capsule combines with the open architecture of the headcase to provide an accurate and open sound
- Low-profile side-address design with a tapered grille allows for optimal positioning of the element in conjunction with your sound source
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Durable design for dependability on the road
- Integral 80 Hz HPF switch and -10 dB pad

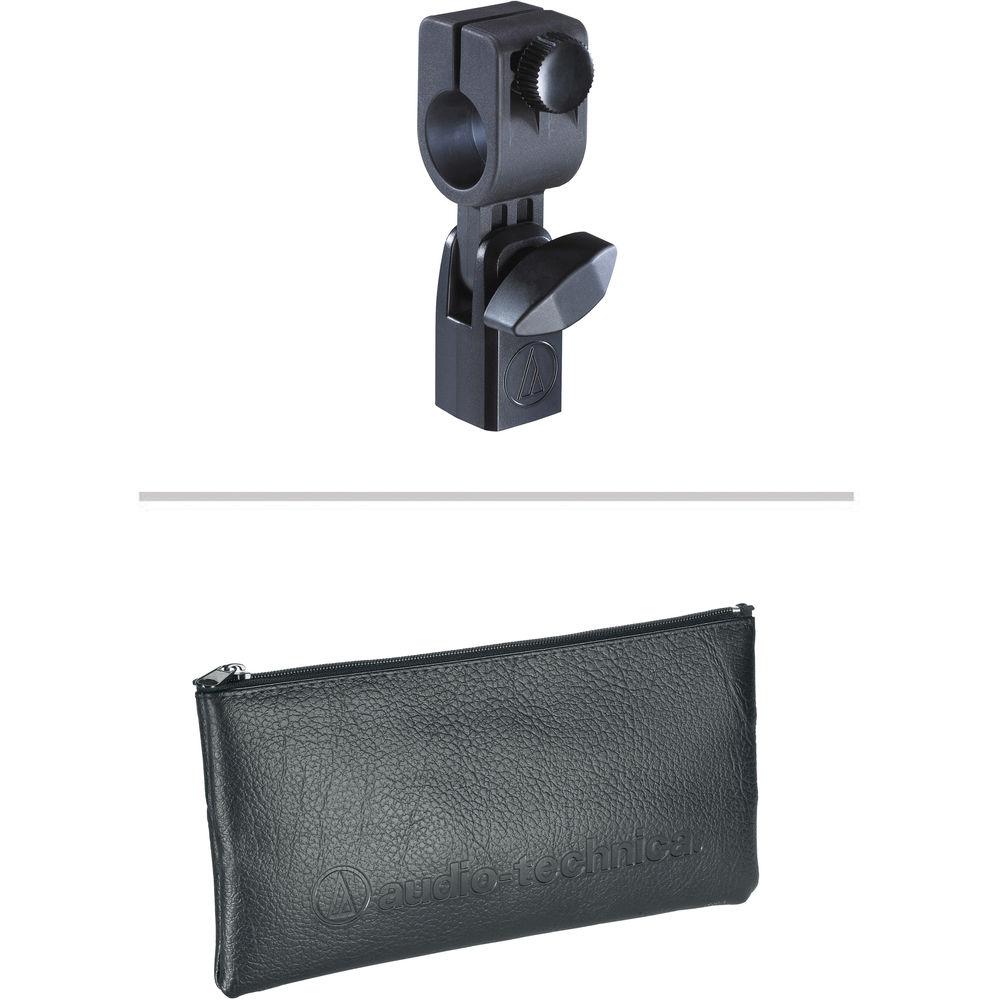

UPC: 042005128006 In the Box Audio-Technica AE-3000 Large-Diaphragm Cardioid Instrument Microphone AT8471 Isolation Clamp for 5/8"-27 Threaded Stands 5/8"-27 to 3/8"-16 Threaded Adapter Protective Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AE-3000 Large-Diaphragm Cardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AE-3000 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 83 dB | | Equivalent Noise Level | 11 dB | | Maximum SPL | 148 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | 7.0 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 137 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 µA | | Operating Voltage | 11 to 52 V | | Length | 4.55" / 115.5 mm | | Diameter | 1.89" / 48.0 mm | | Weight | 6.0 oz / 170 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.5 x 5.0 x 2.9" |
