Product description

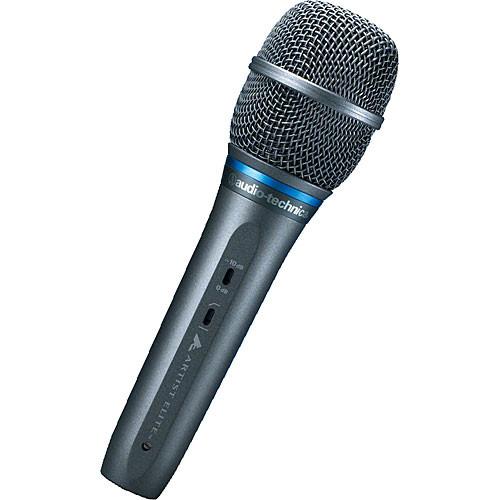

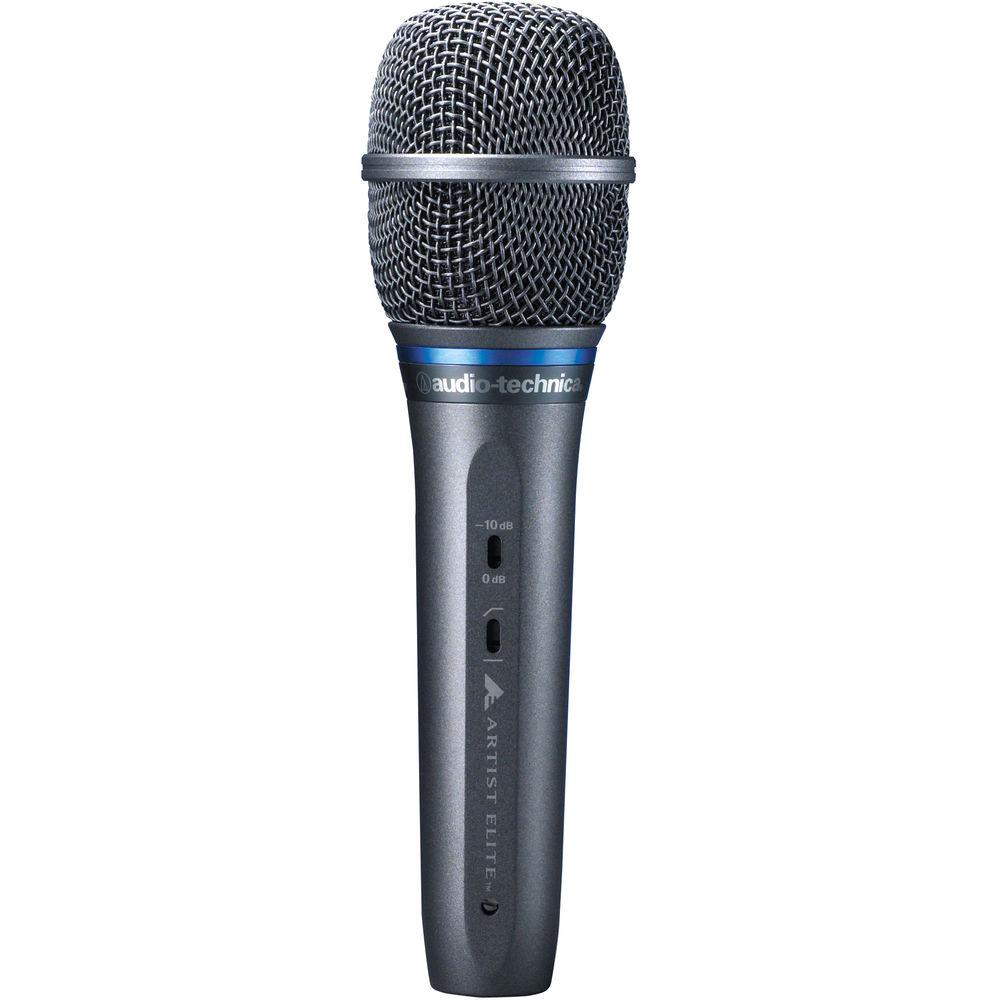

The Audio-Technica AE3300 is a professional condenser handheld microphone designed to provide the level of audio quality necessary for the most demanding applications. The AE3300 is primarily intended for capturing vocals although it's wide, linear frequency response and low noise floor enable the microphone to accurately capture instruments as well. The rugged capsule houses the same element found in the famed AT4033 microphone.The element features a cardioid polar pattern which rejects off-axis signal and noise caused by room ambiance, adjacent instruments and monitor speakers that cause feed back. The durable grille and anti-shock engineering ensures maximum protection against noise and damage caused by handling and shock. The grille also provides multiple stages of protection against noise caused by plosives. The rugged design and exceptional audio quality allows the AE3300 to perform well in professional sound reinforcement, ENG/EFP applications and professional recording.
    Cardioid Polar Pattern
  • The well-tempered cardioid polar pattern provides exceptional rejection of off-axis audio signal and noise.
    Wide Frequency Response
  • The wide 30Hz to 18kHz linear frequency response provides an accurate pick up response for vocals and instruments.
    High Pass Filter
  • The high pass filter switch eliminates hum and noise below 80Hz.
    Pad Switch
  • The Pad switch provides an additional 10dB of headroom and reduces noise caused by distortion and signal overload.
    Multi-Stage Grille
  • The rugged grille provides multiple layers of protection against damage and noise caused by plosives.

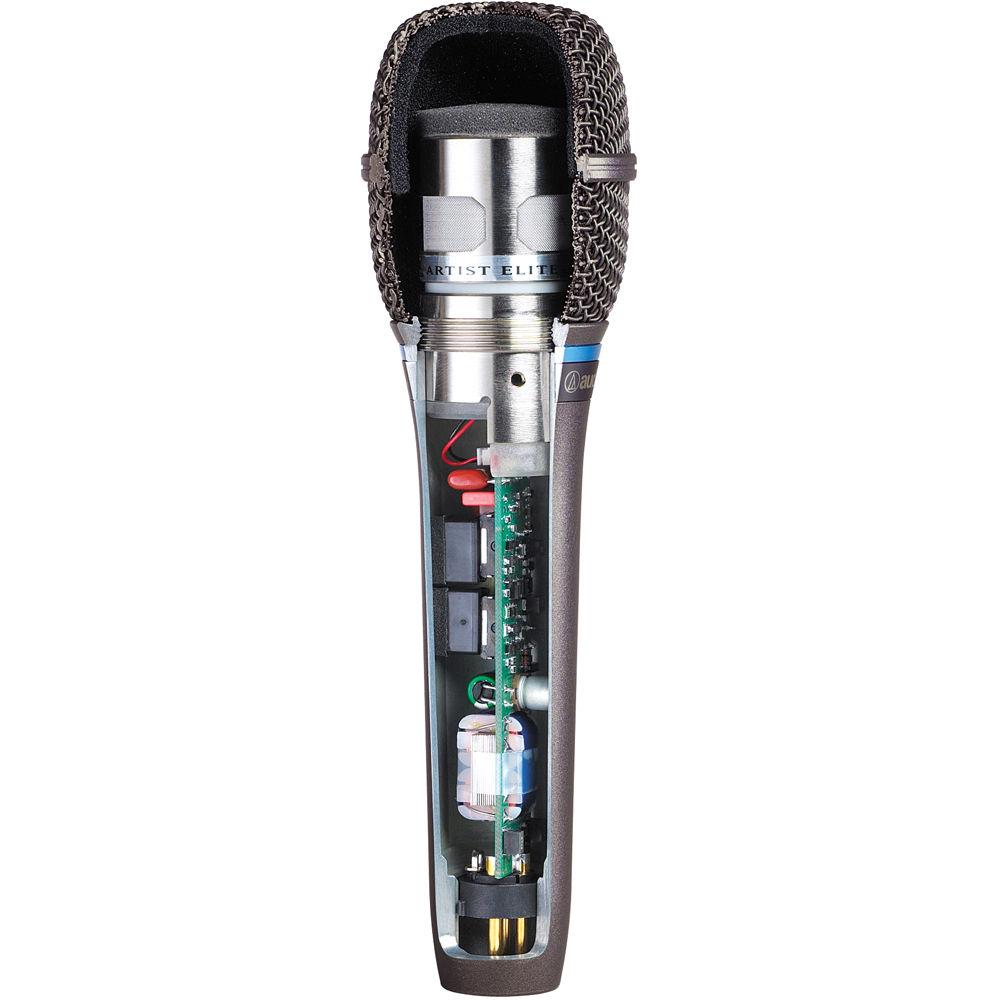

    Anti-Shock Engineering
  • An integral anti-shock system protects the element against handling noise.

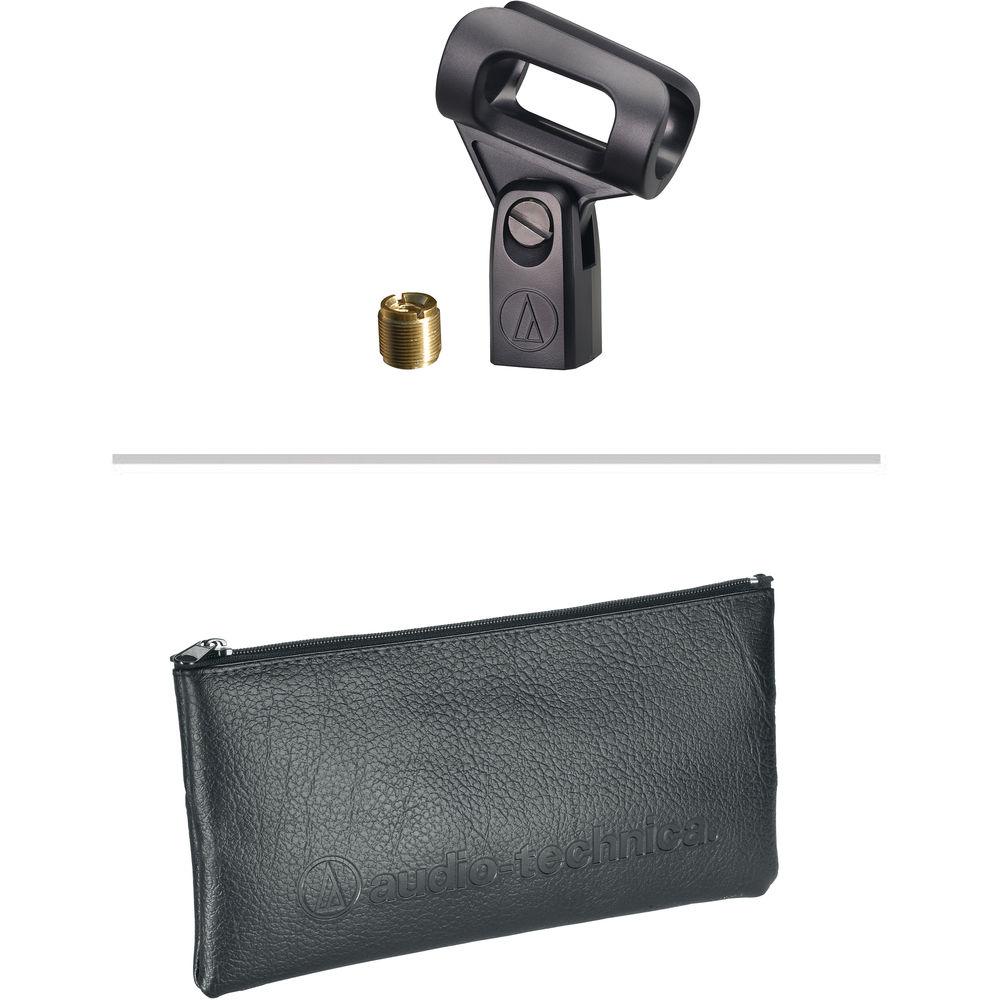

UPC: 042005125142 In the Box Audio-Technica AE-3300 Cardioid Condenser Handheld Microphone

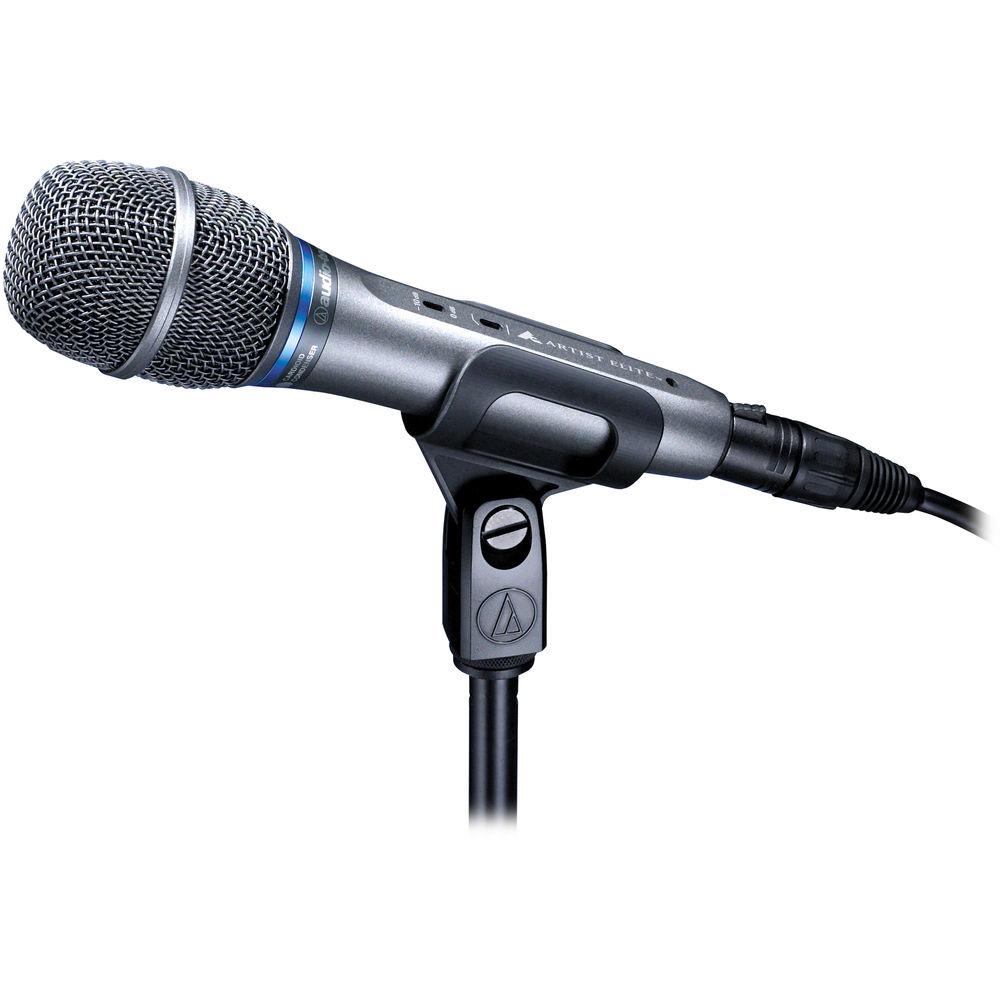

  • AT8470 5/8"-27 Thread Quiet-Flex stand clamp
  • 5/8"-27 Thread to 3/8"-16 Threaded Adapter
  • Soft Protection Pouch
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Audio-Technica AE-3300 Cardioid Condenser Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Audio-Technica AE3300 Specs

    Transducer Fixed-charge back plate permanently polarized condenser
    Polar Pattern Cardioid
    Frequency Response 30Hz to 18kHz
    Dynamic Range (Typical) 128dB, 1kHz @ Max SPL
    Signal-to-Noise Ratio 75 dB, 1 kHz @ Max SPL
    Maximum Input Sound Level 147dB SPL, 1kHz @ 1% T.H.D.;
    157dB SPL, with 10dB
    Pad (nominal)
    Power Requirements 11-52V DC, 2 mA typical
    Output Impedance 150 ohms
    Output Connectors Integral 3-pin XLR M-type
    Pad 10dB Pad Switch
    Low Frequency Roll-Off 80Hz High Pass Filter Switch
    Dimensions 7.05 x 1.97 x .87" (179 x 50 x 22.0mm)
    (Length x Head Diameter x Tapered Body Diameter)
    Weight 10.6 oz (300 g)
    Package Weight 1.4 lb
    Box Dimensions (LxWxH) 9.5 x 5.0 x 2.9"
